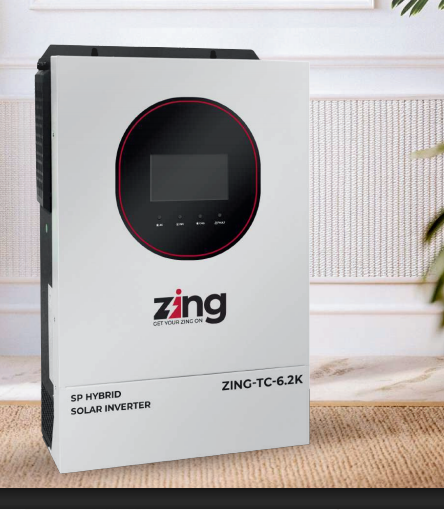

ZING TC 6.2KW SP Hybrid Solar Inverter: The Ultimate Guide

Overview

The ZING TC 6.2KW SP Hybrid Solar Inverter is a powerful, high-capacity 6.2-kilowatt hybrid inverter engineered for residential and commercial solar energy systems requiring substantial power output. This advanced inverter combines robust solar charging capabilities, intelligent battery management, and seamless grid interaction in a single, efficient unit, making it the ideal choice for larger homes, small businesses, and energy-conscious consumers seeking energy independence and significant electricity savings .

With its impressive 6200W output capacity and sophisticated hybrid functionality, the ZING TC 6.2KW SP expertly manages power from solar panels, battery banks, and the utility grid. It prioritizes solar energy usage, efficiently stores excess power in batteries, and automatically switches to battery or grid power when needed, ensuring uninterrupted power supply for your essential and non-essential loads .

Key Features at a Glance

• 6.2kW Pure Sine Wave Output: Delivers stable, clean, and reliable 6200W continuous power for larger households, heavy appliances, air conditioners, pumps, and commercial equipment .

• Hybrid Solar Operation: Intelligently manages power from solar panels, batteries, and grid to maximize solar usage and minimize electricity costs through multiple operating modes .

• High-Efficiency MPPT Solar Charger: Built-in advanced Maximum Power Point Tracking (MPPT) charge controller with high efficiency extracts maximum power from solar panels for fastest possible battery charging .

• Wide PV Input Range: Accepts solar panel configurations with input voltage up to 500VDC, providing exceptional flexibility in system design and allowing longer PV strings .

• High Charge Current: Supports up to 100A combined solar and utility charging current for rapid battery charging .

• Grid-Tie & Off-Grid Capability: Can operate in both grid-tied (with battery backup) and off-grid modes for versatile applications .

• UPS Functionality: Seamless transfer between grid and battery power in less than 10ms, ensuring continuous power for sensitive electronic equipment .

• User-Friendly LCD Display: Large backlit LCD screen shows real-time system status, power flow, battery condition, and programmable settings .

• Multiple Battery Compatibility: Works with lead-acid (flooded, AGM, gel) and lithium batteries with programmable charge parameters for optimal performance .

• Parallel Operation Support: Multiple units can be paralleled for higher power requirements up to three-phase configurations .

• Remote Monitoring Ready: Optional communication interfaces (Wi-Fi, GPRS) for remote monitoring via smartphone app or web platform .

• Comprehensive Protections: Built-in protection against overcharge, over-discharge, overload, short circuit, over-temperature, reverse polarity, and anti-islanding .

• Quiet Operation: Intelligent temperature-controlled fan for quiet, efficient operation .

• Time-of-Use Scheduling: Programmable charge/discharge times to optimize energy usage based on utility rate structures .

Technical Specifications

Applications

The ZING TC 6.2KW SP Hybrid Solar Inverter is ideally suited for:

🏠 Large Residential Solar Systems

• Larger homes with higher energy consumption

• Whole-home solar power systems with battery backup

• Running heavy appliances: air conditioners, washing machines, ovens

• Reducing electricity bills through maximum solar self-consumption

• Backup power during extended grid outages

🏪 Small to Medium Commercial Applications

• Small businesses and retail stores

• Offices and workspaces

• Restaurants and cafes

• Schools and community centers

• Workshops and light industrial applications

🏡 Off-Grid Homes & Compounds

• Complete off-grid solar power systems

• Remote homes and vacation properties

• Rural electrification projects

• Farms and agricultural operations

🔋 Large Battery Backup Systems

• UPS for essential home and business loads

• Backup for refrigeration, lighting, and security systems

• Server and network equipment protection

☀️ Solar Self-Consumption & Time-of-Use

• Maximize solar energy usage during peak rate periods

• Store excess solar power for nighttime use

• Reduce dependence on grid electricity

How Hybrid Inverters Work

The ZING TC 6.2KW SP operates in multiple intelligent modes to optimize your solar energy system:

Solar Priority Mode:

1. Solar panels generate DC power

2. Inverter converts solar power to AC for loads

3. Excess solar power charges batteries

4. When batteries are full, excess can feed to grid (where permitted)

Battery Priority Mode:

1. Batteries power loads when solar is insufficient

2. Grid charges batteries when needed (programmable)

3. Seamless transfer between power sources

Grid-Tie Mode (with battery backup):

1. Solar powers loads and charges batteries

2. Excess solar can be exported to grid

3. Grid powers loads when solar/battery insufficient

4. Automatic battery backup during grid outages

Time-of-Use Scheduling:

1. Program charge/discharge times based on utility rates

2. Charge batteries during off-peak low-cost periods

3. Discharge batteries during peak high-cost periods

4. Maximize savings through intelligent energy management

Why Choose the ZING TC 6.2KW SP Hybrid Solar Inverter?

System Components

A complete ZING TC 6.2KW SP solar system typically includes:

• ZING TC 6.2KW SP Hybrid Inverter (main unit)

• Solar Panels: Array sized to match inverter capacity (up to 8000W)

• Battery Bank: 48V battery bank (lithium or lead-acid)

• Optional Wi-Fi/GPRS Module: For remote monitoring

• AC Breakers: For input and output protection

• DC Breakers: For solar and battery protection

• Battery Cables: Properly sized for 100A+ currents

• PV Connectors: MC4 or compatible connectors

Battery Compatibility

The ZING TC 6.2KW SP works with various battery types:

Lead-Acid Batteries:

• Flooded (wet cell)

• AGM (Absorbent Glass Mat)

• Gel

• Programmable charge parameters for optimal charging (absorption, float, equalization)

Lithium Batteries:

• LiFePO₄ (Lithium Iron Phosphate)

• Communication via CAN/RS485 for advanced BMS integration

• Programmable charge/discharge parameters

• Automatic BMS communication with compatible batteries

Monitoring and Control

Stay informed about your solar system with:

• LCD Display: Real-time system status, power flow diagrams, and battery condition on the inverter

• LED Indicators: Quick visual status of operation modes and system health

• Optional Wi-Fi Module: Remote monitoring via smartphone app for iOS and Android

• Optional GPRS Module: Remote monitoring in areas without Wi-Fi

• PC Software: Advanced monitoring, data logging, and system configuration

• Email/SMS Alerts: Optional notifications for system events

Safety Features

The ZING TC 6.2KW SP incorporates comprehensive protection:

• Overcharge Protection: Prevents battery damage from overcharging

• Over-discharge Protection: Preserves battery life and prevents deep discharge

• Overload Protection: Shuts down safely when loads exceed capacity

• Short Circuit Protection: Instant shutdown on short circuit

• Over-temperature Protection: Reduces power or shuts down if overheating

• Reverse Polarity Protection: Protects inverter from battery connection errors

• AC Input Protection: Against grid voltage/frequency anomalies

• Anti-Islanding Protection: Prevents grid feed during outages (grid-tie mode)

• Ground Fault Protection: Detects and protects against ground faults

• Surge Protection: Built-in surge protection for added safety

Installation Considerations

Professional installation recommended:

• Location: Indoor, protected from direct sunlight, rain, and moisture

• Ventilation: Adequate space around inverter for cooling (minimum clearance)

• Mounting: Secure wall mounting on suitable surface capable of supporting weight

• Wiring: Properly sized cables for all connections (solar, battery, AC)

• Breakers: Appropriate DC and AC breakers for protection

• Grounding: Proper system grounding as per local electrical codes

• Battery Placement: Batteries in well-ventilated area, protected from extreme temperatures

      DOWNLOAD DATA SHEET
