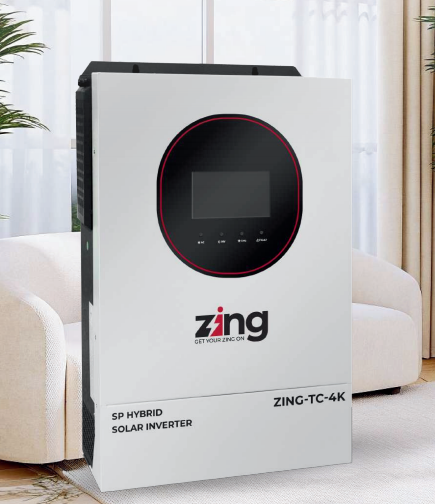

ZING TC 4KW SP Hybrid Solar Inverter: The Ultimate Guide

Overview

The ZING TC 4KW SP Hybrid Solar Inverter is a cutting-edge, 4-kilowatt hybrid inverter engineered for residential and light commercial solar energy systems. This advanced inverter combines solar charging, battery management, and grid interaction in a single, efficient unit, making it the ideal choice for homeowners seeking energy independence and reduced electricity bills .

With its powerful 4000W output capacity and hybrid functionality, the ZING TC 4KW SP seamlessly manages power from solar panels, battery banks, and the utility grid. It prioritizes solar energy usage, stores excess power in batteries, and automatically switches to battery or grid power when needed, ensuring uninterrupted power supply for your essential loads .

Key Features at a Glance

• 4kW Pure Sine Wave Output: Delivers stable, clean, and reliable 4000W continuous power for household appliances, lighting, and electronics .

• Hybrid Solar Operation: Intelligently manages power from solar panels, batteries, and grid to maximize solar usage and minimize electricity costs .

• MPPT Solar Charger: Built-in Maximum Power Point Tracking (MPPT) charge controller extracts maximum power from solar panels for fastest possible charging .

• Wide PV Input Range: Accepts solar panel configurations with input voltage up to 450VDC, providing flexibility in system design .

• High Charge Current: Supports up to 80A solar charging current for rapid battery charging .

• Grid-Tie & Off-Grid Capability: Can operate in both grid-tied (with battery backup) and off-grid modes for versatile applications .

• UPS Functionality: Seamless transfer between grid and battery power in less than 10ms, ensuring continuous power for sensitive loads .

• User-Friendly LCD Display: Large backlit LCD screen shows real-time system status, power flow, and battery condition .

• Multiple Battery Compatibility: Works with lead-acid (flooded, AGM, gel) and lithium batteries with programmable charge parameters .

• Parallel Operation Support: Multiple units can be paralleled for higher power requirements (check specific model capabilities) .

• Remote Monitoring Ready: Optional communication interfaces (Wi-Fi, GPRS, RS485) for remote monitoring via smartphone app or web platform .

• Comprehensive Protections: Built-in protection against overcharge, over-discharge, overload, short circuit, over-temperature, and reverse polarity .

• Quiet Operation: Fan-cooled design with intelligent temperature control for quiet, efficient operation .

Technical Specifications

Applications

The ZING TC 4KW SP Hybrid Solar Inverter is ideally suited for:

🏠 Residential Solar Systems

• Home solar power systems with battery backup

• Reducing electricity bills through solar self-consumption

• Backup power during grid outages

• Time-of-use optimization

🏡 Off-Grid Homes & Cabins

• Complete off-grid solar power systems

• Remote homes and vacation properties

• Rural electrification projects

🏪 Small Commercial Applications

• Small shops and retail stores

• Offices and workspaces

• Restaurants and cafes

• Schools and community centers

🔋 Battery Backup Systems

• UPS for essential home loads

• Backup for refrigeration and lighting

• Security system power backup

☀️ Solar Self-Consumption

• Maximize solar energy usage

• Reduce grid electricity consumption

• Store excess solar power for nighttime use

How Hybrid Inverters Work

The ZING TC 4KW SP operates in multiple modes to optimize your solar energy system:

Solar Priority Mode:

1. Solar panels generate DC power

2. Inverter converts solar power to AC for loads

3. Excess solar power charges batteries

4. When batteries are full, excess can feed to grid (where permitted)

Battery Priority Mode:

1. Batteries power loads when solar is insufficient

2. Grid charges batteries when needed (programmable)

3. Seamless transfer between power sources

Grid-Tie Mode (with battery backup):

1. Solar powers loads and charges batteries

2. Excess solar can be exported to grid

3. Grid powers loads when solar/battery insufficient

4. Automatic battery backup during grid outages

Why Choose the ZING TC 4KW SP Hybrid Solar Inverter?

System Components

A complete ZING TC 4KW SP solar system typically includes:

• ZING TC 4KW SP Hybrid Inverter (main unit)

• Solar Panels: Array sized to match inverter capacity (up to 5000W)

• Battery Bank: 48V battery bank (lithium or lead-acid)

• Optional Wi-Fi Module: For remote monitoring

• AC Breakers: For input and output protection

• DC Breakers: For solar and battery protection

• Wiring and Connectors: Properly sized for system requirements

Battery Compatibility

The ZING TC 4KW SP works with various battery types:

Lead-Acid Batteries:

• Flooded (wet cell)

• AGM (Absorbent Glass Mat)

• Gel

• Programmable charge parameters for optimal charging

Lithium Batteries:

• LiFePO₄ (Lithium Iron Phosphate)

• Communication via CAN/RS485 for advanced BMS integration

• Programmable charge/discharge parameters

Monitoring and Control

Stay informed about your solar system with:

• LCD Display: Real-time system status on the inverter

• LED Indicators: Quick visual status of operation modes

• Optional Wi-Fi Module: Remote monitoring via smartphone app

• Optional GPRS Module: Remote monitoring in areas without Wi-Fi

• PC Software: Advanced monitoring and configuration (where supported)

Safety Features

The ZING TC 4KW SP incorporates comprehensive protection:

• Overcharge Protection: Prevents battery damage from overcharging

• Over-discharge Protection: Preserves battery life

• Overload Protection: Shuts down safely when loads exceed capacity

• Short Circuit Protection: Instant shutdown on short circuit

• Over-temperature Protection: Reduces power or shuts down if overheating

• Reverse Polarity Protection: Protects inverter from battery connection errors

• AC Input Protection: Against grid voltage/frequency anomalies

• Ground Fault Protection: Detects and protects against ground faults

Installation Considerations

Professional installation recommended:

• Location: Indoor, protected from direct sunlight and moisture

• Ventilation: Adequate space around inverter for cooling

• Mounting: Secure wall mounting on suitable surface

• Wiring: Properly sized cables for all connections

• Breakers: Appropriate DC and AC breakers for protection

• Grounding: Proper system grounding as per local codes

  DOWNLOAD DATA SHEET
