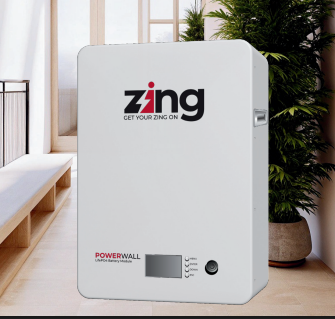

The ZING Battery Model 12Z-IN-G150 Wall Mounted is a premium, high-capacity lithium battery engineered for residential and commercial energy storage applications requiring extended runtime. This innovative wall-mounted design combines ZING's advanced lithium technology with a sleek, space-saving form factor, delivering 1.92 kWh of usable energy in an elegant package ideal for home installations.
With its enhanced 12.8V 150Ah configuration, this battery provides 50% more capacity than standard 100Ah models, making it perfect for larger home solar systems, extended inverter backup, residential UPS applications, and serious DIY energy projects. The wall-mountable design saves valuable floor space while delivering the reliability and performance of advanced lithium iron phosphate (LiFePO₄) technology.
Enhanced 150Ah Capacity: Provides 1.92 kWh of usable energy—50% more than standard 100Ah models—for extended runtime in residential and light commercial applications .
Space-Saving Wall Mount Design: Elegant, compact form factor designed for easy installation on walls, saving valuable floor space in homes, garages, utility rooms, and commercial spaces .
12.8V Nominal Voltage: Standard 12V configuration compatible with a wide range of inverters, solar charge controllers, and battery chargers .
Advanced Lithium Iron Phosphate (LiFePO₄) Technology: Utilizes the safest and most stable lithium chemistry available, offering superior thermal stability, exceptional cycle life, and environmental friendliness .
Exceptional 5000+ Cycle Life: Engineered for 5000+ deep discharge cycles at 80% depth of discharge, delivering 10+ years of reliable service .
Built-In Intelligent BMS: Advanced Battery Management System with comprehensive protection against overcharge, over-discharge, overcurrent, short circuit, high/low temperature, and cell imbalance .
Plug-and-Play Installation: Designed for easy integration with residential solar systems, inverters, and chargers—minimal configuration required .
Zero Maintenance: No water topping, no acid leaks, no regular maintenance required—truly fit-and-forget operation .
Lightweight & Compact: Significantly lighter than equivalent lead-acid batteries, making wall mounting simple and secure .
Scalable Design: Multiple batteries can be connected in parallel for larger capacity systems up to multiple kilowatt-hours .
Quiet Operation: No noise, no fumes, no moving parts—perfect for indoor installation .
Environmentally Friendly: Clean energy technology with no heavy metals or toxic materials, fully recyclable .
| Specification | Detail |
|---|---|
| Model Number | 12Z-IN-G150 Wall Mounted |
| Brand | ZING Battery |
| Mounting Type | Wall Mountable |
| Nominal Voltage | 12.8V |
| Capacity | 150Ah |
| Energy Capacity | 1.92 kWh |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Cycle Life | 5000+ cycles @ 80% DoD |
| Design Life | 10+ years typical |
| Built-in BMS | Yes (Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature, Cell Balancing) |
| Charge Voltage | 14.4V ±0.2V |
| Discharge Cut-off | 10.8V ±0.2V |
| Max Continuous Charge Current | 75A |
| Max Continuous Discharge Current | 150A |
| Peak Discharge Current | 200A (for 3-5 seconds) |
| Operating Temperature (Charge) | 0°C ~ 55°C |
| Operating Temperature (Discharge) | -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 35°C |
| Enclosure Material | Fire-retardant ABS / Metal (depending on variant) |
| Terminal Type | Heavy-duty easy-connect terminals |
| Protection Class | IP54 (dust and splash resistant) |
| Maintenance | Zero maintenance |
| Certifications | CE, RoHS, UN38.3 (transport certified) |
| Installation | Wall mounted (mounting brackets included) |
The ZING Battery Model 12Z-IN-G150 Wall Mounted is ideally suited for:
Home solar systems requiring extended backup time
Larger off-grid solar installations
Solar self-consumption optimization
Energy storage for time-of-use rate management
Inverter backup for essential home loads
Whole-home lighting and security systems
Refrigeration and freezer protection
Medical device backup power
Home office and computer systems
Small business backup power
Retail point-of-sale systems
Security and surveillance systems
Emergency lighting for commercial spaces
Larger off-grid cabins and vacation homes
RV and camper van conversions
Marine and boat applications
Tiny home power systems
Workshop and tool power
Remote sensor and monitoring stations
Telecom equipment backup
Weather stations
Traffic monitoring systems
The 150Ah configuration provides a significant upgrade over standard 100Ah batteries, delivering:
50% More Runtime: Keep your critical loads running longer during outages
Fewer Parallel Connections: Higher capacity reduces the number of parallel batteries needed
Simpler Installation: Less wiring, fewer connections, lower complexity
Better Value: More capacity per installation dollar compared to multiple smaller batteries
| Parameter | ZING 12Z-IN-G150 Lithium | Lead-Acid Battery (150Ah) |
|---|---|---|
| Usable Capacity | 90-100% (1.92 kWh usable) | 50% (0.96 kWh usable from 150Ah) |
| Cycle Life | 5000+ cycles (10+ years) | 300-500 cycles (2-3 years) |
| Weight | Lightweight (easy wall mount) | Heavy (80-100+ lbs) |
| Maintenance | Zero | Regular watering, cleaning required |
| Installation | Wall mountable (space-saving) | Floor standing only |
| Depth of Discharge | 80-100% recommended | 50% max recommended |
| Total Cost of Ownership | Lowest | High (frequent replacement) |
1.92 kWh Usable Energy: 50% more capacity than standard 100Ah models
Double the Usable Power: Access 100% of rated capacity vs. only 50% with lead-acid
10+ Year Design Life: Replace your batteries once every decade instead of every 2-3 years
70% Lighter: Easy to install and secure on walls
Zero Maintenance: No watering, no cleaning, no acid spills
Safe for Indoor Use: No fumes, no venting required, no moving parts
Smart BMS: Automatic protection and cell balancing for maximum safety
IP54 Protection: Dust and splash resistant for versatile installation locations
The ZING 12Z-IN-G150 Wall Mounted comes complete with mounting brackets and hardware for secure wall installation. The compact, elegant design allows for installation in:
Utility rooms and basements
Garages and workshops
Server rooms and telecom closets
RV compartments and boat cabins
Tiny homes and off-grid structures
Commercial storage areas
Installation Requirements:
Solid wall capable of supporting the battery weight
Adequate ventilation (minimal required for lithium)
Access to compatible inverter/charger
Proper cable sizing for expected currents (up to 150A)
Compliance with local electrical codes
The ZING 12Z-IN-G150 Wall Mounted is compatible with:
Solar Charge Controllers: Works with MPPT and PWM controllers configured for lithium batteries (14.4V absorption)
Inverters: Compatible with most 12V inverters up to 2000W continuous
Battery Chargers: Requires lithium-compatible charger (14.4V absorption, 13.8V float)
UPS Systems: Can replace lead-acid batteries in compatible UPS units
DC-DC Chargers: Ideal for RV and marine charging from alternator
DIY Projects: Perfect for custom energy storage systems
