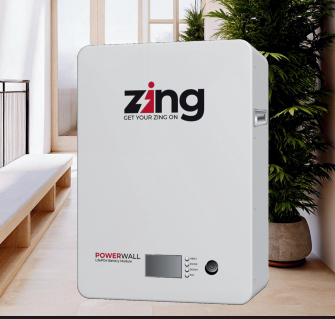

The ZING Battery Model 12Z-IN-G100 Wall Mounted is a premium, space-saving lithium battery engineered for residential and light commercial energy storage applications. This innovative wall-mounted design combines the proven performance of ZING's industrial lithium technology with a sleek, space-efficient form factor ideal for home installations.
With a 12.8V 100Ah configuration delivering 1.28 kWh of usable energy, this battery is perfect for home solar systems, small inverter backups, residential UPS applications, and DIY energy projects. The wall-mountable design saves valuable floor space while providing the reliability and performance of advanced lithium iron phosphate (LiFePO₄) technology.
Space-Saving Wall Mount Design: Elegant, compact form factor designed for easy installation on walls, saving valuable floor space in homes, garages, and utility rooms .
12.8V 100Ah Capacity: Provides 1.28 kWh of usable energy for residential energy storage, backup power, and small solar systems .
Advanced Lithium Iron Phosphate (LiFePO₄) Technology: Utilizes the safest and most stable lithium chemistry available, offering superior thermal stability, exceptional cycle life, and environmental friendliness .
Exceptional 4000+ Cycle Life: Engineered for 4000+ deep discharge cycles at 80% depth of discharge, delivering 8-10 years of reliable service .
Built-In Battery Management System (BMS): Integrated protection against overcharge, over-discharge, overcurrent, short circuit, and temperature extremes for maximum safety and longevity .
Plug-and-Play Installation: Designed for easy integration with residential solar systems, inverters, and chargers .
Zero Maintenance: No water topping, no acid leaks, no regular maintenance required .
Lightweight & Compact: Significantly lighter than equivalent lead-acid batteries, making wall mounting simple and secure .
Scalable Design: Multiple batteries can be connected in parallel for larger capacity systems .
Quiet Operation: No noise, no fumes, no moving parts—perfect for indoor installation .
Environmentally Friendly: Clean energy technology with no heavy metals or toxic materials .
| Specification | Detail |
|---|---|
| Model Number | 12Z-IN-G100 Wall Mounted |
| Brand | ZING Battery |
| Mounting Type | Wall Mountable |
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Energy Capacity | 1.28 kWh |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Cycle Life | 4000+ cycles @ 80% DoD |
| Design Life | 8-10 years typical |
| Built-in BMS | Yes (Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature Protection) |
| Charge Voltage | 14.4V ±0.2V |
| Discharge Cut-off | 10.8V ±0.2V |
| Max Continuous Charge Current | 50A |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 150A (for 3-5 seconds) |
| Operating Temperature (Charge) | 0°C ~ 55°C |
| Operating Temperature (Discharge) | -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 35°C |
| Enclosure Material | Fire-retardant ABS / Metal (depending on variant) |
| Terminal Type | Easy-connect terminals |
| Maintenance | Zero maintenance |
| Certifications | CE, RoHS, UN38.3 (transport certified) |
| Installation | Wall mounted (brackets included) |
The ZING Battery Model 12Z-IN-G100 Wall Mounted is ideally suited for:
Residential solar systems for self-consumption
Small off-grid solar installations
Solar backup during grid outages
Energy storage for time-of-use optimization
Inverter backup for essential home loads
Lighting and security system backup
Refrigeration and freezer protection
Medical device backup power
Home office and computer UPS
Security and surveillance systems
Emergency lighting systems
Garage door and gate backup
Small off-grid cabins and sheds
RV and camper van conversions
Boat and marine applications
Tiny home power systems
Remote sensor and monitoring stations
Small telecom equipment
Weather stations
Traffic monitoring systems
| Parameter | ZING 12Z-IN-G100 Lithium | Lead-Acid Battery |
|---|---|---|
| Usable Capacity | 90-100% (1.28 kWh usable) | 50% (0.6 kWh usable from 100Ah) |
| Cycle Life | 4000+ cycles (8-10 years) | 300-500 cycles (2-3 years) |
| Weight | Lightweight (easy wall mount) | Heavy (difficult to mount) |
| Maintenance | Zero | Regular watering required |
| Installation | Wall mountable (space-saving) | Floor standing only |
| Total Cost of Ownership | Lowest | High (frequent replacement) |
Wall Mount Design: Save valuable floor space with elegant wall-mounted installation
Double the Usable Power: Access 100% of rated capacity vs. only 50% with lead-acid
10× Longer Life: Replace your batteries once every 10 years instead of every 2-3 years
70% Lighter: Easy to install and secure on walls
Zero Maintenance: No watering, no cleaning, no acid spills
Safe for Indoor Use: No fumes, no venting required, no moving parts
Smart BMS: Automatic protection and cell balancing for maximum safety
The ZING 12Z-IN-G100 Wall Mounted comes complete with mounting brackets and hardware for secure wall installation. The compact design allows for installation in:
Utility rooms and basements
Garages and workshops
Server rooms and telecom closets
RV compartments and boat cabins
Tiny homes and off-grid structures
Installation Requirements:
Solid wall capable of supporting the battery weight
Adequate ventilation (minimal required for lithium)
Access to compatible inverter/charger
Proper cable sizing for expected currents
The ZING 12Z-IN-G100 Wall Mounted is compatible with:
Solar Charge Controllers: Works with MPPT and PWM controllers configured for lithium batteries
Inverters: Compatible with most 12V inverters (pure sine wave and modified sine wave)
Battery Chargers: Requires lithium-compatible charger (14.4V absorption, 13.8V float)
UPS Systems: Can replace lead-acid batteries in compatible UPS units
DIY Projects: Perfect for custom energy storage projects
