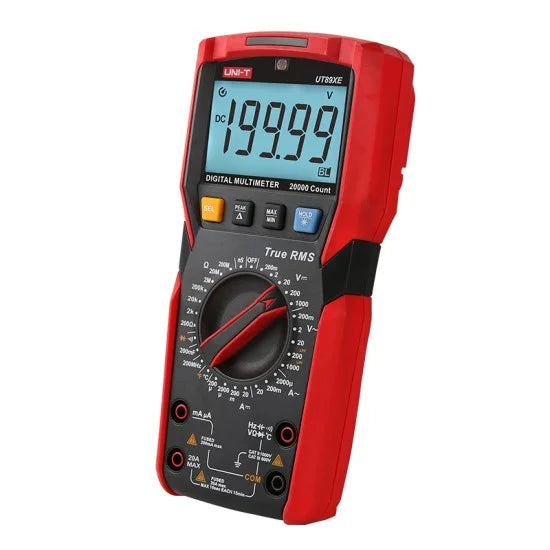

The UNI-T UT89XE is the flagship, high-precision model in the UT89X series, designed for professional engineers, technicians, and serious electronics enthusiasts who demand the highest level of accuracy and advanced diagnostic capabilities . This manual-ranging digital multimeter stands out with its remarkable 20000-count resolution and an expanded set of features, including a specialized conductance measurement function that allows for resistance testing up to an extraordinary 10GΩ .
Engineered for the most demanding applications, the UT89XE builds upon the robust foundation of the UT89X series with upgraded precision and functionality. It retains the rugged, user-friendly design of its siblings, including the dual-range NCV detection, flashlight, and auto backlight, while adding advanced capabilities like Low Pass Filter (LPF) for accurate measurements on variable frequency drives . With its industry-leading safety certifications (CAT II 1000V / CAT III 600V) and durable construction, the UT89XE is the ultimate tool for complex troubleshooting in industrial, commercial, and R&D environments .
Ultra-High 20000-Count True RMS Display: Exceptional resolution (4 ½ digits) for precise measurements, far surpassing standard 6000-count meters, and True RMS for accuracy with non-linear waveforms .
Conductance Measurement (200nS): A unique feature that expands resistance measurement capability to an astonishing 5Ω up to 10GΩ, allowing for insulation testing and measuring ultra-high resistance values typically requiring a specialized meter .
Wide Measurement Range: Measures DC/AC voltage up to 1000V, DC/AC current up to 20A, resistance up to 200MΩ, and capacitance up to 200mF .
Temperature Measurement: Includes a K-type thermocouple for readings from -40°C to 1000°C (-40°F to 1832°F) .
Frequency Measurement up to 60MHz: For advanced signal analysis in RF and telecommunications applications .
Low Pass Filter (LPF): Enables accurate AC voltage measurements on Variable Frequency Drives (VFDs) and motors by filtering out high-frequency noise .
Advanced Recording Functions: Includes Peak Hold, MAX/MIN, and Relative Value modes for capturing transient signals and tracking changes .
Dual-Range NCV & LIVE Detection: Safely identify live AC circuits without contact and accurately distinguish between neutral and live wires .
Capacitor Charging Indicator: Provides visual confirmation of the charging status of capacitors .
Robust Safety & Protection: Certified to CAT II 1000V / CAT III 600V and equipped with full-function mis-connection protection, capable of withstanding up to 1000V surges on all ranges .
Durable & User-Friendly: Rugged double-injection molding with 1m drop proof reliability, an integrated flashlight, and auto-backlight for dark environments .
The UNI-T UT89XE delivers ultra-high precision across an extensive range of electrical parameters.
| Item | Quantity |
|---|---|
| UNI-T UT89XE Digital Multimeter | 1x |
| Test Leads | 1 pair |
| K-Type Temperature Probe | 1x |
| 1.5V AAA Batteries | 4x |
| User Manual | 1x |
The UT89X series offers three distinct models, with the UT89XE positioned as the high-precision flagship:
The UT89XE's signature function. Set the rotary switch to the nS position .
This measures in nanosiemens, allowing you to infer ultra-high resistance values (5Ω to 10GΩ) that are beyond the reach of standard resistance ranges .
Application: Ideal for testing insulation resistance, high-value resistors, and detecting leakage current in cables and components.
Set the rotary switch to the appropriate V or A position.
With ±0.05% basic DCV accuracy, it's suitable for calibrating power supplies and performing detailed circuit analysis .
Over-voltage and over-current alarms with high-voltage misdetection protection ensure safety .
This function filters out high-frequency noise, allowing for accurate voltage and frequency measurements on Variable Frequency Drives (VFDs) and motor drives, where standard meters often give false readings .
Temperature: Connect the included K-type probe to measure from -40°C to 1000°C for HVAC and industrial applications .
Frequency: The 60MHz range is excellent for advanced RF and telecommunications signal analysis .
NCV: Use the dual-range NCV test to safely detect live AC voltage with varying sensitivity .
LIVE: Distinguish between live and neutral wires with a single probe .
Capacitor Charging: Watch the voltage rise and fall on the display as you test capacitors .
The UNI-T UT89XE is an ideal high-precision tool for:
High-accuracy component testing and matching in engineering labs.
Insulation resistance and leakage testing with the 10GΩ conductance function.
Troubleshooting complex VFDs and motor drive systems using LPF.
High-voltage measurements up to CAT II 1000V/CAT III 600V.
Analyzing power quality and signals with wide frequency response.
High-precision temperature measurement for system optimization.
In-depth capacitor testing for motor start/run applications.
Critical for precision circuit design, repair, and signal analysis up to 60MHz.
Ideal for demanding tasks where 0.05% accuracy is required.
High-precision battery and alternator testing.
Frequency analysis for wheel speed and position sensors.
The UT89XE is the ultimate choice for users who need the highest level of precision and advanced functionality.
The UNI-T UT89XE is the definitive choice for professionals who refuse to compromise on accuracy and diagnostic power. Its 20000-count precision, unique 10GΩ conductance measurement, and advanced features like LPF set it apart as the flagship model of the UT89X series . It is engineered for the most demanding tasks in industrial settings, research laboratories, and high-level electronics diagnostics, all while maintaining the rugged safety and reliability expected from UNI-T.
