UNI-T UT89XD 6000-Count True RMS Digital Multimeter: The Ultimate Guide

Overview

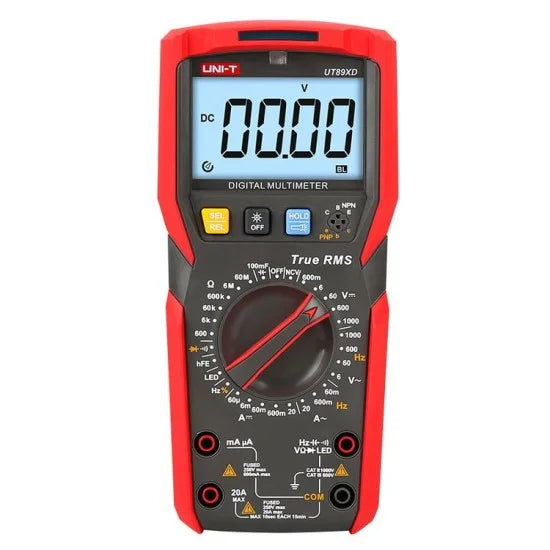

The UNI-T UT89XD is a professional-grade, 6000-count true RMS digital multimeter from the advanced UT89X series, designed for electricians, electronics engineers, HVAC technicians, and serious hobbyists who demand accuracy, reliability, and versatility . This feature-rich instrument combines high-precision measurement capabilities with innovative functions like LED testing, dual-range NCV detection, and a unique three-color visual alarm system that sets it apart from standard multimeters .

As the enhanced model in the UT89X series, the UT89XD builds upon the foundation of the UT89X by adding a dedicated LED test function (12V) and refined visual indicators, making it an indispensable tool for troubleshooting modern electronic components and electrical systems . Engineered with a rugged, double-injection molded casing and certified to CAT II 1000V / CAT IV 600V safety standards, it provides professional-grade protection while withstanding the rigors of daily use .

Key Features at a Glance

• 6000-Count True RMS Display: High-resolution backlit LCD with 61mm × 36mm screen for precise readings and excellent visibility in any lighting condition .

• LED Test Function: Exclusive to the XD model, this feature allows direct testing of LEDs with a 12V test voltage—ideal for quickly verifying LED functionality .

• Wide Measurement Range: Measures DC/AC voltage up to 1000V/750V, DC/AC current up to 20A, resistance up to 60MΩ, and capacitance up to 100mF .

• Temperature Measurement: Built-in K-type thermocouple support for readings from -40°C to 1000°C (-40°F to 1832°F) .

• Frequency & Duty Cycle: Measures frequency from 10Hz up to 10MHz and duty cycle from 0.1% to 99.9% for advanced signal analysis .

• Dual-Range NCV & LIVE Detection: Safely identify live AC circuits with two sensitivity levels and distinguish between neutral and live wires accurately .

• Three-Color Visual Alarm System: Unique LED indicators (red/yellow/green) provide clear visual feedback for continuity, diode, capacitance, and NCV testing—like having a whole team of professionals with you .

• Capacitor Charging Indicator: Visual indication of capacitor charging status—watch the rise and fall of voltages as you adjust charging time .

• Transistor (hFE) Testing: Dedicated socket for testing NPN/PNP transistor current gain .

• Comprehensive Testing: Includes diode test, continuity test with acoustic indication, and data hold.

• User-Friendly Design: Auto backlight and built-in flashlight for dark environments, tilt stand (45°), 15-minute auto power-off, and low battery indication .

• Rugged Construction: Double-injection molding with 1-meter drop protection ensures durability on job sites .

• High Safety Rating: Certified to CAT II 1000V / CAT IV 600V safety standards, compliant with CE and EN 61010 .

Detailed Specifications

The UNI-T UT89XD delivers professional-grade accuracy across an extensive range of electrical and environmental parameters .

Measurement Ranges & Accuracy

General & Mechanical Specifications

Special Functions

What's in the Box

Note: Some vendors may include two pairs of test leads, so it's advisable to check the listing before purchase .

UT89X Series Comparison: UT89X vs. UT89XD vs. UT89XE

The UT89X series offers three distinct models with specialized features, with the UT89XD positioned as the LED testing specialist :

Key Functions & Operation

1. LED Test (UT89XD Exclusive)

• Set the rotary switch to the LED position (12V test voltage) .

• Connect the test leads across the LED.

• Quickly verify LED functionality—essential for troubleshooting lighting systems, displays, and optoelectronic components .

2. Three-Color Visual Alarm System

• Unique red/yellow/green LED indicators provide clear visual feedback .

• Continuity/Diode/Capacitance/NCV tests are accompanied by intuitive color-coded alarms.

• "It's like having a whole team of professionals with you" .

3. Capacitor Charging Indicator

• Watch the rise and fall of voltages on the display as you adjust charging time .

• Perform comparative testing to compare one capacitor against another.

• Ideal for capacitor health assessment and matching.

4. Dual-Range NCV & LIVE Detection

• Set the rotary switch to the NCV position.

• Two sensitivity levels allow adaptation to different voltage environments .

• For LIVE wire detection, use the single-probe method to distinguish between neutral and live wires accurately .

5. Temperature Measurement

• Set the rotary switch to the temperature position.

• Connect the included K-type thermocouple to the meter.

• Measure temperature from -40°C to 1000°C for HVAC, appliance repair, and industrial applications .

6. DC/AC Voltage Measurement (Up to 1000V)

• Set the rotary switch to the V position.

• Connect test leads in parallel to the circuit under test.

• High input impedance (≥10MΩ) minimizes circuit loading effects.

7. DC/AC Current Measurement (Up to 20A)

• Set the rotary switch to the appropriate μA, mA, or A position.

• Connect test leads in series with the circuit under test.

• Fuse protection safeguards against overload.

8. Capacitance Measurement (Up to 100mF)

• Set the rotary switch to the capacitance position.

• Fully discharge capacitors before testing to avoid damage.

• Connect test leads in parallel with the capacitor.

• Measures up to 100mF for motor start capacitors and power supply filtering .

9. Frequency & Duty Cycle

• Set the rotary switch to the Hz/% position.

• Connect test leads to the signal source.

• Measure frequencies up to 10MHz and duty cycles from 0.1% to 99.9% .

10. Transistor (hFE) Test

• Set the rotary switch to the hFE position.

• Insert the transistor into the dedicated test socket.

• Read the transistor's DC current gain (β) directly from the display .

11. Resistance, Continuity & Diode Test

• Set the rotary switch to the **Ω/))) ** position.

• For resistance, connect test leads across the component (up to 60MΩ).

• For continuity, the buzzer sounds when resistance is low, confirming a complete circuit.

• For diode test, connect leads across the diode to measure forward voltage drop.

12. Flashlight & Auto Backlight

• Built-in flashlight illuminates dark work areas .

• Auto backlight activates automatically in dim environments .

• "Say goodbye to squinting at your readings and focus on getting your job done efficiently" .

13. Tilt Stand

• Built-in stand holds the meter at a 45-degree angle for comfortable benchtop viewing .

14. Auto Power Off

• Meter automatically shuts down after 15 minutes of inactivity to conserve battery life .

• Press any button to wake.

Safety Features

The UT89XD incorporates multiple advanced safety features to protect users :

• CAT II 1000V / CAT IV 600V Rating: Suitable for measurements on distribution circuits and permanently installed equipment—one of the highest safety ratings in its class.

• Double-Insulated Housing: Double injection molding with 1-meter drop protection withstands accidental falls .

• Overload Protection: Comprehensive protection on all measurement ranges.

• Input Impedance: ≥10MΩ minimizes circuit loading for accurate readings.

• Low Battery Indication: Prevents false readings due to insufficient power.

• Fuse Protection: 630mA and 20A fuses (5x20mm) protect current ranges .

Applications

The UNI-T UT89XD is an ideal all-in-one tool for:

⚡ Electricians & Electrical Installers

• LED testing for verifying lighting components and indicators .

• Dual-range NCV and LIVE detection for safe wiring identification .

• High-voltage measurements up to 1000V AC/DC for panel troubleshooting.

• Continuity testing for wiring and connections.

🔧 Electronics Engineers & Technicians

• LED test function for quick verification of optoelectronic components.

• Transistor hFE testing for component matching .

• Capacitance measurement up to 100mF for power supply filtering.

• Frequency analysis up to 10MHz for signal generators and oscillators.

• Diode and continuity testing for PCB troubleshooting.

🌡️ HVAC/R Technicians

• Temperature measurement with included thermocouple (-40°C to 1000°C) .

• Testing start/run capacitors up to 100mF.

• Troubleshooting furnaces, air conditioners, and refrigeration systems.

• NCV detection for safe live wire identification.

🚗 Automotive Diagnostics

• Testing battery voltage and alternator output.

• Measuring parasitic drain up to 20A.

• LED testing for vehicle lighting systems.

• Sensor testing with frequency and temperature functions.

🏠 DIY & Home Workshop

• General electrical troubleshooting.

• Appliance repair and maintenance.

• Battery testing and continuity checks.

• LED testing for household lighting.

Why Choose the UNI-T UT89XD?

Customer Reviews & Verdict

Users consistently praise the UT89XD for its excellent build quality, accuracy, and comprehensive feature set. Verified buyers describe it as a "solidly built" meter with "accurate readings" and a "good readable display" .

Positive Feedback

• Build Quality: "Прибор цел. Спасибо" (The device is intact. Thank you) — Verified buyer .

• Design: "Корпус из высококачественного чёрного пластика, красные резиновые вставки... очень нравится дизайн, увесистый, удобно лежит в руке" (Body made of high-quality black plastic, red rubber inserts... I really like the design, weighty, comfortable in the hand) — Vyacheslav K. .

• Accuracy: "Погрешность моего экземпляра не хуже 0,3%" (The error of my copy is no worse than 0.3%) — Alexander S. .

• Features: The three-color visual alarm system and LED test function are frequently highlighted as key benefits .

• Value: "В целом прибор понравился, своих денег однозначно стоит" (Overall I liked the device, definitely worth its money) — Alexander S. .

Considerations

• Slow Continuity Buzzer: Some users note the continuity buzzer is relatively slow compared to premium brands .

• NCV Sensitivity: NCV detects wires at 2-3cm—useful but not for deep wall scanning .

• Fuse Accessibility: 20A fuse (5x20mm) can be difficult to replace without disassembly .

• Test Leads: Probes feel a bit basic compared to sturdier ones on premium meters .

• No Auto-Ranging: Manual ranging only—requires range selection .

UT89XD vs. Competitors

Final Verdict

The UNI-T UT89XD stands out as a unique and powerful digital multimeter that offers exceptional value for users who need LED testing capability combined with comprehensive measurement functions. Its exclusive LED test function, three-color visual alarm system, and capacitor charging indicator make it an invaluable tool for electricians, electronics engineers, and technicians who work with modern components and systems .

While it has minor drawbacks like a slow continuity buzzer and manual ranging, the UT89XD excels where it matters most: accurate, reliable measurements with innovative visual feedback in a rugged, safety-certified package
