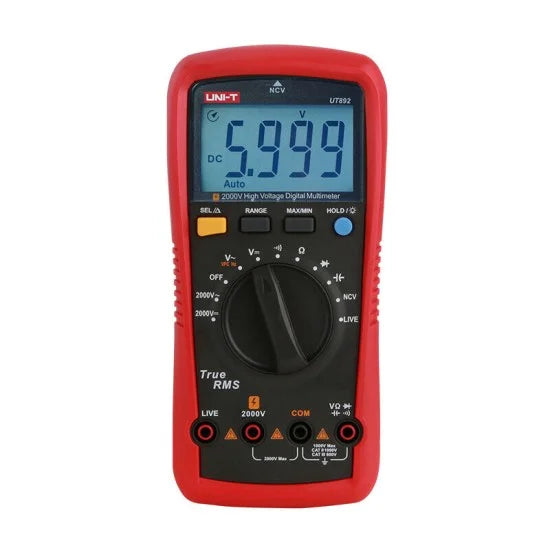

The UNI-T UT892 is a specialized, professional-grade 6000-count true RMS digital multimeter engineered for high-voltage applications. As a standout model in UNI-T's advanced lineup, it is uniquely capable of measuring both AC and DC voltage up to an impressive 2000V, making it the essential tool for electricians, solar PV installers, industrial maintenance engineers, and utility workers who routinely encounter high-energy systems .
Designed with safety as its paramount feature, the UT892 is housed in a rugged, double-molded casing with a 2mm soft rubber holster, providing 1-meter drop protection . It incorporates advanced safety features like a high-voltage red backlight alarm (triggered at ≥1500V) and a built-in VFC (Variable Frequency Control) low-pass filter for accurate measurements on变频 drives and inverters . With safety certifications of CAT II 1000V and CAT IV 600V, it delivers professional-grade protection in demanding environments, from coal mines and power distribution stations to high-voltage solar farms .
Exceptional 2000V AC/DC Measurement: Uniquely capable of measuring up to 2000 volts, far exceeding the standard 1000V limit of most multimeters .
High-Resolution 6000-Count True RMS Display: Provides accurate and detailed readings, especially on non-linear or distorted AC waveforms common in modern power electronics .
VFC (Variable Frequency Control) Mode: Built-in low-pass filter ensures accurate measurement of voltage and frequency on variable frequency drives (VFDs), inverters, and other noisy electrical systems .
Advanced Safety Alarms: Features a unique high-voltage red backlight and audible alarm that activates when the measured voltage exceeds 1500V, providing an immediate, clear warning .
Non-Contact Voltage (NCV) & LIVE Wire Detection: Safely detect AC electric fields without contact and identify live/neutral wires using a single probe .
Comprehensive Testing: Measures resistance (up to 60MΩ), capacitance (up to 60mF with a fast <10s response), frequency (up to 10kHz), and includes diode and continuity tests .
Robust Protection: Features full-function mis-connection protection, capable of withstanding up to 1000V surges on non-2000V ranges, significantly enhancing durability .
Exceptional Battery Life: Low-power consumption design extends battery life to up to 500 hours on two standard AA batteries .
User-Friendly Design: Large backlit LCD, auto/manual ranging, data hold, MAX/MIN/REL recording, and a 15-minute auto power-off function .
Safety Certified: CAT II 1000V / CAT IV 600V, compliant with CE, UKCA, and EN 61010 standards .
The UNI-T UT892 delivers high-precision accuracy across an extensive range of electrical parameters, with a specialized focus on high-voltage measurement.
| Item | Quantity |
|---|---|
| UNI-T UT892 Digital Multimeter | 1x |
| Test Leads | 1 pair |
| 1.5V AA Batteries | 2x |
| User Manual | 1x |
Set the rotary switch to the appropriate V position.
Connect test leads to the VΩ and COM terminals.
The meter defaults to DC; press SELECT to switch to AC measurement.
Critical Safety Feature: When the measured voltage exceeds 1500V, the LCD backlight turns red and an audible alarm sounds, providing an unmistakable warning that you are working in a high-voltage zone .
Set the rotary switch to the VFC position.
This mode activates a low-pass filter, blocking high-frequency noise and carrier signals. It is essential for accurately measuring voltage and frequency on variable frequency drives (VFDs), inverters, and other distorted waveforms .
NCV: Rotate the switch to the NCV position. Bring the top of the meter near a live conductor; the meter provides audio and visual alarms .
LIVE: This function allows you to safely identify the live wire in an outlet by using only the red test lead .
Set the rotary switch to the capacitance position.
Fully discharge capacitors before testing to avoid damage.
Connect test leads in parallel with the capacitor. The meter features a fast response time, reading large capacitors up to 60mF in under 10 seconds .
Set the rotary switch to the **Ω/))) ** position.
For resistance, measure up to 60MΩ.
For continuity, the buzzer will sound, confirming a complete circuit .
Set the rotary switch to the Hz position to measure the frequency of high-voltage signals up to 10kHz .
The UT892 is purpose-built for high-voltage environments, offering distinct advantages over standard meters.
| Feature | UNI-T UT892 | Standard Multimeter (≤1000V) |
|---|---|---|
| Max AC/DC Voltage | 2000V | 1000V |
| VFC (Low-Pass Filter) | Yes | Rarely included |
| High-Voltage Alarm | Yes (Red Backlight ≥1500V) | No |
| Full Mis-Connection Protection | Yes (up to 1000V surge) | Varies |
| Ideal Application | Solar PV, Mining, High-Voltage Substations | General electrical work |
The UNI-T UT892 is the definitive tool for professionals working in high-stakes, high-voltage environments:
Measure open-circuit voltage (Voc) and string voltages on solar panels, which can easily exceed 1000V in commercial installations .
Safely troubleshoot combiner boxes and inverters with VFC mode.
Essential for maintenance in high-voltage environments like coal mines, substations, and power plants where safety and precision are critical .
Verify high-voltage switchgear, transformers, and distribution panels.
Accurately diagnose variable frequency drives (VFDs), motor controls, and industrial machinery using the VFC filter .
Perform comprehensive electrical safety checks on high-energy equipment.
Troubleshoot high-voltage components in large commercial HVAC systems and heavy industrial equipment.
The UT892 is engineered with user safety as the top priority:
CAT II 1000V / CAT IV 600V Rating: Certified for safe use on primary power supplies and distribution circuits .
High-Voltage Red Backlight Alarm: An industry-leading safety feature that provides an immediate, unmistakable visual and audible warning when measuring ≥1500V .
Full Mis-Connection Protection: Designed to withstand accidental voltage surges up to 1000V on non-2000V ranges, preventing damage from common user errors .
1-Meter Drop Protection: Rugged 2mm rubber holster protects the meter from accidental falls .
NCV & LIVE Detection: Allows for safe, non-contact verification of live circuits before physical contact .
The UT892 is more than a multimeter; it's a specialized safety instrument for high-voltage professionals.
The UNI-T UT892 is the definitive choice for professionals who need to safely and accurately measure voltages beyond the standard 1000V threshold. Its 2000V capability, combined with VFC technology for distorted waveforms and a unique high-voltage red alarm, sets it apart as a specialized tool for high-stakes environments like solar farms, mining operations, and industrial power distribution
