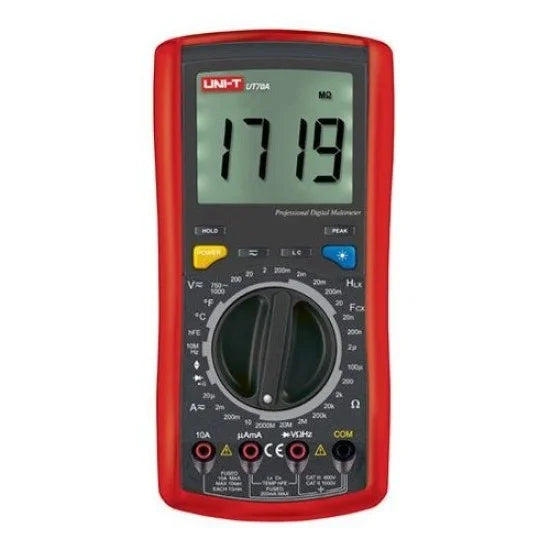

UNI-T UT70A 1999-Count High-Performance Digital Multimeter: The Ultimate Guide

Overview

The UNI-T UT70A is a high-performance, 1999-count handheld digital multimeter from the advanced UT70 series, designed for professional engineers, technicians, and serious electronics enthusiasts who require exceptional versatility and precision . This instrument stands out for its extraordinarily wide range of measurement capabilities, including inductance, capacitance, temperature, and TTL logic testing—features typically found in much more expensive specialized equipment .

Engineered with advanced large-scale integrated circuits and a dual-slope A/D converter, the UT70A delivers stable and accurate measurements across an extensive range of parameters . Its large 62×53mm backlit LCD display ensures clear data reading in any environment, from dimly lit industrial settings to bright outdoor conditions . With robust safety certifications meeting CAT III 1000V and CAT IV 600V standards, it provides professional-grade protection for work on primary power supplies, distribution systems, and industrial equipment .

Key Features at a Glance

• Exceptionally Versatile Measurements: Measures AC/DC voltage up to 1000V, AC/DC current up to 10A, resistance up to 2000MΩ (2GΩ), capacitance up to 100μF, inductance up to 20H, frequency up to 10MHz, and temperature from -40°C to 1000°C .

• Inductance Measurement (L): Rare capability to measure inductance from 1µH to 20H—ideal for testing transformers, coils, and chokes .

• TTL Logic Test: Built-in logic probe function tests TTL circuit states (Logic "1" >2.0V, Logic "0" <0.8V)—essential for digital electronics troubleshooting .

• Temperature Measurement: K-type thermocouple support with included point contact temperature probe for readings from -40°C to 1000°C (-40°F to 1832°F) .

• Transistor (hFE) Testing: Dedicated multi-purpose socket for testing NPN/PNP transistor current gain—valuable for component matching .

• Peak Hold Function: Captures and displays peak voltage/current values for analyzing transient signals and inrush currents .

• Large Backlit LCD Display: 62×53mm screen with 1999-count resolution, backlight (approx. 10 seconds activation), and full unit/function icons for excellent readability .

• Comprehensive Testing: Includes diode test (1mA @2.8V), continuity test with acoustic indication (<70Ω), and full overloading protection .

• User-Friendly Features: Data hold, maximum value hold, manual ranging, auto power-off after 15 minutes, and low battery indication .

• High Safety Rating: Certified to CAT III 1000V / CAT IV 600V safety standards with double insulation, compliant with EN61010 .

Detailed Specifications

The UNI-T UT70A delivers professional-grade accuracy across an extensive range of electrical and environmental parameters.

Measurement Ranges & Accuracy

General & Mechanical Specifications

Special Functions

What's in the Box

Note: The multi-purpose socket enables measurement of transistor hFE, small capacitors, small inductors, and K-type flat plug temperature probes . Optional accessories include test lead lights (UT-TL) and illuminated test leads (UT-L1/L2) .

UT70A vs. UT70B vs. UT70C vs. UT70D: Series Comparison

The UT70 series offers four distinct models with specialized features, with the UT70A serving as the foundational high-versatility model :

Key Functions & Operation

1. Inductance Measurement (UT70A Exclusive)

• Set the rotary switch to the inductance position

• Use test clips for large inductors to protect the multi-purpose socket

• Connect the inductor across the test leads

• Measures inductance from 1µH to 20H—ideal for transformers, coils, chokes, and magnetic components

2. TTL Logic Test

• Set the rotary switch to the TTL LOGIC position

• Connect test leads to TTL circuit under test

• The meter displays "▲" for Logic "1" (>2.0V) and "▼" for Logic "0" (<0.8V)

• Application: Essential for digital electronics troubleshooting, microprocessor circuits, and logic gate testing

3. Temperature Measurement

• Set the rotary switch to the temperature position

• Connect the included K-type thermocouple to the meter via the multi-purpose socket or directly to V/Ω and mA terminals

• Place the probe on the object to measure temperature from -40°C to 1000°C

• Application: HVAC diagnostics, furnace troubleshooting, refrigeration maintenance, and industrial process monitoring

4. Transistor (hFE) Testing

• Set the rotary switch to the hFE position

• Insert the transistor into the multi-purpose socket, matching the correct pinout (E, B, C)

• Read the transistor's DC current gain (β) directly from the display

• Application: Component matching, audio circuit design, and semiconductor testing

5. DC/AC Voltage Measurement (Up to 1000V)

• Set the rotary switch to the appropriate V position

• Input impedance is approximately 10MΩ, minimizing circuit loading effects

• Maximum input: 1000V DC / 750V AC rms

6. DC/AC Current Measurement (Up to 10A)

• Set the rotary switch to the appropriate A position (20µA/2mA/200mA/10A)

• Connect test leads in series with the circuit under test

• Warning: The 10A range is protected by a 10A/250V fuse; the mA range by a 0.5A/250V fuse

7. Resistance Measurement (Up to 2000MΩ)

• Set the rotary switch to the appropriate Ω position

• Connect test leads across the resistor

• On the 2000MΩ range, shorting the leads may show a value of approximately 10 digits—subtract this from final measurements

8. Capacitance Measurement

• Set the rotary switch to the appropriate capacitance position

• Fully discharge capacitors before testing to avoid damage to the meter

• Connect test leads in parallel with the capacitor

• Measures up to 100μF for motor start capacitors and power supply filtering

9. Frequency Measurement (Up to 10MHz)

• Set the rotary switch to the frequency position

• Connect test leads to the signal source

• Measures frequencies up to 10MHz—auto-ranging only

10. Peak Hold Function

• Press the PEAK HOLD button to capture and display peak voltage or current values

• Application: Ideal for analyzing transient signals, inrush currents, and voltage spikes

11. Continuity & Diode Testing

• Set the rotary switch to the continuity/diode position

• Continuity Test: Buzzer sounds when resistance is <70Ω

• Diode Test: Displays forward voltage drop (1mA @2.8V open circuit voltage)

12. Data Hold & Maximum Value Hold

• Press HOLD to freeze the current reading on the display

• Press MAX HOLD to capture and display the maximum reading during measurement

13. Backlight

• Press the backlight button to illuminate the LCD for approximately 10 seconds

• For continuous backlight, hold the button down

14. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity to conserve battery life

• Turn the meter off and on again to resume normal operation

Safety Features

The UT70A incorporates multiple advanced safety features to protect users :

• CAT III 1000V / CAT IV 600V Rating: Suitable for measurements on distribution circuits and primary power supplies—one of the highest safety ratings in its class

• Fuse Protection: 0.5A/250V (mA range) and 10A/250V (A range) fuses protect against overload

• Full-Range Overload Protection: Comprehensive protection on all measurement ranges

• Input Warning: Never apply voltage exceeding 1000V DC or 750V AC rms between terminals and ground

• Double Insulation: Complies with international safety requirements

• Low Battery Indication: Prevents false readings due to insufficient power

Applications

The UNI-T UT70A's unique combination of inductance, temperature, TTL logic, and capacitance measurement makes it an ideal all-in-one tool for:

🔧 Electronics Engineering & Repair

• Inductance measurement: Testing transformers, coils, chokes, and magnetic components

• TTL logic test: Troubleshooting digital circuits, microprocessors, and logic gates

• Transistor hFE testing: Component matching for audio and precision circuits

• Capacitance measurement: Testing timing circuits and power supply filtering

🌡️ HVAC/R & Refrigeration

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple

• Troubleshooting furnaces, air conditioners, and refrigeration systems

• Testing thermostats, sensors, and heating elements

• Checking start/run capacitors up to 100μF

⚡ Industrial & Electrical Maintenance

• Safe high-voltage measurements up to CAT IV 600V

• Measuring current on circuits up to 10A

• Continuity checking for wiring and connections

• Peak hold function for capturing inrush currents

• Testing motor windings with inductance measurement

🏭 Power Distribution & Utility

• CAT IV 600V rating allows work on primary supply levels

• Measuring transformer parameters with inductance function

• Verifying phase conditions and circuit integrity

🚗 Automotive Diagnostics

• Testing battery voltage and alternator output

• Measuring parasitic drain

• Testing ignition coils with inductance measurement

• Sensor testing with frequency and temperature functions

🏠 DIY & Home Workshop

• Electronics projects and circuit debugging

• Appliance repair and troubleshooting

• General electrical measurements

• Testing transformers and power supplies

Why Choose the UNI-T UT70A?

The UT70A stands out as a unique multi-specialty instrument with features rarely found together in a single meter.

Key Differentiators:

Limitations to Consider

• Manual Ranging Only: Requires manual range selection on most functions (except frequency)

• No True RMS: Uses average responding measurement—not suitable for non-linear loads (True RMS available on UT70B/C/D)

• No Analog Bar Graph: Lacks the analog bar graph found on UT70B/C/D models

• No RS232 Interface: Cannot connect to PC for data logging (available on UT70B/C/D)

• Limited Capacitance Range: Maximum 100μF (not suitable for very large capacitors)

• 9V Battery: Uses less common 9V battery (6F22) instead of AAA batteries

• Heavier Weight: At 600g, it's heavier than many modern compact meters

Final Verdict

The UNI-T UT70A is a unique and powerful digital multimeter that stands apart for its extraordinary versatility. Its ability to measure inductance, temperature, TTL logic levels, and capacitance—along with standard electrical parameters—makes it an exceptional value for professionals who need multiple specialized functions without purchasing separate instruments .

While it lacks True RMS and auto-ranging convenience (available in higher UT70 series models), the UT70A excels where it matters most: accurate, reliable measurements across the widest range of parameters in a rugged, safety-certified package . The included temperature probe, test clips, and multi-purpose socket add significant value, making it ready for diverse applications right out of the box
