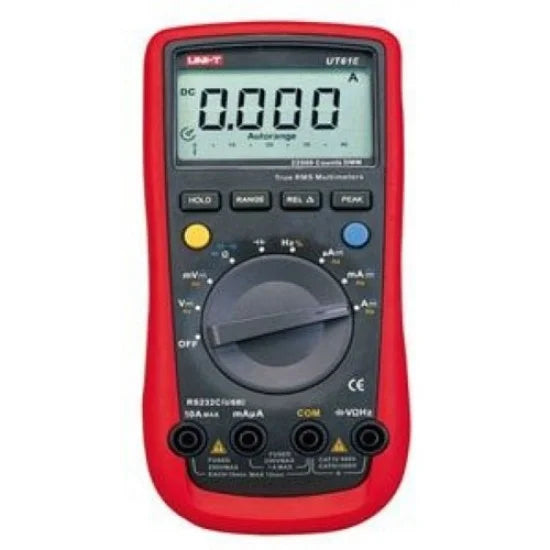

UNI-T UT61E 22000-Count True RMS Digital Multimeter: The Ultimate Guide

Overview

The UNI-T UT61E is a professional-grade, 22000-count true RMS digital multimeter that has earned a reputation as a benchmark instrument in the UT61 series . Designed for electronics engineers, technicians, and serious enthusiasts, this meter combines exceptional precision with comprehensive functionality, making it an indispensable tool for advanced diagnostics, research, and development applications .

As the flagship model of the original UT61 series, the UT61E stands out with its remarkable 22000-count resolution and industry-leading 0.1% DC voltage accuracy—a level of precision typically found in much more expensive laboratory-grade instruments . Its advanced feature set includes PC connectivity via RS-232 interface, 46-segment analog bar graph, peak hold function, and extensive measurement capabilities ranging from capacitance up to 220mF to frequency up to an astounding 220MHz .

Engineered with user safety as a priority, the UT61E is certified to CAT III 1000V and CAT IV 600V safety standards, ensuring reliable operation when working on distribution circuits and permanently installed equipment . While this model has been succeeded by the newer UT61E+, it remains a highly capable and sought-after instrument for professionals who demand precision and reliability .

Key Features at a Glance

• Ultra-High 22000-Count True RMS Display: Exceptional 4½-digit resolution (22000 counts) with large 65mm × 43mm backlit LCD and 46-segment analog bar graph for precise readings and real-time trend observation . True RMS technology ensures accurate measurement of non-linear or distorted AC waveforms .

• Industry-Leading 0.1% DC Voltage Accuracy: Delivers ±(0.1% + 2 digits) basic DCV accuracy—ideal for calibration work, precision component matching, and critical measurements .

• Wide Measurement Range: Measures DC/AC voltage up to 1000V/750V, DC/AC current up to 10A, resistance up to 220MΩ, capacitance up to 220mF, and frequency up to an exceptional 220MHz .

• Extended AC Bandwidth: 45Hz to 10kHz frequency response for accurate voltage and current measurements on variable frequency drives, motor controls, and audio applications .

• RS-232 PC Connectivity: Built-in RS-232 interface allows connection to a computer for data logging, analysis, and real-time monitoring (RS-232 cable and PC software included) .

• High-Frequency Counter: Measures frequencies up to 220MHz with ±(0.01% + 5 digits) accuracy—capabilities typically reserved for dedicated frequency counters .

• Peak Hold Function: Captures and displays peak voltage/current transients for analyzing inrush currents and signal spikes .

• Comprehensive Testing: Includes capacitance measurement up to 220mF, duty cycle (0.1%-99.9%), diode test, continuity test with acoustic indication, relative mode, and data hold .

• User-Friendly Design: Auto and manual ranging, 46-segment analog bar graph (46 segments), data hold, relative mode, low battery indication (≤7.5V), and auto power-off .

• Rugged & Safe: Certified to CAT III 1000V / CAT IV 600V safety standards with full-range overload protection and input impedance ≥10MΩ .

Detailed Specifications

The UNI-T UT61E delivers laboratory-grade accuracy across an extensive range of electrical parameters.

Measurement Ranges & Accuracy

General & Mechanical Specifications

What's in the Box

Note: Optional USB interface cable available separately for connection to modern computers without RS-232 ports .

UT61E vs. UT61 Series Comparison

The UT61E is the flagship precision model of the original UT61 series:

UT61E vs. UT61E+: Key Differences

The UT61E+ is the newer generation model with significant improvements:

Key Functions & Operation

1. High-Precision Voltage Measurement (0.1% Accuracy)

• Set the rotary switch to the V position .

• The meter features ±(0.1% + 2) basic DCV accuracy, ideal for calibration work and precision component matching .

• Input impedance is ≥10MΩ, minimizing circuit loading effects .

2. High-Frequency Measurement (Up to 220MHz)

• Set the rotary switch to the Hz position .

• Measures frequencies up to an exceptional 220MHz with ±(0.01% + 5 digits) accuracy .

• Application: RF signal analysis, oscillator calibration, telecommunications troubleshooting—capabilities typically requiring a separate frequency counter.

3. Capacitance Measurement (Up to 220mF)

• Set the rotary switch to the dedicated capacitance position .

• Fully discharge capacitors before testing to avoid damage .

• Measures up to 220mF (220,000μF) for large motor start capacitors and power supply filtering .

• The 220mF range is one of the highest available in handheld multimeters.

4. Extended AC Bandwidth (10kHz)

• The UT61E features 45Hz to 10kHz AC voltage/current bandwidth .

• Application: Accurate measurements on variable frequency drives, audio equipment, and higher-frequency signals where standard meters (limited to 400Hz-1kHz) give inaccurate readings.

5. Peak Hold Function

• Press PEAK HOLD to capture and display peak voltage or current values .

• Application: Analyzing transient signals, inrush currents, and voltage spikes .

6. 46-Segment Analog Bar Graph

• Provides real-time trend observation for fluctuating signals .

• Updates rapidly to show signal variations and trends—faster than the digital display alone .

7. RS-232 PC Connectivity

• Connect the included RS-232 cable to your computer for data logging and analysis .

• PC software allows real-time monitoring, data recording, and documentation .

• Ideal for long-term measurements, educational demonstrations, and quality control applications .

8. AC/DC Current Measurement (Up to 10A)

• Set the rotary switch to the appropriate current position .

• Connect test leads in series with the circuit under test .

• Note: The μA and mA ranges have relatively high internal resistance, which may affect measurements in sensitive low-current circuits .

9. Resistance, Continuity & Diode Test

• Set the rotary switch to the **Ω/))) ** position .

• For resistance, connect test leads across the component (up to 220MΩ) .

• For continuity, the buzzer sounds when a complete circuit is detected .

• For diode test, connect leads across the diode to measure forward voltage drop (approximately 2.7V open circuit) .

10. Relative Mode & Data Hold

• Press REL to set a reference value for comparative measurements .

• Press HOLD to freeze the current reading on the display for convenient viewing .

Safety Features

The UT61E incorporates multiple advanced safety features to protect users:

• CAT III 1000V / CAT IV 600V Rating: Suitable for measurements on distribution circuits and permanently installed equipment—the highest safety ratings in its class .

• Input Protection: Full-range overload protection on all measurement ranges .

• Input Impedance: ≥10MΩ minimizes circuit loading for accurate readings .

• Low Battery Indication: Prevents false readings due to insufficient power (≤7.5V) .

• Fuse Protection: Fuses on current ranges protect against overload .

Applications

The UNI-T UT61E is an ideal all-in-one tool for:

🏭 Laboratory & R&D

• Precision component testing with 0.1% DCV accuracy .

• High-frequency signal analysis up to 220MHz for oscillator and RF circuit development .

• Data logging via RS-232 for long-term experiments and documentation .

• Capacitance measurement up to 220mF for power supply design and testing .

⚡ Electronics Engineering & Repair

• Precision circuit design and troubleshooting with 22000-count resolution .

• Component matching with 0.1% accuracy .

• Frequency analysis for signal generators and oscillators .

• Diode and continuity testing for PCB troubleshooting .

🔧 Industrial Maintenance

• High-voltage measurements up to CAT III 1000V .

• Extended AC bandwidth (10kHz) for variable frequency drive diagnostics .

• Capacitance testing for power factor correction capacitors .

• Peak hold for inrush current analysis .

📡 Telecommunications & RF

• Frequency measurement up to 220MHz for RF signal analysis .

• Oscillator and crystal testing .

• Antenna system troubleshooting .

• Communications equipment maintenance .

🎓 Education & Training

• Ideal for electronics engineering students .

• Teaching precision measurement techniques with 0.1% accuracy .

• PC connectivity for classroom demonstrations and data analysis .

Customer Reviews & Real-World Performance

The UT61E has earned a strong reputation among users for its exceptional precision, value, and reliability .

Positive Feedback

• Accuracy: "The 0.1% DC voltage precision has been useful for recalibration purposes of my precision power supply" — Verified eBay buyer .

• Value: "Prior to purchase I did some homework on the performance of this meter... The reviews were consistent, painting a solid meter performance" — Verified eBay buyer .

• Performance: "Tested against my Fluke and it reads accurate" — Verified eBay buyer .

• Features: Users appreciate the 46-segment analog bar graph with rapid update, PC data interface, and logging capabilities .

Considerations

• No Backlight: Unlike the newer UT61E+, the UT61E does not have a built-in backlight .

• No Auto Power Off: The meter lacks auto power-off, requiring users to remember to turn it off manually .

• μA/mA Range Resistance: The current ranges have relatively high internal resistance, which can affect measurements in sensitive low-current circuits .

• Included Probes: Some users note that the included test leads are "very ordinary" and recommend upgrading to higher quality probes .

• 9V Battery: Uses a 9V battery rather than more common AA/AAA batteries .

Why Choose the UNI-T UT61E?

UT61E vs. Modern Alternatives

Final Verdict

The UNI-T UT61E is a legendary multimeter that has earned its place as a benchmark instrument in the affordable precision category. Its combination of 22000-count True RMS accuracy, 0.1% DCV precision, 220MHz frequency counter, and RS-232 PC connectivity makes it exceptionally well-suited for electronics engineers, technicians, and serious enthusiasts who need laboratory-grade performance without the laboratory-grade price tag .

One reviewer aptly summarized: "The 0.1% DC voltage precision has been useful for recalibration purposes of my precision power supply... I do particularly like the display bar graph with rapid update" .

While the newer UT61E+ adds modern conveniences like backlight, auto power-off, and enhanced safety features, the original UT61E remains a highly capable instrument that continues to serve thousands of professionals worldwide . Its 220MHz frequency measurement capability alone sets it apart from many modern meters, making it invaluable for RF work and high-frequency signal analysis .

For users who need exceptional precision, high-frequency measurement capability, and PC connectivity at an accessible price point—and who don't require backlight or auto power-off—the UT61E represents outstanding value.

Note: This model has been discontinued and replaced by the UT61E+. Availability may be limited to existing stock from distributors . Consider the UT61E+ if you need modern features like backlight, auto power-off, and enhanced safety.
