UNI-T UT61D+ 6000-Count True RMS Digital Multimeter: The Ultimate Guide

Overview

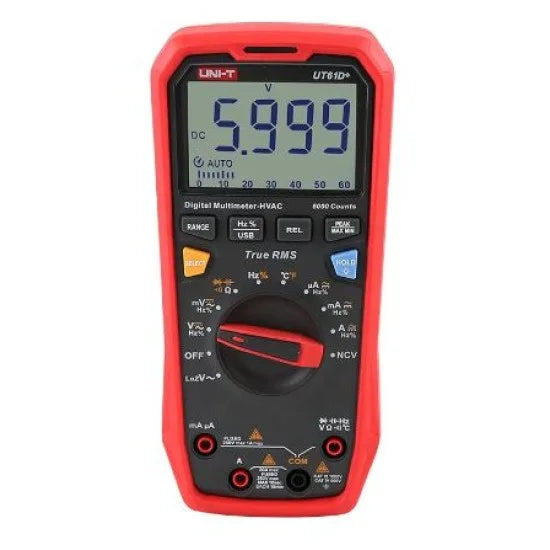

The UNI-T UT61D+ is a professional-grade, 6000-count true RMS digital multimeter representing the next generation of the popular UT61 series . Designed for HVAC technicians, electricians, electronics engineers, and serious enthusiasts, this meter combines high-precision measurement capabilities with enhanced features specifically tailored for temperature-critical applications and motor diagnostics .

As the most HVAC-focused model in the UT61+ lineup, the UT61D+ distinguishes itself by including a K-type temperature probe as a standard accessory and offering an extended 40Hz-1kHz frequency response for more accurate measurements on variable frequency drives and motor controls . Built with a rugged, impact-resistant casing and certified to CAT III 1000V / CAT IV 600V safety standards, it is engineered to withstand the rigors of daily professional use while providing reliable measurements across a comprehensive range of electrical parameters .

Key Features at a Glance

• 6000-Count True RMS Display: High-resolution backlit LCD with 31-segment analog bar graph for precise readings and trend observation .

• Extended Frequency Response: 40Hz to 1kHz bandwidth for accurate AC voltage and current measurements on variable frequency drives and motor controls—significantly wider than basic multimeters .

• Temperature Measurement Included: Comes standard with a K-type thermocouple probe for readings from -40°C to 1000°C (-40°F to 1832°F), making it ideal for HVAC diagnostics .

• Wide Measurement Range: Measures DC/AC voltage up to 1000V, DC/AC current up to 20A, resistance up to 60MΩ, and capacitance up to 60mF .

• LoZ (Low Impedance) Mode: Eliminates ghost voltages for accurate AC voltage measurements, ensuring safe circuit verification .

• Peak Hold Function: Captures and displays peak voltage/current values for analyzing transient signals and inrush currents .

• USB PC Connectivity: Built-in USB interface allows connection to a computer for data logging and analysis (cable included) .

• Non-Contact Voltage (NCV) Detection: Safely identify live AC circuits with audio and visual alarms (>100V detection) .

• Comprehensive Functionality: Includes frequency measurement up to 10MHz, duty cycle (0.1%-99.9%), diode test, continuity test (<50Ω buzzer), and MAX/MIN/Relative mode .

• Advanced Safety Features: Full-range overload protection with audible and visible alarms for high voltage/current and temperature warnings .

• High Safety Rating: Certified to CAT III 1000V / CAT IV 600V safety standards .

Detailed Specifications

The UNI-T UT61D+ delivers professional-grade accuracy across an extensive range of electrical and environmental parameters .

Measurement Ranges & Accuracy

General & Mechanical Specifications

What's in the Box

Key Functions & Operation

1. Temperature Measurement

• Set the rotary switch to the °C or °F position .

• Connect the included K-type thermocouple to the meter, observing correct polarity .

• Place the probe on the object to measure temperature from -40°C to 1000°C .

• Application: Essential for HVAC diagnostics, furnace troubleshooting, refrigeration maintenance, and appliance repair .

2. LoZ (Low Impedance) Mode for Ghost Voltage Elimination

• Set the rotary switch to the LoZ position .

• This mode uses low input impedance to eliminate "ghost voltages"—capacitively coupled voltages that can cause false readings .

• Application: Ideal for verifying whether a circuit is truly de-energized before working on it .

3. DC/AC Voltage Measurement (Up to 1000V)

• Set the rotary switch to the V position .

• The meter defaults to DC; press the function button to switch between DC and AC measurement .

• Connect test leads in parallel to the circuit under test .

• High-voltage alarm provides audible and visual warnings when measuring above 990V .

4. DC/AC Current Measurement (Up to 20A)

• Set the rotary switch to the appropriate μA, mA, or A position .

• Use the SEL button to choose between DC and AC current .

• Connect the test leads in series with the circuit under test .

• The UT61D+ supports current measurement up to 20A .

5. Peak Hold Function

• Press the PEAK button to capture and display peak voltage or current values .

• Application: Ideal for analyzing transient signals, inrush currents, and voltage spikes .

6. Resistance, Continuity & Diode Test

• Set the rotary switch to the **Ω/))) ** position .

• For resistance, connect test leads across the component (up to 60MΩ) .

• For continuity, press SEL to select the continuity test. The buzzer sounds when resistance is <50Ω, confirming a complete circuit .

• For diode test, connect leads across the diode to measure forward voltage drop .

7. Capacitance Measurement

• Set the rotary switch to the capacitance position .

• Fully discharge capacitors before testing to avoid damage to the meter .

• Connect test leads in parallel with the capacitor .

• Measures up to 60mF for motor start capacitors and power supply filtering .

8. Frequency & Duty Cycle

• Set the rotary switch to the Hz/% position .

• Connect test leads to the signal source .

• Measure frequencies up to 10MHz and duty cycles from 0.1% to 99.9% .

9. Non-Contact Voltage (NCV) Detection

• Rotate the switch to the NCV position .

• Bring the top of the meter near a live conductor .

• The meter provides audio and visual alarms to indicate the presence of an AC electric field (>100V), enhancing safety .

10. USB PC Connectivity

• Connect the included USB cable to transfer measurement data to a computer .

• Ideal for data logging, analysis, and documentation in professional and educational settings .

11. Advanced Functions

• Data Hold: Freeze the current reading on the display .

• MAX/MIN: Record and display the highest and lowest readings during a measurement period .

• REL Mode: Zero out test lead resistance or set a reference value for comparative measurements .

• Auto Power Off: Conserves battery life by shutting down after inactivity .

Safety Features

The UT61D+ incorporates multiple advanced safety features to protect users :

• CAT III 1000V / CAT IV 600V Rating: Suitable for measurements on distribution circuits and primary power supplies .

• Full-Range Overload Protection: Comprehensive protection on all measurement ranges .

• Audible and Visible Alarms: Provides warnings when measuring high voltage/current and temperature .

• Input Protection: High-energy fuse protection on current ranges .

• Input Impedance: ≥10MΩ for DCV measurements minimizes circuit loading .

• Low Battery Indication: Alerts user when batteries need replacement .

Applications

The UNI-T UT61D+ is an ideal all-in-one tool for:

🌡️ HVAC/R Technicians

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple .

• Troubleshooting furnaces, air conditioners, and refrigeration systems .

• Testing start/run capacitors up to 60mF .

• Using LoZ mode to eliminate ghost voltages when verifying de-energized circuits .

⚡ Industrial & Commercial Electricians

• Safe high-voltage measurements up to CAT IV 600V .

• Diagnosing motor drives and variable frequency drives with extended 1kHz bandwidth .

• Peak hold function for capturing inrush currents .

• Verifying wiring and phase conditions .

🔧 Electronics Engineers & Technicians

• Precision component testing with 6000-count resolution .

• Frequency analysis for signal generators and oscillators up to 10MHz .

• Diode and continuity testing for PCB troubleshooting .

• USB data logging for documentation and analysis .

🚗 Automotive Diagnostics

• Testing battery voltage and alternator output .

• Measuring parasitic drain up to 20A .

• Sensor signal frequency analysis .

• Temperature monitoring of engine components (with thermocouple) .

🏭 Educational & R&D Labs

• Robust and accurate meter for teaching and conducting experiments .

• USB connectivity enables data collection for student projects .

• Comprehensive functionality for diverse measurement needs .

Customer Reviews & Verdict

Users consistently praise the UT61D+ for its excellent build quality, accuracy, and comprehensive feature set, particularly noting the value of the included temperature probe for HVAC work . One verified buyer commented: "La calidad exterior e interior es excelente, la velocidad de prueba de continuidad es instantánea" (The exterior and interior quality is excellent, the continuity test speed is instantaneous) . Another user noted: "Por el precio es el mejor... Se conecta a la pc para ver mediciones en vivo" (For the price it's the best... It connects to the PC to see live measurements) .

The extended 1kHz bandwidth and LoZ mode are frequently highlighted as key differentiators from basic multimeters . The USB connectivity is also valued for data logging and analysis applications .

Why Choose the UNI-T UT61D+?

Final Verdict

The UNI-T UT61D+ is the definitive choice for HVAC technicians and professionals who need temperature measurement capability combined with extended bandwidth for motor and drive diagnostics . Its included K-type thermocouple, 40Hz-1kHz frequency response, LoZ mode, and 20A current range make it exceptionally well-suited for HVAC work, industrial maintenance, and general electrical troubleshooting
