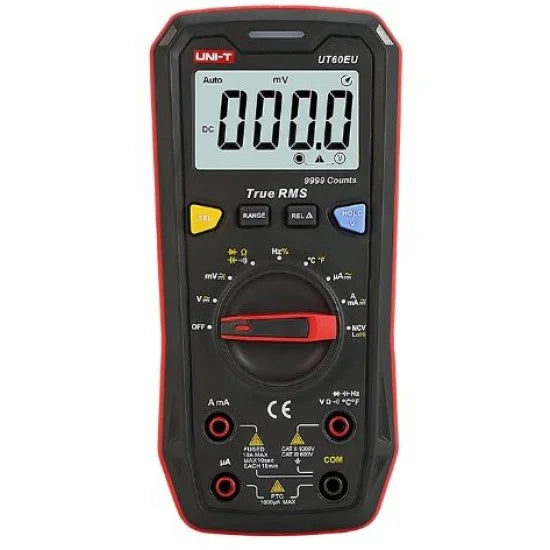

The UNI-T UT60EU is a high-precision, 9999-count true RMS digital multimeter from the advanced UT60 series, designed for professional electricians, HVAC technicians, electronics engineers, and serious hobbyists . This auto-ranging meter combines exceptional measurement accuracy with a comprehensive suite of features—including temperature, capacitance, and frequency measurement—all housed in a rugged, compact body .
Engineered for demanding work environments, the UT60EU is CE certified and meets stringent safety standards with CAT II 1000V and CAT III 600V ratings, ensuring reliable protection when working on high-energy industrial or commercial systems . Its double-injection molded housing and user-friendly interface, complete with a bright backlit display, allow for quick and safe diagnostics even in poorly lit areas .
High-Resolution 9999-Count Display: Provides exceptional detail for precise measurements, far exceeding basic 2000-count meters .
True RMS Accuracy: Delivers accurate readings on non-linear or distorted AC waveforms, common with variable frequency drives and switching power supplies .
Wide Measurement Range: Measures DC/AC voltage up to 1000V, DC/AC current up to 10A, resistance up to 100MΩ, and capacitance up to 9.999mF (~10,000µF) .
Temperature Measurement: Built-in support for K-type thermocouples (probe included) with a range of -40°C to 1000°C (-40°F to 1832°F), essential for HVAC/R diagnostics .
Frequency & Duty Cycle: Measures frequency up to 9.999MHz and duty cycle from 0.1% to 99.9% for advanced signal analysis .
Non-Contact Voltage (NCV) Detection: Safely identify live AC circuits with audio and three-color LED visual indication .
Live/Neutral (LIVE) Wire Detection: Quickly and safely distinguish between live and neutral wires using the test leads, a valuable safety feature for installation work .
Comprehensive Testing: Includes diode test (3.3V open circuit), continuity test with acoustic indication (<30Ω), and transistor hFE test .
User-Friendly Interface: Auto and manual ranging, data hold, relative (REL) mode for zeroing, and an auto power-off function to save battery life .
Visual & Acoustic Alarms: Provides warnings for high voltage (>990V), high current (>9.9A), and low battery (<3.6V) .
Rugged & Safe: Certified to CAT II 1000V / CAT III 600V safety standards with a durable, double-injection housing .
The UNI-T UT60EU delivers professional-grade accuracy across an extensive range of electrical and environmental parameters .
| Function | Range(s) | Basic Accuracy |
|---|---|---|
| DC Voltage (V) | 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V | ±(0.5% + 3 digits) |
| AC Voltage (V) | 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V | ±(0.8% + 3 digits) |
| DC Current (A) | 999.9μA / 999.9mA / 9.999A / 10.00A | ±(0.8% + 3 digits) |
| AC Current (A) | 999.9μA / 999.9mA / 9.999A / 10.00A | ±(1.0% + 3 digits) |
| Resistance (Ω) | 999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ | ±(0.8% + 2 digits) |
| Capacitance (F) | 9.999nF / 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF / 9.999mF | ±(4.0% + 5 digits) |
| Frequency (Hz) | 99.99Hz ~ 9.999MHz | ±(0.1% + 5 digits) |
| Duty Cycle | 0.1% ~ 99.9% | ±(3% + 5 digits) |
| Temperature (°C/°F) | -40°C ~ 1000°C / -40°F ~ 1832°F | ±4°C / ±5°F |
| Item | Quantity |
|---|---|
| UNI-T UT60EU Digital Multimeter | 1x |
| Test Leads | 1 pair |
| K-Type Point Contact Temperature Probe (Thermocouple) | 1x |
| AAA Batteries (1.5V) | 3x |
| User Manual | 1x |
Set the rotary switch to the V position. The meter defaults to DC; press SELECT to choose AC .
Connect test leads in parallel to the circuit under test.
An audible and visual alarm triggers if voltage exceeds 990V, with "OL" displayed above 1000V .
Set the rotary switch to the appropriate μA, mA, or A position .
Connect test leads in series with the circuit under test.
Set the rotary switch to the temperature position.
Connect the included K-type thermocouple to the meter, observing correct polarity .
Place the probe on the object to measure temperature from -40°C to 1000°C .
Resistance (Ω): Measures up to 99.99MΩ. For high-precision low-resistance measurements, use REL mode to zero out test lead resistance .
Capacitance: Measures up to 9.999mF. For capacitors under 100nF, using REL mode is recommended for greater accuracy .
NCV: Set the rotary switch to the NCV position. Bring the top of the meter near a live conductor. The frequency of beeping and the three-color LED indicator will increase with field strength .
LIVE (Phase/Neutral): This function allows you to safely identify the live wire in an outlet by using only the red test lead .
Connect test leads to the signal source. Measure frequencies up to 9.999MHz and duty cycles from 0.1% to 99.9% .
Diode: Displays forward voltage drop with an open circuit voltage of 3.3V .
hFE: The dedicated socket allows for testing the gain (β) of NPN and PNP transistors .
The UT60 series offers distinct models, with the UT60EU serving as a comprehensive, non-Bluetooth standard .
The UNI-T UT60EU is an ideal tool for:
HVAC/R Technicians: Measuring temperature, testing capacitors, and troubleshooting furnace/flame rectification circuits .
Industrial & Commercial Electricians: Safe high-voltage measurements up to CAT III 600V, verifying phase/neutral wiring, and diagnosing motor drives .
Electronics Repair & Engineering: Precision component testing with 9999-count resolution, frequency analysis, and transistor gain matching .
Automotive Diagnostics: Testing battery voltage, alternator output, and sensor frequency .
DIY & Home Workshop: General electrical troubleshooting, outlet testing, and appliance repair .
The UT60EU incorporates multiple advanced safety features to protect users :
CAT II 1000V / CAT III 600V Rating: Suitable for measurements on single-phase appliances and permanently installed distribution circuits.
10A Fuse Protection: Robust protection on the high current range.
High-Voltage Alarm: Audible and visual alerts when measuring above 990V.
Input Jack Alert: Illuminated input jack indicators help prevent incorrect lead placement .
Double-Insulated Housing: Rugged, double-injection molded casing for impact and electrical protection .
Users on various platforms consistently praise the UT60EU for its excellent price-to-performance ratio and modern feature set . Verified buyers describe it as an "Excellent price/quality ratio" device with a backlit screen, auto-scaling, and premium feel—"exactly what an electrician needs" . A forum user specifically noted that using this meter, they could accurately set their scooter charger to a precise 84V, highlighting the meter's accuracy compared to their previous tool .
No Bluetooth: Unlike the UT60BT model, this meter does not have wireless connectivity for data logging .
No Analog Bar Graph: For users who prefer observing signal trends with an analog bar graph, the UT60S model may be more suitable .
Capacitance Range: While it measures up to 9.999mF, the UT60S offers a higher 99.9mF range .
The UNI-T UT60EU is a powerful, professional-grade multimeter that strikes an ideal balance between comprehensive functionality and value. Its high-resolution 9999-count display, true RMS accuracy, and extensive measurement capabilities—including temperature, frequency, and capacitance—make it a versatile instrument for a wide range of tasks, from HVAC and industrial electrical work to electronics repair
