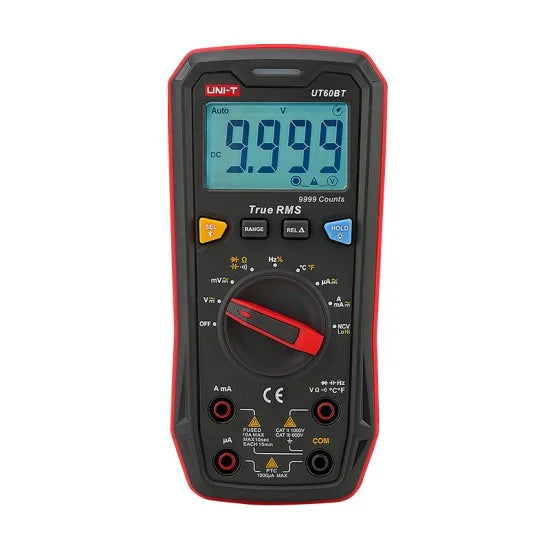

The UNI-T UT60BT is a cutting-edge, 9999-count true RMS digital multimeter that represents the next generation of smart diagnostic tools . Designed for professional electricians, electronics engineers, and data-driven technicians, this meter combines high-precision measurement capabilities with integrated Bluetooth® technology, allowing you to connect directly to your smartphone or tablet .
As part of UNI-T's advanced UT60 series, the UT60BT is engineered to not only meet the rigorous demands of industrial and commercial environments but also to streamline your workflow . The dedicated UNI-T Smart Measure app transforms your mobile device into a remote display and data logging system, enabling you to monitor measurements from a safe distance, record data over time, and generate informative reports—all while keeping your hands on the job . With robust safety certifications (CAT II 1000V / CAT III 600V) and a rugged, double-injection housing, this meter delivers professional-grade protection and reliability in a modern, feature-rich package .
Integrated Bluetooth Connectivity: Wirelessly connect to the UNI-T Smart Measure app on Android or iOS for remote viewing, data logging, and analysis .
High-Precision 9999-Count Display: Exceptional resolution for detailed measurements, far surpassing standard 2000 or 4000-count meters .
True RMS Accuracy: Delivers accurate readings even with non-linear, distorted AC waveforms common with variable frequency drives and switching power supplies .
Wide Measurement Range: Measures DC/AC voltage up to 1000V, DC/AC current up to 10A, resistance up to 100MΩ, and capacitance up to 99.99mF .
Temperature & Frequency Measurement: Built-in K-type thermocouple support for readings from -40°C to 1000°C and frequency measurement up to 9.999MHz .
Non-Contact Voltage (NCV) Detection: Safely identify live AC circuits with audio and visual (three-color LED) indication .
Comprehensive Testing: Includes diode test, continuity test with acoustic indication (<30Ω), and duty cycle measurement .
User-Friendly Interface: Auto and manual ranging, data hold, relative mode, and an analog bar graph for quick trend observation .
Backlit LCD Display: Large, clear screen with manual backlight for easy reading in dark environments .
Rugged & Safe: Safety certified with CAT II 1000V / CAT III 600V ratings and housed in a durable, double-injection molded casing .
Extended Battery Life: Powered by 3 x AAA batteries for convenient, long-lasting power .
The UNI-T UT60BT delivers professional-grade accuracy across an extensive range of electrical and environmental parameters .
| Item | Quantity |
|---|---|
| UNI-T UT60BT Digital Multimeter | 1x |
| Test Leads | 1 pair |
| K-Type Point Contact Temperature Probe (Thermocouple) | 1x |
| AAA Batteries (1.5V) | 3x |
| User Manual | 1x |
| Gift Box Packaging | 1x |
The defining feature of the UT60BT is its built-in Bluetooth module, which pairs with the free UNI-T Smart Measure app, available on the Google Play Store and Apple App Store .
Remote Monitoring: View real-time measurements on your smartphone or tablet from a safe distance, particularly useful in high-voltage, noisy, or confined spaces .
Data Logging & Analysis: Record measurement data over time to track trends, identify intermittent faults, and analyze system performance .
Report Generation: Create and share professional reports directly from the app, associating data with specific equipment under test .
Enhanced Functionality: The app provides a large, clear display and can be used to control the meter's basic functions, mimicking the physical buttons .
Activate Bluetooth by pressing the yellow button on the meter .
Open the UNI-T Smart Measure app on your mobile device.
The app will automatically detect and connect to the UT60BT, allowing for remote viewing and control .
Set the rotary switch to the V position. The meter defaults to DC, press SELECT to choose AC.
Connect test leads in parallel to the circuit under test.
The 10MΩ input impedance minimizes circuit loading effects.
Input impedance on the millivolt ranges is an ultra-high 3GΩ .
Set the rotary switch to the appropriate μA, mA, or A position.
Connect test leads in series with the circuit under test.
Set the rotary switch to the temperature position.
Connect the included K-type thermocouple to the meter, observing correct polarity.
Place the probe on the object to measure temperature from -40°C to 1000°C .
Set the rotary switch to the NCV position.
Bring the top of the meter near a live conductor. The intensity of the beeping and the three-color LED indicator will increase with the strength of the electric field .
Resistance (Ω): Measures up to 99.99MΩ. For high-precision low-resistance measurements, use the REL mode to zero out test lead resistance .
Capacitance: Measures up to 99.99mF. For capacitors under 100nF, it is recommended to use REL mode for greater accuracy .
Set the rotary switch to the Hz/% position.
Measure frequencies up to 9.999MHz and duty cycles from 0.1% to 99.9% .
The UT60BT is the Bluetooth-enabled model in the UT60 series, offering smart functionality over its counterpart, the UT60S.
The UNI-T UT60BT is an ideal tool for:
Measuring vent, superheat, and subcooling temperatures with the included thermocouple.
Logging temperature changes over time to diagnose intermittent system issues .
Testing motor start/run capacitors and checking flame rectification circuits.
Troubleshooting control panels and machinery with data logging for predictive maintenance .
Safely monitoring remote or hard-to-reach equipment via the mobile app .
Performing long-term analysis on power supplies and motor drives.
Precision component testing with 9999-count resolution.
Frequency analysis for signal generators and oscillators.
Using data logs to analyze circuit behavior during warm-up or under load.
Monitoring battery voltage and alternator output during start-up, with data logging to identify dips.
Testing sensor outputs (temperature, frequency) and logging data for analysis.
Checking parasitic draw on vehicle batteries over time.
High-resolution measurements for experiments and projects.
Remote monitoring capability to keep students safe while observing live data .
Generating and exporting data for lab reports and analysis .
The UT60BT incorporates multiple advanced safety features to protect users :
CAT II 1000V / CAT III 600V Rating: Suitable for measurements on distribution circuits and permanently installed equipment, independently verified by Intertek .
10A / 1000V Fuse Protection: High-energy fuse (Ø6.35x32mm) on the 10A current range for robust protection .
1000V Overload Protection: Comprehensive protection on all measurement ranges .
Visual and Audible Alarms: Alerts for high voltage (>990V) and high current (>9.9A) .
Double-Insulated Housing: Rugged, double-injection molded casing for impact and electrical protection .
Users and reviewers consistently praise the UT60BT for its excellent performance and feature set. An in-depth review noted that in tests, "the DC voltage, AC voltage, DC current, resistance, capacitance and frequency measurement ranges operated all more accurately than the manufacturer technical specifications promised," earning it a 4/5 star rating . A forum user with long-term UNI-T experience stated, "Now switching to the UT60BT, the Bluetooth is quite convenient, and its reliability is no worse than the old UT70B" .
The UT60BT is more than just a multimeter; it's a complete measurement system. It's for the professional who values data, safety, and efficiency as much as raw accuracy.
App Stability: The UNI-T Smart Measure app has received mixed reviews regarding stability and features. Some users report occasional crashes or connectivity issues, while others find it works well .
Location Permission: The app requires location permissions to function on Android, which may raise privacy concerns for some users .
No Analog Bar Graph: Unlike the UT60S, this model lacks an analog bar graph, which some users prefer for observing signal trends .
Test Leads: While functional, the included test leads are often cited as a weak point and are worth upgrading for professional use .
The UNI-T UT60BT is a powerful, future-proof diagnostic tool that successfully integrates smart technology with professional-grade measurement capabilities. Its high-resolution 9999-count display, true RMS accuracy, and comprehensive functions (including temperature and capacitance) make it a versatile instrument for a wide range of tasks .
The standout Bluetooth connectivity and data logging features transform raw data into actionable insights, making it ideal for predictive maintenance, long-term monitoring, and detailed analysis . While the companion app has room for improvement, the hardware itself is robust, safe (CAT II 1000V/CAT III 600V), and impressively accurate
