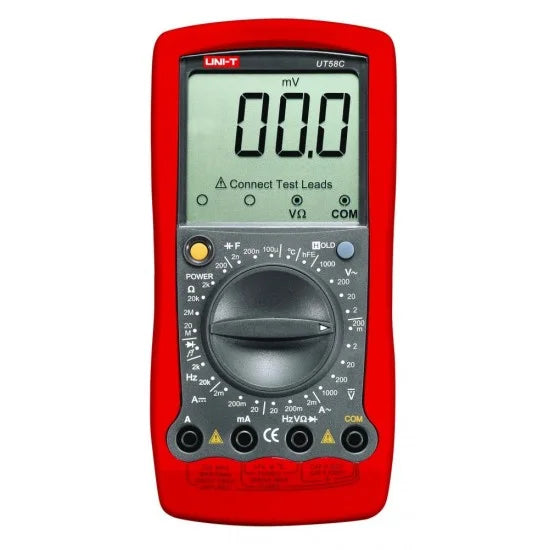

UNI-T UT58C 2000-Count General Digital Multimeter: The Ultimate Guide

Overview

The UNI-T UT58C is a versatile, feature-rich digital multimeter from the renowned UT58 series, designed to meet the needs of professionals and electronics enthusiasts alike . This high-quality instrument combines comprehensive measurement capabilities—including temperature, frequency, and capacitance—in a rugged, user-friendly package, making it an indispensable tool for electrical troubleshooting, electronics repair, HVAC diagnostics, and general maintenance .

Engineered with a large-scale integrated circuit and a dual-slope A/D converter, the UT58C delivers stable and accurate measurements across a wide range of parameters . Its large 60×54mm LCD display ensures clear data reading in any environment, while the rugged, impact-resistant holster protects the meter from drops and impacts . With safety certifications compliant with CAT II 1000V and CAT III 600V (EN 61010), it provides professional-grade protection for work on industrial equipment, commercial systems, and residential circuits .

Key Features at a Glance

• Temperature Measurement: Built-in K-type thermocouple support with included point contact temperature probe for readings from -40°C to 1000°C—essential for HVAC/R diagnostics and appliance repair .

• Frequency Measurement: Measures frequency up to 20kHz for signal analysis and motor drive troubleshooting .

• Capacitance Measurement: Tests capacitors up to 100μF for power supply filtering and motor start capacitors .

• Transistor (hFE) Testing: Dedicated socket for testing NPN/PNP transistor current gain (0~1000β)—ideal for electronics work .

• Wide Voltage Range: Measures DC voltage up to 1000V and AC voltage up to 750V with high accuracy .

• High Current Capacity: Measures DC/AC current up to 20A for automotive and industrial applications .

• Resistance up to 20MΩ: Measures resistors and components accurately .

• Large Clear Display: 2000-count LCD with 60×54mm screen for excellent readability .

• Manual Ranging with Full Overload Protection: Comprehensive protection against misuse .

• Continuity Buzzer: Acoustic indication for quick circuit checks .

• Diode Test: For semiconductor testing .

• User-Friendly Features: Data hold, full icon display, test lead connection indicators, low battery indication, and auto power off .

• Rugged Construction: Impact-resistant holster for comfortable benchtop use .

• Safety Certified: CAT II 1000V / CAT III 600V with double insulation, compliant with EN61010 standards .

Detailed Specifications

The UNI-T UT58C delivers professional-grade accuracy across an extensive range of electrical and temperature parameters .

Electrical & Temperature Measurement Specifications

General Characteristics

Special Functions

What's in the Box

Note: Test clips are included with UT58D and UT58E models, but not standard with UT58C .

Key Functions & Operation

1. Temperature Measurement

• Set the rotary switch to the temperature position

• Connect the included K-type point contact temperature probe to the meter

• Place the temperature probe on or in the object being measured

• Read the temperature value directly from the display

• Range: -40°C to 1000°C for maximum versatility in HVAC, appliance repair, and industrial applications

2. Frequency Measurement

• Set the rotary switch to the 2kHz or 20kHz position

• Connect test leads to the signal source

• Measure frequencies up to 20kHz with ±(1.5%+5) accuracy

• Application: Essential for signal generators, oscillators, motor drives, and telecommunications work

3. Capacitance Measurement

• Set the rotary switch to the appropriate capacitance position

• Fully discharge capacitors before testing to avoid damage to the meter

• Connect test leads in parallel with the capacitor

• Measures up to 100μF for motor start capacitors and power supply filtering

4. Transistor (hFE) Testing

• Set the rotary switch to the hFE position

• Determine whether the transistor is NPN or PNP type

• Insert the transistor into the dedicated hFE socket, matching the correct pinout (E, B, C)

• Read the transistor's DC current gain (β) directly from the display (0~1000β)

5. DC/AC Voltage Measurement

• Set the rotary switch to the appropriate V position (V--- for DC, V~ for AC)

• Connect test leads: red to VΩ jack, black to COM jack

• Connect test leads in parallel to the circuit under test

• Input impedance is approximately 10MΩ, minimizing circuit loading effects

• Maximum input: 1000V DC / 750V AC rms

6. DC/AC Current Measurement

• Set the rotary switch to the appropriate A position based on expected current (2mA, 200mA, or 20A)

• Connect test leads: red to mA jack (for currents up to 200mA) or 20A jack (for currents up to 20A), black to COM jack

• Connect test leads in series with the circuit under test

• Critical Warning: On the 20A range, measurement time should be limited to prevent overheating

7. Resistance Measurement

• Set the rotary switch to the appropriate Ω position

• Connect test leads across the resistor

• Measures up to 20MΩ

8. Continuity & Diode Testing

• Set the rotary switch to the continuity/diode position

• Continuity Test: Buzzer sounds when circuit is complete—ideal for quick wiring checks

• Diode Test: Displays forward voltage drop for semiconductor testing

9. Data Hold

• Press the HOLD button to freeze the current reading on the display

• The symbol is displayed and the present value is shown

• Press again to release

• Useful for capturing readings in difficult-to-see locations

10. Test Lead Connection Indicators

• The display shows visual indications of correct test lead connection

• Helps prevent errors and enhances safety during measurements

11. Low Battery Indication

• When the battery voltage drops below operating level, a low battery symbol appears on the LCD

• Replace the 9V battery promptly to maintain measurement accuracy

12. Auto Power Off

• The meter automatically enters sleep mode after a period of inactivity to conserve battery life

• Turn the meter off and on again to resume normal operation

UT58C vs. Other UT58 Series Models

The UT58 series offers several models with specialized features, with the UT58C serving as an advanced all-in-one option :

Applications

The UNI-T UT58C is an ideal all-in-one tool for :

🌡️ HVAC/R & Refrigeration Technicians

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple

• Troubleshooting furnaces, air conditioners, and refrigeration systems

• Testing thermostats, sensors, and heating elements

• Checking start/run capacitors up to 100μF

📱 Electronics Repair & Engineering

• Testing components on circuit boards

• Measuring transistor gain (hFE) for matching pairs—essential for audio and precision circuits

• Capacitance measurement for timing circuits and power supply filtering

• Frequency analysis for signal generators and oscillators

• Diode and continuity testing for PCB troubleshooting

⚡ Electrical & Industrial Maintenance

• Troubleshooting control panels and equipment up to 1000V

• Measuring current on circuits up to 20A

• Continuity checking for wiring and connections

• Diode testing for rectifiers and semiconductors

• Frequency measurement for motor drives

🚗 Automotive Diagnostics

• Testing car battery voltage (12V/24V systems)

• Checking alternator output

• Testing fuses and relays

• Temperature monitoring of engine components (with thermocouple)

• Sensor signal frequency analysis

🏠 DIY & Home Workshop

• Testing household outlets and batteries

• Electronics projects and circuit debugging

• Appliance repair and troubleshooting

• General electrical measurements

Why Choose the UNI-T UT58C?

The UT58C stands out as a versatile, feature-rich workhorse that adds temperature, frequency, and capacitance measurement to essential electrical testing capabilities .

Key Differentiators:

Customer Reviews Summary

The UT58C has earned a reputation for reliability over many years of production. One long-term user on the EEVblog electronics forum noted: "I've had this DMM for about 20 years. They're still sold... A decent enough DMM, although not considered top flight. I use it and like it. The meter was fixed. It's always satisfying to repair these things rather than chuck them away" . Another user on the same forum listed the UT58C as an "everyday workhorse in and around the home" .

Users consistently praise the UT58C for:

• Build Quality: Rugged, durable design with impact-resistant holster

• Comprehensive Features: All-in-one functionality with temperature, frequency, capacitance, and hFE in a single meter

• Accuracy: Reliable measurements with ±(0.5%+1) DCV accuracy

• Temperature Function: Highly valued by HVAC technicians for furnace and AC diagnostics

• hFE Testing: Essential for electronics enthusiasts and component matching

• Value for Money: "Отличное соотношение цена/качество" (Excellent price/quality ratio)

Limitations to Consider

• Manual Ranging Only: Requires manual range selection (no auto-ranging convenience)

• No True RMS: Uses average responding measurement—not suitable for non-linear loads (True RMS available on newer models like UT39E+)

• No NCV (Non-Contact Voltage): Does not include NCV detection

• Limited Capacitance Range: Maximum 100μF (suitable for many applications but not extremely large capacitors)

• No Backlight: Most sources indicate no backlight (check specific distributor for current variants)

• 9V Battery: Uses 9V battery (6F22) instead of more common AAA batteries

Final Verdict

The UNI-T UT58C is a versatile, durable, and feature-packed digital multimeter that delivers exceptional value for users who need temperature measurement, frequency analysis, and capacitance testing in addition to standard electrical functions . Its included K-type thermocouple, 20kHz frequency range, 100μF capacitance, and hFE transistor testing make it an excellent choice for HVAC technicians, electronics engineers, and maintenance professionals .

While it requires manual ranging and lacks True RMS (available in newer models like the UT39E+), the UT58C excels where it matters most: accurate, reliable measurements across a wide range of parameters in a rugged, safety-certified package . The large 60×54mm display, test lead connection indicators, and included accessories add significant value
