UNI-T UT55 1999-Count Manual Ranging Digital Multimeter: The Ultimate Guide

Overview

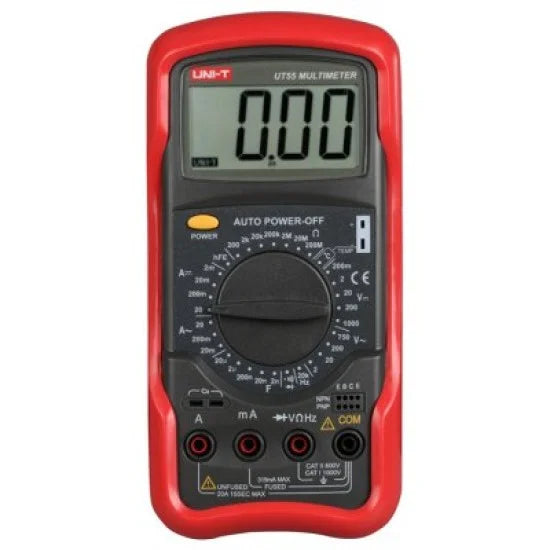

The UNI-T UT55 is a professional-grade, feature-rich digital multimeter from the renowned UT50 series, designed to be the ultimate all-in-one diagnostic tool for electronics engineers, HVAC technicians, and field service professionals . This meter stands out as the most advanced model in the standard UT50 lineup, combining comprehensive measurement capabilities—including temperature, frequency, and capacitance—in a rugged, reliable package .

Engineered with a large-scale integrated circuit and a dual-slope A/D converter at its core, the UT55 delivers stable and highly accurate measurements across 32 ranges . Its large 27mm digit LCD display (65×33mm) ensures clear data reading in any environment, while the rugged, impact-resistant holster and fold-out tilt stand with three viewing angles make it perfect for both field and benchtop use . With safety certifications compliant with CAT II 600V and CAT I 1000V (EN 61010), it provides professional-grade protection for electronic维修, industrial maintenance, and HVAC applications .

Key Features at a Glance

• Most Advanced UT50 Series Model: The UT55 is the flagship of the UT50 lineup, adding frequency and temperature measurement to the comprehensive feature set .

• Comprehensive Measurement Functions: Measures AC/DC voltage up to 1000V/750V, AC/DC current up to 20A, resistance up to 200MΩ, capacitance up to 20μF, frequency up to 20kHz, and temperature from -20°C to 1000°C .

• Temperature Measurement: Built-in K-type thermocouple support with included point contact temperature probe for readings from -20°C to 1000°C—essential for HVAC/R diagnostics and appliance repair .

• Frequency Measurement: Measures frequency up to 20kHz for signal analysis and motor drive troubleshooting .

• Capacitance Measurement: Tests capacitors up to 20μF for power supply filtering and motor start capacitors .

• Transistor (hFE) Testing: Dedicated 8-pin socket for testing NPN/PNP transistor current gain (0~1000β)—rare at this price point .

• Large Clear Display: 1999-count LCD with 27mm digit height (65×33mm) for excellent readability in any lighting condition .

• Manual Ranging with Full Overload Protection: 32 measurement ranges with comprehensive protection against misuse .

• Continuity Buzzer: Acoustic indication with <70Ω threshold for quick circuit checks .

• Diode Test: 1mA test current @ 2.8V open circuit voltage .

• User-Friendly Features: Data hold, low battery indication, auto power-off (sleep mode), and tilt stand with three viewing angles .

• Rugged Construction: Impact-resistant holster and portable handle for easy carrying .

• Safety Certified: CAT II 600V / CAT I 1000V with double insulation, compliant with EN61010 standards .

Detailed Specifications

The UNI-T UT55 delivers professional-grade accuracy across an extensive range of electrical and temperature parameters .

Electrical & Temperature Measurement Specifications

General Characteristics

Special Functions

What's in the Box

Note: Optional accessories include test lead lights (UT-TL) and illuminated test leads (UT-L1/L2) available for purchase separately .

Key Functions & Operation

1. Temperature Measurement (UT55 Exclusive)

• Set the rotary switch to the temperature position

• Connect the included K-type point contact temperature probe to the meter (observe correct polarity)

• Place the temperature probe on or in the object being measured

• Read the temperature value directly from the display

• Range: -20°C to 1000°C for maximum versatility in HVAC, appliance repair, and industrial applications

2. Frequency Measurement

• Set the rotary switch to the 20kHz position

• Connect test leads to the signal source

• Measure frequencies up to 20kHz with ±(1.5%+5) accuracy

• Application: Essential for signal generators, oscillators, motor drives, and telecommunications work

3. DC/AC Voltage Measurement

• Set the rotary switch to the appropriate V position (V--- for DC, V~ for AC)

• Connect test leads: red to VΩ jack, black to COM jack

• Connect test leads in parallel to the circuit under test

• Input impedance is 10MΩ, minimizing circuit loading effects

• Maximum input: 1000V DC / 750V AC rms

4. DC/AC Current Measurement

• Set the rotary switch to the appropriate A position based on expected current (2mA, 20mA, 200mA, or 20A for DC; 20mA, 200mA, or 20A for AC)

• Connect test leads: red to mA jack (for currents up to 200mA) or 20A jack (for currents up to 20A), black to COM jack

• Connect test leads in series with the circuit under test

• The 20A range is fused—limit measurement time to ≤10-15 seconds with a 15-minute interval between measurements to prevent overheating

5. Resistance Measurement

• Set the rotary switch to the appropriate Ω position

• Connect test leads across the resistor

• For low resistance measurements, short test leads to check for zero reading

• On the 200MΩ range, shorting the leads may show a value of approximately 10 digits—subtract this from final measurements

6. Capacitance Measurement

• Set the rotary switch to the appropriate capacitance position (2nF to 20μF)

• Fully discharge capacitors before testing to avoid damage to the meter

• Connect test leads in parallel with the capacitor

• Measures up to 20μF for motor start capacitors and power supply filtering

7. Continuity & Diode Testing

• Set the rotary switch to the continuity/diode position

• Continuity Test: Buzzer sounds when resistance is <70Ω—ideal for quick wiring checks

• Diode Test: Displays forward voltage drop (test current 1mA @ 2.8V open circuit)

8. Transistor (hFE) Testing

• Set the rotary switch to the hFE position

• Determine whether the transistor is NPN or PNP type

• Insert the transistor into the dedicated 8-pin hFE socket, matching the correct pinout (E, B, C)

• Read the transistor's DC current gain (β) directly from the display (0~1000β)

9. Data Hold

• Press the HOLD button to freeze the current reading on the display

• Press again to release

• Useful for capturing readings in difficult-to-see locations

10. Sleep Mode (Auto Power Off) - UT55 Exclusive

• The meter automatically enters sleep mode after approximately 15 minutes of inactivity to conserve battery life

• Turn the meter off and on again to resume normal operation

• Note: This feature is exclusive to UT53, UT54, and UT55 models

11. Low Battery Indication

• When the battery voltage drops below operating level, a low battery symbol appears on the LCD

• Replace the 9V battery promptly to maintain measurement accuracy

12. Tilt Stand

• The holster features a fold-out tilt stand with three viewing angles for comfortable benchtop use

Safety Features

The UT55 incorporates multiple advanced safety features to protect users :

• CAT II 600V / CAT I 1000V Rating: Suitable for measurements on single-phase appliances, distribution circuits, and electronic equipment

• Fuse Protection: 315mA, 250V fast-acting fuse, φ5x20mm (20A range is unfused—caution required)

• Full Range Overload Protection: Protects the meter and user during fault conditions

• Input Jack Protective Covers: Prevents accidental contact during measurements

• Double Insulation: Complies with international safety requirements

• Low Battery Indication: Prevents false readings due to insufficient power

• Impact-Resistant Holster: Protects meter from drops and impacts

UT55 vs. Other UT50 Series Models

The UT50 series offers several models with specialized features, with the UT55 serving as the flagship model :

Applications

The UNI-T UT55 is an ideal all-in-one tool for:

🌡️ HVAC/R & Refrigeration Technicians

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple

• Troubleshooting furnaces, air conditioners, and refrigeration systems

• Testing thermostats, sensors, and heating elements

• Checking start/run capacitors up to 20μF

• Frequency analysis for variable frequency drives (VFDs)

⚡ Electrical & Industrial Maintenance

• Troubleshooting control panels and equipment up to 1000V

• Measuring current on circuits up to 20A

• Continuity checking for wiring and connections

• Diode testing for rectifiers and semiconductors

• Frequency measurement for motor drives and signal testing

🔧 Electronics Repair & Engineering

• Testing components on circuit boards with 1999-count precision

• Measuring transistor gain (hFE) for matching pairs—essential for audio and precision circuits

• Capacitance measurement for timing circuits and power supply filtering

• Diode and continuity testing for PCB troubleshooting

• Frequency analysis for oscillators and signal generators

🏭 Manufacturing & Quality Control

• Ideal for electronics manufacturing and assembly testing

• Component verification and matching

• Temperature monitoring in production environments

• Frequency verification for assembled PCBs

🚗 Automotive Diagnostics

• Testing car battery voltage (12V/24V systems)

• Checking alternator output

• Testing fuses and relays

• Temperature monitoring of engine components (with thermocouple)

• Sensor signal frequency analysis

🏠 DIY & Home Workshop

• Testing household outlets and batteries

• Electronics projects and circuit debugging

• Appliance repair and troubleshooting

• General electrical measurements

Why Choose the UNI-T UT55?

The UT55 stands out as the most versatile and feature-complete model in the UT50 series, adding temperature and frequency measurement to the comprehensive feature set .

Key Differentiators:

Customer Reviews Summary

Users consistently praise the UT55 for:

• Build Quality: "坚固的外壳设计经久耐用" (Rugged, durable design) — UNI-T official site

• Comprehensive Features: All-in-one functionality with temperature, frequency, capacitance, and hFE in a single meter

• Accuracy: Reliable measurements with ±(0.5%+1) DCV accuracy

• Temperature Function: Highly valued by HVAC technicians for furnace and AC diagnostics

• hFE Testing: Essential for electronics enthusiasts and component matching

• Value for Money: Flagship feature set at an accessible price point

Limitations to Consider

• Manual Ranging Only: Requires manual range selection (no auto-ranging convenience)

• No True RMS: Uses average responding measurement—not suitable for non-linear loads (True RMS available on newer UT39E+ models)

• No NCV (Non-Contact Voltage): Does not include NCV detection (available on UT33D+)

• 20A Range Unfused: Requires caution—limit measurement time to ≤10-15 seconds with 15-minute intervals

• No Backlight: LCD is not backlit, making readings difficult in very dark conditions

• Limited Capacitance Range: Maximum 20μF (not suitable for large motor start capacitors above 20μF)

• 9V Battery: Uses 9V battery (6F22) instead of more common AAA batteries

Final Verdict

The UNI-T UT55 is the definitive choice for professionals who demand the most comprehensive feature set from the UT50 series. Its temperature measurement, frequency analysis, capacitance testing, and hFE transistor testing make it the ultimate all-in-one tool for HVAC technicians, electronics engineers, and industrial maintenance professionals .

While it lacks True RMS and auto-ranging convenience (available in newer models like the UT39E+), the UT55 excels where it matters most: accurate, reliable measurements across the widest range of parameters in a rugged, safety-certified package . The included temperature probe, large 27mm display, and auto power-off feature (exclusive to higher models) add significant value
