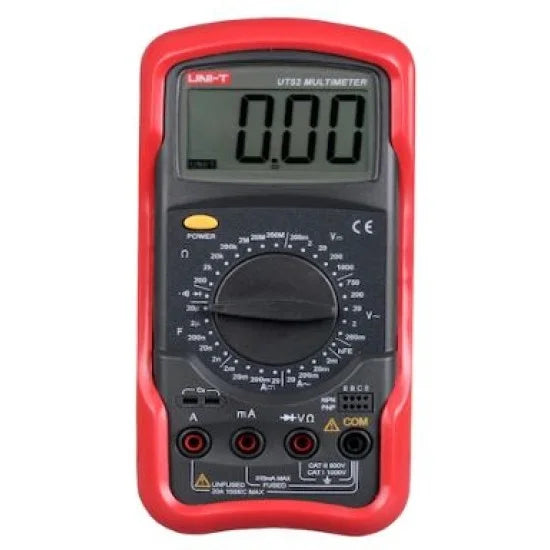

UNI-T UT52 1999-Count Manual Ranging Digital Multimeter: The Ultimate Guide

Overview

The UNI-T UT52 is a reliable, feature-rich digital multimeter from the renowned UT50 series, designed for electricians, electronics enthusiasts, and field service technicians who demand accuracy and durability . This manual-ranging meter is built with a large-scale integrated circuit and a dual-slope A/D converter, delivering stable and precise measurements for a wide range of applications .

Engineered for rugged daily use, the UT52 features a durable, impact-resistant holster and a large 27mm digit LCD display (65×33mm) for clear data reading in any environment . With safety certifications compliant with CAT II 600V and CAT I 1000V (EN 61010), it provides professional-grade protection for electronic维修, manufacturing, HVAC maintenance, and more .

Key Features at a Glance

• Comprehensive Measurement Functions: Measures AC/DC voltage up to 1000V/750V, AC/DC current up to 20A, resistance up to 200MΩ, capacitance up to 20μF, and includes diode and continuity testing .

• Transistor (hFE) Testing: Dedicated socket for testing NPN/PNP transistor current gain (0~1000β)—essential for electronics work .

• Large Clear Display: 1999-count LCD with 27mm digit height (65×33mm) for excellent readability .

• Manual Ranging with Full Overload Protection: 30+ measurement ranges with comprehensive protection against misuse .

• Continuity Buzzer: Acoustic indication with <70Ω threshold for quick circuit checks .

• Diode Test: 1mA test current @ 3V open circuit voltage .

• 20A Fuse Protection: Safety fuse on high current range for enhanced user protection .

• Durable Construction: Impact-resistant holster and compact design for both field and benchtop use .

• User-Friendly Features: Data hold, low battery indication, and auto power-off (sleep mode) .

• Safety Certified: CAT II 600V / CAT I 1000V with double insulation, compliant with EN61010 standards .

Detailed Specifications

The UNI-T UT52 delivers professional-grade accuracy across a comprehensive range of electrical parameters .

Electrical Measurement Specifications

General Characteristics

Special Functions

What's in the Box

Note: Optional accessories include test lead lights (UT-TL) and illuminated test leads (UT-L1/L2) available for purchase separately .

Key Functions & Operation

1. DC/AC Voltage Measurement

• Set the rotary switch to the appropriate V position (V--- for DC, V~ for AC)

• Connect test leads: red to VΩ jack, black to COM jack

• Connect test leads in parallel to the circuit under test

• Input impedance is 10MΩ, minimizing circuit loading effects

• Maximum input: 1000V DC / 750V AC rms

2. DC/AC Current Measurement

• Set the rotary switch to the appropriate A position based on expected current (2mA, 20mA, 200mA, or 20A)

• Connect test leads: red to mA jack (for currents up to 200mA) or 20A jack (for currents up to 20A), black to COM jack

• Connect test leads in series with the circuit under test

• The 20A range is protected by a fuse—limit measurement time to prevent overheating

3. Resistance Measurement

• Set the rotary switch to the appropriate Ω position

• Connect test leads across the resistor

• For low resistance measurements, short test leads to check for zero reading

• On the 200MΩ range, shorting the leads may show a value of approximately 10 digits—subtract this from final measurements

4. Capacitance Measurement

• Set the rotary switch to the appropriate capacitance position (2nF to 20μF)

• Fully discharge capacitors before testing to avoid damage to the meter

• Connect test leads in parallel with the capacitor

• Measures up to 20μF for motor start capacitors and power supply filtering

5. Continuity & Diode Testing

• Set the rotary switch to the continuity/diode position

• Continuity Test: Buzzer sounds when resistance is <70Ω—ideal for quick wiring checks

• Diode Test: Displays forward voltage drop (test current 1mA @ 3V open circuit)

6. Transistor (hFE) Testing

• Set the rotary switch to the hFE position

• Determine whether the transistor is NPN or PNP type

• Insert the transistor into the dedicated hFE socket, matching the correct pinout (E, B, C)

• Read the transistor's DC current gain (β) directly from the display (0~1000β)

7. Data Hold

• Press the HOLD button to freeze the current reading on the display

• Press again to release

• Useful for capturing readings in difficult-to-see locations

8. Sleep Mode (Auto Power Off)

• The meter automatically enters sleep mode after a period of inactivity to conserve battery life

• Turn the meter off and on again to resume normal operation

9. Low Battery Indication

• When the battery voltage drops below operating level, a low battery symbol appears on the LCD

• Replace the 9V battery promptly to maintain measurement accuracy

10. Power On/Off

• Use the dedicated POWER button to turn the meter on and off

Safety Features

The UT52 incorporates multiple safety features to protect users :

• CAT II 600V / CAT I 1000V Rating: Suitable for measurements on single-phase appliances, distribution circuits, and electronic equipment

• 20A Fuse Protection: Safety fuse on high current range prevents damage from overload

• Full Range Overload Protection: Protects the meter and user during fault conditions

• Input Jack Protective Covers: Prevents accidental contact during measurements

• Double Insulation: Complies with international safety requirements

• Low Battery Indication: Prevents false readings due to insufficient power

• Impact-Resistant Holster: Protects meter from drops and impacts

Applications

The UNI-T UT52 is an ideal tool for :

🔧 Electronics维修 & Hobby

• Testing components on circuit boards

• Measuring transistor gain (hFE) for matching pairs

• Diode and continuity testing for PCB troubleshooting

• Capacitance measurement for timing circuits

⚡ Electrical Maintenance

• Troubleshooting control panels and equipment up to 1000V

• Measuring current on circuits up to 20A

• Continuity checking for wiring and connections

• Diode testing for rectifiers and semiconductors

🌡️ HVAC & Appliance Repair

• Testing thermostats and sensors (with temperature function on higher models)

• Checking start/run capacitors up to 20μF

• Voltage and current measurements on heating/cooling systems

🚗 Automotive Diagnostics

• Testing car battery voltage (12V/24V systems)

• Checking alternator output

• Testing fuses and relays

• Verifying sensor operation

🏠 DIY & Home Workshop

• Testing household outlets and batteries

• Electronics projects and circuit debugging

• Appliance repair and troubleshooting

• General electrical measurements

Why Choose the UNI-T UT52?

The UT52 stands out as a versatile, mid-range workhorse that adds capacitance measurement to the foundational UT51 model.

Key Differentiators :

UT52 vs. Other UT50 Series Models

The UT50 series offers several models with specialized features, with the UT52 serving as the capacitance-enabled model :

Customer Reviews Summary

Users consistently praise the UT52 for:

• Build Quality: "坚固的外壳设计经久耐用" (Rugged, durable design) — UNI-T official site

• Accuracy: Reliable measurements with ±(0.5%+1) DCV accuracy

• Capacitance Function: Valuable addition for electronics work

• Ease of Use: Intuitive controls and clear display

• Value for Money: Feature set at an accessible price point

Limitations to Consider

• Manual Ranging Only: Requires manual range selection (no auto-ranging convenience)

• No True RMS: Uses average responding measurement—not suitable for non-linear loads

• No Temperature: Does not measure temperature (available on UT53, UT54, UT55)

• No Frequency: Does not measure frequency (available on UT53)

• Limited Capacitance Range: Maximum 20μF (not suitable for large motor start capacitors)

• 9V Battery: Uses 9V battery (6F22) instead of more common AAA batteries

Final Verdict

The UNI-T UT52 is the perfect choice for users who need capacitance measurement in addition to standard electrical testing. Its 20μF capacitance range, hFE transistor testing, and 200MΩ resistance capability make it ideal for electronics enthusiasts and technicians who work with timing circuits, capacitors, and semiconductors .

While it lacks True RMS, temperature, and frequency measurement (available in higher models), the UT52 excels where it matters most: accurate, reliable measurements with added capacitance functionality in a rugged, safety-certified package .

Whether you're an electronics hobbyist testing capacitors, a technician performing routine electrical checks, or a student learning measurement fundamentals, the UT52 delivers professional-grade performance at an accessible price point.
