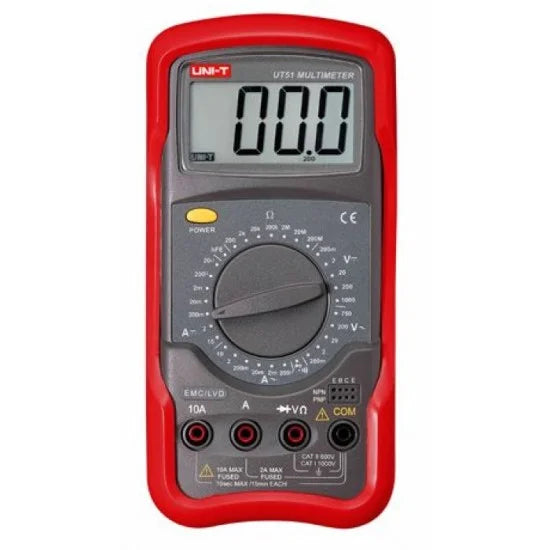

UNI-T UT51 1999-Count Manual Ranging Digital Multimeter: The Ultimate Guide

Overview

The UNI-T UT51 is a high-quality, universal digital multimeter from UNI-T's renowned UT50 series, designed for professionals and electronics enthusiasts who demand reliability and precision . This manual-ranging meter is built around a large-scale integrated circuit with a dual integral A/D converter at its core, delivering stable and accurate measurements for a wide range of electrical parameters .

Engineered for durability and ease of use, the UT51 features a rugged, impact-resistant holster and a large 27mm digit LCD display for clear data reading in any environment . With safety certifications compliant with CAT II 600V and CAT I 1000V standards (EN 61010), it provides professional-grade protection for applications in electronics, electrical maintenance, automotive diagnostics, and educational settings .

Key Features at a Glance

• Comprehensive Measurement Functions: Measures AC/DC voltage up to 1000V/750V, AC/DC current up to 10A, resistance up to 200MΩ, and includes diode and continuity testing

• Transistor (hFE) Testing: Dedicated socket for testing NPN/PNP transistor current gain (0~1000β)

• Large Clear Display: 1999-count LCD with 27mm digit height for excellent readability

• Manual Ranging with Full Overload Protection: 32 measurement ranges with comprehensive protection against misuse

• Continuity Buzzer: Acoustic indication with <70Ω threshold for quick circuit checks

• Diode Test: 1mA test current @ 3V open circuit voltage

• 10A Fuse Protection: Safety fuse on high current range for enhanced user protection

• Durable Construction: Impact-resistant holster and fold-out stand for benchtop use

• Low Battery Indication: Clear warning when 9V battery needs replacement

• Compact & Portable: Dimensions 190×88×34mm, weight approximately 540g (including holster)

Detailed Specifications

Electrical Measurement Specifications

Special Functions

General & Mechanical Specifications

What's in the Box

Note: Unlike some other models in the UT50 series, the UT51 does not include temperature measurement, capacitance, or frequency measurement functions .

Key Functions & Operation

1. DC/AC Voltage Measurement

• Set the rotary switch to the appropriate V position (V--- for DC, V~ for AC)

• Connect test leads: red to VΩ jack, black to COM jack

• Connect test leads in parallel to the circuit under test

• Input impedance is ≥10MΩ, minimizing circuit loading effects

• Maximum input: 1000V DC / 750V AC rms

2. DC/AC Current Measurement

• Set the rotary switch to the appropriate A position based on expected current

• Connect test leads: red to mA jack (for currents up to 200mA) or 10A jack (for currents up to 10A), black to COM jack

• Connect test leads in series with the circuit under test

• The 10A range is protected by a fuse

• Warning: For currents above 2A, limit measurement time to prevent overheating

3. Resistance Measurement

• Set the rotary switch to the appropriate Ω position

• Connect test leads across the resistor

• For low resistance measurements, short test leads to check for zero reading

• On the 200MΩ range, shorting the leads may show a reading of approximately 10 digits—this value should be subtracted from final measurements

4. Continuity & Diode Testing

• Set the rotary switch to the continuity/diode position

• Continuity Test: Buzzer sounds when resistance is <70Ω

• Diode Test: Displays forward voltage drop (test current 1mA @ 3V open circuit)

5. Transistor (hFE) Testing

• Set the rotary switch to the hFE position

• Determine whether the transistor is NPN or PNP type

• Insert the transistor into the dedicated hFE socket, matching the correct pinout (E, B, C)

• Read the transistor's DC current gain (β) directly from the display (0~1000β)

• Test conditions: Ib≈10μA, Vce≈2.8V

6. Sleep Mode (Auto Power Off)

• The meter features a sleep function to conserve battery life after periods of inactivity

• Turn the meter off and on again to resume normal operation

7. Low Battery Indication

• When the battery voltage drops below operating level, a low battery symbol appears on the LCD

• Replace the 9V battery promptly to maintain measurement accuracy

8. Power On/Off

• Use the dedicated POWER button to turn the meter on and off

Safety Features

The UT51 incorporates multiple safety features to protect users :

• CAT II 600V / CAT I 1000V Rating: Suitable for measurements on single-phase appliances, distribution circuits, and electronic equipment

• 10A Fuse Protection: Safety fuse on high current range prevents damage from overload

• Full Range Overload Protection: Protects the meter and user during fault conditions

• Input Warning: Never apply voltage exceeding 1000V DC or 750V AC rms between terminals and ground

• Double Insulation: Complies with international safety requirements

• Low Battery Indication: Prevents false readings due to insufficient power

• Impact-Resistant Holster: Protects meter from drops and impacts

Applications

The UNI-T UT51 is an ideal tool for:

🔧 Electronics Repair & Hobby

• Testing components on circuit boards

• Measuring transistor gain (hFE) for matching pairs

• Diode and continuity testing for PCB troubleshooting

• Voltage and current measurements in low-voltage circuits

⚡ Electrical Maintenance

• Troubleshooting control panels and equipment up to 1000V

• Measuring current on circuits up to 10A

• Continuity checking for wiring and connections

• Diode testing for rectifiers and semiconductors

🚗 Automotive Diagnostics

• Testing car battery voltage (12V/24V systems)

• Checking alternator output

• Testing fuses and relays

• Verifying sensor operation

🏠 DIY & Home Workshop

• Testing household outlets and batteries

• Electronics projects and circuit debugging

• Appliance repair and troubleshooting

• General electrical measurements

🎓 Educational & Vocational Training

• Ideal for electronics students learning basic measurement techniques

• Teaching transistor characteristics with hFE function

• Safe introduction to electrical measurements with manual ranging

Why Choose the UNI-T UT51?

The UT51 stands out as a reliable, no-frills workhorse for users who need accurate measurements without complex features.

Key Differentiators:

UT51 vs. Other UT50 Series Models

The UT50 series offers several models with specialized features, with the UT51 serving as a foundational model :

Limitations to Consider

• Manual Ranging Only: Requires manual range selection (no auto-ranging convenience)

• No True RMS: Uses average responding measurement—not suitable for non-linear loads

• No Capacitance: Does not measure capacitance (available on UT52 and above)

• No Temperature: No temperature measurement (available on UT53, UT54, UT55)

• No Frequency: Does not measure frequency (available on UT53)

• No Data Hold: Lacks data hold function found on newer models

• Backlight May Not Be Available: Some sources indicate no backlight , while others suggest it may be included

Final Verdict

The UNI-T UT51 is a reliable, durable, and straightforward digital multimeter that focuses on the fundamentals. Its transistor (hFE) testing capability and 200MΩ resistance range make it particularly valuable for electronics enthusiasts and technicians who need these features without paying for advanced functions they don't require .

While it lacks the auto-ranging convenience, True RMS accuracy, and additional functions of newer or higher-end models, the UT51 excels where it matters most: accurate, reliable measurements in a rugged, safety-certified package . The manual ranging operation gives experienced users full control, and the impact-resistant holster ensures it can withstand the rigors of daily use .

Whether you're an electronics hobbyist testing transistors, a technician performing routine electrical checks, or a student learning measurement fundamentals, the UT51 delivers professional-grade performance at an accessible price point.
