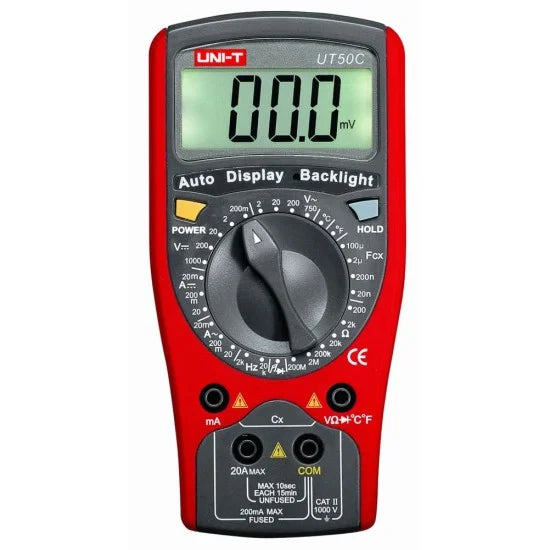

UNI-T UT50C 2000-Count Digital Multimeter with Frequency & Temperature: The Ultimate Guide

Overview

The UNI-T UT50C is a professional-grade, 2000-count hand-held digital multimeter from UNI-T's renowned UT50 series. Designed for electronics engineers, HVAC technicians, and field service professionals, this meter combines versatile measurement functions with a rugged, modern design. It is celebrated for its stable performance, high degree of reliability, and the unique ability to measure both frequency and temperature—a feature set that sets it apart as the most advanced model in the standard UT50 lineup .

Engineered with large-scale integrated circuits and a dual integral A/D converter, the UT50C delivers high-precision measurements for AC/DC voltage, AC/DC current, resistance, capacitance, temperature (from -40°C to 1000°C), and frequency (up to 20kHz) . It also includes essential user-friendly features like an auto-backlight for working in dark conditions, data hold, and a full symbol display. With safety ratings of CAT II 1000V and CAT III 600V, it provides professional-grade protection in residential, commercial, and light industrial environments .

Key Features at a Glance

• Frequency Measurement: Measures frequency up to 20kHz (2kHz/20kHz ranges)—a key differentiator from the UT50A and UT50B models .

• Temperature Measurement: Built-in K-type thermocouple support for readings from -40°C to 1000°C (-40°F to 1832°F) .

• Wide Voltage Range: Measures DC voltage up to 1000V and AC voltage up to 750V with high accuracy (DCV ±0.5%+1) .

• High Current Capacity: Measures DC/AC current up to 20A for automotive and industrial applications .

• Capacitance Measurement: Tests capacitors up to 100μF (100,000nF) .

• Resistance up to 200MΩ: Measures high-value resistors and insulation resistance .

• Auto-Backlight LCD: The backlight automatically illuminates in dark conditions for clear visibility .

• Comprehensive Testing: Includes diode test, continuity test with acoustic indication (<70Ω), and full symbol display .

• User-Friendly Features: Data hold, low battery indication, and auto power-off (after 10 minutes of inactivity) .

• Safety Certified: CAT II 1000V / CAT III 600V with double insulation, compliant with EN61010 standards .

Detailed Specifications

The UNI-T UT50C delivers professional-grade accuracy across a comprehensive range of electrical and temperature parameters .

Electrical & Temperature Measurement Specifications

General Characteristics

Special Functions

Mechanical & Environmental Specifications

What's in the Box

Note: Some distributor listings indicate that test lead lights (UT-TL) or illuminated test leads (UT-L1/L2) may be available as optional accessories requiring additional fees .

Key Functions & Operation

1. Frequency Measurement (UT50C Exclusive)

• Set the rotary switch to the 2kHz or 20kHz position

• Connect test leads to the signal source

• Measure frequencies up to 20kHz with ±(1.5%+5) accuracy

• Application: Essential for signal generators, oscillators, and telecommunications work—this feature distinguishes the UT50C from the UT50A and UT50B models

2. Temperature Measurement

• Set the rotary switch to the °C/°F position

• Connect the included K-type point contact temperature probe to the meter (observe correct polarity)

• Place the temperature probe on or in the object being measured

• Read the temperature value directly from the display

• Range: -40°C to 1000°C for maximum versatility in HVAC, appliance repair, and industrial applications

3. DC/AC Voltage Measurement

• Set the rotary switch to the appropriate voltage position in the V range

• Connect test leads: red to the VΩ terminal, black to the COM terminal

• Connect test leads in parallel to the circuit under test

• For unknown voltage values, start with the highest range (1000V DC or 750V AC) and reduce until a satisfactory reading is obtained

• Input impedance is ≥10MΩ, minimizing circuit loading effects

4. DC/AC Current Measurement

• Set the rotary switch to the appropriate A position based on expected current (20mA, 200mA, or 20A)

• WARNING: Turn off power to the circuit and discharge all high-voltage capacitors before connecting the meter

• Connect test leads: red to the mA or 20A terminal (depending on expected current), black to the COM terminal

• Break the current path and connect the test leads in series with the circuit (red to more positive side, black to more negative side)

• Turn on power to the circuit and read the current value

• Note: On the 20A range, measurements should not exceed 10 seconds with a 15-minute interval to prevent damage

5. Resistance Measurement

• Set the rotary switch to the appropriate Ω position

• Connect test leads across the resistor

• For low resistance measurements, note that test lead resistance may introduce small errors

• On the 200MΩ range, when test leads are shorted, the display may show a value of approximately 10. This value should be subtracted from the final measurement

6. Capacitance Measurement

• Set the rotary switch to the appropriate capacitance position

• Fully discharge capacitors before testing to avoid damage to the meter

• Connect test leads in parallel with the capacitor

• Measures up to 100μF (100,000nF) —suitable for motor start capacitors and power supply filtering

• Note: When measuring capacitors above 30μF, accuracy may not be guaranteed

7. Continuity & Diode Testing

• Set the rotary switch to the continuity/diode position

• Continuity Test: Buzzer sounds when resistance is <70Ω—ideal for quick wiring checks

• Diode Test: Displays forward voltage drop for semiconductor testing (open circuit voltage approximately 2.8V)

8. Data Hold

• Press the HOLD button to freeze the current reading on the display

• The symbol is displayed and the present value is shown

• Press HOLD again to exit hold mode

• Useful for capturing readings in difficult-to-see locations

9. Auto-Backlight

• The LCD backlight automatically illuminates in dark conditions

• Ensures clear readings when working in dimly lit environments, panels, or electrical rooms

10. Sleep Mode (Auto Power Off)

• The meter automatically enters sleep mode after 10 minutes of inactivity to conserve battery life

• Turn the meter off and on again to resume normal operation

11. Power On/Off

• Press down the yellow POWER button to turn the meter on

• Press up the yellow POWER button to turn the meter off

UT50C vs. UT50A vs. UT50B

The UT50 series offers several models with specialized measurement ranges, with the UT50C serving as the most advanced model :

Applications

The UNI-T UT50C is an ideal tool for:

🌡️ HVAC & Refrigeration Technicians

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple

• Troubleshooting furnaces, air conditioners, and refrigeration systems

• Testing thermostats, sensors, and heating elements

• Checking start/run capacitors up to 100μF

⚡ Electrical & Industrial Maintenance

• Troubleshooting control panels and machinery up to 1000V

• Measuring current on equipment up to 20A

• Frequency analysis for motor drives and signal testing

• Verifying sensor operation and continuity

📱 Electronics Repair & Hobby

• Testing components on circuit boards

• Frequency measurement for oscillators and signal generators

• Capacitance testing for power supply filtering

• Diode and continuity testing for PCB troubleshooting

🏠 Residential Electrical Work

• Testing household outlet voltages up to 750V AC

• Checking batteries and power supplies

• Troubleshooting lighting circuits and appliances

• Temperature measurement for ovens and dryers

🚗 Automotive Diagnostics

• Testing car battery voltage (12V/24V systems)

• Checking alternator output

• Testing fuses and relays up to 20A

• Temperature monitoring of engine components (with thermocouple)

Safety Features

The UT50C incorporates multiple safety features to protect users :

• CAT II 1000V / CAT III 600V Rating: Suitable for measurements on single-phase appliances, distribution circuits, and permanently installed equipment

• Fuse Protection: Fuses on current ranges protect against overload (0.5A, 250V for mA ranges)

• Input Protection: Never apply voltage exceeding 1000V DC or 750V AC rms between terminals and ground

• Double Insulation: Complies with international double insulation requirements

• Low Battery Indication: Battery symbol appears when voltage drops below operating level to prevent false readings

• Shrouded Test Leads: Test leads with finger guards prevent accidental contact during measurements

Why Choose the UNI-T UT50C?

The UT50C stands out as the most advanced and versatile model in the UT50 series, offering frequency measurement capability that the UT50A and UT50B lack.

Key Differentiators:

Limitations to Consider

• Manual Ranging Only: Requires manual range selection (no auto-ranging)

• No True RMS: Uses average responding measurement—not True RMS

• Frequency Range Limited: Maximum 20kHz (not suitable for RF work)

• 9V Battery: Uses 9V battery (6F22) instead of more common AAA batteries

• Older Model: The UT50 series has been succeeded by newer models with updated features

Final Verdict

The UNI-T UT50C is the definitive choice for professionals who need frequency measurement capability in addition to comprehensive electrical and temperature testing. Its 20kHz frequency range, -40°C to 1000°C temperature measurement, and 100μF capacitance make it exceptionally well-suited for HVAC technicians, electronics engineers, and maintenance professionals who require a versatile, all-in-one diagnostic tool .

While it uses manual ranging and lacks True RMS, the UT50C excels where it matters most: accurate and reliable measurements across a wide range of parameters, including frequency—a feature not found on its siblings, the UT50A and UT50B.

Whether you're an HVAC technician diagnosing a furnace, an electronics engineer testing signal frequencies, or an electrician troubleshooting industrial equipment, the UT50C delivers professional-grade performance at an accessible price point.
