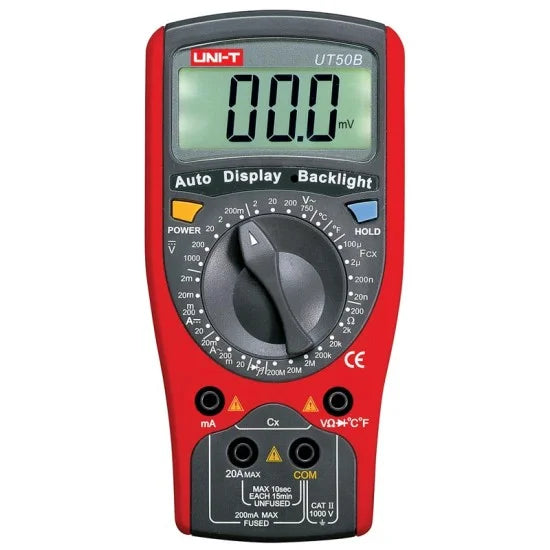

UNI-T UT50B 2000-Count Digital Multimeter with Temperature: The Ultimate Guide

Overview

The UNI-T UT50B is a reliable, 2000-count hand-held digital multimeter from UNI-T's renowned UT50 series. Designed for electronics enthusiasts, electricians, and field service technicians, this meter is celebrated for its stable performance, versatile functions, and unique, rugged structure . It strikes an excellent balance between comprehensive features and user-friendly operation, making it a popular choice for a wide range of applications, from home workshops to professional maintenance tasks.

Engineered with large-scale integrated circuits and a dual integral A/D converter at its core, the UT50B delivers high-precision measurements for AC/DC voltage, AC/DC current, resistance, capacitance, and temperature . It also includes essential features like a data hold function, a full icon display, and an auto-backlight for working in dark conditions, ensuring reliable and safe operation in various environments . With safety ratings of CAT II 1000V and CAT III 600V, it provides professional-grade protection in residential, commercial, and light industrial settings .

Key Features at a Glance

• 2000-Count Display: Clear LCD with a maximum display of 1999 for easy reading .

• Temperature Measurement: Built-in support for K-type thermocouples, measuring from -40°C to 1000°C (-40°F to 1832°F) .

• Wide Voltage Range: Measures DC voltage up to 1000V and AC voltage up to 750V with high accuracy .

• High Current Capacity: Measures DC/AC current up to 20A .

• Capacitance Measurement: Tests capacitors up to 100mF (100,000μF) .

• Auto-Backlight LCD: The backlight automatically illuminates in dark conditions for clear visibility .

• Comprehensive Testing: Includes resistance (up to 200MΩ), diode test, and continuity test with acoustic indication .

• User-Friendly Features: Data hold, full symbol display, low battery indication, and auto power-off (sleep mode) .

• Rugged Construction: Durable design with a compact form factor and protective holster .

• Safety Certified: CAT II 1000V / CAT III 600V with double insulation, compliant with IEC61010 standards .

Detailed Specifications

The UNI-T UT50B delivers professional-grade accuracy across a comprehensive range of electrical and temperature parameters.

Electrical & Temperature Measurement Specifications

General Characteristics

Special Functions

Mechanical & Environmental Specifications

What's in the Box

Note: Some distributor listings indicate that test lead lights (UT-TL) or illuminated test leads (UT-L1/L2) may be available as optional accessories requiring additional fees .

Key Functions & Operation

1. Temperature Measurement

• Set the rotary switch to the °C/°F position

• Connect the included K-type point contact temperature probe to the meter (note correct polarity: red to anode, black to cathode)

• Place the temperature probe on or in the object being measured

• Read the temperature value directly from the display

• Range: -40°C to 1000°C for maximum versatility in HVAC, appliance repair, and industrial applications

2. DC/AC Voltage Measurement

• Set the rotary switch to the appropriate voltage position in the V range

• Connect test leads: red to the VΩ terminal, black to the COM terminal

• Connect test leads in parallel to the circuit under test

• For unknown voltage values, start with the highest range (1000V DC or 750V AC) and reduce until a satisfactory reading is obtained

• Input impedance is ≥10MΩ, minimizing circuit loading effects

3. DC/AC Current Measurement

• Set the rotary switch to the appropriate A position based on expected current (2mA, 20mA, 200mA, or 20A)

• WARNING: Turn off power to the circuit and discharge all high-voltage capacitors before connecting the meter

• Connect test leads: red to the mA or 20A terminal (depending on expected current), black to the COM terminal

• Break the current path and connect the test leads in series with the circuit (red to more positive side, black to more negative side)

• Turn on power to the circuit and read the current value

4. Resistance Measurement

• Set the rotary switch to the appropriate Ω position

• Connect test leads across the resistor

• For low resistance measurements, note that test lead resistance may introduce small errors

5. Continuity & Diode Testing

• Set the rotary switch to the continuity/diode position

• Continuity Test: Buzzer sounds when circuit is complete—ideal for quick wiring checks

• Diode Test: Displays forward voltage drop for semiconductor testing

6. Capacitance Measurement

• Set the rotary switch to the appropriate capacitance position

• Fully discharge capacitors before testing to avoid damage to the meter

• Connect test leads in parallel with the capacitor

• Measures up to 100μF (100,000nF) —suitable for motor start capacitors and power supply filtering

7. Data Hold

• Press the HOLD button (blue) once to freeze the current reading on the display

• The symbol is displayed and the present value is shown

• Press HOLD again to exit hold mode

• Useful for capturing readings in difficult-to-see locations

8. Auto-Backlight

• The LCD backlight automatically illuminates in dark conditions

• Ensures clear readings when working in dimly lit environments, panels, or electrical rooms

9. Sleep Mode (Auto Power Off)

• The meter automatically enters sleep mode after a period of inactivity to conserve battery life

• If there is no display after turning on the meter, ensure sleep mode is not active

• Turn the meter off and on again to resume normal operation

10. Power On/Off

• Press down the yellow POWER button to turn the meter on

• Press up the yellow POWER button to turn the meter off

UT50B vs. UT50A vs. UT50C

The UT50 series offers several models with specialized measurement ranges:

Safety Features

The UT50B incorporates multiple safety features to protect users:

• CAT II 1000V / CAT III 600V Rating: Suitable for measurements on single-phase appliances, distribution circuits, and permanently installed equipment

• Fuse Protection: Fuses on current ranges protect against overload

• Input Protection: Never apply voltage exceeding 1000V DC or 750V AC rms between terminals and ground

• Double Insulation: Complies with international double insulation requirements

• Low Battery Indication: Battery symbol appears when voltage drops below operating level to prevent false readings

• Shrouded Test Leads: Test leads with finger guards prevent accidental contact during measurements

Applications

The UNI-T UT50B is an ideal tool for:

🌡️ HVAC & Appliance Repair

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple

• Troubleshooting furnaces, air conditioners, and refrigeration systems

• Testing thermostats, sensors, and heating elements

• Checking start/run capacitors up to 100μF

⚡ Electrical & Residential Work

• Testing household outlet voltages up to 750V AC

• Checking batteries and power supplies

• Troubleshooting lighting circuits and appliances

• Continuity checking for wiring and fuses

🔧 DIY & Home Workshop

• Perfect for hobbyists and homeowners

• Electronics projects and circuit debugging

• Component testing—resistors, capacitors, diodes

• Battery testing and power supply verification

🚗 Automotive Diagnostics

• Testing car battery voltage (12V/24V systems)

• Checking alternator output

• Testing fuses and relays up to 20A

• Temperature monitoring of engine components (with thermocouple)

🏭 Light Industrial Maintenance

• Troubleshooting control panels and machinery

• Measuring current on equipment up to 20A

• Verifying sensor operation

• General electrical diagnostics

Customer Reviews Summary

Users consistently praise the UT50B for:

• Reliability: "Stable performance" and "high degree of reliability" are frequently highlighted

• Temperature Function: The included thermocouple adds significant value for HVAC work

• Build Quality: "Unique structure" and rugged construction inspire confidence

• Ease of Use: Intuitive controls and clear display make operation simple

• Value for Money: Comprehensive features at an accessible price point

Why Choose the UNI-T UT50B?

The UT50B stands out as a versatile, feature-rich multimeter that includes temperature measurement capability.

Key Differentiators:

Limitations to Consider

• Manual Ranging Only: Requires manual range selection (no auto-ranging)

• No True RMS: Uses average responding measurement—not True RMS

• No Frequency Measurement: For frequency analysis, consider UT50C

• 9V Battery: Uses 9V battery (6F22) instead of more common AAA batteries

• Older Model: The UT50 series has been succeeded by newer models with updated features

Final Verdict

The UNI-T UT50B is a reliable, feature-packed digital multimeter that offers exceptional value for users who need temperature measurement capability. Its included K-type thermocouple, -40°C to 1000°C range, and 100μF capacitance make it well-suited for HVAC technicians, appliance repair professionals, and DIY enthusiasts.

While it uses manual ranging and lacks True RMS, the UT50B excels where it matters most: accurate and reliable measurements in a durable, safety-certified package. The auto-backlight feature ensures clear readings in dark environments, and the included test clips and temperature probe add significant value.

Whether you're an HVAC technician diagnosing a furnace, an electrician troubleshooting a control panel, or a hobbyist testing components, the UT50B delivers professional-grade performance at an accessible price point.
