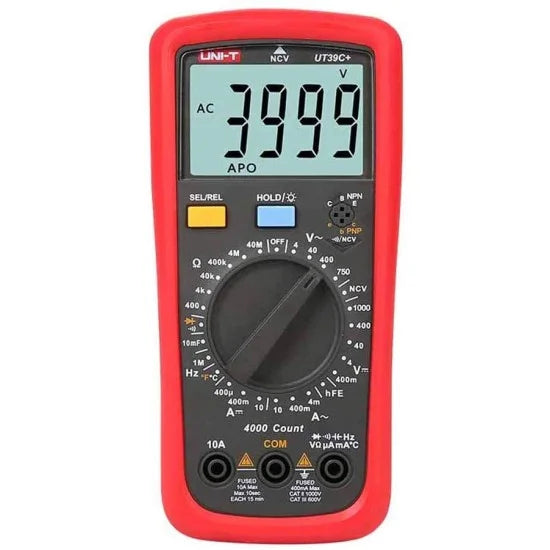

UNI-T UT39C+ 4000-Count Digital Multimeter with Temperature: The Ultimate Guide

Overview

The UNI-T UT39C+ is a professional-grade, 4000-count digital multimeter specifically designed for the HVAC/R industry and general electrical maintenance . As a key model in UNI-T's upgraded UT39+ series, this meter combines robust durability with comprehensive functionality, making it an indispensable tool for HVAC technicians, electricians, and field service professionals who require temperature measurement capability alongside standard electrical testing .

Engineered to withstand the rigors of daily use, the UT39C+ features a rugged design compliant with CAT II 1000V and CAT III 600V safety standards, ensuring professional-grade protection in high-energy electrical environments . What truly sets the UT39C+ apart is its built-in temperature measurement, NCV (Non-Contact Voltage) detection, and hFE transistor testing—making it the most versatile model in the UT39+ series after the flagship UT39E+ .

Key Features at a Glance

• Temperature Measurement: Built-in K-type thermocouple support for readings from -40°C to 1000°C (-40°F to 1832°F)—essential for HVAC/R diagnostics and appliance repair .

• High Precision 4000-Count Display: 3 3/4 digit LCD with 56.5mm × 36mm large screen for clear readings .

• Wide Voltage Range: Measures DC voltage up to 1000V and AC voltage up to 750V .

• High Current Capacity: Measures DC/AC current up to 10A .

• Non-Contact Voltage (NCV) Detection: Safely detects live AC voltage without physical contact—ideal for initial circuit checks .

• Transistor (hFE) Testing: Built-in socket for testing transistor current gain—valuable for electronics work .

• Capacitance Measurement: Measures capacitance up to 10mF (10,000μF) for testing motor start capacitors and power supply filtering .

• Frequency Measurement: Up to 1MHz frequency testing capability .

• Comprehensive Testing: Includes resistance, diode, and continuity tests with acoustic indication .

• User-Friendly Features: Manual ranging, data hold, backlight, low battery indication, and auto power off .

• Safety Certified: CAT II 1000V / CAT III 600V with overvoltage and overcurrent alarm protection .

Detailed Specifications

The UNI-T UT39C+ delivers professional-grade accuracy across a comprehensive range of electrical and temperature parameters .

Electrical & Temperature Measurement Specifications

General Characteristics

Special Functions

What's in the Box

Key Functions & Operation

1. Temperature Measurement (UT39C+ Exclusive)

• Set the rotary switch to the temperature position

• Connect the included K-type thermocouple to the meter

• Place the temperature probe on or in the object being measured

• Read the temperature value directly from the display

• Range: -40°C to 1000°C for maximum versatility in HVAC/R applications

• Perfect for furnace diagnostics, refrigeration maintenance, and appliance repair

2. NCV (Non-Contact Voltage) Detection

• Set the rotary switch to the NCV position

• Bring the top of the meter near a live conductor or outlet

• The meter provides audio and visual indication when AC voltage is detected

• Safety Benefit: Allows quick verification of live circuits before physical contact

3. DC/AC Voltage Measurement

• Set the rotary switch to the appropriate voltage position

• Connect test leads in parallel to the circuit under test

• Measure up to 1000V DC or 750V AC with high accuracy

4. DC/AC Current Measurement

• Set the rotary switch to the appropriate μA, mA, or A position based on expected current

• Connect test leads in series with the circuit

• The UT39C+ supports current measurement up to 10A

• Overcurrent alarm triggers during faulty operation

5. hFE Transistor Testing

• Set the rotary switch to the hFE position

• Insert the transistor into the dedicated hFE socket, matching the correct pinout (E, B, C)

• Read the transistor's DC current gain (β) directly from the display

• Application: Essential for electronics work and component matching

6. Resistance, Continuity & Diode Testing

• Set the rotary switch to the appropriate position

• Press to cycle through functions as needed

• Continuity: Buzzer sounds when circuit is complete

• Diode Test: Displays forward voltage drop

7. Capacitance Measurement

• Set the rotary switch to the capacitance position

• Fully discharge capacitors before testing to avoid damage

• Connect test leads in parallel with the capacitor

• Measures up to 10mF (10,000μF) —suitable for motor start capacitors and power supply filtering

8. Frequency Measurement

• Set the rotary switch to the Hz position

• Connect test leads to the signal source

• Measure frequencies up to 1MHz

9. Data Hold & Backlight

• Press HOLD to freeze the current reading on the display

• Press and hold to turn the LCD backlight on/off

• Backlit display ensures clear readings in low-light conditions

10. Auto Power Off

• Meter automatically shuts down after a period of inactivity to save battery

• Press any button or turn the rotary switch to wake

UT39C+ vs. UT39A+ vs. UT39E+

The UT39+ series offers three distinct models with specialized features :

Applications

The UNI-T UT39C+ is an ideal tool for:

🌡️ HVAC/R Technicians

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple

• Troubleshooting furnaces, air conditioners, and refrigeration systems

• Testing thermostats and temperature sensors

• Checking electrical components like compressors and fan motors

⚡ Electrical & Industrial Maintenance

• Troubleshooting control panels and machinery up to 1000V

• NCV detection for safe live wire identification

• Testing motor windings and contactors

• Measuring current on equipment up to 10A

🔧 Electronics Repair & Hobby

• Testing components on circuit boards

• Measuring transistor gain (hFE) for matching pairs

• Checking capacitor values up to 10mF

• Diode and continuity testing for PCB troubleshooting

🏠 Residential Electrical Work

• Checking household outlet voltages (up to 750V AC)

• Testing batteries and power adapters

• Troubleshooting lighting circuits and appliances

• Temperature measurement for ovens and dryers

Safety Features

The UT39C+ incorporates multiple advanced safety features to protect users :

• CAT II 1000V / CAT III 600V Rating: Suitable for measurements on distribution circuits and permanently installed equipment

• Overvoltage and Overcurrent Alarm: Triggers during faulty operation to alert user

• High Voltage Protection: Protects the meter and user from damage during fault conditions

• Input Protection: Never apply voltage exceeding 1000V between terminals and ground

• Low Battery Indication: Alerts user when batteries need replacement to maintain accuracy

• Double Insulation: Complies with international safety requirements

Why Choose the UNI-T UT39C+?

The UT39C+ stands out as a specialized tool for temperature-critical applications while maintaining comprehensive electrical measurement capabilities .

Key Differentiators:

Final Verdict

The UNI-T UT39C+ is the definitive choice for professionals who need temperature measurement capability in a rugged, reliable, and feature-rich multimeter. Its included K-type thermocouple, -40°C to 1000°C range, and NCV detection make it exceptionally well-suited for HVAC/R technicians, appliance repair professionals, and anyone working with temperature-critical systems .

While it uses manual ranging and lacks True RMS (available in higher models), the UT39C+ excels where it matters most: accurate temperature and electrical measurements in a durable, safety-certified package .

Whether you're an HVAC technician diagnosing a furnace, an electrician troubleshooting a control panel, or a hobbyist testing components, the UT39C+ delivers professional-grade performance at an accessible price point.
