UNI-T UT33D+ Palm Size Digital Multimeter with NCV: The Ultimate Guide

Overview

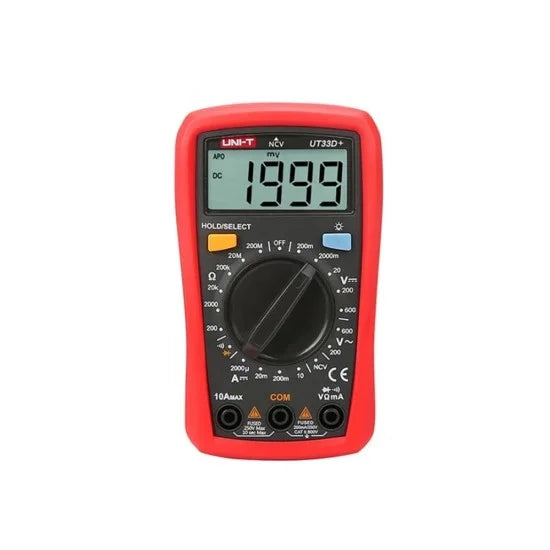

The UNI-T UT33D+ is a compact, palm-sized digital multimeter designed for electricians, DIY enthusiasts, and hobbyists who need a reliable and safe tool for everyday electrical troubleshooting . As part of UNI-T's new generation UT33+ series, this meter combines an innovative, durable design with essential measurement functions, all in a truly portable package .

Engineered with user safety and device longevity in mind, the UT33D+ features a 2-meter drop-proof design, thanks to its rugged protective holster . This ensures it can withstand the accidental falls common on job sites. With a safety rating of CAT II 600V, it provides reliable protection for measurements on household appliances and outlets .

The standout feature of the UT33D+ is its Non-Contact Voltage (NCV) detection, allowing you to safely identify live AC wires without making any physical contact—an essential tool for any electrician .

Key Features at a Glance

• Non-Contact Voltage (NCV) Detection: Safely identify live AC wires without touching them, with audio and visual alarms .

• Exceptional Durability: 2-meter drop proof with a rugged, protective holster—ideal for job site use .

• Wide Measurement Range: Measures DC voltage up to 600V, AC voltage up to 600V, DC current up to 10A, and resistance up to 200MΩ .

• Clear LCD Display: Large, backlit LCD screen for easy reading in dimly lit environments .

• Comprehensive Testing: Includes continuity test with acoustic indication (buzzer sounds from 10Ω to 50Ω) and diode test function .

• User-Friendly Features: Data Hold, manual ranging, low battery indicator, and auto power-off to conserve battery life .

• Safety Certified: CAT II 600V, compliant with EN 61010 safety standards .

• Compact & Portable: Lightweight design with dimensions of 77 x 134 x 47mm, easily fitting in a pocket or tool bag .

Detailed Specifications

The UNI-T UT33D+ delivers reliable accuracy for a range of essential electrical parameters.

Electrical Measurement Specifications

General & Mechanical Specifications

Special Functions

What's in the Box

Key Functions & Operation

1. NCV (Non-Contact Voltage) Detection

• Set the rotary switch to the NCV position.

• Bring the top of the meter near a live conductor, outlet, or cord.

• The meter will provide an audio and visual alarm when AC voltage is detected, allowing for safe verification of live circuits without physical contact .

2. DC/AC Voltage Measurement

• Set the rotary switch to the appropriate V--- (DC) or V~ (AC) position.

• Select the correct manual range (e.g., 200V or 600V for AC).

• Connect the test leads in parallel to the circuit under test.

• Read the voltage value on the clear, backlit LCD display .

3. DC Current Measurement

• Set the rotary switch to the appropriate A--- position (2mA, 20mA, 200mA, or 10A).

• Connect the test leads in series with the circuit under test.

• Observe the correct polarity and ensure you do not exceed the 10A maximum for more than 10-15 seconds to avoid damage.

4. Resistance & Continuity Testing

• Set the rotary switch to the **Ω/))) ** position.

• Press the SEL button if necessary to cycle between resistance and continuity test modes.

• For resistance, connect the leads across the resistor to read the value .

• For continuity, connect the leads across a wire or fuse. The buzzer will sound if the resistance is low (between 10Ω and 50Ω), indicating a complete circuit .

5. Diode Test

• Set the rotary switch to the **Ω/))) ** position and press SEL to enter diode test mode.

• Connect the red lead to the anode and the black lead to the cathode of the diode.

• The display will show the approximate forward voltage drop .

6. Data Hold

• Press the HOLD button to freeze the current reading on the display, making it easy to document .

7. Auto Power Off

• To save battery life, the meter will automatically shut down after a period of inactivity .

Applications

The UNI-T UT33D+ is an ideal tool for:

⚡ Electricians & Maintenance Technicians

• Quickly verifying live circuits with NCV before beginning work .

• Troubleshooting outlets, switches, and lighting fixtures.

• Testing for continuity in wiring and fuses.

🏠 DIY Enthusiasts & Homeowners

• Checking battery voltage in cars, toys, and household electronics .

• Testing wall outlets for correct voltage.

• Simple automotive diagnostics.

🎓 Educational & Vocational Training

• Perfect for students learning the basics of electronics and electrical measurement .

• Safe introduction to measuring voltage, current, and resistance.

• The manual ranging feature helps students understand the scale of measurements.

Why Choose the UNI-T UT33D+?

The UT33D+ is a feature-packed, entry-level multimeter that prioritizes safety and durability alongside essential functionality.

Key Differentiators:

Final Verdict

The UNI-T UT33D+ is a well-rounded, durable, and safe entry-level multimeter that goes beyond the basics by including a very useful NCV function. Its ability to withstand a 2-meter drop makes it a reliable companion for both professional electricians and serious DIYers who need a compact, go-anywhere meter for everyday voltage, current, and continuity checks
