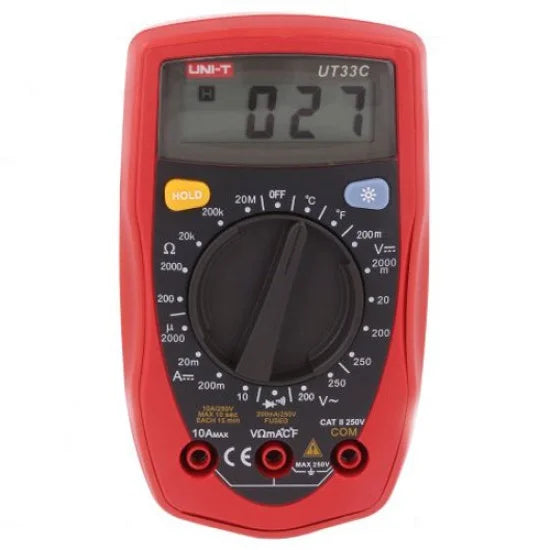

UNI-T UT33C+ Palm Size Digital Multimeter with Temperature: The Ultimate Guide

Overview

The UNI-T UT33C+ is a specialized, palm-sized digital multimeter designed for professionals and enthusiasts who require temperature measurement capability in a compact, durable tool . As part of UNI-T's new generation UT33+ series, this meter combines an innovative industrial design with practical functionality, making it the ideal choice for HVAC technicians, appliance repair professionals, and anyone who needs to measure both electrical parameters and temperature .

Engineered to withstand the rigors of daily use, the UT33C+ features a remarkable 2-meter drop-proof design protected by a comfortable, heavy-duty protective cover with a convenient test lead hanging groove . This ensures it survives accidental falls from workbenches, ladders, or scaffolding that would destroy lesser meters. With a safety rating of CAT II 600V, it delivers professional-grade protection in residential, commercial, and light industrial electrical environments .

What truly sets the UT33C+ apart is its built-in temperature measurement function—a feature not available on all UT33+ models. This makes it a two-in-one tool for HVAC diagnostics, furnace troubleshooting, and refrigeration maintenance .

Key Features at a Glance

• Temperature Measurement: Built-in K-type thermocouple support for readings from -40°C to 1000°C (-40°F to 1832°F)—essential for HVAC and appliance repair

• Exceptional Durability: 2-meter drop proof with rugged protective cover and test lead hanging groove—ideal for job site use

• Wide Measurement Range: Measures DC voltage up to 600V, AC voltage up to 600V, and DC current up to 10A

• Resistance Testing: Measures resistance up to 20MΩ for comprehensive component testing

• Clear LCD Display: Large 66mm × 51mm backlit display with improved layout for excellent readability in any lighting condition

• User-Friendly Features: Data hold, manual ranging, continuity buzzer with loud sound, diode test, auto power off, and auto backlight off

• Safety Certified: CAT II 600V with CE certification for safe operation in various settings

• Compact & Portable: Lightweight design (206g including batteries) with dimensions of 134mm × 77mm × 47mm

• Long Battery Life: Powered by 2 x 1.5V AAA batteries (included)

Detailed Specifications

The UNI-T UT33C+ delivers professional-grade accuracy across a range of essential electrical and temperature parameters .

Electrical & Temperature Measurement Specifications

General Characteristics

Special Functions

What's in the Box

UT33C+ vs. Other UT33+ Series Models

The UT33+ series offers four distinct models, each with specialized features :

Key Functions & Operation

1. Temperature Measurement (UT33C+ Exclusive)

• Set the rotary switch to the °C/°F position

• Connect the included K-type thermocouple to the meter

• Place the temperature probe on or in the object being measured

• Read the temperature value directly from the display

• Range: -40°C to 1000°C for maximum versatility in HVAC and industrial applications

• Perfect for furnace diagnostics, refrigeration maintenance, and appliance repair

2. DC/AC Voltage Measurement

• Set the rotary switch to the appropriate voltage position (V- for DC, V~ for AC)

• For AC voltage, select the 200V or 600V range manually

• Connect test leads in parallel to the circuit under test

• Input impedance is ≥10MΩ, minimizing circuit loading

• Maximum input: 600V AC/DC

3. DC Current Measurement

• Set the rotary switch to 2000μA, 20mA, 200mA, or 10A based on expected current

• Connect test leads in series with the circuit under test

• Always start with the highest range if current value is unknown

• Fuse protection: 0.2A/250V (μA/mA), 10A/250V (10A)

4. Resistance Measurement

• Set the rotary switch to Ω position

• Connect test leads across the resistor

• For low resistance measurements, short test leads to check for zero reading

• Resistance ranges: 200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ

5. Continuity Test

• Set the rotary switch to the continuity/diode position

• Connect test leads across the circuit

• The buzzer sounds when resistance is <10Ω

• Condition broken when resistance exceeds 50Ω

• Fast response time for efficient troubleshooting

6. Diode Test

• Set the rotary switch to the continuity/diode position

• Connect test leads across the diode

• Display shows forward voltage drop (max 1.999V)

• Open circuit voltage is approximately 2.1V

• Normal silicon p-n junction forward drop: 0.5-0.8V

7. Data Hold

• Press HOLD to freeze the current reading on the display

• Press again to release

• Useful for capturing readings in difficult-to-see locations

8. Backlight

• Press the backlight button to illuminate the LCD

• Backlight automatically turns off after approximately 30 seconds to conserve battery

9. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity

• Conserves battery life—press any button or turn the rotary switch to wake

Safety Features

The UT33C+ incorporates multiple safety features to protect users :

• CAT II 600V Rating: Suitable for measurements on single-phase appliances, plugs, and outlets connected to the mains supply

• Fuse Protection: Dual fuse protection on current ranges (0.2A/250V and 10A/250V 5×20mm)

• Overload Protection: 600V protection on resistance, continuity, diode, and capacitance ranges

• Double Insulation: Complies with international double insulation requirements

• Low Battery Indication: Battery symbol appears when voltage drops below operating level

• Shrouded Test Leads: Test leads with finger guards prevent accidental contact during measurements

• 2-Meter Drop Protection: Withstands accidental falls from workbenches

• Protective Cover: Rubber holster absorbs shock and provides grip

Applications

The UNI-T UT33C+ is an ideal tool for:

🌡️ HVAC & Refrigeration Technicians

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple

• Troubleshooting furnaces, air conditioners, and refrigeration systems

• Testing thermostats and temperature sensors

• Checking electrical components like compressors and fan motors

🔧 Appliance Repair Professionals

• Diagnosing ovens, dryers, and refrigerators

• Testing heating elements and thermostats

• Electrical troubleshooting of control boards

• Temperature verification of cooking and cooling appliances

⚡ Electrical & Residential Work

• Testing household outlet voltages up to 600V

• Checking batteries and power supplies

• Troubleshooting lighting circuits and appliances

• Continuity checking for wiring and fuses

🚗 Automotive Diagnostics

• Testing car battery voltage (12V/24V systems)

• Checking alternator output

• Testing fuses and relays

• Temperature monitoring of engine components (with thermocouple)

🎓 Educational & Vocational Training

• Ideal for HVAC students learning temperature measurement

• Teaching fundamental electrical measurement techniques

• Safe introduction to both electrical and temperature diagnostics

Customer Reviews Summary

Users consistently praise the UT33C+ for:

• Build Quality: "Отличный тестер... мягкая изоляция на проводах, противоударный чехол" (Excellent tester... soft insulation on wires, shockproof cover) — Verified user after 2+ years of use

• Temperature Function: "Мой первый мультиметр... работает и ок, есть подсветка, батарейки были в комплекте" (My first multimeter... works fine, has backlight, batteries included) — Verified buyer

• Durability: The 2-meter drop protection and protective cover inspire confidence on job sites

• Ease of Use: "Kullanışlı... Ölçüm özelliklerine dikkat ederek işinize uygun olanı alırsanız sizi mutlu eder" (Useful... if you pay attention to measurement features and get the one suitable for your work, it will make you happy) — Turkish reviewer

• Value for Money: "Tek kelimeyle harika hiç düşünmeden alınız ucuz alıp çöpe atmayın kaliteli ürün" (Simply great, buy without thinking, don't buy cheap and throw away, quality product) — Verified buyer

Why Choose the UNI-T UT33C+?

The UT33C+ stands out as a specialized tool for temperature-critical applications while maintaining comprehensive electrical measurement capabilities.

Key Differentiators:

Limitations to Consider

• Manual Ranging Only: Unlike the UT33A+, the UT33C+ requires manual range selection

• No AC Current: Cannot measure AC current (for AC current, consider UT33A+)

• No Capacitance: Does not measure capacitance (available on UT33A+)

• 20MΩ Maximum Resistance: Lower than the 200MΩ capability of UT33A+ and UT33B+

• Test Lead Limitations: Probes are non-detachable and cannot be repaired if damaged

Final Verdict

The UNI-T UT33C+ is the definitive choice for professionals who need temperature measurement capability in a compact, durable, and reliable multimeter. Its included K-type thermocouple and -40°C to 1000°C range make it exceptionally well-suited for HVAC technicians, appliance repair professionals, and anyone working with temperature-critical systems .

While it requires manual range selection and lacks some features of its siblings (AC current, capacitance), the UT33C+ excels where it matters most: accurate temperature and electrical measurements in a truly portable package .

With its 2-meter drop-proof design, CAT II 600V safety rating, backlit display, and included thermocouple, the UT33C+ delivers professional-grade performance that will serve you faithfully for years
