UNI-T UT33B+ Series Palm Size Digital Multimeter: The Ultimate Guide

Overview

The UNI-T UT33+ Series represents a new generation of palm-sized digital multimeters that redefine the performance standards for entry-level and professional test equipment . Designed with an innovative industrial aesthetic, this series combines exceptional durability with comprehensive functionality, making it the ideal choice for electricians, electronics enthusiasts, DIYers, and field service technicians who need a reliable, portable troubleshooting tool .

Engineered to withstand the rigors of daily use, every model in the UT33+ series features a remarkable 2-meter drop-proof design protected by a comfortable, heavy-duty protective cover with a convenient test lead hanging groove . This ensures it survives accidental falls from workbenches, ladders, or scaffolding that would destroy lesser meters. With a safety rating of CAT II 600V, it delivers professional-grade protection in residential, commercial, and light industrial electrical environments .

The UT33+ series includes four distinct models—UT33A+, UT33B+, UT33C+, and UT33D+—each with specialized features to meet different user needs while maintaining the core durability and reliability of the series .

Key Features at a Glance

• Exceptional Durability: 2-meter drop proof with rugged protective cover and test lead hanging groove—ideal for job site use

• Clear LCD Display: Large 66mm × 51mm backlit display with improved layout for excellent readability in any lighting condition

• Safety Certified: CAT II 600V with CE certification for safe operation in various settings

• User-Friendly Features: Auto power off, auto backlight off, diode test, continuity buzzer with loud sound, and ergonomic rotary switch

• Compact & Portable: Lightweight design (206g including batteries) with dimensions of 134mm × 77mm × 47mm

• Long Battery Life: Powered by 2 x 1.5V AAA batteries (R03)

Model Comparison: Which UT33+ Is Right for You?

The UT33+ series offers four distinct models, each with specialized features to match specific applications :

Detailed Specifications

Electrical Measurement Specifications

General Characteristics

What's in the Box

Model-Specific Functions

UT33A+ — The Most Feature-Rich Model

The UT33A+ is the flagship model of the series, offering full auto-ranging capability and the most comprehensive feature set :

• Auto-ranging on all functions—simply choose the measurement type, and the meter selects the correct range automatically

• AC current measurement up to 10A (unique to this model)

• Capacitance measurement up to 2mF for motor start capacitors and power supply filtering

• Resistance measurement up to 200MΩ for comprehensive component testing

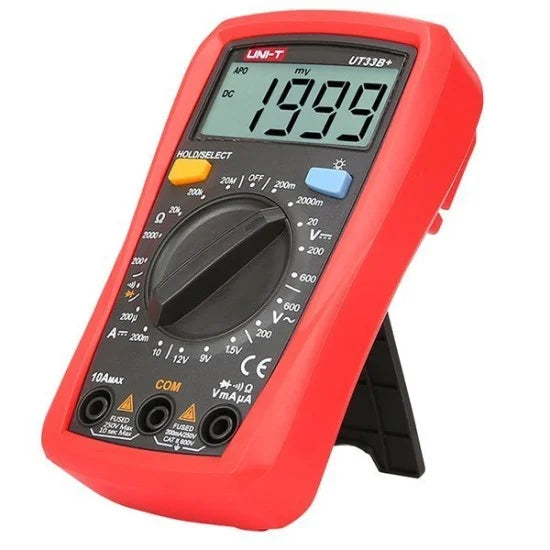

UT33B+ — Battery Testing Specialist

The UT33B+ is specifically designed for users who frequently test batteries :

• Battery test function for 1.5V, 9V, and 12V batteries

• Displays Good, Low, or Bad battery status for quick assessment

• Internal load resistors (30Ω for 1.5V, 900Ω for 9V, 60Ω for 12V) provide realistic loaded voltage readings

• Manual ranging on all functions

UT33C+ — Temperature Measurement for HVAC

The UT33C+ adds temperature capability, making it ideal for HVAC technicians :

• Temperature measurement from -40°C to 1000°C (-40°F to 1832°F)

• K-type thermocouple included in the package

• Perfect for furnace diagnostics, refrigeration maintenance, and appliance repair

• Manual ranging on all functions

UT33D+ — Non-Contact Voltage Detection

The UT33D+ features NCV capability for safe voltage detection :

• NCV (Non-Contact Voltage) detection for safe live wire identification

• Audio and visual indication when AC voltage is detected

• Ideal for electricians needing to verify live circuits without contact

• Manual ranging on all functions

How to Use Your UNI-T UT33+ Series Multimeter

1. DC/AC Voltage Measurement

• Set the rotary switch to the appropriate voltage position

• For UT33A+, the meter auto-ranges; for other models, select the desired range manually

• Connect test leads in parallel to the circuit under test

• Input impedance is ≥10MΩ, minimizing circuit loading

2. DC Current Measurement

• Set the rotary switch to μA, mA, or A based on expected current

• Connect test leads in series with the circuit under test

• Always start with the highest range if current value is unknown

• Warning: The 10A range shares an input with voltage—ensure correct switch position to avoid blowing the fuse

• Fuse protection: 0.2A/250V for μA/mA range, 10A/250V for 10A range

3. Resistance Measurement

• Set the rotary switch to Ω position

• Connect test leads across the resistor

• For low resistance measurements, short test leads to check for zero reading

4. Continuity Test

• Set the rotary switch to the continuity/diode position

• Connect test leads across the circuit

• The buzzer sounds when resistance is <10Ω

• Fast ~20ms response time for efficient troubleshooting

5. Diode Test

• Set the rotary switch to the continuity/diode position

• Connect test leads across the diode

• Display shows forward voltage drop (max 1.999V)

• Open circuit voltage is approximately 2.1V to 2.2V

6. Data Hold

• Short press HOLD to freeze the current reading on the display

• Press again to release

• Useful for capturing readings in difficult-to-see locations

7. Backlight

• Press the backlight button to illuminate the LCD

• Backlight automatically turns off after approximately 30 seconds to conserve battery

8. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity

• Conserves battery life—press any button or turn the rotary switch to wake

Safety Features & Certifications

The UT33+ series incorporates multiple safety features to protect users :

• CAT II 600V Rating: Suitable for measurements on single-phase appliances, plugs, and outlets connected to the mains supply

• Fuse Protection: Dual fuse protection on current ranges (0.2A/250V and 10A/250V 5×20mm)

• Overload Protection: 600V protection on resistance, continuity, diode, and capacitance ranges

• Double Insulation: Complies with international double insulation requirements

• Low Battery Indication: Battery symbol appears when voltage drops below operating level

• Shrouded Test Leads: Test leads with finger guards prevent accidental contact

• 2-Meter Drop Protection: Withstands accidental falls from workbenches

Applications

The UNI-T UT33+ series is ideal for:

⚡ Electrical & Residential Work

• Testing household outlet voltages

• Checking batteries and power supplies

• Troubleshooting lighting circuits and appliances

• Identifying live wires safely (UT33D+)

🔧 DIY & Home Workshop

• Perfect for hobbyists and homeowners

• Electronics projects and circuit debugging

• Component testing—resistors, capacitors (UT33A+), diodes

• Continuity checking for wiring and fuses

🌡️ HVAC & Refrigeration

• Temperature measurement with UT33C+

• Testing thermostats and sensors

• Furnace and air conditioner diagnostics

• Refrigeration system maintenance

🚗 Automotive Diagnostics

• Testing car battery voltage (12V/24V systems)

• Checking alternator output

• Testing fuses and relays

• Battery condition testing with UT33B+

🎓 Educational & Vocational Training

• Ideal for electronics students

• Teaching fundamental measurement techniques

• Safe introduction to electrical measurements

• Auto-ranging on UT33A+ simplifies learning for beginners

Customer Reviews Summary

Users consistently praise the UT33+ series for:

• Build Quality: "做工扎實，質感手感出乎意料地好" (Solid workmanship, surprisingly good feel) — Verified user

• Durability: "Прорезиненный чехол" (Rubberized cover) and drop protection inspire confidence

• Ease of Use: "挺好用的，操作比较简单" (Very easy to use, simple operation) — Verified user

• Value for Money: "Своих денег стоит однозначно" (Definitely worth its money) — Verified buyer

• Clear Display: Backlit LCD readable in various lighting conditions

• NCV Function: "Работает чётко" (Works clearly) on UT33D+

Why Choose the UNI-T UT33+ Series?

The UT33+ series stands out as a versatile, durable, and user-friendly multimeter family that bridges the gap between basic entry-level meters and expensive professional models .

Key Differentiators:

Final Verdict

The UNI-T UT33+ Series represents a new benchmark in entry-level digital multimeters, offering exceptional build quality, comprehensive safety features, and specialized functionality at an accessible price point .

• Choose the UT33A+ if you need the most features, including AC current, capacitance, and the convenience of auto-ranging

• Choose the UT33B+ if you frequently test batteries and want quick Good/Low/Bad status indications

• Choose the UT33C+ if you work with HVAC systems and need temperature measurement capability

• Choose the UT33D+ if non-contact voltage detection is essential for your work

With its 2-meter drop-proof design, CAT II 600V safety rating, and specialized features tailored to different applications, the UT33+ series delivers professional-grade performance in a truly portable package that will serve you faithfully for years
