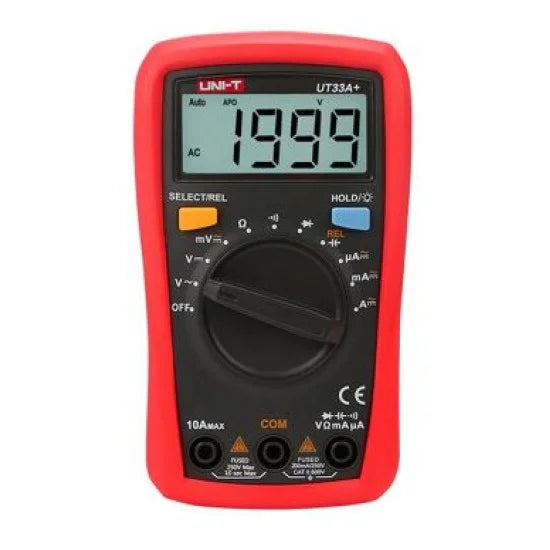

UNI-T UT33A+ Palm Size Auto-Ranging Multimeter: The Ultimate Guide

Overview

The UNI-T UT33A+ is a next-generation, palm-sized digital multimeter that redefines the performance standards for entry-level and professional test equipment . Designed with an innovative industrial aesthetic, this meter combines exceptional durability with comprehensive functionality, making it the ideal choice for electricians, electronics enthusiasts, DIYers, and field service technicians who need a reliable, portable troubleshooting tool .

Engineered to withstand the rigors of daily use, the UT33A+ features a remarkable 2-meter drop-proof design protected by a comfortable, heavy-duty protective cover . This ensures it survives accidental falls from workbenches, ladders, or scaffolding that would destroy lesser meters . With a safety rating of CAT II 600V, it delivers professional-grade protection in residential, commercial, and light industrial electrical environments .

The UT33A+ stands out as the only model in the UT33+ series with full auto-ranging capability, making it exceptionally user-friendly for both beginners and experienced professionals . It eliminates the need to manually select measurement ranges—simply choose the function, and the meter does the rest.

Key Features at a Glance

• Auto-Ranging Functionality: Automatically selects the correct measurement range for voltage, current, resistance, and capacitance—no manual adjustments needed

• Exceptional Durability: 2-meter drop proof with rugged protective cover—ideal for job site use

• Wide Measurement Range: Measures DC voltage up to 600V, AC voltage up to 600V, and DC/AC current up to 10A

• Capacitance Measurement: Tests capacitors up to 2mF—essential for motor start capacitors and power supply troubleshooting

• High Resistance Range: Measures resistance up to 200MΩ for comprehensive component testing

• Clear LCD Display: Large 66mm × 51mm backlit display with improved layout for excellent readability in any lighting condition

• Integrated Test Lead Storage: Convenient rear test lead hanging groove keeps probes organized and prevents loss

• User-Friendly Features: Data hold, relative (REL) mode for zeroing, continuity buzzer, diode test, and auto power off

• Safety Certified: CAT II 600V with CE certification

Detailed Specifications

The UNI-T UT33A+ delivers professional-grade accuracy across a comprehensive range of electrical parameters .

Electrical Measurement Specifications

General Characteristics

Special Functions

Mechanical & Environmental Specifications

What's in the Box

Note: The UT33A+ does not include a temperature probe—that is exclusive to the UT33C+ model .

Button Functions & Operation

The UT33A+ features an intuitive interface with two primary buttons :

Rotary Switch Positions

• OFF: Meter is turned off

• V~: AC Voltage measurement (600V max)

• V-: DC Voltage measurement (600V max)

• mV: Millivolt range (AC/DC, use SEL to select)

• Ω: Resistance measurement

• ))))) :** Continuity test

• →+: Diode test

• -| |-: Capacitance measurement (use REL to zero before low-value measurements)

• μA: Microampere range (AC/DC, use SEL to select)

• mA: Milliampere range (AC/DC, use SEL to select)

• A: Ampere range (AC/DC, use SEL to select)

How to Use Your UNI-T UT33A+

1. DC/AC Voltage Measurement

• Set the rotary switch to V- (DC) or V~ (AC)

• For millivolt measurements, use the mV position and press SEL to choose AC or DC

• Connect test leads in parallel to the circuit under test

• Read the voltage value on the 1999-count display

• Input impedance is ≥10MΩ, minimizing circuit loading

2. DC/AC Current Measurement

• Set the rotary switch to μA, mA, or A based on expected current

• Press SEL to choose between DC and AC

• Connect test leads in series with the circuit under test

• Always start with the highest range if current value is unknown

• Warning: The 10A range shares an input with voltage—ensure correct switch position to avoid blowing the fuse

• The 10A range has an audible alarm at ≥10A

3. Resistance Measurement

• Set the rotary switch to Ω position

• Connect test leads across the resistor

• The meter autoranges through 200Ω to 200MΩ ranges

• For low resistance measurements (<200Ω), short test leads and note inherent lead resistance (~72mΩ per lead)

4. Continuity Test

• Set the rotary switch to the )))) position

• Connect test leads across the circuit

• The buzzer sounds when resistance is <31Ω with a fast ~20ms response time

• Ideal for quick checks of wiring, fuses, and connections

5. Diode Test

• Set the rotary switch to the →+ position

• Connect test leads across the diode

• Display shows forward voltage drop (max 1.999V)

• Open circuit voltage is approximately 2.2V

6. Capacitance Measurement

• Set the rotary switch to the -| |- position

• Fully discharge capacitors before testing to avoid damage

• For capacitors <200nF, use REL mode to zero out test lead capacitance

• Connect test leads in parallel with the capacitor

• Note: 2000μF (2mF) measurements take approximately 9 seconds to stabilize

7. Relative (REL) Mode

• Press REL to store the current reading as a reference

• Subsequent readings display the difference from the stored value

• Essential for accurate low-capacitance measurements

8. Data Hold

• Short press HOLD to freeze the current reading on the display

• Press again to release

• Useful for capturing readings in difficult-to-see locations

9. Backlight

• Long press HOLD (about 2 seconds) to turn the LCD backlight on/off

• Backlight automatically turns off after approximately 30 seconds to conserve battery

10. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity

• Conserves battery life—press any button or turn the rotary switch to wake

Safety Features & Certifications

The UT33A+ incorporates multiple safety features to protect users :

• CAT II 600V Rating: Suitable for measurements on single-phase appliances, plugs, and outlets connected to the mains supply

• Fuse Protection: 10A range uses a 10A/250V 5×20mm ceramic fuse; mA/μA range uses a 0.2A/250V 5×20mm fuse

• Input Warning: Never apply voltage exceeding 600V between terminals and ground

• Overload Protection: 600V AC/DC protection on resistance, continuity, diode, and capacitance ranges

• Double Insulation: Complies with international double insulation requirements

• Low Battery Indication: Battery symbol appears when voltage drops below approximately 2.4V

• Shrouded Test Leads: Fully shrouded plugs prevent accidental contact during measurements

UT33A+ vs. Other UT33+ Series Models

The UT33+ series offers four distinct models, each with specialized features :

Applications

The UNI-T UT33A+ is an ideal tool for:

⚡ Electrical & Residential Work

• Testing household outlet voltages

• Checking batteries and power supplies

• Troubleshooting lighting circuits and appliances

• Identifying live wires safely

🔧 DIY & Home Workshop

• Perfect for hobbyists and homeowners

• Electronics projects and circuit debugging

• Component testing—resistors, capacitors, diodes

• Continuity checking for wiring and fuses

🚗 Automotive Diagnostics

• Testing car battery voltage (12V/24V systems)

• Checking alternator output

• Testing fuses and relays

• Verifying sensor operation

🎓 Educational & Vocational Training

• Ideal for electronics students

• Teaching fundamental measurement techniques

• Safe introduction to electrical measurements

• Auto-ranging feature simplifies learning for beginners

📱 Field Service & Portable Applications

• On-site troubleshooting in tight spaces

• Fits easily in a pocket or small tool bag at just 206g

• Perfect for service technicians who need to travel light

Customer Reviews Summary

Users consistently praise the UT33A+ for:

• Build Quality: "Overall construction feels very premium... Feels sturdy in the hand" — Verified users

• Durability: The 2-meter drop protection and protective cover inspire confidence on job sites

• Ease of Use: Auto-ranging functionality highly appreciated by both beginners and professionals

• Value for Money: "Своих денег стоит однозначно" (Definitely worth its money) — Verified buyer

• Clear Display: Backlit LCD readable in various lighting conditions

• Accuracy: Reliable readings for everyday electrical work

Minor Considerations:

• Test leads are adequate but not detachable (non-repairable if damaged)

• Probe resistance is somewhat high at ~72mΩ per lead

Why Choose the UNI-T UT33A+?

The UT33A+ stands out as a versatile, durable, and user-friendly multimeter that bridges the gap between basic entry-level meters and expensive professional models .

Key Differentiators:

Limitations to Consider

• No Temperature Measurement: For HVAC applications, consider UT33C+

• No NCV Detection: For non-contact voltage, consider UT33D+

• No Battery Test Function: For battery-specific testing, consider UT33B+

• Manual AC Current Selection: Requires pressing SEL to access AC current

• Test Lead Limitations: Probes are non-detachable and cannot be repaired if damaged

Final Verdict

The UNI-T UT33A+ is the definitive choice for users who want a versatile, durable, and truly user-friendly multimeter with the convenience of full auto-ranging . It is the most feature-complete model in the UT33+ series, offering AC/DC voltage, AC/DC current (up to 10A), resistance (up to 200MΩ), and capacitance (up to 2mF) in one rugged, pocket-sized package .

What truly sets the UT33A+ apart is its combination of professional-grade durability (2-meter drop proof), comprehensive functionality, and exceptional ease of use. The auto-ranging feature makes it perfect for beginners who are just learning electrical measurement, while the True RMS accuracy and CAT II 600V safety rating satisfy demanding professionals .

Whether you're a homeowner needing to troubleshoot household circuits, a DIY enthusiast working on electronics projects, a maintenance technician performing basic electrical checks, or a student learning electrical fundamentals, the UT33A+ delivers professional-grade performance in an accessible, affordable package .

With its 2-meter drop-proof design, True RMS accuracy, capacitance measurement, auto-ranging convenience, and CAT II 600V safety rating, the UT33A+ is more than just a basic multimeter—it's a reliable, versatile testing solution that will serve you faithfully for years to come
