UNI-T UT281E 3000A True RMS Flexible Clamp Meter: The Ultimate Guide

Overview

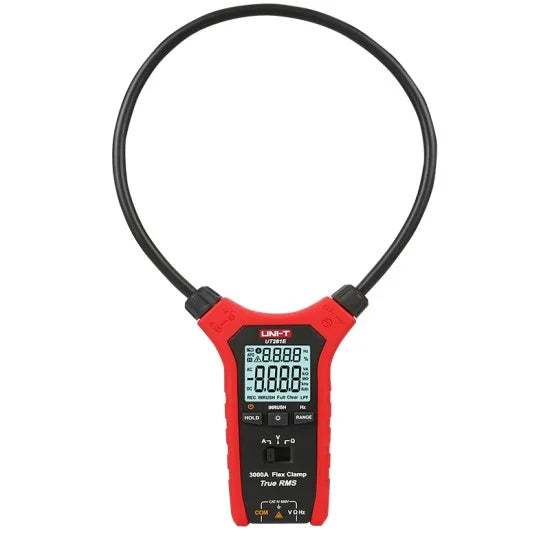

The UNI-T UT281E is a professional-grade, 3000A true RMS flexible clamp meter engineered for electricians, industrial maintenance technicians, and utility workers who need to measure massive currents in tight, hard-to-reach spaces . As the advanced model in UNI-T's UT281 series, this instrument features a Rogowski flexible coil that can wrap around large conductors, busbars, or densely packed wiring without requiring direct contact or circuit disconnection.

Designed to tackle the most challenging electrical environments, the UT281E combines high-accuracy measurement capabilities with professional-grade features including a dual LCD display, auto-ranging, and comprehensive voltage, resistance, and frequency measurement functions . With its ability to measure AC current up to an astounding 3000A and an extended 18-inch flexible coil, the UT281E is the ultimate tool for power distribution, industrial maintenance, and heavy electrical troubleshooting.

Key Features at a Glance

• Massive 3000A AC Current Measurement: Measures AC current up to 3000A across three selectable ranges (30A/300A/3000A) with ±(3%+5) accuracy .

• Extended Flexible Rogowski Coil Design: 45.7cm (18-inch) flexible coil with 8mm diameter can be bent and shaped to fit around large conductors and into tight spaces where rigid clamps cannot reach—ideal for crowded cabinets and busbars .

• True RMS Technology: Provides accurate readings even with non-linear or distorted AC waveforms, essential for modern power electronics and variable frequency drives .

• 6000-Count Dual Display: High-resolution dual LCD display (6000 counts, 3000 in current measurement) simultaneously shows current and frequency, or voltage and frequency, for efficient diagnostics .

• Auto-Ranging Function: Features auto-ranging with manual range available in current measurement—more advanced than the manual-only UT281A and UT281C models .

• Inrush Current Capture: Long press the INRUSH key for 2 seconds to measure inrush current (0.5A~3000A), essential for analyzing motor start-up currents and transformer energization .

• Comprehensive Measurement Capabilities: Measures AC voltage up to 600V, resistance up to 60MΩ, and frequency up to 30kHz .

• Industrial-Grade Durability: Certified 2-meter drop protection ensures your investment survives job site accidents .

• User-Friendly Features: Data hold, backlit LCD, buzzer, low battery indication, and auto power off after approximately 10-15 minutes of inactivity .

• Safety Certified: CAT IV 600V safety rating for use on primary power distribution systems, with CE, UKCA, and cETLus certifications .

Detailed Specifications

The UNI-T UT281E delivers professional-grade accuracy for high-current AC measurements and comprehensive electrical testing.

Measurement Ranges & Accuracy

Mechanical Specifications

What's in the Box

Note: The UT281E includes test leads and BNC adapter socket, unlike the UT281A which includes a PC software CD, and the UT281C which has standard accessories .

UT281 Series Comparison: UT281E vs. UT281A vs. UT281C

The UT281 series offers three distinct models, with the UT281E positioned as the advanced model with auto-ranging and dual display :

Key Functions & Operation

1. AC Current Measurement (Up to 3000A)

• Set the rotary switch to the appropriate current position (30A, 300A, or 3000A) .

• Wrap the flexible Rogowski coil around one conductor only—measuring multiple conductors will produce incorrect readings .

• The 18-inch (45.7cm) coil can be bent and shaped to fit around large cables, busbars, or through crowded panels .

• True RMS technology ensures accurate readings even with distorted waveforms .

2. Dual Display Function

• The UT281E features a dual LCD display that can simultaneously show:

  • Current and frequency during current measurements

  • Voltage and frequency during voltage measurements

• This allows for efficient diagnostics without switching modes.

3. Auto-Ranging with Manual Override

• The UT281E features auto-ranging for ease of use, with manual range available in current measurement .

• This provides flexibility for different measurement scenarios.

4. Inrush Current Capture

• Long press the INRUSH key for 2 seconds to enter inrush current measurement mode .

• Start the motor or equipment under test—the meter captures the instantaneous inrush current (0.5A~3000A, for reference) .

• Application: Essential for analyzing motor start-up currents, transformer energization, and circuit breaker testing.

5. AC Voltage, Resistance & Frequency Measurement

• The UT281E includes comprehensive measurement capabilities:

  • AC voltage up to 600V

  • Resistance up to 60MΩ

  • Frequency up to 30kHz

• Connect the included test leads to perform these measurements.

6. Rogowski Coil Technology

• Unlike traditional iron-core CTs, Rogowski coils do not saturate under high currents, ensuring linear performance up to 3000A .

• The air-core design eliminates heavy iron, making the coil flexible and easy to position.

• Safe open-circuit operation—can be operated with the secondary open without dangerous voltage buildup.

7. Data Hold & Backlight

• Press HOLD to freeze the current reading on the display .

• Manual backlight button illuminates the LCD for clear readings in dark environments.

8. Auto Power Off

• Meter automatically shuts down after approximately 10-15 minutes of inactivity to conserve battery life .

• Low battery indication alerts when batteries need replacement (below 3.8V) .

Safety Features

The UT281E incorporates multiple advanced safety features to protect users:

• CAT IV 600V Rating: Suitable for measurements on primary power distribution systems—the highest safety rating for portable meters .

• 2-Meter Drop Protection: Certified to withstand accidental falls from workbenches and ladders .

• Insulated Rogowski Coil: Fully insulated flexible coil for safe operation around live conductors.

• ETL/Intertek Certified: Third-party verified safety and quality standards meeting IEC 61010-1:2010, IEC 61010-2-032:2012, and IEC 61326-1:2013 .

• Low Battery Indication: Prevents false readings due to insufficient power .

• Auto Power Off: Conserves battery and prevents accidental discharge .

Applications

The UNI-T UT281E's flexible coil design, massive 3000A capacity, and advanced features make it uniquely suited for:

🏭 Power Distribution & Utilities

• Measuring currents on large transformers, busbars, and main service entrances

• Checking feeder cables in substations and switchyards

• Verifying phase loads on three-phase power distribution systems

⚡ Industrial Electrical Maintenance

• Troubleshooting motor control centers (MCCs) and switchgear

• Measuring current on large industrial machinery and manufacturing equipment

• Monitoring load currents on heavy industrial installations

• Inrush current capture for motor start-up analysis

🔧 Electrical Contracting & Construction

• Commissioning new electrical installations with large conductors

• Verifying load currents during plant start-ups

• Working in electrical rooms with densely packed wiring where flexible coils excel

🏗️ Renewable Energy Systems

• Measuring AC current from large solar inverter outputs

• Troubleshooting wind turbine generators and power converters

• Monitoring grid-tie connections for commercial solar installations

🚆 Railways & Heavy Transport

• Measuring traction currents in railway systems

• Troubleshooting electric vehicle charging infrastructure

• Monitoring power distribution in marine and port facilities

Why Choose the UNI-T UT281E?

UT281E vs. Other Flexible Clamp Meters

Choose the UT281E if: You need the most advanced features including auto-ranging, dual display, higher 6000-count resolution, and comprehensive measurement capabilities, while still requiring the extended 18-inch coil for large conductors and tight spaces.

Choose the UT281A if: Space is at a premium and you need a more compact coil (10-inch) and IP54 rating, but manual ranging is acceptable.

Choose the UT281C if: You need the extended 18-inch coil and IP54 durability, but manual ranging is acceptable and you don't require the dual display .

Final Verdict

The UNI-T UT281E is the definitive choice for professionals who need to measure massive AC currents up to 3000A in tight or hard-to-reach spaces with the added benefits of auto-ranging convenience, dual display functionality, and comprehensive voltage, resistance, and frequency measurement capabilities. Its 18-inch flexible Rogowski coil design, 6000-count resolution, and professional-grade durability (2m drop proof) make it exceptionally well-suited for power distribution, industrial maintenance, and utility applications .

While traditional rigid-jaw clamp meters struggle with large conductors or crowded panels, the UT281E's 18-inch flexible coil wraps around the toughest obstacles with ease, conquering difficult-to-measure wires . The inclusion of auto-ranging, dual display, and test leads adds exceptional versatility, making it the most advanced model in the UT281 series .

The official UNI-T product page summarizes it best: "UT281 series can measure large currents in various harsh and hard to reach environments. They are designed with Rogowski flex coil and can test up to 3000A AC current. Due to the ease in operation, accurate readings, stable performance and reliable quality, these flex clamps are ideal tools for electricians" .

Whether you're a utility technician measuring transformer loads, an industrial electrician troubleshooting switchgear, or a contractor working in tight electrical rooms, the UT281E delivers professional-grade performance with the advanced features and durability you can trust.
