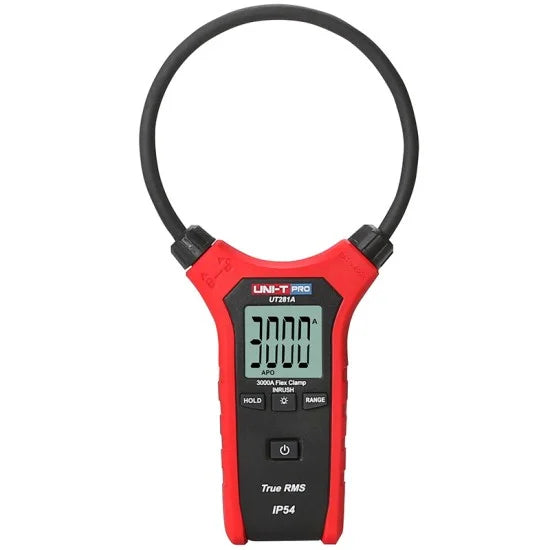

UNI-T UT281A 3000A True RMS Flexible Clamp Meter: The Ultimate Guide

Overview

The UNI-T UT281A is a professional-grade, 3000A true RMS flexible clamp meter engineered for electricians, industrial maintenance technicians, and utility workers who need to measure massive currents in tight, hard-to-reach spaces . Unlike traditional rigid-jaw clamp meters, the UT281A features a Rogowski flexible coil that can wrap around large conductors, busbars, or densely packed wiring without requiring direct contact or circuit disconnection .

As part of UNI-T's Pro Line series, this instrument combines high-accuracy measurement capabilities with industrial-grade durability, including IP54 dust and water resistance and certified 2-meter drop protection . With its ability to measure AC current up to an astounding 3000A and a flexible coil design that reaches into the most confined spaces, the UT281A is the ultimate tool for power distribution, industrial maintenance, and heavy electrical troubleshooting .

Key Features at a Glance

• Massive 3000A AC Current Measurement: Measures AC current up to 3000A across three selectable ranges (30A/300A/3000A) with ±(3%+5) accuracy .

• Flexible Rogowski Coil Design: 25.4cm (10-inch) flexible coil with 8mm diameter can be bent and shaped to fit around large conductors and into tight spaces where rigid clamps cannot reach .

• True RMS Technology: Provides accurate readings even with non-linear or distorted AC waveforms, essential for modern power electronics and variable frequency drives .

• Industrial-Grade Durability: IP54 rating provides protection against dust ingress and water splashes. Certified 2-meter drop protection ensures your investment survives job site accidents .

• Inrush Current Capture: Long press the INRUSH key for 2 seconds to measure inrush current (0.5A~3000A), essential for analyzing motor start-up currents and transformer energization .

• Frequency Response: 45Hz to 500Hz frequency response for accurate measurements on power systems and motor drives .

• User-Friendly Features: Manual ranging, data hold, backlit LCD, auto power off, and low battery indication .

• Safety Certified: CAT IV 600V safety rating for use on primary power distribution systems .

Detailed Specifications

The UNI-T UT281A delivers professional-grade accuracy for high-current AC measurements .

Measurement Ranges & Accuracy

Mechanical Specifications

What's in the Box

Note: Some sources indicate that the UT281A may include PC software CD and test leads depending on regional variants . Verify contents with your local distributor.

UT281 Series Comparison: UT281A vs. UT281C vs. UT281E

The UT281 series offers three distinct models with varying capabilities, with the UT281A positioned as the standard model with compact coil design :

Key Functions & Operation

1. AC Current Measurement (Up to 3000A)

• Set the rotary switch to the appropriate current position (30A, 300A, or 3000A) .

• Wrap the flexible Rogowski coil around one conductor only—measuring multiple conductors will produce incorrect readings .

• The coil can be bent and shaped to fit around large cables, busbars, or through crowded panels .

• True RMS technology ensures accurate readings even with distorted waveforms .

2. Inrush Current Capture

• Long press the INRUSH key for 2 seconds to enter inrush current measurement mode .

• Start the motor or equipment under test—the meter captures the instantaneous inrush current (0.5A~3000A, for reference) .

• Application: Essential for analyzing motor start-up currents, transformer energization, and circuit breaker testing .

3. AC Voltage, Resistance & Frequency Measurement

• The UT281A uniquely includes AC voltage (600V), resistance (60MΩ), and frequency (20Hz~30kHz) measurement capabilities—features not available on all models in the UT281 series .

• Connect test leads (if included or purchased separately) to measure voltage, resistance, and frequency .

• Application: Versatile troubleshooting without needing a separate multimeter.

4. Rogowski Coil Technology

• Unlike traditional iron-core CTs, Rogowski coils do not saturate under high currents, ensuring linear performance up to 3000A .

• The air-core design eliminates heavy iron, making the coil flexible and easy to position .

• Safe open-circuit operation—can be operated with the secondary open without dangerous voltage buildup .

5. Data Hold & Backlight

• Press HOLD to freeze the current reading on the display .

• Manual backlight button illuminates the LCD for clear readings in dark environments .

6. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity to conserve battery life .

• Low battery indication alerts when batteries need replacement .

Safety Features

The UT281A incorporates multiple advanced safety features to protect users :

• CAT IV 600V Rating: Suitable for measurements on primary power distribution systems—the highest safety rating for portable meters .

• IP54 Protection: Dust and splash resistant for reliable operation in harsh environments .

• 2-Meter Drop Protection: Certified to withstand accidental falls from workbenches and ladders .

• Insulated Rogowski Coil: Fully insulated flexible coil for safe operation around live conductors .

• Low Battery Indication: Prevents false readings due to insufficient power .

• Auto Power Off: Conserves battery and prevents accidental discharge .

Applications

The UNI-T UT281A's flexible coil design and massive 3000A capacity make it uniquely suited for :

🏭 Power Distribution & Utilities

• Measuring currents on large transformers, busbars, and main service entrances .

• Checking feeder cables in substations and switchyards .

• Verifying phase loads on three-phase power distribution systems.

⚡ Industrial Electrical Maintenance

• Troubleshooting motor control centers (MCCs) and switchgear .

• Measuring current on large industrial machinery and manufacturing equipment .

• Monitoring load currents on heavy industrial installations.

🔧 Electrical Contracting & Construction

• Commissioning new electrical installations with large conductors .

• Verifying load currents during plant start-ups.

• Working in electrical rooms with densely packed wiring .

🏗️ Renewable Energy Systems

• Measuring AC current from large solar inverter outputs.

• Troubleshooting wind turbine generators and power converters.

• Monitoring grid-tie connections for commercial solar installations.

🚆 Railways & Heavy Transport

• Measuring traction currents in railway systems.

• Troubleshooting electric vehicle charging infrastructure.

• Monitoring power distribution in marine and port facilities.

Why Choose the UNI-T UT281A?

Final Verdict

The UNI-T UT281A is the definitive choice for professionals who need to measure massive AC currents up to 3000A in tight or hard-to-reach spaces. Its flexible Rogowski coil design, industrial-grade durability (IP54/2m drop proof) , and comprehensive measurement capabilities make it exceptionally well-suited for power distribution, industrial maintenance, and utility applications.

While traditional rigid-jaw clamp meters struggle with large conductors or crowded panels, the UT281A's flexible coil wraps around the toughest obstacles with ease. The inclusion of voltage, resistance, and frequency measurement adds versatility, reducing the need for multiple tools .

One reviewer aptly summarized: "UT281A can measure large currents in various harsh and hard to reach environments. Due to the ease in operation, accurate readings, stable performance and reliable quality, this flex clamp is an ideal tool for electricians" .

Whether you're a utility technician measuring transformer loads, an industrial electrician troubleshooting switchgear, or a contractor working in tight electrical rooms, the UT281A delivers professional-grade performance with the safety features and durability you can trust.

DOWNLOAD DATA SHEET
