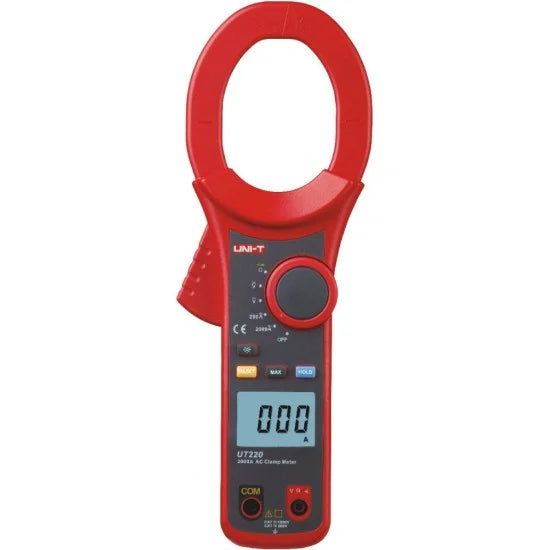

UNI-T UT220 2000A High Current Digital Clamp Meter: The Ultimate Guide

Overview

The UNI-T UT220 is a professional-grade, high-current digital clamp meter engineered for the rigorous demands of industrial electricians, maintenance engineers, and power distribution specialists . As a dedicated AC current meter from UNI-T's respected UT220 series, it is specifically designed to safely and reliably measure extremely high currents in heavy industrial environments.

Engineered to handle the most challenging tasks, the UT220 features a massive 63mm jaw opening capable of clamping around thick industrial cables, busbars, and multiple conductors with ease . With the ability to measure AC current up to 2000A and AC/DC voltage up to 1000V, this meter delivers specialized performance for applications in smelting, manufacturing, petroleum, chemical, and power distribution industries . Safety is paramount, with certifications meeting CAT III 1000V and CAT IV 600V standards, ensuring complete user protection in high-energy environments .

Key Features at a Glance

• Massive 63mm Jaw Opening: Accommodates extremely large industrial cables and busbars—one of the largest openings in its class

• High Current Capacity: Measures AC current up to 2000A (200A/2000A ranges) with ±(2.5%+5) accuracy

• Wide Voltage Range: Measures AC voltage up to 750V and DC voltage up to 1000V

• Comprehensive Testing: Includes Resistance (20MΩ), Diode, and Continuity tests

• Large LCD Display: 2000-count backlit LCD with 43mm × 30mm display for clear readings in any lighting condition

• User-Friendly Features: Auto-ranging, data hold, MAX recording, and auto power off

• Rugged Construction: Durable design with 1-meter drop protection for reliable field use

• Safety Certified: CAT III 1000V / CAT IV 600V with CE certification

• Built-In Flashlight: Integrated work light illuminates dark panels and electrical rooms

Detailed Specifications

The UNI-T UT220 delivers professional-grade accuracy for high-current industrial applications .

Electrical Measurement Specifications

General Characteristics

Special Functions

Mechanical & Environmental Specifications

What's in the Box

Key Functions & Operation

1. AC Current Measurement—Up to 2000A

• Set the rotary switch to the 200A or 2000A position

• Press the trigger to open the massive 63mm clamp jaws and clamp around one conductor only

• The meter automatically selects the appropriate range (auto-ranging)

• Read the current value on the 2000-count display—up to 2000A AC

• Application: Ideal for measuring current on large industrial cables, busbars, and power distribution lines

2. AC/DC Voltage Measurement

• Set the rotary switch to the V position

• Press SELECT to choose between AC and DC measurement

• Connect test leads in parallel to the circuit under test

• Measure up to 750V AC or 1000V DC with high input impedance (≥10MΩ) minimizing circuit loading

3. Resistance Measurement

• Set the rotary switch to the Ω position

• Connect test leads across the resistor

• Measure resistance up to 20MΩ with ±(1.0%+2) accuracy

• Useful for checking motor windings, transformer coils, and cable continuity

4. Continuity & Diode Testing

• Set the rotary switch to the Ω/continuity/diode position

• Press SELECT to cycle through functions:

  • Continuity: Buzzer sounds when resistance is <10Ω

  • Diode Test: Displays forward voltage drop

• Always disconnect circuit power and discharge capacitors before testing

5. Data Hold & MAX Recording

• Press HOLD to freeze the current reading on the display

• Press MAX to record and display the highest reading during measurement

• Useful for capturing peak values and monitoring fluctuating signals

6. Display Backlight & Flashlight

• Backlight: Illuminates the LCD for clear readings in dark environments

• Flashlight: Built-in work light enables operation in dimly lit electrical rooms and panels

• Both features enhance workplace safety and visibility

7. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity

• Conserves battery life and ensures the meter is ready when needed

• Press any button to wake the meter

UT220 vs. UT221 vs. UT222: Key Differences

The UT220 is the entry-level model in the UT220 series, while the UT221 and UT222 offer advanced features :

Applications

The UNI-T UT220's massive 63mm jaw opening and 2000A capacity make it uniquely suited for:

🏭 Heavy Industrial Maintenance

• Measuring current on large industrial cables and busbars

• Troubleshooting motor control centers (MCCs) and switchgear

• Monitoring load currents on manufacturing equipment

• Ideal for: Smelting, manufacturing, petroleum, and chemical industries

⚡ Power Distribution & Utilities

• Measuring currents on transformers and main service entrances

• Checking feeder cables in substations

• Verifying phase loads on three-phase systems

• CAT IV 600V rating for primary supply level measurements

🔧 Electrical Contracting & Construction

• Commissioning new electrical installations

• Verifying load currents during plant start-ups

• Working in electrical rooms with large conductors

• High-current busbar measurements

🏗️ Facility Management

• Monitoring main distribution panel loads

• Troubleshooting large HVAC equipment and chillers

• Generator output verification

• Data center PDU monitoring

🔥 Specialized Industrial Environments

• Specifically cited for use in smelting, manufacturing, petroleum, and chemical industries

• Rugged construction withstands harsh industrial conditions

• Large jaw opening accommodates heavy-gauge industrial cabling

Safety Features & Certifications

The UT220 incorporates multiple safety features to protect users :

• CAT III 1000V / CAT IV 600V Rating: Suitable for measurements on distribution circuits and primary supply levels

• CE, UKCA, and cETLus Certified: Meets European, UK, and North American safety standards

• Overload Protection: Comprehensive protection on all ranges

• Input Impedance: ≥10MΩ for DCV measurements minimizes circuit loading

• Double Insulation: Complies with international double insulation requirements

• Low Battery Indication: Alerts user when battery needs replacement to maintain accuracy

• 1-Meter Drop Protection: Withstands accidental falls from workbenches

Why Choose the UNI-T UT220?

The UT220 stands out as a specialized tool for high-AC-current measurement where jaw size and current capacity are the primary requirements.

Key Differentiators:

Limitations to Consider

• AC Current Only: Does not measure DC current (for DC, consider UT221 or UT222)

• No True RMS: Uses standard averaging measurement—for True RMS, consider UT221 or UT222

• No Capacitance/Temperature: Lacks capacitance and temperature measurement (available on UT222)

• 2000-Count Display: Lower resolution than 4000/6000-count models

• 9V Battery: Uses less common 9V battery (vs. AAA in newer models)

Final Verdict

The UNI-T UT220 is the definitive choice for professionals who need a purpose-built tool for high-AC-current measurement in industrial environments. Its 63mm jaw opening is its standout feature—allowing measurements on large conductors and busbars that standard clamp meters simply cannot accommodate .

While it lacks the advanced features of its siblings (True RMS, DC current, temperature), the UT220 excels at its primary mission: safe, reliable AC current measurement up to 2000A with an exceptionally large jaw opening. This makes it the ideal tool for electricians working in smelting plants, manufacturing facilities, petroleum refineries, chemical plants, and power distribution centers .

Backed by CAT IV 600V safety certification, a rugged 390g construction, and UNI-T's reputation for durability, the UT220 is a specialized workhorse that delivers where it counts—providing access to the largest conductors while maintaining professional-grade safety standards.
