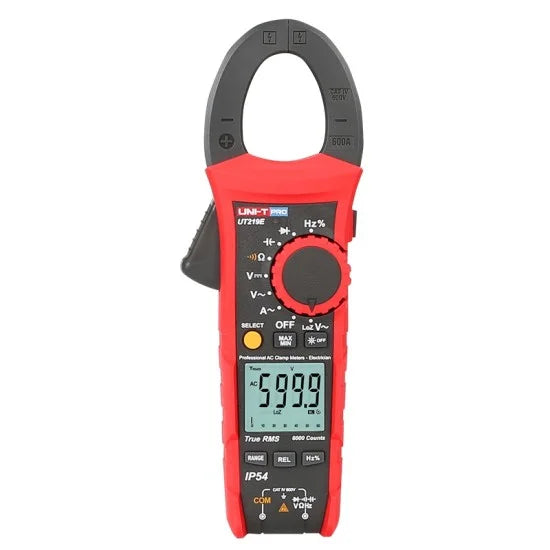

UNI-T UT219E 6000-Count True RMS Professional Clamp Meter: The Ultimate Guide

Overview

The UNI-T UT219E is a professional-grade, 6000-count true RMS digital clamp meter engineered for electricians, HVAC/R technicians, and industrial maintenance professionals who demand precision, durability, and advanced diagnostic capabilities in harsh environments . As part of UNI-T's premium UT219 series, this instrument combines high-accuracy measurement capabilities with sophisticated features including LoZ mode for ghost voltage elimination and 3-phase motor phase sequence testing .

Built to withstand the toughest job site conditions, the UT219E features an industrial-grade design with IP54 dust and water resistance and certified 2-meter drop protection, ensuring reliable operation in construction environments, outdoor installations, and industrial settings where lesser meters fail . With safety certifications of CAT III 1000V and CAT IV 600V, it provides professional-grade protection across residential, commercial, and light industrial applications .

Key Features at a Glance

• 6000-Count True RMS Display: High-resolution LCD with 31-segment analog bar graph (updating at 10 times/second) for precise readings and real-time trend observation . True RMS technology ensures accurate measurement of non-linear or distorted AC waveforms common with modern electronic loads .

• Industrial-Grade Durability: IP54 rating provides protection against dust ingress and water splashes from any direction . Certified 2-meter drop protection ensures your investment survives the inevitable accidents of daily fieldwork .

• Comprehensive Measurement Range: Measures AC current up to 600A (40Hz-400Hz bandwidth), AC/DC voltage up to 1000V, resistance up to 60MΩ, capacitance up to 60mF, frequency up to 10MHz, and duty cycle from 0.1% to 99.9% .

• LoZ (Low Impedance) Mode: 600V low impedance measurement eliminates "ghost voltages" (capacitively coupled voltages) by providing a low impedance path, ensuring you only measure real voltages—critical for safety verification .

• 3-Phase Motor Phase Sequence Test: Unique feature that verifies correct motor wiring and rotation sequence directly through the clamp—essential for motor installation and troubleshooting .

• Inrush Current Measurement: Captures and displays the peak starting current of motors and other inductive loads for comprehensive startup analysis .

• Dual Display Function: Simultaneously displays voltage and current readings on the LCD for efficient diagnostics .

• User-Friendly Design: Auto and manual ranging, ZERO mode for offset calibration, MAX/MIN recording, data hold, relative mode, and auto power-off .

• Built-in Flashlight & Auto Backlight: Integrated work light illuminates dark panels and confined spaces; the backlit LCD activates automatically in low-light conditions for clear readability .

• High Safety Rating: Certified to CAT III 1000V / CAT IV 600V safety standards with input impedance ≥10MΩ .

Detailed Specifications

The UNI-T UT219E delivers professional-grade accuracy across an extensive range of electrical parameters .

Measurement Ranges & Accuracy

General & Mechanical Specifications

Special Functions

What's in the Box

Note: Unlike the UT219M and UT219DS models, the UT219E does not include a temperature probe . For temperature measurement capability, consider the UT219M or UT219DS models .

UT219 Series Comparison: UT219E vs. UT219M vs. UT219DS

The UT219 series offers three distinct models with varying capabilities, with the UT219E positioned as the core professional model offering essential advanced features :

Key Functions & Operation

1. AC/DC Current Measurement (Up to 600A)

• Set the rotary switch to the appropriate current position .

• Press the trigger to open the 33mm clamp jaws and fully enclose one conductor only .

• The 40Hz-400Hz bandwidth ensures accurate measurements on motor drives and power systems .

2. LoZ (Low Impedance) Mode for Ghost Voltage Elimination

• Set the rotary switch to the LoZ position .

• This mode presents a low impedance load to the circuit, bleeding off capacitively coupled "ghost voltages" .

• Application: Essential for verifying whether a circuit is truly de-energized before working on it, especially in long cable runs or high-capacitance systems .

3. 3-Phase Motor Phase Sequence Test

• Unique feature that verifies correct motor wiring and rotation sequence directly through the clamp .

• Application: Essential for motor installation, commissioning, and troubleshooting to ensure proper rotation direction .

4. Inrush Current Capture

• Press the appropriate button to enter inrush current measurement mode .

• Start the appliance under test—the meter captures the instantaneous inrush current .

• Application: Essential for analyzing motor start-up currents, transformer inrush, and circuit breaker testing .

5. AC/DC Voltage Measurement (Up to 1000V)

• Set the rotary switch to the V position .

• Press SELECT to choose between DC and AC measurement .

• Connect test leads in parallel to the circuit under test .

• Input impedance is ≥10MΩ, minimizing circuit loading effects .

6. Resistance, Capacitance & Diode Test

• Set the rotary switch to the appropriate position for resistance, capacitance, or diode testing .

• For resistance, connect test leads across the component (up to 60MΩ) .

• For capacitance, fully discharge capacitors before testing and connect test leads in parallel (up to 60mF) .

• For diode test, connect leads across the diode to measure forward voltage drop (12V) .

7. Frequency & Duty Cycle

• In AC voltage or current measurement mode, press the Hz button to enter frequency measurement mode .

• Measures frequencies up to 10MHz with ±(0.1%+6) accuracy .

• Duty cycle measurement from 0.1% to 99.9% for PWM analysis .

8. 31-Segment Analog Bar Graph

• Updates at 10 times/second, providing real-time trend observation for fluctuating signals .

• Shows how measured values change during measurement—faster than the digital display .

9. ZERO Mode

• Press ZERO to store the current reading as a reference value .

• Essential for nulling out test lead resistance and comparative measurements .

10. MAX/MIN, Relative Mode & Data Hold

• Press MAX/MIN to record the highest and lowest readings .

• Press REL to set a reference value for comparative measurements .

• Press HOLD to freeze the current reading on the display for convenient viewing .

11. Flashlight, Auto Backlight & Auto Power Off

• Built-in LED flashlight illuminates dark panels and confined spaces .

• Auto backlight activates automatically in low-light conditions .

• Auto power-off shuts down the meter after approximately 15 minutes of inactivity to conserve battery life .

Safety Features

The UT219E incorporates multiple advanced safety features to protect users:

• CAT III 1000V / CAT IV 600V Rating: Suitable for measurements on distribution circuits and permanently installed equipment—the highest safety ratings in its class .

• Overload Protection: Comprehensive protection on all measurement ranges .

• Input Impedance: ≥10MΩ minimizes circuit loading for accurate readings .

• NCV Detection: Allows safe, non-contact verification of live circuits .

• Low Battery Indication: Prevents false readings due to insufficient power .

• 2-Meter Drop Protection: Certified to withstand accidental falls from workbenches and ladders .

• IP54 Rating: Dust and splash resistant for reliable operation in harsh environments .

Applications

The UNI-T UT219E is an ideal all-in-one tool for:

⚡ Industrial & Commercial Electricians

• Safe high-voltage measurements up to CAT III 1000V and CAT IV 600V .

• 3-phase motor phase sequence testing for proper motor installation .

• LoZ mode to eliminate ghost voltages and verify de-energized circuits .

• AC/DC current measurement up to 600A for load monitoring .

🔧 Motor & Drive Technicians

• 3-phase motor sequence test for verifying correct rotation direction .

• Inrush current capture for analyzing motor start-up currents .

• Extended bandwidth for accurate measurements on motor drives .

🏭 Facility Management & Maintenance

• Troubleshooting electrical panels and distribution systems .

• Capacitance testing up to 60mF for power factor correction capacitors .

• Frequency analysis up to 10MHz for drive signals .

🌡️ HVAC/R Technicians

• Testing start/run capacitors up to 60mF .

• Inrush current capture for compressor motor start-up analysis .

• For temperature measurement, consider UT219M or UT219DS models .

🏗️ Construction & Electrical Contracting

• Circuit breaker load verification .

• Wire sizing validation through ampacity measurement .

• Voltage drop troubleshooting across distribution systems .

Customer Reviews & Real-World Performance

Users consistently praise the UT219E for its excellent build quality, robust features, and exceptional value .

Positive Feedback

• Build Quality: "Ürün gerçekten kaliteli bir ürün tavsiye ederim" (The product is really high quality, I recommend it) — Yakup Öz, Verified Buyer .

• Durability: The IP54 rating and 2-meter drop protection provide confidence in demanding industrial environments .

• Features: Users appreciate the simultaneous voltage and current display and comprehensive measurement capabilities .

• Value: "Bu fiyata bu kalitede başka ürün yok" (There is no other product of this quality at this price) — Hüseyin Erdoğan, Verified Buyer .

Considerations

• Auto Backlight Only: The backlight is sensor-activated and cannot be manually controlled, which some users find inconvenient .

• No Temperature Measurement: Unlike the UT219M and UT219DS, the UT219E does not include temperature measurement capability .

• Test Lead Quality: Some users note the included test leads could be improved .

• Packaging: One user noted that the packaging and carrying case could be better .

Why Choose the UNI-T UT219E?

Final Verdict

The UNI-T UT219E is the definitive choice for professionals who need industrial-grade durability combined with advanced motor diagnostics in a single, rugged clamp meter. Its unique 3-phase motor phase sequence test, LoZ mode for ghost voltage elimination, inrush current capture, and IP54/2-meter drop protection make it exceptionally well-suited for industrial electricians, motor technicians, and maintenance professionals working in demanding environments.

While it lacks temperature measurement (available in the UT219M/UT219DS), the UT219E excels where it matters most: accurate, reliable measurements with professional-grade diagnostic features in a package built to withstand the toughest job site conditions.

One reviewer aptly summarized: "The UNI-T UT219E delivers professional-grade electrical measurement in a rugged, reliable package designed for daily field use. Built to withstand harsh environments with IP54 protection and 2-meter drop resistance, this true RMS clamp meter provides the core measurement capabilities electrical professionals need for accurate diagnostics and system verification" .

Whether you're an industrial electrician testing 3-phase motor rotation, a maintenance professional capturing inrush currents, or a contractor working in harsh construction environments, the UT219E delivers professional-grade performance with the safety features and durability you can trust.
