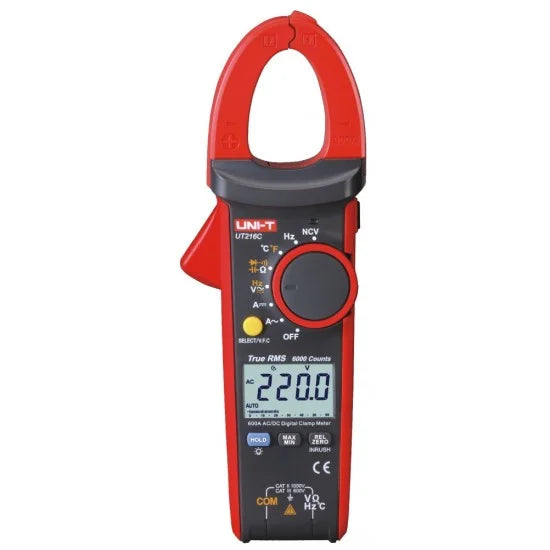

UNI-T UT216C 6000-Count True RMS Digital Clamp Meter: The Ultimate Guide

Overview

The UNI-T UT216C is a professional-grade, 6000-count true RMS digital clamp meter engineered for electricians, HVAC technicians, and industrial maintenance professionals who demand comprehensive measurement capabilities in a compact, feature-rich instrument . As the advanced model in UNI-T's UT216 series, this meter is specifically designed for measuring high-frequency currents (up to 400Hz) in demanding environments such as server rooms, IT systems, and industrial applications .

With its 30mm jaw opening and extensive measurement capabilities including AC/DC current up to 600A, AC/DC voltage, resistance, capacitance, frequency, and temperature measurement, the UT216C delivers professional-grade performance in an ergonomic package weighing just 231.7g . Its double-injection design provides a comfortable grip and enhanced durability for daily professional use .

Key Features at a Glance

• 6000-Count True RMS Display: High-resolution LCD with 38mm × 24mm display featuring a 61-segment analog bar graph for real-time trend observation . True RMS technology ensures accurate measurement of non-linear or distorted AC waveforms .

• AC/DC Current Measurement up to 600A: Measures both AC and DC current up to 600A with extended 40Hz to 400Hz frequency response—ideal for server rooms, IT systems, and motor drives .

• Temperature Measurement: Built-in K-type thermocouple support with included probe for readings from -40°C to 1000°C (-40°F to 1832°F)—essential for HVAC diagnostics .

• Wide Measurement Range: Measures AC voltage up to 750V, DC voltage up to 1000V, resistance up to 60MΩ, capacitance up to 60mF, and frequency up to 10MHz .

• Inrush Current Capture: Dedicated mode captures transient inrush currents for analyzing motor start-up currents and circuit breaker testing .

• VFC (Variable Frequency Control) Mode: Built-in low-pass filter for accurate measurements on variable frequency drives (VFDs), inverters, and motor controls with变频干扰 .

• NCV (Non-Contact Voltage) Detection: Safely identify live AC circuits via the sensor on the top of the clamp jaws with audio/visual alarm .

• Comprehensive Testing: Includes diode test (around 3.0V), continuity test with acoustic indication (<30Ω), MAX/MIN/REL recording, and data hold .

• User-Friendly Design: Auto-ranging, LCD backlight, built-in flashlight for dark work areas, and auto power-off after approximately 15 minutes .

• Rugged & Safe: Certified to CAT II 1000V / CAT III 600V safety standards with full-range overload protection and input impedance ≥10MΩ .

Detailed Specifications

The UNI-T UT216C delivers professional-grade accuracy across an extensive range of electrical parameters .

Measurement Ranges & Accuracy

General & Mechanical Specifications

Special Functions

What's in the Box

UT216 Series Comparison: UT216C vs. UT216A vs. UT216B vs. UT216D

The UT216 series offers four distinct models, with the UT216C positioned as the advanced professional model offering DC current, temperature measurement, inrush current, and VFC capability :

Key Functions & Operation

1. AC/DC Current Measurement (Up to 600A, 40Hz-400Hz)

• Set the rotary switch to the appropriate current position .

• Press the trigger to open the 30mm clamp jaws and fully enclose one conductor only .

• Press SELECT to switch between AC and DC measurement mode .

• The extended 40Hz-400Hz bandwidth ensures accurate measurements on motor drives, server room equipment, and power systems .

2. Inrush Current Capture

• Press the inrush button to enter inrush current measurement mode .

• Start the appliance under test—the meter captures the instantaneous inrush current .

• Application: Essential for analyzing motor start-up currents, transformer inrush, and circuit breaker testing .

3. Temperature Measurement

• Set the rotary switch to the temperature position .

• Connect the included K-type thermocouple to the meter .

• Place the probe on the object to measure temperature from -40°C to 1000°C .

• Application: Essential for HVAC diagnostics, furnace troubleshooting, and refrigeration maintenance .

4. VFC (Variable Frequency Control) for VFD Measurements

• In AC voltage or current mode, activate VFC mode to enable the low-pass filter .

• Blocks high-frequency interference and carrier signals from variable frequency drives .

• Application: Enables accurate voltage and current measurements on variable frequency drives (VFDs), inverters, and motor controls .

5. NCV (Non-Contact Voltage) Detection

• Set the rotary switch to the NCV position .

• Bring the sensor on the top of the clamp jaws near a live AC conductor .

• The meter provides audio and visual alarm when AC voltage is detected .

6. AC/DC Voltage Measurement (Up to 1000V/750V)

• Set the rotary switch to the V position .

• Press SELECT to choose between DC and AC measurement .

• Connect test leads in parallel to the circuit under test .

• Input impedance is ≥10MΩ, minimizing circuit loading effects .

7. Resistance, Capacitance & Diode Test

• Set the rotary switch to the appropriate position for resistance, capacitance, or diode testing .

• For resistance, connect test leads across the component (up to 60MΩ) .

• For capacitance, fully discharge capacitors before testing and connect test leads in parallel (up to 60mF) .

• For diode test, connect leads across the diode to measure forward voltage drop (around 3.0V open circuit) .

8. Frequency Measurement (Up to 10MHz)

• In AC voltage or current measurement mode, press the Hz button to enter frequency measurement mode .

• Measures frequencies up to 10MHz with ±(0.1%+4) accuracy .

• Application: Signal analysis, PWM troubleshooting, and drive diagnostics .

9. Continuity Test

• Set the rotary switch to continuity mode .

• Connect test leads across the circuit .

• The buzzer sounds when resistance is <30Ω, confirming a complete circuit .

10. 61-Segment Analog Bar Graph

• Provides real-time trend observation for fluctuating signals .

• Updates rapidly to show signal variations and trends .

11. MAX/MIN, Relative Mode & Data Hold

• Press MAX/MIN to record the highest and lowest readings .

• Press REL to set a reference value for comparative measurements .

• Press HOLD to freeze the current reading on the display for convenient viewing .

12. Flashlight, Backlight & Auto Power Off

• Press the flashlight button to turn the built-in LED flashlight on/off—essential for working in dark panels and confined spaces .

• The meter features a backlit LCD for clear readings in low-light conditions .

• Auto power-off shuts down the meter after approximately 15 minutes of inactivity to conserve battery life .

Safety Features

The UT216C incorporates multiple advanced safety features to protect users:

• CAT III 600V / CAT II 1000V Rating: Suitable for measurements on distribution circuits and permanently installed equipment .

• Overload Protection: Comprehensive protection on all measurement ranges .

• Input Impedance: ≥10MΩ minimizes circuit loading for accurate readings .

• NCV Detection: Allows safe, non-contact verification of live circuits .

• Low Battery Indication: Prevents false readings due to insufficient power (≤3.6V) .

Applications

The UNI-T UT216C is an ideal all-in-one tool for:

🌡️ HVAC/R Technicians

• Temperature measurement with included probe (-40°C to 1000°C) .

• Testing start/run capacitors up to 60mF .

• Inrush current capture for compressor motor start-up analysis .

• VFC mode for modern VFD-driven HVAC systems .

🖥️ Server Rooms & IT Systems

• Designed for measuring high-frequency currents (up to 400Hz) in server rooms and IT infrastructure .

• Current measurement for power distribution units (PDUs) and UPS systems .

🏭 Industrial & Commercial Electricians

• Safe high-voltage measurements up to CAT III 600V .

• AC/DC current measurement up to 600A for load monitoring .

• VFC mode for accurate measurements on variable frequency drives .

• Inrush current capture for motor start-up analysis .

🔧 Facility Management & Maintenance

• Troubleshooting electrical panels and distribution systems .

• Capacitance testing up to 60mF for power factor correction capacitors .

• Frequency analysis up to 10MHz for drive signals .

🚗 Automotive & Heavy Equipment

• DC current measurement up to 600A for starter motors and charging systems .

• Testing battery voltage and alternator output (12V/24V systems) .

• Temperature monitoring of engine components (with thermocouple) .

Customer Reviews & Real-World Performance

Users consistently praise the UT216C for its excellent build quality, comprehensive feature set, and exceptional value .

Positive Feedback

• Value & Features: One user noted, "It was the ONLY clamp meter which had all the features I was looking for: Capacitor measurement, Clamp current measurement in BOTH AC and DC, Temperature measurement via K-type thermocouple (included). Even the very expensive high end clamp meters don't have all three" .

• Build Quality: "I have tested this device extensively and found it to be accurate, reliable, and of good build quality. The weight of this device seems to imply decent use of quality materials" . Another user confirmed, "the quality of the plastics and the construction itself feels pretty decent" .

• Accuracy & Performance: "Works well; good meter, accurate, lots of features" . "The main thing is that it reads precisely and fits perfectly in the hand" .

• Ergonomics: Users appreciate the comfortable grip and perfect hand fit .

Considerations

• Test Leads: Multiple users note that the included test leads have very short tips (2-3mm exposed metal), making back-probing connectors difficult .

• Battery Consumption: One user noted the unit has "high consumption in battery" .

• Probe Replacement: The leads that plug into the meter are long and may appear proprietary, making replacement challenging .

Why Choose the UNI-T UT216C?

Final Verdict

The UNI-T UT216C is the definitive choice for professionals who need comprehensive measurement capabilities including DC current, temperature measurement, inrush current capture, and VFC technology in a single, compact clamp meter. Its 61-segment analog bar graph, 40Hz-400Hz bandwidth, and 600A AC/DC current capability make it exceptionally well-suited for HVAC technicians, industrial electricians, and IT professionals .

One reviewer aptly summarized: "It was the ONLY clamp meter which had all the features I was looking for: Capacitor measurement, Clamp current measurement in BOTH AC and DC, Temperature measurement via K-type thermocouple (included). Even the very expensive high end clamp meters don't have all three" .

While it has minor drawbacks like short-tipped test leads and higher battery consumption, the UT216C excels where it matters most: accurate, reliable measurements with professional-grade diagnostic features at an exceptional value.

Whether you're an HVAC technician measuring temperatures and capacitors, an industrial electrician troubleshooting VFDs with VFC mode, an IT professional monitoring server room power, or an automotive technician testing DC current, the UT216C delivers professional-grade performance with the safety features you can trust.
