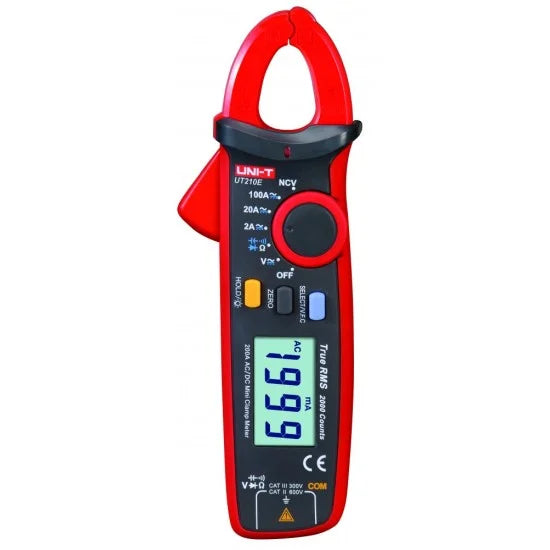

UNI-T UT210E 100A True RMS AC/DC Mini Clamp Meter: The Ultimate Guide

Overview

The UNI-T UT210E is a pocket-sized, True RMS digital clamp meter designed for professionals and DIY enthusiasts who need to work in tight spaces without compromising on functionality . As part of UNI-T's popular UT210 series, this mini clamp meter is specifically engineered to fit where traditional bulky meters cannot, making it an essential tool for electricians, HVAC technicians, automotive specialists, and hobbyists .

What truly sets the UT210E apart is its ability to measure DC current—a feature typically found only in much more expensive meters . This makes it invaluable for automotive parasitic drain testing, battery monitoring, and solar panel troubleshooting. With its compact form factor, robust safety certifications, and comprehensive feature set, the UT210E delivers professional-grade performance in a truly portable package.

Key Features at a Glance

• AC/DC Current Measurement: Measures both AC and DC current up to 100A with 2A/20A/100A ranges—including sensitive 2A range with 1mA resolution for parasitic drain testing

• True RMS Technology: Provides accurate readings even with non-linear or distorted AC waveforms

• Compact 17mm Jaw Opening: Ultra-slim design with 17mm jaw capacity—perfect for accessing crowded electrical panels and tight spaces

• Wide Voltage Range: Measures both AC and DC voltage up to 600V

• Non-Contact Voltage (NCV) Detection: Built-in sensor on the clamp head for safe live voltage detection without physical contact

• Comprehensive Testing: Includes Resistance (20MΩ), Capacitance (20mF), Frequency (60kHz), Diode, and Continuity tests

• VFC Mode: Variable Frequency Control reduces bandwidth for accurate measurements on variable frequency drives (VFDs) and motor circuits

• Auto Ranging: Automatically selects the appropriate measurement range for hassle-free operation

• User-Friendly Features: Data hold, backlit LCD, zero mode, auto power off, and low battery indication

• Lightweight & Portable: Weighs only 170g—easily fits in a pocket or tool bag

• Safety Certified: CAT II 600V / CAT III 300V with CE, UKCA, and cETLus certifications

Detailed Specifications

The UNI-T UT210E delivers professional-grade accuracy across a comprehensive range of electrical parameters.

Electrical Measurement Specifications

General Characteristics

Special Functions

Mechanical & Environmental Specifications

What's in the Box

Key Functions & Operation

1. AC/DC Current Measurement—Including Parasitic Drain

The UT210E's standout feature is its ability to measure DC current—rare in compact clamp meters.

• Set the rotary switch to the 2A, 20A, or 100A position

• Press SELECT to choose between AC and DC measurement

• For DC current, press ZERO before each measurement to null out any residual magnetism

• Press the trigger to open the 17mm clamp jaws and clamp around one conductor only

• Read the current value on the 2000-count display

Special Note for DC Low Currents: The 2A range offers 1mA resolution, making it perfect for automotive parasitic drain testing and battery monitoring . Users report accuracy within ±10mA for low-current measurements.

2. AC/DC Voltage Measurement

• Set the rotary switch to the V position

• Press SELECT to choose between AC and DC measurement

• Connect test leads in parallel to the circuit under test

• Measure up to 600V AC or DC with high input impedance (≥10MΩ) minimizing circuit loading

3. NCV (Non-Contact Voltage) Detection

• Set the rotary switch to the NCV position

• Bring the sensor on the top of the clamp head near a live conductor or outlet

• The meter provides audio and visual indication when AC voltage is detected

• Safety Benefit: Allows quick verification of live circuits before physical contact

4. VFC Mode for Variable Frequency Drives

• Set the rotary switch to the VFC position

• This mode reduces bandwidth to approximately 400Hz

• Essential for accurate measurements on VFDs, motor drives, and other noisy electrical systems

• Filters out high-frequency interference for stable readings

5. Resistance, Continuity & Diode Testing

• Set the rotary switch to the Ω/continuity/diode position

• Press SELECT to cycle through resistance (Ω), continuity (buzzer), and diode test modes

• For continuity, the buzzer sounds when resistance is low

• Diode test provides approximately 3.0V open circuit voltage—sufficient to test blue and white LEDs

6. Capacitance Measurement

• Set the rotary switch to the capacitance position

• Fully discharge capacitors before testing to avoid damage

• Connect test leads in parallel with the capacitor

• Measures up to 20mF—suitable for motor start capacitors and power supply filtering

7. Frequency Measurement

• Set the rotary switch to the Hz position

• Connect test leads to the signal source

• Measure frequencies up to 60kHz with ±(0.1%+4) accuracy

8. Zero Mode

• Press ZERO to store the current reading as a reference value

• Subsequent readings display the difference from the stored value

• Essential for DC current measurements to compensate for residual magnetism

• Also useful for capacitance zeroing and comparative measurements

9. Data Hold & Backlight

• Press HOLD to freeze the current reading on the display

• Long press to turn the LCD backlight on/off

• Backlight automatically turns off after approximately 15 seconds to conserve battery (configurable)

10. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity to save battery

• To disable: Hold SELECT while turning the meter on from OFF position

• Can be reconfigured via EEPROM modification (see Hacking section below)

The "Hackable" Multimeter—Enthusiast Favorite

The UT210E has gained a cult following in the DIY and electronics community due to its hackable architecture. Based on the DTM0660L or DM1106EN chipset, the meter's configuration is stored in an EEPROM that can be modified to:

• Increase display count from 2000 to 6000 or even 9999 counts

• Change default mode from AC to DC for current/voltage measurements

• Adjust auto power off time (15 minutes default)

• Modify backlight duration (15 seconds default)

• Enable RS-232 output (requires additional hardware)

Online tools like the UT210E EEPROM Calculator allow users to generate custom configurations .

Warning: Modifying the meter voids the warranty and requires careful backup of original settings. Only attempt if you have experience with EEPROM programming.

Safety Features

The UT210E incorporates multiple safety features to protect users:

• CAT II 600V / CAT III 300V Rating: Suitable for measurements on distribution circuits and permanently installed equipment

• Double Insulation: Complies with international double insulation requirements

• Overload Protection: Comprehensive protection on all ranges

• Input Impedance: ≥10MΩ minimizes circuit loading

• NCV Detection: Allows safe voltage checking without physical contact

• Low Battery Indication: Alerts user when batteries need replacement to maintain accuracy

• Auto Power Off: Prevents battery drain when meter is left on

Applications

The UNI-T UT210E's compact size and DC current capability make it uniquely suited for:

🚗 Automotive Diagnostics

• Parasitic drain testing—identify battery-draining circuits with 1mA resolution

• Measuring alternator output and starter current

• Testing sensors, relays, and fuses

• 12V/24V system troubleshooting

⚡ Electrical & HVAC Work

• Troubleshooting control panels and crowded electrical boxes—the 17mm jaw fits where others can't

• Measuring compressor and fan motor currents

• NCV detection for safe live wire identification

• VFC mode for VFD and motor drive measurements

🔧 DIY & Home Use

• Testing household outlets and appliances

• Battery testing and monitoring

• Electronics projects and circuit debugging

• Solar panel and charge controller measurements

📱 Field Service & Portable Applications

• On-site troubleshooting in tight spaces

• Fits easily in a pocket or small tool bag at just 170g

• Perfect for service technicians who need to travel light

☀️ Renewable Energy

• Measuring DC current from solar panels

• Battery bank monitoring

• Charge controller diagnostics

• Inverter output testing with VFC mode

UT210E vs. Other UT210 Series Models

The UT210E is the most advanced model in the UT210 series:

Customer Reviews & Real-World Performance

Positive Feedback

• DC Current Capability: "The fact that it measures not only AC but DC Current too, is worth the price in itself." — Verified Buyer

• Accuracy: "I use Fluke meters at work and have used the UNI-T alongside them to compare readings and find it acceptable."

• Compact Size: "I dinky little clamp on ammeter that can get in tight places in my switchboard."

• Value for Money: "A lot of meter for the price... Well impressed!!!"

• Automotive Use: "Worked great to find the parasitic current loss in my truck."

Considerations

• Zeroing Required: For DC current measurements, the meter must be zeroed before each use

• Magnetic Sensitivity: The clamp is sensitive to external magnetic fields and cable orientation

• Test Lead Quality: Included test leads are adequate but upgrading is recommended for critical measurements

• Auto-Range Only: Voltage and resistance are auto-range only (no manual ranging)

Why Choose the UNI-T UT210E?

The UT210E stands out as a specialized tool for DC current measurement in a compact form factor—a combination rarely found at this price point .

Key Differentiators:

Limitations to Consider

• 2000-Count Display: Lower resolution than 4000/6000-count meters (but can be hacked to increase)

• No Temperature Measurement: For HVAC temperature needs, consider UT210C or UT210D

• Manual Range DC Current: DC current ranges require manual selection

• Zeroing Required for DC: Must zero before each DC current measurement

• No MAX/MIN Recording: Lacks MAX/MIN function found on larger models

Final Verdict

The UNI-T UT210E has earned its reputation as a cult classic in the test equipment world for good reason . It fills a unique niche: a genuinely pocket-sized clamp meter that measures DC current with 1mA resolution—capabilities typically requiring much larger, more expensive equipment .

For automotive enthusiasts, the UT210E is the tool for parasitic drain testing—identifying battery-draining circuits without disconnecting cables . For electricians and HVAC technicians, its 17mm jaw opening provides access to crowded panels where standard clamps won't fit . And for hobbyists, its hackable architecture offers a playground for customization .

While the 2000-count display and lack of temperature measurement may limit some applications, the UT210E excels where it matters most: accurate AC/DC current measurement in a truly portable package . It consistently earns praise for accuracy comparable to Fluke meters at a fraction of the cost .

If your work involves automotive electrical systems, crowded panels, or variable frequency drives, the UT210E's combination of DC current capability, compact size, VFC mode, and True RMS accuracy makes it an indispensable tool that will serve you faithfully for years
