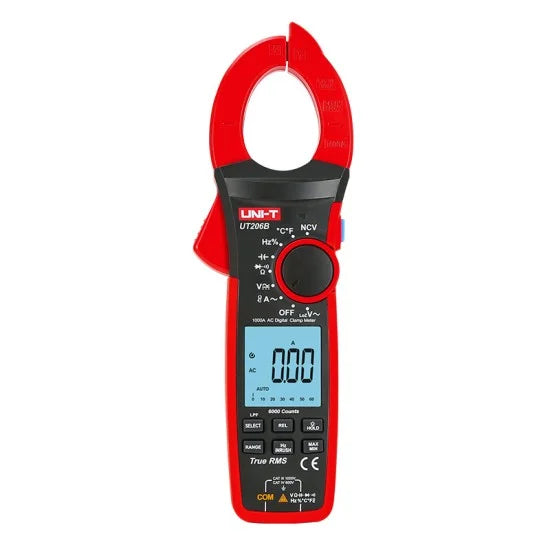

UNI-T UT206B 6000-Count True RMS Digital Clamp Meter: The Ultimate Guide

Overview

The UNI-T UT206B is a professional-grade, 6000-count true RMS digital clamp meter from the advanced UT200 series, engineered for electricians, HVAC technicians, and industrial maintenance professionals who demand high precision, versatility, and rugged safety . This feature-rich instrument combines high-accuracy measurement capabilities with advanced diagnostic functions like inrush current capture, LoZ (Low Impedance) mode for ghost voltage elimination, and LPF (Low Pass Filter) for accurate variable frequency drive measurements .

Engineered with user safety as the highest priority, the UT206B is certified to the stringent CAT III 1000V and CAT IV 600V safety standards with full-range overload protection, ensuring reliable operation when working on distribution circuits and permanently installed equipment . Its rugged construction, large 43mm × 45mm backlit LCD display with 31-segment analog bar graph, and comprehensive feature set make it the ideal choice for demanding work environments, from industrial plant maintenance to commercial electrical troubleshooting .

Key Features at a Glance

• 6000-Count True RMS Display: High-resolution backlit LCD with 31-segment analog bar graph for precise readings and real-time trend observation—essential for accurate measurements with non-linear loads .

• Wide Measurement Range: Measures AC/DC voltage up to 1000V, AC/DC current up to 1000A, resistance up to 60MΩ, and capacitance up to 60mF .

• Temperature Measurement: Built-in K-type thermocouple support with included probe for readings from -40°C to 1000°C (-40°F to 1832°F) with an impressive 0.1°C resolution—essential for HVAC diagnostics and industrial process monitoring .

• Inrush Current Capture: Dedicated mode for capturing transient inrush currents (measurement time ~100ms), ideal for analyzing motor start-up currents and circuit breaker testing .

• LoZ (Low Impedance) Mode: Eliminates "ghost voltages" (capacitively coupled voltages) by presenting a low impedance load to the circuit, ensuring you only measure real voltages—critical for safety verification .

• LPF (Low Pass Filter) ACV: Built-in low-pass filter (2.5kHz, 3dB attenuation) for accurate voltage and frequency measurements on variable frequency drives (VFDs), inverters, and motor controls .

• Flexible Current Probe Compatible: Can be equipped with an optional flexible current probe (e.g., UT-CS09D) to extend the AC current measurement range up to 3000A .

• Comprehensive Testing: Includes frequency measurement (up to 1MHz), duty cycle (10%-90%), diode test, continuity test (<30Ω acoustic indication), MAX/MIN/REL recording, and data hold .

• NCV (Non-Contact Voltage) Detection: Multi-segment display with audio/visual alarm for safe, non-contact live AC voltage detection (≥50Vrms) .

• User-Friendly Design: Auto and manual ranging, 31-segment analog bar graph, built-in LED flashlight for dark work areas, auto-backlight LCD, and auto power-off (can be disabled) .

• Rugged & Safe: Certified to CAT III 1000V / CAT IV 600V safety standards with full-range overload protection, 1-meter drop-proof design, and IP40 ingress protection rating .

• Large Jaw Opening: 42mm jaw capacity accommodates thick industrial cables and busbars .

Detailed Specifications

The UNI-T UT206B delivers professional-grade accuracy across an extensive range of electrical and environmental parameters .

Measurement Ranges & Accuracy

General & Mechanical Specifications

What's in the Box

Note: The UT206B is supplied with a temperature probe and batteries, making it ready for professional use right out of the box .

UT200 Series Comparison: UT206B vs. UT205E vs. UT207B vs. UT208B

The UT200 series offers four distinct models with varying capabilities, with the UT206B positioned as the mid-range professional model offering the best balance of advanced features :

Key Functions & Operation

1. AC/DC Current Measurement (Up to 1000A)

• Set the rotary switch to the appropriate current position .

• Press the trigger to open the 42mm clamp jaws and fully enclose one conductor only .

• For optimum results, center the conductor in the jaws .

• Note: When the measured current is above 500A, the continuous measurement time cannot exceed 60 seconds .

2. Inrush Current Capture

• Long press the Hz/INRUSH button to enter inrush current measurement mode (measurement time ~100ms) .

• Start the appliance under test—the meter captures the instantaneous inrush current .

• Application: Essential for analyzing motor start-up currents, circuit breaker testing, and identifying overload conditions in inductive loads .

3. Temperature Measurement (with 0.1°C Resolution)

• Set the rotary switch to the temperature position .

• Connect the included K-type thermocouple to the meter .

• Place the probe on the object to measure temperature from -40°C to 1000°C with an impressive 0.1°C resolution in the -40°C to 300°C range .

• Application: HVAC diagnostics, furnace troubleshooting, refrigeration maintenance, and industrial process monitoring .

4. LoZ (Low Impedance) Mode for Ghost Voltage Elimination

• Set the rotary switch to the LoZ position .

• This mode presents a low impedance load to the circuit, bleeding off capacitively coupled "ghost voltages" .

• Application: Essential for verifying whether a circuit is truly de-energized before working on it, especially in long cable runs or high-capacitance systems .

5. LPF (Low Pass Filter) for VFD Measurements

• In AC voltage mode, long press the SELECT button to enable LPF ACV function .

• The low-pass filter (2.5kHz cutoff, 3dB attenuation) blocks high-frequency carrier signals and noise .

• Application: Enables accurate voltage and frequency measurements on variable frequency drives (VFDs), inverters, and motor controls where standard meters often give false or unstable readings .

6. NCV (Non-Contact Voltage) Detection

• Set the rotary switch to the NCV position .

• Bring the NCV sensor (top of the clamp jaws) near a live AC conductor (≥50Vrms, 50Hz/60Hz) .

• The meter provides a multi-segment display with audio/visual alarm—more segments and faster beeping indicate stronger field intensity .

7. Flexible Current Probe Compatibility (Up to 3000A)

• The UT206B can be equipped with an optional flexible current probe (e.g., UT-CS09D) .

• Connect the probe and long press the Hz/INRUSH button to enter inrush current measurement mode .

• Application: Extends AC current measurement range up to 3000A and allows measurements in tight spaces where standard clamp jaws cannot fit .

8. DC/AC Voltage Measurement (Up to 1000V)

• Set the rotary switch to the V position .

• Press SELECT to choose between DC and AC measurement.

• Connect test leads in parallel to the circuit under test.

• Input impedance is ≥10MΩ, minimizing circuit loading effects .

• High Voltage Alarm: The meter provides a flashing high-voltage symbol (>30V) and continuous audible alarm (>1000V) .

9. Capacitance Measurement (Up to 60mF)

• Set the rotary switch to the capacitance position .

• Fully discharge capacitors before testing to avoid damage.

• Connect test leads in parallel with the capacitor.

• Measures up to 60mF (60,000μF) for motor start capacitors and power supply filtering .

10. Frequency & Duty Cycle

• In AC voltage or current measurement mode, short press the Hz/INRUSH button to enter frequency measurement mode .

• Measures frequencies up to 1MHz and duty cycles from 10% to 90% .

• Application: Signal analysis, PWM troubleshooting, and motor drive diagnostics.

11. Resistance, Continuity & Diode Test

• Set the rotary switch to the **Ω/))) ** position.

• For resistance, connect test leads across the component (up to 60MΩ) .

• For continuity, the buzzer sounds when resistance is <30Ω .

• For diode test, connect leads across the diode to measure forward voltage drop (open circuit voltage ~3V) .

12. MAX/MIN, Relative Mode & Data Hold

• Press MAX/MIN to record the highest and lowest readings .

• Press REL to set a reference value for comparative measurements (e.g., zeroing test lead resistance) .

• Press HOLD to freeze the current reading on the display for convenient viewing .

13. Flashlight, Auto Backlight & Auto Power Off

• Short press the FLIGHT button to turn the built-in LED flashlight on/off—essential for working in dark panels and confined spaces .

• The meter features an auto-backlight that activates in low-light conditions .

• Auto power-off shuts down the meter after 15 minutes of inactivity to conserve battery life; can be disabled via button sequence .

Safety Features

The UT206B incorporates multiple advanced safety features to protect users :

• CAT III 1000V / CAT IV 600V Rating: Suitable for measurements on distribution circuits and permanently installed equipment—the highest safety ratings in its class .

• High-Voltage Alarm: Flashing lightning symbol appears when measuring >30V AC/DC; continuous audible alarm triggers when voltage exceeds 1000V .

• Overload Protection: Comprehensive protection on all measurement ranges up to 1000V .

• Input Impedance: ≥10MΩ minimizes circuit loading for accurate readings .

• NCV Detection: Allows safe, non-contact verification of live circuits .

• Low Battery Indication: Prevents false readings due to insufficient power .

• 1-Meter Drop Protection: Withstands accidental falls (clamp jaws excluded from drop test) .

• IP40 Rating: Protected against solid objects larger than 1mm .

Applications

The UNI-T UT206B is an ideal all-in-one tool for:

🌡️ HVAC/R Technicians

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple (0.1°C resolution) .

• Testing start/run capacitors up to 60mF .

• Inrush current capture for compressor motor start-up analysis .

• LPF mode for accurate measurements on variable frequency drives in modern HVAC systems .

⚡ Industrial & Commercial Electricians

• Safe high-voltage measurements up to CAT III 1000V and CAT IV 600V .

• LoZ mode to eliminate ghost voltages and verify de-energized circuits .

• AC current measurement up to 1000A for load monitoring and troubleshooting .

• NCV detection for non-contact live wire identification.

🔧 Motor & VFD Diagnostics

• LPF mode for accurate voltage and frequency measurements on variable frequency drives .

• Inrush current capture for analyzing motor start-up currents .

• Frequency analysis up to 1MHz for drive signals .

🏭 Facility Management & Maintenance

• Troubleshooting electrical panels and distribution systems .

• Capacitance testing for power factor correction capacitors .

• Temperature monitoring of electrical connections and equipment .

🚗 Automotive & Heavy Equipment

• Testing battery voltage and alternator output (12V/24V systems).

• Measuring parasitic drain .

• Sensor testing with frequency analysis .

🔧 Flexible Probe Applications (with optional UT-CS09D)

• Extends AC current measurement up to 3000A for heavy industrial applications .

• Allows measurements in tight spaces where standard clamp jaws cannot fit .

• Ideal for busbars, large cables, and densely packed panels .

Customer Reviews & Real-World Performance

Users consistently praise the UT206B for its excellent build quality, comprehensive feature set, and exceptional value for money .

Positive Feedback

• Build Quality: "The ruggedness of the meter... The rotary switch feels nice and the tilt stand is wide and stable" — Verified users .

• Temperature Resolution: The 0.1°C resolution on temperature measurements is frequently highlighted as a key benefit for HVAC work .

• Inrush Current Capture: Users appreciate the dedicated inrush mode for motor start-up analysis .

• LoZ & LPF Functions: "I LOVE THE LoZ and LPF functions! ... the UT206B can operate in any electrical environment" — Verified reviewers .

• Value: "Overall, for the price I paid, this is probably the best value for money for a clamp meter" — Verified buyer .

Considerations

• AC Current Bandwidth: AC current frequency response is limited to 50Hz-60Hz (compared to 40Hz-400Hz on UT207B/UT208B) .

• No DC Current: Unlike the UT207B and UT208B, the UT206B does not measure DC current via the clamp .

• Continuous Current Limit: Measurements above 500A must be limited to 60 seconds .

• Weight: At 465g, it's heavier than compact clamp meters, reflecting its industrial build quality and advanced features .

Why Choose the UNI-T UT206B?

Final Verdict

The UNI-T UT206B is the definitive choice for professionals who need temperature measurement capability, inrush current capture, and advanced VFD diagnostics in a single, rugged clamp meter. Its 0.1°C resolution temperature measurement, LoZ/LPF functions, and flexible probe compatibility make it exceptionally well-suited for HVAC technicians, industrial electricians, and maintenance professionals.

One reviewer aptly summarized: "Overall, for the price I paid, this is probably the best value for money for a clamp meter... The screen is big and digits are very clear! This is one of the easiest to read screens out of the tens of meters I've owned and used" .

While the UT205E offers a more basic feature set at a lower price point, the UT206B adds the temperature measurement, inrush capture, and LoZ/LPF functions that make it the ideal choice for comprehensive diagnostics. For users who need DC current measurement and extended bandwidth, the UT207B and UT208B are available as premium options.

Whether you're an HVAC technician measuring temperatures with 0.1°C precision, an industrial electrician troubleshooting VFDs with LPF mode, or a maintenance professional capturing inrush currents on motor start-ups, the UT206B delivers professional-grade performance with the safety features you can trust.

The UNI-T UT206B: Professional precision with temperature measurement, inrush capture, and advanced VFD diagnostics—the perfect balance of features and value.

DOWNLOAD DATA SHEET
