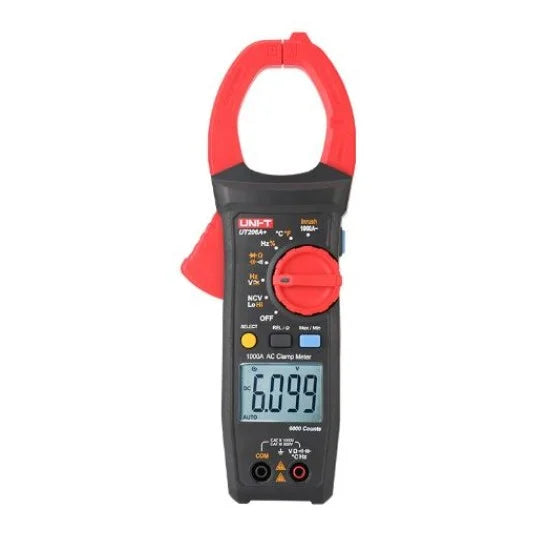

UNI-T UT206A+ 1000A True RMS AC Clamp Meter: The Ultimate Guide

Overview

The UNI-T UT206A+ is a professional-grade, handheld true RMS AC clamp meter designed for electricians, HVAC technicians, and industrial maintenance professionals who demand precision and versatility. As an advanced model in the UT200 series, the UT206A+ builds upon the UT205A+ by adding critical features such as inrush current measurement, non-contact voltage (NCV) detection, and temperature sensing .

Engineered to meet strict international safety standards (CAT II 1000V / CAT III 600V), this meter offers full-featured anti-burn protection, ensuring safe and reliable operation in high-energy electrical environments . With a large 45mm jaw opening and a high-contrast 6099-count LCD display, it is the preferred electrical measurement tool for professionals who need to troubleshoot everything from residential wiring to industrial control panels .

Key Features at a Glance

• High Current Capacity: Measures AC current up to 1000A .

• Inrush Current Measurement: Captures 600A inrush current to analyze motor start-ups and surge loads (UT206A+ exclusive) .

• Wide Voltage Range: Measures both AC and DC voltage up to 1000V .

• Temperature Measurement: Built-in thermocouple support for readings from -40°C to 1000°C .

• Non-Contact Voltage (NCV): Safely detects AC electric fields without touching live conductors .

• Large Jaw Opening: 45mm jaw capacity accommodates thick cables and busbars .

• Versatile Testing: Includes Resistance (60MΩ), Capacitance (60mF), Frequency (10MHz), Duty Cycle, Diode, and Continuity tests .

• User-Friendly Design: Features a 6099-count backlit LCD, built-in flashlight, data hold, MAX/MIN recording, and auto power-off .

• Safety Certified: CAT II 1000V / CAT III 600V, EN 61010 compliance .

Detailed Specifications

The UNI-T UT206A+ delivers professional-grade accuracy across a comprehensive range of electrical parameters.

Electrical Measurement Ranges

General Characteristics

• Display Count: 6099 (higher resolution than UT205A+)

• Jaw Opening Size: 45mm (fits conductors up to 45mm in diameter)

• AC Voltage Frequency Response: 45Hz ~ 400Hz

• AC Current Frequency Response: 45Hz ~ 1kHz

• Sampling Rate: Approx. 3 times/second

• Input Impedance (DCV): Approx. 10MΩ

Special Functions

Mechanical & Power Specifications

• Power Supply: 2 x 1.5V AAA batteries

• Product Dimensions: Approx. 242 x 76.5 x 52 mm

• Product Weight: Approx. 235g (including batteries)

• Safety Compliance: CAT II 1000V, CAT III 600V, EN 61010

• Drop Protection: 1 meter

What's in the Box

• 1x UNI-T UT206A+ Digital Clamp Meter

• 1x Pair of Test Leads

• 1x K-Type Temperature Probe (Thermocouple)

• 1x Carrying Bag

• 1x User Manual

• 2x AAA Batteries (installed)

How UT206A+ Compares to UT205A+

The UT206A+ is the enhanced version of the UT205A+, adding several professional-grade features:

Applications

The UT206A+ is an ideal tool for:

• Industrial Electrical Maintenance: Troubleshooting motors, drives, and control panels with inrush current analysis .

• HVAC Systems: Measuring temperature and current on compressors, furnaces, and air handlers .

• Facility Management: Testing transformers, contactors, and distribution panels up to 1000V .

• Automotive Repair: Checking DC voltage, sensors, and components (using test leads) .

• Electronics Diagnostics: Measuring resistance, capacitance, and frequency on circuit boards.

Why Choose the UNI-T UT206A+?

The UT206A+ stands out as a comprehensive diagnostic tool for professionals who need more than just current measurement. Its ability to measure inrush current is invaluable for analyzing motor start-ups and identifying faulty equipment. The temperature function makes it a two-in-one solution for HVAC work, eliminating the need for a separate thermometer .

With its 6099-count display, 45mm jaw opening, and robust CAT III 600V safety rating, the UT206A+ delivers lab-grade accuracy in a rugged, field-ready package. Whether you are working on a factory floor, a rooftop HVAC unit, or a commercial electrical panel, the UNI-T UT206A+ provides the reliability and features you need to get the job done safely and efficiently
