UNI-T UT206 1000A Digital Clamp Meter: The Ultimate Guide

Overview

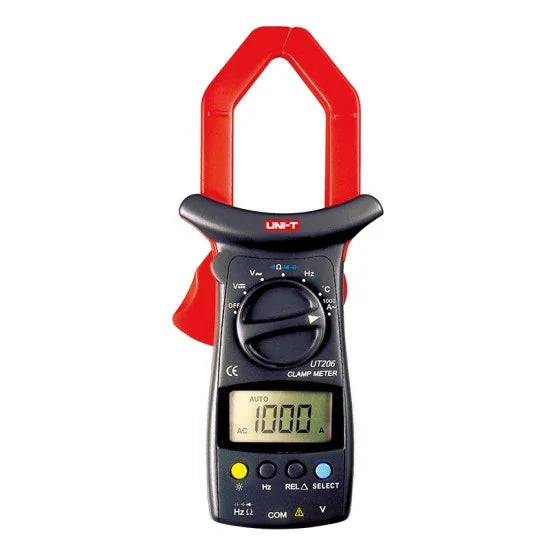

The UNI-T UT206 is a professional-grade, heavy-duty digital clamp meter designed to meet the demanding needs of industrial electricians, maintenance engineers, and facility managers. Part of UNI-T's respected UT200 series, this meter combines high-precision measurement capabilities with a rugged, ergonomic design built for the toughest job site conditions .

Engineered to handle high-energy electrical environments, the UT206 features a generous 40mm jaw opening capable of clamping around thick industrial cables and busbars. With the ability to measure AC current up to 1000A and AC/DC voltage up to 600V, this meter delivers professional-grade performance for heavy industrial applications. Safety is paramount, with certifications meeting CAT II 600V / CAT III 300V standards, ensuring complete user protection .

What truly sets the UT206 apart is its built-in temperature measurement capability—a feature not available on the UT205 model. This makes it an ideal two-in-one tool for professionals who need to measure both electrical parameters and temperature in applications like HVAC, industrial process control, and equipment maintenance .

Key Features at a Glance

• Massive 40mm Jaw Opening: Accommodates large industrial cables, busbars, and multiple conductors with ease—perfect for heavy-duty applications

• High Current Capacity: Measures AC current up to 1000A with ±(1.5%+5) accuracy

• Wide Voltage Range: Measures both AC and DC voltage up to 600V

• Temperature Measurement: Built-in K-type thermocouple support for readings from -40°C to 1000°C—essential for HVAC and industrial maintenance

• Comprehensive Testing: Includes Resistance (40MΩ), Capacitance (100μF), Frequency (10MHz), Duty Cycle, Diode, and Continuity tests

• Built-In Flashlight: Integrated work light illuminates dark panels and electrical rooms for enhanced workplace safety

• Large LCD Display: 4000-count backlit display for clear readings in any lighting condition

• User-Friendly Features: Auto ranging, data hold, MAX/MIN recording, relative (REL) mode, and auto power off

• Full Overload Protection: Complete protection on all ranges with sleep mode to conserve battery life

• Safety Certified: CAT II 600V / CAT III 300V with CE certification

Detailed Specifications

The UNI-T UT206 delivers professional-grade accuracy across a comprehensive range of electrical parameters .

Electrical Measurement Specifications

General Characteristics

Special Functions

Mechanical & Environmental Specifications

What's in the Box

Key Functions & Operation

1. AC Current Measurement

• Set the rotary switch to the current measurement mode (400A or 1000A range)

• Press the lever to open the 40mm transformer jaws

• Clamp around one conductor only—measuring multiple conductors will produce incorrect readings

• Read the current value on the 4000-count display

• Note: The meter automatically selects the appropriate range (auto-ranging)

2. AC/DC Voltage Measurement

• Set the rotary switch to the appropriate voltage position

• Connect test leads: red to the input terminal, black to the COM terminal

• Connect test leads in parallel to the circuit under test

• Read the voltage value on the display

• The meter has an input impedance of ≥10MΩ, minimizing circuit loading effects

3. Temperature Measurement (UT206 Exclusive)

• Set the rotary switch to the °C position

• Insert the red temperature probe into the °C terminal and the black probe into the COM terminal

• Ensure proper polarity—reverse connection will result in incorrect readings

• Place the temperature probe on or in the object being measured

• Read the temperature value directly from the display

• Range: -40°C to 1000°C for maximum versatility

4. Resistance Measurement

• Set the rotary switch to the Ω position

• Press SELECT to choose resistance function

• Connect test leads across the resistor

• For low-resistance measurements (<400Ω), short the test leads and use REL mode to subtract lead resistance

5. Continuity & Diode Testing

• Set the rotary switch to the Ω/continuity/diode position

• Press SELECT to cycle through functions:

  • Continuity: Buzzer sounds when resistance is <100Ω

  • Diode Test: Displays forward voltage drop

• Always disconnect circuit power and discharge capacitors before testing

6. Frequency Measurement

• Set the rotary switch to the Hz position

• Connect test leads to the signal source

• Measure frequencies up to 10MHz with ±(0.1%+3) accuracy

7. Duty Cycle Measurement

• Available on UT206 (UT205A only per some manuals)

• Measures from 0.1% to 99.9%

• Useful for pulse-width modulation (PWM) signal analysis

8. Capacitance Measurement

• Set the rotary switch to the capacitance position

• Fully discharge capacitors before testing to avoid damage

• Connect test leads in parallel with the capacitor

• Measures up to 100µF

9. REL (Relative) Mode

• Press REL to store the current reading as a reference value

• Subsequent readings display the difference from the stored value

• Example: If stored value is 20.0V and measured value is 22.0V, display shows 2.0V

• Ideal for capacitance zeroing and comparative measurements

10. Data Hold

• Press HOLD to freeze the current reading on the display

• Press again to release

• Useful for capturing readings in difficult-to-see locations

11. Display Backlight & Flashlight

• Backlight: Press and hold the YELLOW button for over 2 seconds to turn the LCD backlight on/off

• Flashlight: Built-in jaw opening light enables work in dim conditions

• Ideal for dark panels, electrical rooms, and night work

12. Auto Power Off (Sleep Mode)

• Meter automatically shuts down after approximately 15 minutes of inactivity

• Conserves battery life

• Press any button to wake the meter

Safety Features

The UT206 incorporates multiple safety features to protect users :

• CAT II 600V / CAT III 300V Rating: Suitable for measurements on distribution circuits and permanently installed equipment

• Full Overload Protection: Comprehensive protection on all ranges prevents damage from misconnection

• Input Warning: Never apply voltage exceeding 600V between terminals and ground

• Double Insulation: Complies with international double insulation requirements

• Low Battery Indication: Alerts user when battery needs replacement to maintain accuracy and prevent false readings

• Proper Terminal Use: Always use correct terminals, function, and range for measurements

• Finger Guards: Test leads include finger guards for safe handling

Applications

The UNI-T UT206's combination of 1000A AC current capability, 40mm jaw opening, and temperature measurement makes it uniquely suited for:

🏭 Industrial Electrical Maintenance

• Measuring current on large industrial cables, busbars, and switchgear

• Troubleshooting motor control centers (MCCs) and distribution panels

• Monitoring load currents on manufacturing equipment

• Temperature monitoring of electrical connections and components

⚡ HVAC & Refrigeration

• Measuring compressor and fan motor currents

• Testing temperature of vents, superheat, and subcooling with the included thermocouple

• Checking start/run capacitors (up to 100µF)

• Troubleshooting furnaces, air conditioners, and refrigeration systems

🔧 Maintenance & Field Service

• On-site troubleshooting of electrical and mechanical equipment

• Quick verification of power supplies and circuits

• General electrical diagnostics in industrial settings

• Temperature monitoring of bearings, motors, and process equipment

🏗️ Construction & Engineering

• Commissioning new electrical installations

• Verifying load currents during plant start-ups

• Working in electrical rooms with large conductors

• Testing and commissioning HVAC systems

🔥 Smelting, Manufacturing, Petroleum, Chemical

• The UT206 is specifically cited as an "ideal tool for maintenance in smelting, manufacturing, petroleum, chemical and other industries"

• Rugged construction withstands harsh industrial environments

• Temperature measurement critical for process monitoring

UT206 vs. UT205: Key Differences

The UT206 is the enhanced version of the UT205, adding several professional-grade features:

UT206 vs. UT206A/UT206B/UT206A+ (Important Note)

The original UT206 (covered in this guide) differs significantly from newer models:

Note: The UT206A, UT206B, and UT206A+ are newer models with enhanced features like True RMS and inrush current measurement. This description specifically covers the original UT206 model .

Why Choose the UNI-T UT206?

The UT206 stands out as a specialized industrial tool that combines heavy-duty electrical measurement with built-in temperature capability.

Key Differentiators:

Customer Reviews Summary

Users consistently praise the UT206 for:

• Build Quality: "Overall construction feels very premium, nothing to envy to well known brands. Feels sturdy in the hand"

• Jaw Size: The 40mm opening is frequently highlighted as a key benefit for industrial work

• Temperature Function: Highly valued by HVAC technicians and maintenance professionals

• Value for Money: Professional features at an accessible price point

• Included Accessories: The temperature probe and alligator clips add significant value

• Durability: Rugged construction that withstands job site conditions

Limitations to Consider

• No True RMS: The UT206 uses standard averaging measurement—not True RMS. For True RMS, consider UT206B or UT206A+ models

• No DC Current: Measures AC current only. For DC current, consider UT203+ or UT204+

• No NCV: Non-contact voltage detection not available. For NCV, consider UT206A+ or UT206B

• 9V Battery: Uses less common 9V battery (vs. AAA in newer models)

• Weight: At 522g, it's heavier than compact clamp meters—but this reflects its industrial build quality

Final Verdict

The UNI-T UT206 is the definitive choice for professionals who need a heavy-duty industrial clamp meter with the added versatility of temperature measurement. Its 40mm jaw opening allows measurements on large conductors that standard meters cannot accommodate, while the 1000A AC capacity handles the highest current levels found in industrial environments .

What makes the UT206 truly valuable is its built-in temperature measurement—a feature not available on the UT205. With the included K-type thermocouple, this single tool serves both electrical and thermal diagnostic needs, making it ideal for HVAC technicians, maintenance engineers, and industrial electricians .

While newer models offer True RMS and NCV, the original UT206 remains a reliable workhorse that delivers where it counts: accurate current measurement up to 1000A, temperature capability, and rugged industrial construction .

If your work involves large motors, busbars, switchgear, HVAC systems, or industrial process equipment, the UT206's 40mm jaws and temperature probe will save you time and provide peace of mind. Backed by UNI-T's reputation for durability and safety (CAT II 600V/CAT III 300V), this meter is a reliable partner that will serve you faithfully for years
