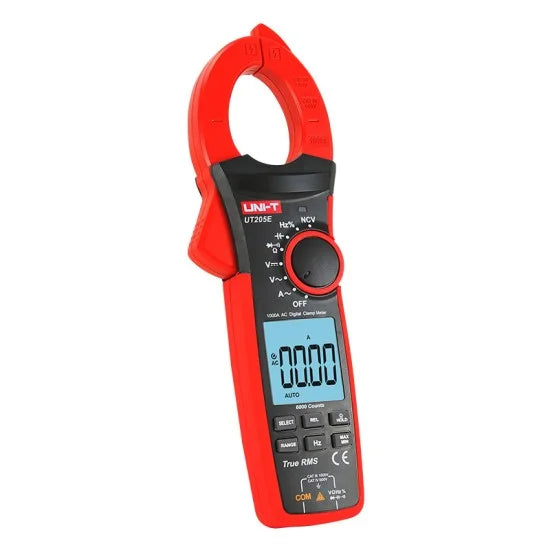

UNI-T UT205E 1000A True RMS Digital Clamp Meter: The Ultimate Guide

Overview

The UNI-T UT205E is a professional-grade, heavy-duty true RMS digital clamp meter designed to meet the demanding needs of industrial electricians, maintenance engineers, and power distribution specialists. Part of UNI-T's advanced UT200 series, this meter combines high-precision measurement capabilities with a rugged, ergonomic design built for the toughest job site conditions .

Engineered to handle high-energy electrical environments, the UT205E features a massive 42mm jaw opening capable of clamping around thick industrial cables and busbars. With the ability to measure AC/DC current up to 1000A and AC/DC voltage up to 1000V, this meter delivers professional-grade performance for heavy industrial applications. Safety is paramount, with certifications meeting CAT III 1000V and CAT IV 600V standards, ensuring complete user protection .

Key Features at a Glance

• Massive 42mm Jaw Opening: Accommodates large industrial cables and multiple conductors with ease—perfect for busbars and thick wiring

• High Current Capacity: Measures both AC and DC current up to 1000A with ±(2%+5) accuracy

• Wide Voltage Range: Measures both AC and DC voltage up to 1000V with high precision

• True RMS Technology: Provides accurate readings even with non-linear or distorted AC waveforms—essential for modern electronic loads

• Comprehensive Testing: Includes Resistance (60MΩ), Capacitance (60mF), Frequency (1MHz), Duty Cycle, Diode, and Continuity tests

• Non-Contact Voltage (NCV) Detection: Multi-segment display with audio/visual alarm for safe live voltage identification without contact

• Built-In Flashlight: Illuminates dark panels and electrical rooms for enhanced workplace safety

• Large LCD Display: 6000-count backlit display with 43mm x 45mm screen for excellent readability

• Advanced Features: LoZ mode for eliminating ghost voltages, LPF for VFD measurements, MAX/MIN recording, and relative mode

• Safety Certified: CAT III 1000V / CAT IV 600V with CE, UKCA, and cETLus certifications

• Drop Protection: 1-meter impact resistance for rugged field use

Detailed Specifications

The UNI-T UT205E delivers professional-grade accuracy across an extensive range of electrical parameters.

Electrical Measurement Specifications

General Characteristics

Special Functions

Mechanical & Environmental Specifications

What's in the Box

Note: Unlike the UT206B and UT208B models, the UT205E does not include a temperature probe as standard .

Advanced Functions & Operation

1. AC/DC Current Measurement

• Set the rotary switch to the appropriate current position

• Press the trigger to open the 42mm clamp jaws and clamp around one conductor only

• The meter automatically selects the appropriate range (auto-ranging)

• Read the current value on the 6000-count display—up to 1000A AC or DC

• Note: For best accuracy, center the conductor within the jaws

2. AC/DC Voltage Measurement

• Set the rotary switch to the V position

• Press SELECT to choose between AC and DC measurement

• Connect test leads in parallel to the circuit under test

• Measure up to 1000V AC or DC with high precision

3. LoZ (Low Impedance) Mode

• Set the rotary switch to the LoZ V~ position

• This mode uses low input impedance (~2kΩ) to eliminate "ghost voltages"—capacitively coupled voltages that can cause false readings

• Ideal for verifying whether a circuit is truly de-energized

• Warning: Continuous measurement time above 220V should not exceed 30 seconds

4. LPF (Low Pass Filter) for VFD Measurements

• Set the rotary switch to the LPF ACV position

• The low pass filter (cutoff ~2.5kHz) blocks high-frequency noise from variable frequency drives (VFDs) and inverters

• Provides accurate voltage measurements on motor drive outputs

• Manual ranging only for this function

5. NCV (Non-Contact Voltage) Detection

• Set the rotary switch to the NCV position

• Bring the sensing end of the clamp jaws near a live conductor or outlet

• The meter provides visual (multi-segment display) and audible alarm when AC voltage is detected

• Safety Benefit: Allows quick verification of live circuits before physical contact

6. Resistance, Continuity & Diode Testing

• Set the rotary switch to the Ω/continuity/diode position

• Press SELECT to cycle through resistance (Ω), continuity (buzzer), and diode test modes

• For continuity, the buzzer sounds when resistance is low

7. Capacitance Measurement

• Set the rotary switch to the capacitance position

• Fully discharge capacitors before testing to avoid damage

• Connect test leads in parallel with the capacitor

• Measures up to 60mF—suitable for motor start capacitors and power supply filtering

8. Frequency & Duty Cycle Measurement

• Set the rotary switch to the appropriate position

• Connect test leads to the signal source

• Measure frequencies up to 1MHz or duty cycle from 10% to 90%

9. MAX/MIN Recording

• Press MAX/MIN button to enter maximum/minimum measurement mode

• The meter records and displays the highest and lowest readings during the measurement period

• Useful for monitoring fluctuating signals

10. Relative Mode & Zero Mode

• Press REL to store the current reading as a reference value

• Subsequent readings display the difference from the stored value

• Zero Mode allows nulling out test lead resistance for low-resistance measurements

11. Data Hold, Backlight & Flashlight

• Short press HOLD to freeze the current reading on the display

• Long press to turn the LCD backlight on/off

• Dedicated Flashlight button turns on the built-in work light for dark environments

12. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity to save battery

• Can be disabled (check manual for procedure)

Safety Features & Certifications

The UT205E incorporates multiple advanced safety features to protect users:

• CAT III 1000V / CAT IV 600V Rating: Suitable for measurements on distribution circuits, permanently installed equipment, and primary supply levels

• CE, UKCA, and cETLus Certified: Meets European, UK, and North American safety standards

• Overload Protection: Comprehensive protection on all ranges prevents damage from misconnection

• Input Impedance: ≥10MΩ for DCV measurements minimizes circuit loading

• NCV Detection: Allows safe voltage checking without physical contact

• LoZ Mode: Eliminates false readings from ghost voltages

• Double Insulation: Complies with international double insulation requirements

• Low Battery Indication: Alerts user when batteries need replacement to maintain accuracy

• 1-Meter Drop Protection: Withstands accidental falls from workbenches

Applications

The UNI-T UT205E's advanced feature set and 42mm jaw opening make it ideal for:

🏭 Industrial Electrical Maintenance

• Measuring current on large industrial cables, busbars, and switchgear

• Troubleshooting motor control centers (MCCs) and distribution panels

• Monitoring load currents on manufacturing equipment

• VFD and inverter voltage measurements with LPF function

⚡ Power Distribution & Utility

• Measuring currents on transformers and main service entrances

• Checking feeder cables in substations

• Verifying phase loads on three-phase systems

• Eliminating ghost voltages with LoZ mode for safety verification

🌡️ HVAC & Commercial Facilities

• Measuring compressor and fan motor currents on large HVAC units

• Troubleshooting rooftop units (RTUs) and air handlers

• Testing motor start capacitors (up to 60mF)

• Chiller systems and pump diagnostics

🔧 Electrical Contracting & Construction

• Commissioning new electrical installations

• Verifying load currents during plant start-ups

• Working in electrical rooms with large conductors

• Final inspection and testing

☀️ Renewable Energy Systems

• Measuring DC current from solar panel arrays (up to 1000A)

• Testing inverter output with LPF function

• Battery bank current monitoring

• Charge controller diagnostics

🚗 Electric Vehicle & Heavy Equipment

• Testing EV charging systems

• Measuring high-current DC systems in electric vehicles

• Troubleshooting heavy equipment electrical systems

UT205E vs. Other UT200 Series Models

The UT205E is the entry-level advanced model in the UT200 series, offering core professional features :

Why Choose the UNI-T UT205E?

The UT205E stands out as a professional workhorse for industrial electrical work, offering advanced features typically found in much more expensive meters.

Key Differentiators:

Customer Reviews Summary

Users consistently praise the UT205E for:

• Build Quality: "Overall construction feels very premium, nothing to envy to well known brands. Feels sturdy in the hand"

• Jaw Size: The 42mm opening is frequently highlighted as a key benefit for industrial work

• Value for Money: Professional features at an accessible price point

• LoZ Function: Highly valued for eliminating ghost voltages and confirming circuits are dead

• Durability: Rugged construction that withstands job site conditions

Limitations to Consider

• No Temperature Measurement: Unlike the UT206B/UT208B, the UT205E does not include temperature probe capability

• No Inrush Current: For capturing motor start-up surges, consider UT206B or higher models

• AC Current Frequency Response: Limited to 50Hz-60Hz (standard line frequency)

• Weight: At 465g, it's heavier than compact clamp meters—but this reflects its industrial build quality

Final Verdict

The UNI-T UT205E is the definitive choice for professionals who need a true industrial-grade clamp meter with advanced features. Its 42mm jaw opening allows measurements on large conductors that standard meters simply cannot accommodate, while the 1000A AC/DC capacity handles the highest current levels found in industrial environments .

What truly sets the UT205E apart is its inclusion of professional features like LoZ mode and LPF for VFD measurements—capabilities typically reserved for premium meters. Combined with True RMS accuracy, NCV detection, built-in flashlight, and CAT IV 600V safety certification, this meter delivers exceptional value for industrial electricians, maintenance engineers, and power distribution specialists .

While it lacks temperature measurement and inrush current capture (available in higher models), the UT205E excels at its core mission: safe, reliable, and accurate measurement of high currents and voltages in demanding industrial environments .

If your work involves large motors, busbars, switchgear, VFDs, or main service entrances, the UT205E's 42mm jaws and professional feature set will save you time and provide peace of mind. Backed by UNI-T's reputation for durability and safety, this meter is a reliable workhorse that will serve you faithfully for years
