UNI-T UT205B 1000A AC Clamp Meter: The Ultimate Guide

Overview

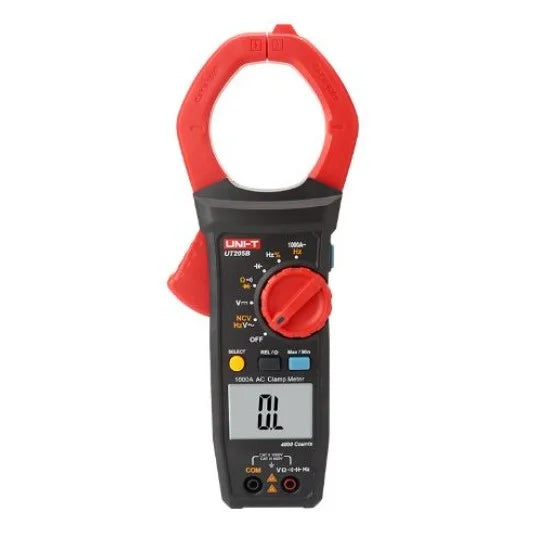

The UNI-T UT205B is a professional-grade, heavy-duty AC clamp meter designed to meet the demands of industrial electricians, maintenance engineers, and facility managers who need to measure high currents on large conductors . What sets this meter apart is its exceptionally large 60mm jaw opening, allowing it to clamp around thick cables, busbars, and multiple conductors with ease .

Built for reliable performance in challenging environments, the UT205B features a lightweight yet rugged design, full-range overload protection, and practical utilities like a built-in flashlight and backlit display for working in dark conditions . With safety certifications of CAT II 1000V and CAT III 600V, this meter provides professional-grade protection in high-energy electrical environments .

Key Features at a Glance

• Massive 60mm Jaw Opening: Accommodates large industrial cables and busbars—one of the largest openings in its class

• High Current Capacity: Measures AC current up to 1000A

• Wide Voltage Range: Measures both AC and DC voltage up to 1000V

• Comprehensive Testing: Includes Resistance (40MΩ), Capacitance (40mF), Frequency (10MHz), Duty Cycle, Diode, and Continuity tests

• Non-Contact Voltage (NCV) Detection: Safely detects AC electric fields without touching live conductors

• Built-In Flashlight & Backlight: Integrated work light illuminates dark panels, while the backlit LCD ensures clear readings in low-light conditions

• User-Friendly Features: Data hold, MAX/MIN recording, relative (REL) mode, and auto power off

• Fast Capacitance Measurement: Quick response time—less than 6 seconds for ≤1mF and 8 seconds for ≤60mF

• Safety Certified: CAT II 1000V / CAT III 600V with full-featured overload protection

Detailed Specifications

The UNI-T UT205B delivers professional-grade accuracy across a comprehensive range of electrical parameters.

Electrical Measurement Specifications

General Characteristics

Special Functions

Mechanical & Environmental Specifications

What's in the Box

Key Functions & Operation

1. AC Current Measurement

• Set the rotary switch to the 1000A position

• Press the trigger to open the clamp jaws and clamp around one conductor only

• The meter automatically selects the appropriate range (auto-ranging)

• Read the current value on the 4099-count display

• Note: For best accuracy, center the conductor within the jaws

2. AC/DC Voltage Measurement

• Set the rotary switch to the V position

• Press SELECT to choose between AC and DC measurement

• Connect test leads in parallel to the circuit under test

• Measure up to 1000V AC or DC

3. NCV (Non-Contact Voltage) Detection

• Set the rotary switch to the NCV position

• Bring the NCV sensing end of the clamp jaws near a live conductor or outlet

• The meter provides audio and visual indication when AC voltage is detected

• Safety Benefit: Allows quick verification of live circuits before physical contact

4. Resistance & Continuity Testing

• Set the rotary switch to the Ω/continuity/diode position

• Press SELECT to cycle through resistance (Ω), continuity (buzzer), and diode test modes

• For continuity, the buzzer sounds when resistance is low

5. Capacitance Measurement

• Set the rotary switch to the capacitance position

• Fully discharge capacitors before testing to avoid damage

• Connect test leads in parallel with the capacitor

• Measures up to 40mF with fast response time:

  • ≤1mF: Less than 6 seconds

  • ≤60mF: Approximately 8 seconds

6. Frequency & Duty Cycle Measurement

• Set the rotary switch to the Hz/% position

• Connect test leads to the signal source

• Measure frequencies up to 10MHz or duty cycle from 0.1% to 99.9%

7. MAX/MIN Recording

• Press MAX/MIN button to enter maximum/minimum measurement mode

• The meter records and displays the highest and lowest readings during the measurement period

• Useful for monitoring fluctuating signals

8. Data Hold, Backlight & Flashlight

• Short press HOLD to freeze the current reading on the display

• Long press HOLD to turn the LCD backlight on/off

• Dedicated Flashlight button turns on the built-in work light for dark environments

9. REL (Relative) Mode

• Press REL to store the current reading as a reference value

• Subsequent readings display the difference from the stored value

• Ideal for capacitance zeroing and comparative measurements

10. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity to save battery

• Can be disabled (check manual for procedure)

Safety Features

The UT205B incorporates multiple safety features to protect users:

• CAT II 1000V / CAT III 600V Rating: Suitable for measurements on distribution circuits and permanently installed equipment

• Full-Featured Overload Protection: Withstands energy surges and prevents false readings

• Over-Voltage and Over-Current Alarms: Alerts user when limits are approached

• NCV Non-Contact Detection: Allows safe voltage checking without physical contact

• Double Insulation: Complies with international double insulation requirements

• Low Battery Indication: Alerts user when batteries need replacement to maintain accuracy

Applications

The UNI-T UT205B's massive 60mm jaw opening makes it uniquely suited for:

🏭 Industrial Electrical Maintenance

• Measuring current on large industrial cables and busbars

• Troubleshooting motor control centers (MCCs) and switchgear

• Monitoring load currents on manufacturing equipment

⚡ Utility & Power Distribution

• Measuring currents on transformers and distribution panels

• Checking feeder cables in substations

• Verifying loads on main service entrances

🌡️ HVAC & Commercial Facilities

• Measuring compressor and fan motor currents on large HVAC units

• Troubleshooting rooftop units (RTUs) and air handlers

• Testing chiller systems and pumps

🔧 Maintenance & Field Service

• On-site troubleshooting of heavy electrical equipment

• Quick verification of power supplies and circuits

• General electrical diagnostics in industrial settings

🏗️ Construction & Engineering

• Commissioning new electrical installations

• Verifying load currents during plant start-ups

• Working in electrical rooms with large conductors

Key Differentiators: UT205B vs. Other Models

The UT205B's standout feature is its 60mm jaw opening, which is significantly larger than standard clamp meters:

Note: The UT205B is an AC-only clamp meter. It does not measure DC current. For DC current measurement, consider models like the UT203+ or UT204+ .

Why Choose the UNI-T UT205B?

The UT205B stands out as a specialized tool for heavy-duty AC current measurement on large conductors .

Key Differentiators:

Limitations to Consider

• AC Current Only: Does not measure DC current

• No True RMS: Standard averaging measurement (check official specs—some listings may differ)

• No Temperature Measurement: For HVAC temperature needs, consider UT204+ or UT206B

• Battery Life: 200 hours (less than some newer models)

Final Verdict

The UNI-T UT205B is the go-to choice for professionals who regularly work with large cables and high AC currents. Its 60mm jaw opening is the defining feature—allowing measurements that standard clamp meters simply cannot perform .

While it lacks DC current capability and True RMS processing, it excels at its primary mission: safe, reliable AC current measurement on industrial-scale conductors . The built-in flashlight, backlit display, and comprehensive feature set (voltage, resistance, capacitance, frequency, NCV) make it a versatile tool for electricians, maintenance engineers, and facility managers working in heavy industrial environments .

If your work involves large motors, busbars, transformers, or main service entrances, the UT205B's massive jaws will save you time and frustration. Backed by UNI-T's reputation for durability and safety (CAT II 1000V/CAT III 600V), this meter is a reliable workhorse that will serve you faithfully for years
