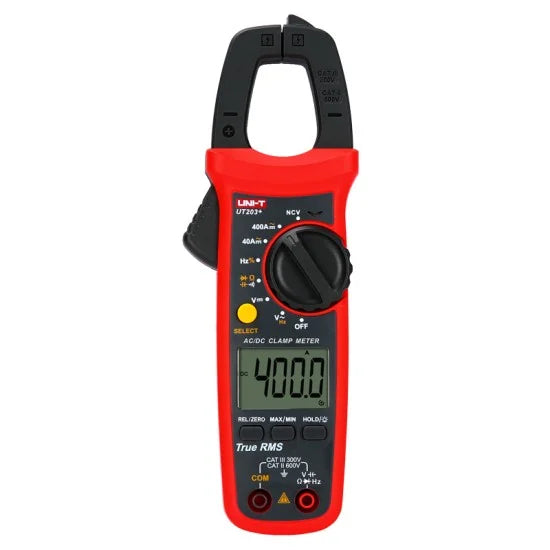

UNI-T UT203+ 400A True RMS AC/DC Digital Clamp Meter: The Ultimate Guide

Overview

The UNI-T UT203+ is a compact, auto-ranging true RMS digital clamp meter designed for professional electricians, HVAC technicians, maintenance engineers, and electronics enthusiasts who need to measure both AC and DC current with precision . As part of UNI-T's respected UT200 series, this meter combines essential measurement functions with advanced safety features in an ergonomic, lightweight design weighing just 235g .

Engineered to meet strict international safety standards (CAT II 600V / CAT III 300V) with full-featured anti-burn protection, the UT203+ ensures user safety in high-energy electrical environments . Its ability to measure DC current sets it apart from basic AC-only clamp meters, making it exceptionally versatile for automotive, industrial, and renewable energy applications .

Key Features at a Glance

• AC/DC Current Measurement: Measures both AC and DC current up to 400A—ideal for automotive and industrial troubleshooting

• True RMS Technology: Provides accurate readings even with non-linear or distorted AC waveforms

• Wide Voltage Range: Measures both AC and DC voltage up to 600V

• Non-Contact Voltage (NCV) Detection: Dual-sensitivity mode ("EFHI" for 220V, "EFLo" for 110V) for safe live voltage detection without contact

• Comprehensive Testing: Includes Resistance (40MΩ), Capacitance (40mF), Frequency (10MHz), Duty Cycle, Diode, and Continuity tests

• Fast Capacitance Measurement: Measures large capacitors quickly—less than 3 seconds for ≤1mF

• Large LCD Display: 4000-count backlit display for easy reading in low-light conditions

• Compact Jaw Opening: 28mm jaw accommodates standard cables and conductors

• User-Friendly Features: Data hold, MAX/MIN recording, relative (REL) mode for zero adjustment, and auto power off

• Extended Battery Life: Low power consumption design delivers up to 400 hours of operation (sleep mode <11μA)

• Safety Certified: CAT II 600V / CAT III 300V, EN61010-1 compliant

Detailed Specifications

The UNI-T UT203+ delivers professional-grade accuracy across a wide range of electrical parameters.

Electrical Measurement Specifications

General Characteristics

Special Functions

Mechanical & Environmental Specifications

What's in the Box

Key Functions & Operation

1. AC/DC Current Measurement

• Set the rotary switch to the 40A or 400A position

• Press SELECT to choose between AC or DC measurement

• Press the trigger to open the clamp jaws and clamp around one conductor only

• Read the current value on the display

• Note for DC current: With open jaws, the display may show a non-zero value. Use the REL button to zero the reading before each measurement .

2. AC/DC Voltage Measurement

• Set the rotary switch to the V position

• Press SELECT to choose between AC and DC measurement

• Connect test leads in parallel to the circuit under test

• The 10MΩ input impedance ensures minimal circuit loading

3. NCV (Non-Contact Voltage) Detection

• Set the rotary switch to the NCV position (default sensitivity "EFHI")

• Press SELECT to switch between "EFHI" (for ~220V) and "EFLo" (for ~110V) sensitivity

• Bring the NCV sensing end of the clamp jaws near a live conductor or outlet

• As electric field intensity increases:

  • More "-" segments appear on the LCD

  • Red LED flashes faster

  • Buzzer beeps with increasing frequency

4. Resistance & Continuity Testing

• Set the rotary switch to the Ω/continuity/diode position

• Press SELECT to cycle through resistance, continuity, and diode test modes

• For continuity, the buzzer sounds when resistance is <10Ω

5. Capacitance Measurement

• Set the rotary switch to the capacitance position

• Fully discharge capacitors before testing to avoid damage

• Connect test leads in parallel with the capacitor

• For capacitors ≤100nF, use REL mode to zero out test lead capacitance

• Response time: <3 seconds for ≤1mF; ~6 seconds for ≤10mF

6. Frequency & Duty Cycle Measurement

• Set the rotary switch to the Hz/% position

• Connect test leads to the signal source

• Measure frequencies up to 10MHz or duty cycle from 0.1% to 99.9%

7. MAX/MIN Recording

• Press MAX/MIN button to enter maximum/minimum measurement mode

• The meter records and displays the highest and lowest readings during the measurement period

• Long press to exit

8. Data Hold & Backlight

• Short press HOLD to freeze the current reading on the display

• Long press HOLD (about 2 seconds) to turn the LCD backlight on/off

Safety Features

The UT203+ incorporates multiple safety features to protect users:

• CAT II 600V / CAT III 300V Rating: Suitable for measurements on distribution circuits and permanently installed equipment

• Full-Featured Anti-Burn Protection: Withstands energy surges up to 600V (30kVA)

• Over-Voltage and Over-Current Alarms: Audible and visual warnings when limits are exceeded

• Input Warning: Never input voltage exceeding 600V between terminals and ground

• Low Battery Detection: Automatic detection with shutdown sequence to maintain accuracy

• Double Insulation: Complies with international double insulation requirements

Applications

The UNI-T UT203+ is an ideal tool for:

⚡ Industrial & Residential Electricity

• Troubleshooting control panels and machinery up to 400A

• Measuring motor start-up currents

• Verifying outlet voltages and circuit loads

🔧 Automotive Diagnostics

• Testing DC current on alternators, starters, and battery systems

• Measuring parasitic drain on vehicle batteries

• Checking sensors and fuses

🌡️ HVAC & Refrigeration

• Measuring compressor and fan motor currents

• Troubleshooting control boards

• Verifying capacitor values with fast capacitance testing

🏭 Maintenance & Field Service

• On-site troubleshooting of electrical equipment

• Quick verification of power supplies

• Portable solution for service calls

🎓 Educational & DIY

• Ideal for electronics students and vocational training

• Safe introduction to electrical measurements

• Perfect for hobbyists and home workshops

Why Choose the UNI-T UT203+?

The UT203+ stands out as a versatile DC-capable clamp meter that bridges the gap between basic AC-only clamps and expensive professional models .

Key Differentiators:

Customer Reviews Summary

Users consistently praise the UT203+ for:

• Build Quality: "Overall construction feels very premium, nothing to envy to well known brands. Feels sturdy in the hand, very compact."

• Value for Money: "Great value for money. Comes with a handy pouch, probes are of decent quality."

• Accuracy: "For the little use I had so far has proven to be precise and consistent."

• Ease of Use: Intuitive interface and auto-ranging functionality appreciated by both professionals and hobbyists

Final Verdict

The UNI-T UT203+ represents an exceptional balance of features, durability, and value. Its DC current measurement capability makes it the clear choice for automotive work, battery system troubleshooting, and any application requiring both AC and DC current measurement in a single tool .

Whether you're a professional electrician, an automotive technician, an HVAC specialist, or a serious DIYer, this meter delivers professional-grade performance without breaking the bank .

With its true RMS accuracy, dual-mode NCV detection, fast capacitance measurement, 400-hour battery life, and CAT III 600V safety rating, the UT203+ is more than just a basic clamp meter—it's a comprehensive testing solution that will serve you reliably for years to come
