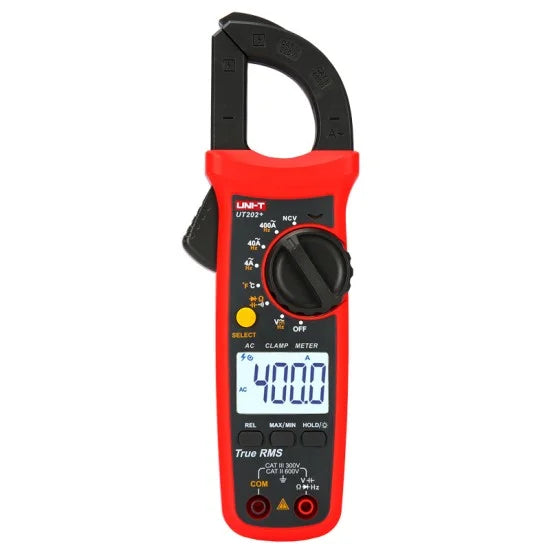

Uni-T UT202A+ True RMS AC Clamp Meter: Ultimate Guide & Review

Looking for a reliable, feature-packed AC clamp meter? The Uni-T UT202A+ (and its variants, the UT201+ and UT202+) is a top choice for electricians and DIY enthusiasts. Designed to meet stringent safety standards (CAT II 600V / CAT III 300V), this true RMS meter delivers accurate measurements in a durable, user-friendly package. This guide covers everything you need to know, from key features to detailed operating instructions.

Why Choose the Uni-T UT202 Series?

These clamp meters are built for safety, accuracy, and convenience. Whether you need to measure high inrush currents, test large capacitors, or quickly detect live wires, the UT202 series has a model for you. Let's explore the standout features.

Key Features at a Glance

• True RMS Accuracy: Ensures precise readings even with non-linear loads.

• Non-Contact Voltage (NCV) Detection: Quickly and safely detect AC voltage without touching live wires, with adjustable sensitivity ("EFH" for 220V, "EFLo" for 110V).

• High Voltage & Current Range: Measure up to 600V AC and up to 600A AC (UT202A+).

• Versatile Measurement Functions: Includes AC/DC Voltage, Resistance, Capacitance, Frequency, Diode & Continuity tests.

• Specialized Models:

  • UT202+: Adds Temperature measurement.

  • UT202A+: Adds Live/Neutral Wire Identification and measures very large capacitance (up to 60mF).

• User-Friendly Design: Large LCD display with fast refresh rate (3x/sec), backlit screen, and data hold.

• Extended Battery Life: Auto power-off function and low power consumption ( <11µA in sleep) ensure up to 400 hours of use.

Detailed Specifications & Performance

Understanding the technical specs helps you choose the right tool for the job.

• Display Count: 4099 (UT201+/UT202+) / 6099 (UT202A+)

• AC Current (Accuracy):

  • 40A/400A Ranges (UT201+/202+): ±(2.5% + 8 digits)

  • 60A/600A Ranges (UT202A+): ±(2.5% + 8 digits)

• AC/DC Voltage: 4V/40V/400V/600V, Accuracy: ±(1.0% + 3 digits)

• Capacitance:

  • UT202+: 4nF to 40mF

  • UT202A+: 4nF to 60mF (with fast response time)

• Frequency Measurement: Up to 10MHz (UT202A+)

• Jaw Opening: Measures conductors up to 28mm in diameter.

• Safety Ratings: Designed to EN61010-1, CAT II 600V, CAT III 300V, Double Insulation, Pollution Degree II.

• Power Supply: 2 x 1.5V AAA Batteries (included).

How to Use Your Uni-T Clamp Meter: A Quick Guide

Here’s how to perform common measurements safely and accurately.

1. AC Current Measurement

1. Set the rotary function switch to the A~ position.

2. Press the trigger to open the clamp jaws and clamp around one conductor only.

3. Read the current value on the display. For best accuracy, center the wire within the jaws.

2. AC/DC Voltage Measurement

1. Insert the red test lead into the V Input Jack and the black lead into the COM Jack.

2. Set the function switch to the V~ / V- position.

3. Use the SELECT button to choose between AC (~) and DC (-).

4. Connect the test leads in parallel to the circuit under test and read the voltage.

3. Non-Contact Voltage (NCV) Detection

1. Turn the function switch to the NCV position.

2. Bring the NCV sensor (at the tip of the jaws) close to a conductor or outlet.

3. The meter will beep faster, the red LED will flash more rapidly, and the bar graph on the LCD will increase as the electric field gets stronger. Use the SELECT button to switch between high ("EFH") and low ("EFLo") sensitivity.

4. Live/Neutral Wire Identification (UT202A+ Only)

1. Turn the function switch to the LIVE position.

2. Keep the black test lead disconnected. Insert only the red test lead into the V Input Jack.

3. Touch the red probe to the wire or insert it into a socket outlet.

4. If it's the Live wire, the LCD will show "LIVE" with continuous beeping. If it's the Neutral wire, the display will show "---".

Expert Tips for Best Results & Safety

• Always check your test leads for damage before use.

• Keep fingers behind the physical guard on the test leads.

• For measuring small capacitances (≤100nF), use the REL (Relative) mode to zero out test lead capacitance for more accurate readings.

• Disable Auto Power Off by holding the SELECT button while turning the meter on from the OFF position.

• When the low battery symbol "" appears, replace the batteries immediately to maintain accuracy.

Conclusion: Is the Uni-T UT202A+ Right for You?

The Uni-T UT202 series offers exceptional value. The UT202A+ is the flagship model, ideal for professionals needing advanced features like live/neutral ID and high-capacitance measurement. The UT202+ is perfect for HVAC technicians thanks to its integrated temperature probe. Even the base UT201+ is a robust, true RMS meter that outperforms many competitors in its class. For a reliable, safe, and versatile AC clamp meter, the Uni-T UT202 series is an excellent investment.
