Accurately diagnose electrical issues with the Uni-T UT202A+ AC Clamp Meter, a professional-grade True RMS troubleshooting tool designed for electricians and technicians. Engineered for safety and precision, this versatile meter combines the functionality of a digital multimeter with the convenience of a clamp meter.
Featuring a large jaw opening of 28mm, the UT202A+ can measure AC current up to 600A and voltage up to 600V with high accuracy. The True RMS technology ensures reliable readings even when measuring non-linear or distorted waveforms commonly found in modern electrical systems.
Beyond standard measurements, this model includes advanced features for enhanced diagnostics. The Non-Contact Voltage (NCV) detection feature offers audible and visual alerts to identify live circuits safely. The exclusive Live/Neutral wire identification function (UT202A+ only) helps users quickly and safely distinguish between live and neutral wires during installation or repair.
Built to last, the UT202A+ is designed according to CAT III 300V / CAT II 600V safety standards, featuring double insulation and full-range overload protection. The large LCD display with a fast refresh rate (3 times/second) ensures easy reading, while the built-in work light illuminates dark working environments.
Key Features:
-
High Current Capacity: Measures AC current up to 600A (Model UT202A+).
-
True RMS: Provides accurate measurements on linear and non-linear loads.
-
600V Voltage Measurement: Capable of handling a wide range of electrical testing tasks.
-
Live/Neutral Wire Detection: Quickly identify wiring polarity to ensure safe installation (UT202A+ exclusive).
-
Non-Contact Voltage (NCV): Detects live electrical fields without touching bare wires.
-
Versatile Functionality: Includes Capacitance, Frequency, Resistance, Continuity, and Diode testing.
-
Safety Certified: CAT III 300V, CAT II 600V rating for use in distribution-level and building installation environments.
-
User-Friendly Design: Large backlit display, data hold, Max/Min recording, and auto power-off to conserve battery life.
Technical Specifications:
-

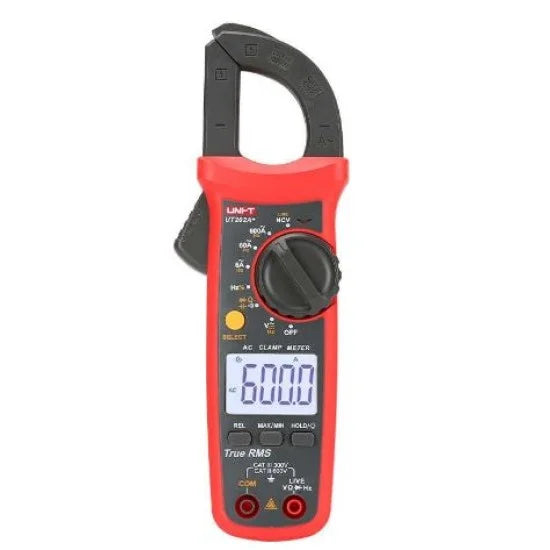

Model: Uni-T UT202A+
-
AC Current (A~): 60A / 600A (±2.5%)
-
AC Voltage (V~): 6V / 60V / 600V (±1.2%)
-
Capacitance (F): 4nF to 60mF
-
Frequency (Hz): 10Hz to 10MHz
-
Jaw Opening: 28mm
-
Display Count: 6099
-
Power Supply: 2 x 1.5V AAA Batteries (Included)
-
Safety Rating: CAT II 600V, CAT III 300V
What's in the Box:
