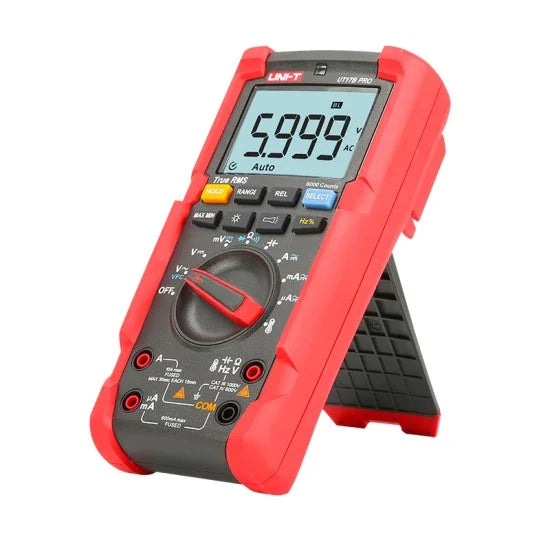

UNI-T UT17B PRO 6000-Count True RMS Digital Multimeter: The Ultimate Guide

Overview

The UNI-T UT17B PRO is a professional-grade, 6000-count true RMS digital multimeter engineered for electricians, HVAC technicians, electronics engineers, and industrial maintenance professionals who demand high reliability, precision, and advanced diagnostic features . As the enhanced model in the PRO series, the UT17B PRO builds upon the robust foundation of the UT15B PRO by adding critical features such as frequency and duty cycle measurement and high-resolution temperature measurement .

Engineered with user safety as the absolute priority, the UT17B PRO is certified to the stringent CAT III 1000V and CAT IV 600V safety standards and features full-range 30kVA mis-operation protection, capable of withstanding up to 8kV transient voltage shocks . Its rugged design includes a 1-meter drop-proof casing, a built-in flashlight, and an automatic backlight, making it an indispensable tool for troubleshooting in dark or confined industrial environments .

Key Features at a Glance

• 6000-Count True RMS Display: High-resolution backlit LCD with clear digits for precise readings. True RMS technology ensures accurate measurement of non-linear or distorted AC waveforms, common with modern electronic loads and variable frequency drives .

• VFC (Variable Frequency Control) Mode: A built-in low-pass filter that blocks high-frequency interference and carrier signals, enabling stable and accurate voltage measurements on variable frequency drives (VFDs), inverters, and other noisy electrical systems .

• Frequency & Duty Cycle Measurement: Measures frequency from 10Hz up to 100kHz and duty cycle from 1% to 99% for advanced signal analysis and motor drive diagnostics—a key upgrade over the UT15B PRO .

• High-Precision Temperature Measurement: Built-in K-type thermocouple support with included probe for readings from -55°C to 500°C (-67°F to 932°F) with 0.1°C resolution—essential for HVAC diagnostics and industrial process monitoring .

• Wide Measurement Range: Measures DC/AC voltage up to 1000V, DC/AC current up to 10A, resistance up to 60MΩ, and capacitance up to 6mF (6000μF) .

• Full-Range Mis-Operation Protection: Engineered to withstand up to 30kVA of fault energy and 8kV transient voltage shocks, providing robust protection against accidental misuse and ensuring user safety .

• Auto/Manual Ranging: Offers the convenience of auto-ranging for quick measurements and the control of manual ranging for specific diagnostic tasks .

• Comprehensive Testing Functions: Includes diode test, continuity test with acoustic indication, MAX/MIN recording, relative mode, and data hold .

• Rugged and User-Friendly Design: Features a 1-meter drop-proof casing, an integrated LED flashlight for working in dark panels, an auto-backlight LCD that adjusts to ambient light conditions, and a wide stable tilt stand with rubber coating .

• High Safety Rating: Certified to CAT III 1000V / CAT IV 600V with cETLus, CE, and UKCA approvals, guaranteeing safety in high-energy environments .

• Long Battery Life: Powered by 2 x 1.5V AA batteries, ensuring extended operational time .

Detailed Specifications

The UNI-T UT17B PRO delivers professional-grade accuracy across a comprehensive range of electrical and environmental parameters .

Measurement Ranges & Accuracy

General & Mechanical Specifications

What's in the Box

PRO Series Comparison: UT17B PRO vs. UT15B PRO vs. UT18B PRO

The PRO series offers three models with increasing specialization, with the UT17B PRO positioned as the mid-range professional model offering the best balance of advanced features :

Key Functions & Operation

1. VFC (Variable Frequency Control) for Motor Drives

• Set the rotary switch to the VFC position .

• This mode activates a low-pass filter, blocking high-frequency noise and carrier signals.

• Application: Essential for accurately measuring voltage on variable frequency drives (VFDs), inverters, and motor controls where standard meters often give false or unstable readings .

2. Frequency & Duty Cycle Measurement

• Set the rotary switch to the appropriate voltage or current range, then press the Hz/% button .

• Measures frequency up to 100kHz and duty cycle from 1% to 99% .

• Application: Advanced signal analysis, motor drive diagnostics, and PWM troubleshooting .

3. Temperature Measurement

• Set the rotary switch to the temperature position .

• Connect the included K-type thermocouple to the meter via the adapter.

• Place the probe on the object to measure temperature from -55°C to 500°C with 0.1°C resolution .

• Application: Essential for HVAC diagnostics, furnace troubleshooting, refrigeration maintenance, and industrial process monitoring.

4. Full-Range Mis-Operation Protection

• The UT17B PRO is engineered with advanced input protection circuitry.

• Application: Withstands accidental voltage surges up to 8kV and mis-connection of test leads up to 30kVA energy, providing confidence when working on live, high-energy circuits .

5. DC/AC Voltage Measurement (Up to 1000V)

• Set the rotary switch to the V position .

• Press SELECT to choose between DC and AC measurement.

• Connect test leads in parallel to the circuit under test.

• Input impedance is approximately 10MΩ, minimizing circuit loading .

6. DC/AC Current Measurement (Up to 10A)

• Set the rotary switch to the appropriate μA, mA, or A position .

• Press SELECT to choose between DC and AC current.

• Connect test leads in series with the circuit under test.

• The meter is protected by high-energy fuses: FF 440mA H 1000V (μA/mA) and FF 11A H 1000V (A) .

7. Capacitance Measurement (Up to 6mF)

• Set the rotary switch to the capacitance position .

• Fully discharge capacitors before testing to avoid damage.

• Connect test leads in parallel with the capacitor.

• Measures up to 6mF (6000μF) , suitable for many motor start capacitors and power supply filtering .

8. Resistance, Continuity & Diode Test

• Set the rotary switch to the **Ω/))) ** position .

• For resistance, connect test leads across the component (up to 60MΩ).

• For continuity, the buzzer sounds when resistance is low; users report it doesn't miss a single beep no matter how fast the tips are shorted .

• For diode test, connect leads across the diode to measure forward voltage drop (open circuit voltage ~3.26V) .

9. Auto Backlight & Flashlight

• The meter features an auto-backlight that activates in low-light conditions via a sensing window .

• A dedicated LED flashlight button illuminates the work area for safe troubleshooting in dark panels and confined spaces .

10. MAX/MIN, Relative Mode & Data Hold

• Press MAX/MIN to record the highest and lowest readings .

• Press REL to set a reference value for comparative measurements (e.g., zeroing test lead resistance).

• Press HOLD to freeze the current reading on the display for convenient viewing .

User Reviews & Real-World Performance

Users consistently praise the UT17B PRO for its exceptional build quality, advanced safety features, and excellent value for money .

Positive Feedback

• Build Quality: "The ruggedness of the meter... The rotary switch has rubber overmold, it feels nice. The bottom of the tilt stand is coated with rubber. The tilt stand is wide and stable" .

• Display: "The screen is big and digits are very clear! This is one of the easiest to read screens out of the tens of multimeters I've owned and used" .

• Continuity Speed: "Continuity mode doesn't miss a single beep no matter how fast I short the tips" .

• Accessories: "Gold plated probe tips are a nice addition, 18AWG leads, probe handles are rubberised... Two Bussmann fuses, board looks clean, input protection looks decent" .

• Value: "Overall, for the price I paid, this is probably the best value for money for a multimeter" .

Considerations

• Bandwidth: AC frequency response is 40Hz-500Hz, which may be limited for some specialized applications .

• Size: The meter is notably wide (95mm) and heavy (484g) compared to compact models .

• No Bargraph: The display lacks an analog bar graph found on some competing models .

Why Choose the UNI-T UT17B PRO?

Final Verdict

The UNI-T UT17B PRO is the definitive choice for professionals who need frequency measurement capability and temperature measurement combined with uncompromising safety features. Its 100kHz frequency range, -55°C to 500°C temperature measurement, VFC mode for motor drive diagnostics, and full-range 30kVA mis-operation protection make it exceptionally well-suited for HVAC technicians, industrial electricians, and electronics engineers.

One reviewer aptly summarized: "Overall, for the price I paid, this is probably the best value for money for a multimeter... The screen is big and digits are very clear! This is one of the easiest to read screens out of the tens of multimeters I've owned and used" .

While the UT15B PRO offers core industrial features at a lower price point, the UT17B PRO adds the frequency, duty cycle, and temperature measurement capabilities that make it the ideal choice for HVAC and motor drive diagnostics. For users who need the ultimate in advanced features including LED testing and extended frequency range, the UT18B PRO is the flagship option.

Whether you're an HVAC technician measuring temperatures and frequencies, an industrial electrician troubleshooting VFDs, or a plant maintenance professional diagnosing motor controls, the UT17B PRO delivers professional-grade performance with the safety features you can trust.

The UNI-T UT17B PRO: Professional precision with frequency and temperature measurement—the perfect balance of features and value.
