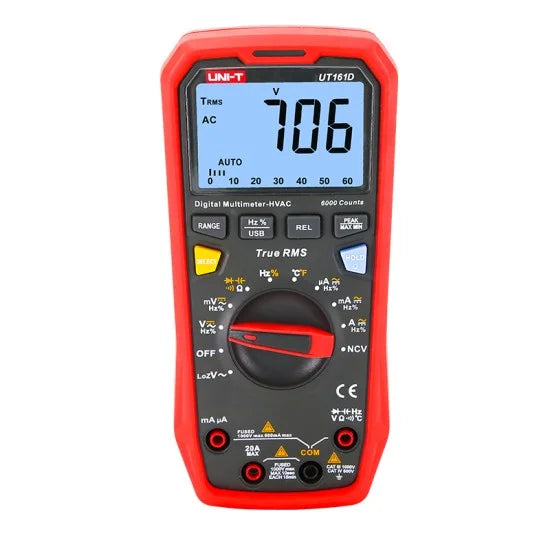

UNI-T UT161D 6000-Count True RMS Digital Multimeter: The Ultimate Guide

Overview

The UNI-T UT161D is a professional-grade, 6000-count true RMS digital multimeter from the advanced UT161 series, designed for electricians, HVAC technicians, electronics engineers, and serious enthusiasts who demand accuracy, reliability, and advanced connectivity features . This feature-rich instrument combines high-precision measurement capabilities with USB PC connectivity for data logging and analysis, making it an indispensable tool for professional diagnostics and troubleshooting.

As the mid-range model in the UT161 series, the UT161D builds upon the foundation of the UT161B by adding critical features such as temperature measurement, LoZ (Low Impedance) mode for ghost voltage elimination, Peak Hold for capturing transients, and an extended 1kHz bandwidth for more accurate measurements on variable frequency drives .

Engineered with user safety as a priority, the UT161D is certified to the stringent CAT III 1000V and CAT IV 600V safety standards with full-range overload protection, ensuring reliable operation when working on distribution circuits and permanently installed equipment . Its rugged construction, large backlit LCD display with 31-segment analog bar graph, and comprehensive feature set make it the ideal choice for demanding work environments, from industrial plant maintenance to residential electrical troubleshooting.

Key Features at a Glance

• 6000-Count True RMS Display: High-resolution backlit LCD with 31-segment analog bar graph for precise readings and trend observation—essential for accurate measurements with non-linear loads .

• USB PC Connectivity: Built-in USB interface allows connection to a computer for data logging, analysis, and firmware updates (USB cable included) .

• LoZ (Low Impedance) Mode: Exclusive function that eliminates "ghost voltages" (capacitively coupled voltages) by presenting a low impedance load (approx. 2kΩ) to the circuit, ensuring you only measure real voltages .

• Peak Hold Function: Captures and displays peak voltage/current values for analyzing transient signals and inrush currents—essential for motor drive diagnostics .

• Temperature Measurement: Built-in K-type thermocouple support with included probe for readings from -40°C to 1000°C (-40°F to 1832°F)—essential for HVAC diagnostics .

• Extended Bandwidth: 40Hz to 1kHz frequency response for accurate AC voltage and current measurements on variable frequency drives and motor controls .

• Wide Measurement Range: Measures DC/AC voltage up to 1000V, DC/AC current up to 20A, resistance up to 60MΩ, and capacitance up to 60mF .

• Frequency & Duty Cycle: Measures frequency from 10Hz up to 10MHz and duty cycle from 0.1% to 99.9% for advanced signal analysis .

• Non-Contact Voltage (NCV) Detection: Safely identify live AC circuits with a multi-level audio and visual alarm that indicates the strength of the detected electric field (≥50Vrms detection) .

• Comprehensive Testing: Includes diode test (0-3V, 1.2mA), continuity test with acoustic indication (<50Ω), MAX/MIN/REL recording, data hold, and transistor (hFE) test .

• High Input Impedance: Up to 1GΩ on millivolt ranges for minimal circuit loading and ultra-accurate low-voltage measurements .

• Audible and Visible Alarms: Provides warnings when measuring high voltage (>1000V) or high current (>20A) for enhanced safety .

• User-Friendly Design: Auto and manual ranging, LCD backlight, 15-minute auto power-off, and low battery indication (≤4.6V) .

• Rugged & Safe: Certified to CAT III 1000V / CAT IV 600V safety standards with full-range overload protection and high-energy fuse protection on current ranges (600mA/1000V and 11A/1000V fuses) .

Detailed Specifications

The UNI-T UT161D delivers professional-grade accuracy across an extensive range of electrical and environmental parameters .

Measurement Ranges & Accuracy

General & Mechanical Specifications

What's in the Box

UT161 Series Comparison: UT161D vs. UT161B vs. UT161E

The UT161 series offers three distinct models with varying capabilities, with the UT161D positioned as the mid-range professional model offering the best balance of advanced features :

Key Functions & Operation

1. LoZ (Low Impedance) Mode for Ghost Voltage Elimination

• Set the rotary switch to the LoZ position .

• This mode presents a low impedance load (approximately 2kΩ) to the circuit, bleeding off capacitively coupled "ghost voltages" .

• Application: Essential for verifying whether a circuit is truly de-energized before working on it, especially in long cable runs or high-capacitance systems.

2. Temperature Measurement

• Set the rotary switch to the temperature position .

• Connect the included K-type thermocouple to the meter, observing correct polarity.

• Place the probe on the object to measure temperature from -40°C to 1000°C .

• Application: Essential for HVAC diagnostics, furnace troubleshooting, refrigeration maintenance, and appliance repair.

3. Peak Hold Function

• Press the PEAK HOLD button to capture and display peak voltage or current values .

• Application: Ideal for analyzing transient signals, inrush currents, and voltage spikes in motor drives and power systems.

4. USB PC Connectivity

• The UT161D features a built-in USB interface for connection to a computer .

• Use the included USB cable to transfer measurement data for logging and analysis.

• USB communication software can be downloaded from the official UNI-T website.

• Optional Bluetooth adapter available for wireless data transfer .

• Application: Ideal for data logging, analysis, and documentation in professional and educational settings.

5. NCV (Non-Contact Voltage) Detection

• Set the rotary switch to the NCV position .

• Bring the NCV detector (top of the meter) close to the wire under test.

• If voltage is ≥50Vrms (50Hz/60Hz), the red indicator light illuminates and the buzzer beeps .

• As the intensity of the detected voltage increases, more segments "-" are displayed, and the frequency of beeping/flashing increases.

• Application: Safely verify live circuits before physical contact.

6. DC/AC Voltage Measurement (Up to 1000V)

• Set the rotary switch to the V position.

• Press SELECT to choose between DC and AC measurement.

• Connect test leads in parallel to the circuit under test.

• Ultra-high input impedance (up to 1GΩ on mV ranges) minimizes circuit loading for accurate low-voltage measurements .

• If voltage exceeds 1000V, the red indicator light illuminates and the buzzer sounds an alarm .

7. DC/AC Current Measurement (Up to 20A)

• Set the rotary switch to the appropriate μA, mA, or A position .

• Press SELECT to choose between DC and AC current.

• Connect test leads in series with the circuit under test.

• The UT161D supports current measurement up to 20A (compared to 10A on UT161B) .

• If current exceeds 20A, the buzzer sounds an alarm.

• Fuse protection: 600mA/1000V fast-acting fuse (μA/mA range) and 11A/1000V fast-acting fuse (A range) .

8. Resistance, Continuity & Diode Test

• Set the rotary switch to the **Ω/))) ** position.

• For resistance, connect test leads across the component (up to 60MΩ) .

• For continuity, the buzzer sounds when resistance is <50Ω .

• For diode test, connect leads across the diode to measure forward voltage drop (0-3V open circuit, 1.2mA test current) .

9. Capacitance Measurement (Up to 60mF)

• Set the rotary switch to the capacitance position .

• Fully discharge capacitors before testing to avoid damage.

• Connect test leads in parallel with the capacitor.

• Measures up to 60mF (60,000μF) for motor start capacitors and power supply filtering .

10. Frequency & Duty Cycle

• Set the rotary switch to the Hz position .

• Connect test leads to the signal source.

• Measure frequencies up to 10MHz and duty cycles from 0.1% to 99.9% .

• Application: Signal analysis, PWM troubleshooting, and motor drive diagnostics.

11. Transistor (hFE) Test

• Set the rotary switch to the hFE position .

• Insert the transistor into the dedicated test socket.

• Read the transistor's DC current gain (β) directly from the display.

• Application: Essential for electronics work and component matching.

12. MAX/MIN & Relative Mode

• Press MAX/MIN to cycle through the measured maximum and minimum values .

• Press REL to enter the relative value measurement mode.

• Application: Monitor fluctuating signals and perform comparative measurements.

13. Data Hold & Backlight

• Press HOLD to freeze the current reading on the display; "H" will be displayed .

• Long press HOLD to turn the LCD backlight on/off.

• Backlight ensures clear readings in low-light environments.

14. Auto/Manual Ranging

• Press the RANGE button to switch from auto-ranging to manual-ranging mode .

• Each press increments to the next range; after reaching the highest range, the next press returns to the lowest range.

• Long press RANGE to exit manual mode and return to auto-ranging.

15. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity to conserve battery life .

• To disable auto power off, press and hold SELECT while turning the meter on.

Safety Features

The UT161D incorporates multiple advanced safety features to protect users :

• CAT III 1000V / CAT IV 600V Rating: Suitable for measurements on distribution circuits and permanently installed equipment—one of the highest safety ratings in its class .

• High-Energy Fuse Protection: 600mA/1000V fast-acting fuse (μA/mA range) and 11A/1000V fast-acting fuse (A range) .

• Audible and Visible Alarms: Provides warnings when measuring high voltage (>1000V) or high current (>20A) .

• Overload Protection: Comprehensive protection on all measurement ranges up to 1000V .

• Input Impedance: Up to 1GΩ on millivolt ranges minimizes circuit loading for accurate readings .

• Low Battery Indication: Prevents false readings due to insufficient power (≤4.6V) .

• Double-Insulated Housing: Meets international safety standards.

• NCV Detection: Allows safe, non-contact verification of live circuits .

Applications

The UNI-T UT161D is an ideal all-in-one tool for:

🌡️ HVAC/R Technicians

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple .

• Testing start/run capacitors up to 60mF.

• Troubleshooting furnaces, air conditioners, and refrigeration systems.

• Using LoZ mode to eliminate ghost voltages when verifying de-energized circuits .

⚡ Industrial & Commercial Electricians

• Safe high-voltage measurements up to CAT III 1000V and CAT IV 600V .

• Extended 1kHz bandwidth for diagnosing variable frequency drives and motor controls .

• Peak Hold function for capturing inrush currents .

• NCV detection for non-contact live wire identification.

• USB data logging for documentation and analysis.

🔧 Electronics Engineers & Technicians

• Precision component testing with 6000-count resolution.

• Capacitance measurement up to 60mF for power supply filtering.

• Frequency analysis up to 10MHz for signal generators and oscillators .

• Transistor hFE testing for component matching .

• Diode and continuity testing for PCB troubleshooting.

🚗 Automotive Diagnostics

• Testing battery voltage and alternator output (12V/24V systems).

• Measuring parasitic drain up to 20A.

• Sensor testing with frequency analysis.

• Temperature monitoring of engine components (with thermocouple).

🏭 Facility Management & Maintenance

• Troubleshooting electrical panels and distribution systems.

• Capacitance testing for motor start capacitors.

• Continuity checking for wiring and connections.

• USB data logging for predictive maintenance.

🏠 DIY & Home Workshop

• General electrical troubleshooting.

• Appliance repair and maintenance.

• Battery testing and continuity checks.

• Electronics projects and circuit debugging.

Customer Reviews & Real-World Performance

Users consistently praise the UT161D for its excellent build quality, accuracy, and comprehensive feature set .

Positive Feedback

• Value for Money: "Meter nog niet zo lang in bezit. Maar als ik kijk naar wat het ding allemaal kan .. ja, voor de prijs kan hij hetzelfde als meters die het drie vier voudige kosten. Meter voelt degelijk aan en lijkt mij het geld meer dan waard. Top produkt." (Meter not owned for long. But when I look at what it can do... yes, for the price it can do the same as meters costing three or four times as much. Meter feels solid and seems well worth the money. Great product.) — Johan Monsma, Verified Buyer .

• Build Quality: "Voldoet aan de verwachtingen" (Meets expectations) — C.P.G. Rijk, Verified Buyer .

• Fast Bar Graph: The 31-segment analog bar graph updates at 30 times/second, providing excellent real-time trend observation .

Considerations

• USB Software: Software must be downloaded from UNI-T website.

• Fuse Accessibility: High-energy fuses (600mA/1000V and 11A/1000V) require proper handling for replacement.

• Weight: At 350-400g, it's heavier than compact meters, reflecting its industrial build quality and advanced features.

Why Choose the UNI-T UT161D?

Final Verdict

The UNI-T UT161D is a powerful, professional-grade multimeter that delivers exceptional value for users who need LoZ mode, temperature measurement, Peak Hold capability, and USB connectivity in a single, rugged package. Its 6000-count True RMS accuracy, 1kHz bandwidth, 20A current range, and comprehensive feature set make it exceptionally well-suited for HVAC technicians, industrial electricians, electronics engineers, and serious enthusiasts.

One reviewer aptly summarized: "Meter nog niet zo lang in bezit. Maar als ik kijk naar wat het ding allemaal kan .. ja, voor de prijs kan hij hetzelfde als meters die het drie vier voudige kosten. Meter voelt degelijk aan en lijkt mij het geld meer dan waard. Top produkt." (Meter not owned for long. But when I look at what it can do... yes, for the price it can do the same as meters costing three or four times as much. Meter feels solid and seems well worth the money. Great product.) .

While the UT161B offers USB connectivity at a lower price point, and the UT161E provides 22000-count precision for advanced users, the UT161D strikes the perfect balance—adding temperature measurement, LoZ mode, Peak Hold, and 1kHz bandwidth to the core feature set, making it the ideal choice for professionals who need comprehensive diagnostic capabilities without the premium price tag .

Whether you're an HVAC technician diagnosing a furnace, an industrial electrician troubleshooting VFDs, an electronics engineer testing components, or a serious hobbyist, the UT161D delivers professional-grade performance with the advanced features you need.

The UNI-T UT161D: Professional precision with LoZ mode, temperature measurement, and USB connectivity—the perfect balance of features and value.
