UNI-T UT139C 6000-Count True RMS Digital Multimeter: The Ultimate Guide

Overview

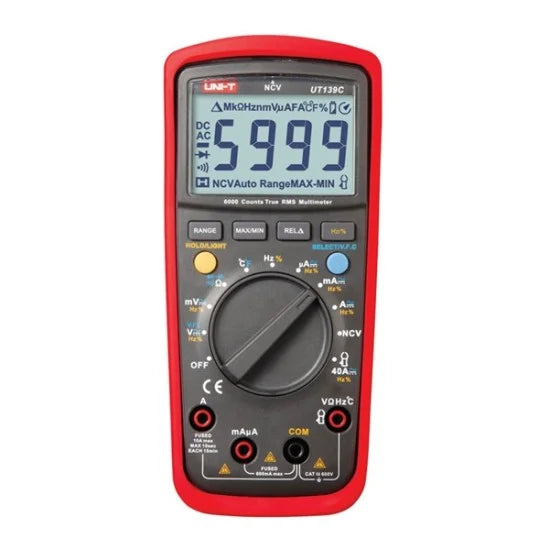

The UNI-T UT139C is a professional-grade, 6000-count true RMS digital multimeter from the advanced UT139 series, designed for electricians, HVAC technicians, electronics engineers, and serious hobbyists who demand accuracy, reliability, and versatility . This compact, auto-ranging instrument combines high-precision measurement capabilities with innovative features like VFC (Variable Frequency Control) for accurate motor drive diagnostics and built-in temperature measurement, making it an indispensable tool for a wide variety of professional applications .

Engineered with user safety as a priority, the UT139C is certified to CAT III 600V safety standards with full-range protection, ensuring reliable operation when working on distribution circuits and permanently installed equipment . Its rugged construction, large backlit LCD display, and comprehensive feature set make it the ideal choice for demanding work environments, from industrial plant maintenance to residential electrical troubleshooting .

Key Features at a Glance

• 6000-Count True RMS Display: High-resolution backlit LCD with 58mm × 36mm screen for precise readings and excellent visibility in any lighting condition .

• Wide Measurement Range: Measures DC/AC voltage up to 600V, DC/AC current up to 10A, resistance up to 60MΩ, and capacitance up to 99.99mF .

• Temperature Measurement: Built-in K-type thermocouple support with included probe for readings from -40°C to 1000°C (-40°F to 1832°F)—essential for HVAC diagnostics .

• VFC (Variable Frequency Control) Mode: Built-in low-pass filter ensures accurate measurement of voltage and frequency on variable frequency drives (VFDs), inverters, and motor controls—a feature typically found in much more expensive meters .

• Frequency & Duty Cycle: Measures frequency from 10Hz up to 10MHz and duty cycle from 0.1% to 99.9% for advanced signal analysis .

• Non-Contact Voltage (NCV) Detection: Safely identify live AC circuits with a five-level audio and visual alarm that indicates the strength of the detected electric field .

• High Input Impedance: Up to 1GΩ on DC millivolt ranges for minimal circuit loading and ultra-accurate low-voltage measurements .

• External Current Clamp Compatibility: Supports AC/DC current measurements up to 40A with optional current clamp accessory, expanding its versatility .

• Comprehensive Testing: Includes diode test (approx. 3V open circuit), continuity test with acoustic indication (<10Ω), MAX/MIN/REL recording, data hold, and relative mode .

• User-Friendly Design: Auto and manual ranging, LCD backlight, 15-minute auto power-off, and low battery indication (≤2.5V) .

• Rugged & Safe: Certified to CAT III 600V safety standards with full-range overload protection and double-injection molded housing .

Detailed Specifications

The UNI-T UT139C delivers professional-grade accuracy across an extensive range of electrical and environmental parameters .

Measurement Ranges & Accuracy

General & Mechanical Specifications

Special Functions

What's in the Box

Optional Accessories: UT139C supports an external AC/DC current clamp sensor (40A) for expanded current measurement capability .

UT139 Series Comparison: UT139A vs. UT139B vs. UT139C

The UT139 series offers three distinct models with varying capabilities, with the UT139C serving as the most feature-rich model :

Key Functions & Operation

1. Temperature Measurement (UT139C Exclusive)

• Set the rotary switch to the temperature position .

• Connect the included K-type thermocouple to the meter, observing correct polarity .

• Place the probe on the object to measure temperature from -40°C to 1000°C .

• Application: Essential for HVAC diagnostics, furnace troubleshooting, refrigeration maintenance, and appliance repair .

2. VFC (Variable Frequency Control) for VFDs

• Press and hold the SELECT button for approximately 2 seconds in AC voltage mode to enter VFC measurement mode .

• This mode activates a low-pass filter, blocking high-frequency noise and carrier signals .

• Application: Essential for accurately measuring voltage and frequency on variable frequency drives (VFDs), inverters, and motor controls where standard meters often give false readings .

3. NCV (Non-Contact Voltage) Detection

• Set the rotary switch to the NCV position .

• Bring the front end of the meter near a live conductor or outlet .

• The meter provides a five-level audio and visual alarm—the buzzing frequency and LCD segments increase with the strength of the detected electric field .

• Application: Safely verify live circuits before physical contact .

4. DC/AC Voltage Measurement (Up to 600V)

• Set the rotary switch to the V position.

• Press SELECT to choose between DC and AC measurement.

• Connect test leads in parallel to the circuit under test.

• Ultra-high input impedance (up to 1GΩ on mV ranges) minimizes circuit loading for accurate low-voltage measurements .

5. DC/AC Current Measurement (Up to 10A)

• Set the rotary switch to the appropriate μA, mA, or A position based on expected current .

• Press SELECT to choose between DC and AC current.

• Connect test leads in series with the circuit under test.

• Critical Warning: For currents above 5A, limit measurement time to <10 seconds with a 15-minute interval between measurements to prevent overheating .

• Fuse protection: 0.6A H 600V fast-acting fuse (6×32mm) on μA/mA ranges; F 10A H 600V fast-acting fuse (6×25mm) on 10A range .

6. External Current Clamp Measurement (UT139C Exclusive)

• Connect the optional AC/DC current clamp (40A) to the meter .

• Set the rotary switch to the appropriate position for clamp measurements .

• Clamp around a single conductor to measure current without breaking the circuit.

• Application: Ideal for non-invasive current measurements in crowded panels or on large conductors .

7. Capacitance Measurement (Up to 99.99mF)

• Set the rotary switch to the capacitance position.

• Fully discharge capacitors before testing to avoid damage to the meter .

• Connect test leads in parallel with the capacitor.

• For capacitors under 100nF, use REL (Relative) mode to zero out test lead capacitance for greater accuracy .

• Measures up to 99.99mF for motor start capacitors and power supply filtering .

8. Frequency & Duty Cycle

• In AC voltage or current measurement mode, press the Hz/% button to display frequency and duty cycle .

• Measures frequencies up to 10MHz and duty cycles from 0.1% to 99.9% .

• Application: Signal analysis, PWM troubleshooting, and motor drive diagnostics.

9. Resistance, Continuity & Diode Test

• Set the rotary switch to the **Ω/))) ** position.

• For resistance, connect test leads across the component (up to 60MΩ) .

• For continuity, press SELECT to select the continuity test. The buzzer sounds when resistance is <10Ω, confirming a complete circuit .

• For diode test, connect leads across the diode to measure forward voltage drop (approx. 3V open circuit voltage) .

10. MAX/MIN & Relative Mode

• Press MAX/MIN to enter data recording mode—the meter displays the maximum value, then subsequent presses cycle through minimum and average (MAX-MIN) values .

• Press REL to store the current reading as a reference value; subsequent readings display the difference from the stored value .

• Application: Monitor fluctuating signals, zero out test lead resistance, or perform comparative measurements.

11. Data Hold & Backlight

• Press HOLD to freeze the current reading on the display .

• Press and hold HOLD (or REL/LIGHT on UT139A) for approximately 2 seconds to turn the LCD backlight on/off .

• Backlight automatically turns off after approximately 15 seconds to conserve battery .

12. Auto/Manual Ranging

• Press RANGE to switch from auto-ranging to manual-ranging mode .

• Each press increments to the next range; after reaching the highest range, the next press returns to the lowest range.

• Press and hold RANGE for approximately 2 seconds to exit manual mode and return to auto-ranging .

13. Auto Power Off

• Meter automatically shuts down after approximately 15 minutes of inactivity to conserve battery life .

• Press any button or turn the rotary switch to wake the meter.

• Low battery indication activates at ≤2.5V .

Safety Features

The UT139C incorporates multiple advanced safety features to protect users :

• CAT III 600V Rating: Certified for measurements on distribution circuits and permanently installed equipment .

• Full-Range Overload Protection: Comprehensive protection on all measurement ranges up to 600Vrms .

• Fuse Protection: Dual-fuse protection on current ranges—0.6A H 600V fast-acting fuse (μA/mA) and F 10A H 600V fast-acting fuse (10A) .

• Input Impedance: Up to 1GΩ on DC millivolt ranges minimizes circuit loading .

• NCV Detection: Allows safe, non-contact verification of live circuits .

• Low Battery Indication: Prevents false readings due to insufficient power .

• Double-Insulated Housing: Meets international safety standards .

Applications

The UNI-T UT139C is an ideal all-in-one tool for :

🌡️ HVAC/R Technicians

• Measuring vent temperatures, superheat, and subcooling with the included thermocouple .

• Testing start/run capacitors up to 99.99mF .

• Using VFC mode for accurate measurements on variable frequency drives and motor controls .

• NCV detection for safe live wire identification .

⚡ Industrial & Commercial Electricians

• Safe voltage measurements up to CAT III 600V .

• VFC mode for diagnosing motor drives and variable frequency drives .

• Continuity testing for wiring and connections .

• External current clamp capability for non-invasive current measurements .

🔧 Electronics Engineers & Technicians

• Precision component testing with 6000-count resolution .

• Capacitance measurement up to 99.99mF for power supply filtering .

• Frequency analysis up to 10MHz for signal generators and oscillators .

• Diode and continuity testing for PCB troubleshooting .

🚗 Automotive Diagnostics

• Testing battery voltage and alternator output.

• Measuring parasitic drain up to 10A .

• Sensor testing with frequency and temperature functions .

• VFC mode for diagnosing modern automotive electronics with PWM signals.

🏠 DIY & Home Workshop

• General electrical troubleshooting .

• Appliance repair and maintenance.

• Battery testing and continuity checks.

• Temperature measurement for ovens, dryers, and HVAC systems .

Customer Reviews & Real-World Performance

Users consistently praise the UT139C for its excellent build quality, accuracy, and comprehensive feature set .

Positive Feedback

• Build Quality: "Feel en ziet er kwalitatief goed uit" (Feels and looks qualitatively good) — F.B.D ; "Excelente producto, calidad buena" (Excellent product, good quality) — Lucimart .

• Accuracy: "Very good multimeter accurate" — roy ; verified by detailed user testing showing performance well within specifications .

• Value for Money: "Great product with amazing price" — Hamza ; "Zijn geld totaal waard" (Totally worth its money) — Steven Philips .

• Features: VFC mode and temperature measurement are frequently highlighted as key benefits over other models in its class .

• Burden Voltage: A detailed user review noted the burden voltage is an impressive 2.4mV/mA, which is quite good for a meter in this price range .

Considerations

• Continuity Buzzer Speed: Some users note the continuity response is slightly slower than premium brands, though perfectly adequate for most applications .

• Test Leads: The included probes are adequate but some users prefer sharper tips for probing small SMD components .

• Current Measurement Setup: Requires moving the red test lead to the appropriate jack for μA/mA/A ranges, which can be forgotten when switching back to voltage measurement .

• Frequency Sensitivity: A detailed comparison noted that the UT139C requires higher input voltage (∼1200mV) to measure frequencies above 8MHz, while some cheaper models work with lower signal levels .

UT139C vs. Competitors

Why Choose the UNI-T UT139C?

Final Verdict

The UNI-T UT139C is the definitive choice for professionals who need VFC (Variable Frequency Control) capability combined with temperature measurement and large capacitance testing in a rugged, reliable, and feature-rich multimeter. Its included K-type thermocouple, -40°C to 1000°C range, 99.99mF capacitance measurement, and VFC mode for motor drives make it exceptionally well-suited for HVAC technicians, industrial electricians, and electronics engineers .

While it has minor drawbacks like a moderately slow continuity buzzer and the need to move test leads for current measurements, the UT139C excels where it matters most: accurate, reliable measurements with professional-grade features in a safety-certified package at an accessible price point .

One detailed user review concluded that both the UT133A and UT139C are good meters, noting that "de 139C maakt zijn meer dan tweemaal hogere prijs wat betreft prestaties niet waar" (the 139C does not justify its more than double price in terms of performance compared to the UT133A) . However, for users who specifically need temperature measurement, VFC mode, or external current clamp capability, the UT139C's additional features are well worth the investment.

Whether you're an HVAC technician diagnosing a furnace, an industrial electrician troubleshooting VFDs, an electronics engineer testing components, or a serious hobbyist, the UT139C delivers professional-grade performance that will serve you faithfully for years .

The UNI-T UT139C: Professional-grade diagnostics with VFC technology and temperature measurement.

DOWNLOAD DATA SHEET
