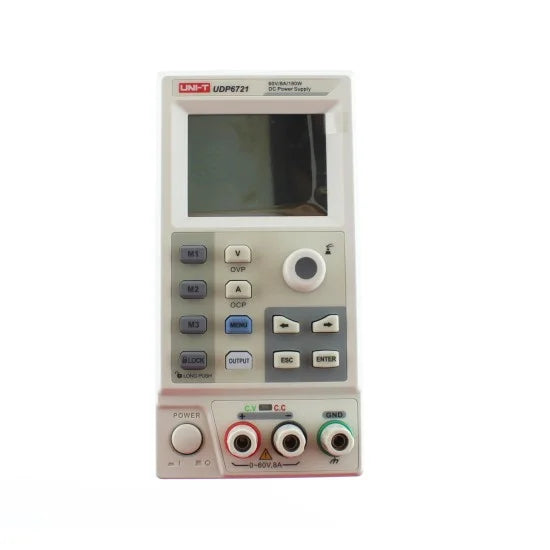

UNI-T UDP6721 60V/8A 180W Programmable DC Power Supply

Overview

The UNI-T UDP6721 is a high-performance, single-channel programmable switching DC power supply designed for laboratory use, electronics development, and automated testing . It delivers a robust output of 0-60V and 0-8A with a maximum power of 180W, offering exceptional versatility for powering a wide range of electronic devices and circuits .

Key Features

• High Resolution Output: Provides precise voltage and current control with a resolution of 10mV and 1mA .

• 2.8" TFT LCD Display: Features a full-color screen for clear, real-time monitoring of voltage, current, and power .

• Remote Control & Compensation: Equipped with a RS232 interface and supports SCPI protocol for seamless remote control. The remote compensation function ensures accurate voltage delivery at the load, compensating for drops in long test leads .

• Wide Power Ratio: With a power ratio of 3.0, this single unit can replace multiple smaller power supplies, reducing overall equipment costs .

• Advanced Automation: Built-in List and Delayer functions (with up to 48 editable points) allow for the programming of complex test sequences and timed power cycles, enhancing automation efficiency .

• Comprehensive Protection: Features Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection (OTP) to safeguard both the power supply and connected devices .

• Extensive Memory: Store up to 600 preset groups (200 in each of M1, M2, M3) for quick access to frequently used configurations .

Applications

Ideal for electronics R&D, circuit debugging, module testing, automated test benches, educational labs, and general bench power supply needs .

Key Specifications

• Output Voltage: 0 – 60V DC

• Output Current: 0 – 8A

• Max Power: 180W

• Resolution: 10mV / 1mA

• Display: 2.8" TFT LCD

• Protection: OVP, OCP, OTP

• Interface: RS232 (SCPI protocol)

• Dimensions: 87 x 174 x 255 mm

• Weight: Approximately 2.5 kg

• Warranty: 3-year standard, extendable to 5 years with registration

The UNI-T UDP6721: Precision, power, and programmability in a compact bench supply.
