UNI-T MSO3254E 250MHz Mixed Signal Oscilloscope: The Ultimate Guide

Overview

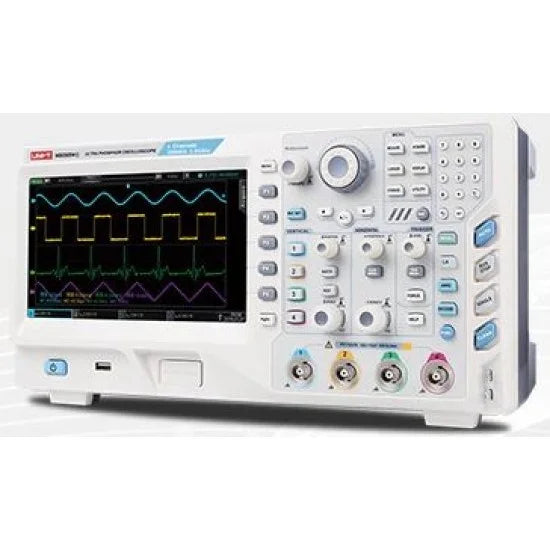

The UNI-T MSO3254E is a high-performance, 250MHz mixed signal oscilloscope (MSO) engineered for professional engineers, researchers, and educators who demand advanced debugging capabilities and precise signal analysis. As the 4-channel 250MHz model in UNI-T's MSO3000E series, this powerful instrument combines a 4-channel oscilloscope with a 16-channel logic analyzer and a built-in dual-channel 50MHz arbitrary waveform generator—all in one integrated package .

Built on UNI-T's original Ultra Phosphor technology, the MSO3254E delivers exceptional signal visualization with a high waveform capture rate, ensuring you never miss critical signal anomalies. Its intuitive 8-inch TFT LCD display with 800×480 resolution transforms how you interact with waveforms while retaining traditional button-and-knob controls for maximum efficiency .

Key Features at a Glance

• 4 Analog + 16 Digital Channels: Simultaneously measure and analyze up to 20 signals, making it invaluable for debugging complex embedded systems, serial protocols, and mixed-signal circuits .

• 250MHz Bandwidth: With 250MHz bandwidth and high-performance sampling, it's suitable for a wide range of high-speed applications from embedded systems to communications .

• 2.5GSa/s Real-Time Sample Rate: High-speed sampling ensures accurate capture of fast signals and transient events .

• 70Mpts Memory Depth: Generous 70Mpts memory depth per channel maintains high sampling rates across broader time bases, greatly improving the capture rate of abnormal waveforms and allowing detailed zoom analysis .

• Built-in 50MHz Dual-Channel Arbitrary Waveform Generator (AWG): Generate sine, square, ramp, pulse, arbitrary waves, noise, and DC signals—perfect for circuit characterization and stimulus-response testing .

• 8-Inch TFT LCD Display: High-resolution 800×480 display with Ultra Phosphor technology for superior signal visualization and history tracking .

• Advanced Trigger System: Rich trigger options including edge, pulse width, video, slope, runt, Nth Edge, pattern, timeout, and delay triggers for precise signal capture .

• Comprehensive Protocol Decoding: Supports RS232, IIC, SPI, CAN, CAN-FD, LIN, and FlexRay bus decoding for efficient serial communication analysis .

• Enhanced FFT Analysis: Mathematical functions include addition, subtraction, division, multiplication, and FFT for comprehensive frequency domain analysis .

• Comprehensive Connectivity: USB Host, USB Device, LAN, VGA, EXT Trigger, and AUX Out for flexible integration into test setups .

• MIN/MAX Function: Quickly identify signal extremes with built-in measurement capabilities .

Detailed Specifications

System Specifications

Built-in Signal Generator

Trigger System

Protocol Decoding

Connectivity

General & Physical Specifications

Note: The MSO3254E is part of UNI-T's MSO3000E series, which offers various bandwidth and channel options. This model represents the 250MHz 4-channel configuration .

What's in the Box

*Note: The digital logic probe for 16-channel analysis may be sold separately. Please verify with your distributor.*

Key Technologies & Functions

1. Mixed Signal Analysis (4+16 Channels)

The MSO3254E's defining feature is its ability to simultaneously capture and correlate 4 analog channels and 16 digital channels. This integrated logic analyzer capability simplifies debugging of embedded systems by letting you view analog waveforms alongside digital bus signals, decode protocols, and perform precise timing measurements.

2. Ultra Phosphor Technology

UNI-T's original Ultra Phosphor technology provides a vivid grayscale display that shows signal intensity over time. This three-dimensional waveform data of amplitude, time, and intensity gives you deeper insight into signal behavior and allows better tracking of active signal paths.

3. Deep Memory (70Mpts)

With 70Mpts memory depth per channel, you can capture long time windows while maintaining high sampling rates, ensuring no waveform changes are lost and allowing detailed analysis of waveform details .

4. Built-in 50MHz Arbitrary Waveform Generator

The integrated dual-channel AWG eliminates the need for a separate function generator. Features include standard waveforms (sine, square, ramp, pulse), arbitrary waveforms, noise, and DC signals .

5. Comprehensive Protocol Decoding

Supports decoding of major serial protocols including RS232, I²C, SPI, CAN, CAN-FD, LIN, and FlexRay, allowing users to easily find errors, debug hardware, and speed up development progress .

6. Mathematical Operations

Perform complex signal analysis with arithmetic operations: addition, subtraction, multiplication, division, and FFT for comprehensive frequency domain analysis .

7. Advanced Trigger System

Rich trigger options including edge, pulse width, video, slope, runt, Nth Edge, pattern, timeout, and delay triggers for precise signal capture .

8. MIN/MAX Function

Quickly identify signal extremes with built-in MIN/MAX measurement capabilities .

9. Flexible Input Coupling

Selectable AC, DC, and GND coupling modes for versatile signal analysis .

10. Bandwidth Limitation

Configurable bandwidth limit (20 MHz) for observing high-frequency noise when analyzing low-frequency signals .

Applications

The UNI-T MSO3254E is an ideal all-in-one tool for:

🔧 Embedded Systems Design & Debugging

• Debug microcontroller-based systems with mixed analog and digital signals

• Analyze and decode serial communication protocols (RS232, I²C, SPI, CAN, LIN, FlexRay)

• Correlate software events with analog signal behavior

🚗 Automotive Electronics

• Test and validate CAN, CAN-FD, and LIN bus communication

• Analyze sensor signals and actuator control waveforms

• Debug automotive ECUs and modules

📱 Consumer Electronics Development

• Validate power supply sequencing and integrity

• Analyze interface timing and signal quality

• Debug complex mixed-signal circuits

⚡ Power Electronics

• Characterize switch-mode power supplies

• Measure ripple, noise, and transient response

• Analyze control loop stability

📡 Communications & Semiconductor

• Test signal integrity in communication interfaces

• Validate timing in digital circuits

• Characterize semiconductor devices

🏫 Education & Training

• Ideal for university and vocational labs

• Teach oscilloscope fundamentals with 250MHz bandwidth

• Demonstrate mixed-signal concepts with integrated logic analyzer

🏭 Industrial Electronics & On-Site Maintenance

• Troubleshoot industrial control systems

• Analyze sensor and actuator signals

• Field service and maintenance

Why Choose the UNI-T MSO3254E?

MSO3000E Series Comparison

The MSO3000E series offers several models with varying capabilities:

Choose the MSO3254E if: You need maximum performance with 250MHz bandwidth across 4 analog channels for complex mixed-signal debugging and high-speed analysis .

Optional Accessories

Safety & Maintenance

• Input Protection: Observe maximum input ratings. Never exceed specified voltage limits.

• Calibration: Recommended calibration interval: 1 year.

• Ventilation: Ensure adequate airflow around the instrument during operation.

• Cleaning: Clean the exterior with a soft, dry cloth. Avoid solvents or abrasive materials.

• Storage: Store in a clean, dry environment within specified temperature/humidity ranges.

• Software Updates: Check the official UNI-T website for firmware updates:
