UNI-T MSO3154E 150MHz Mixed Signal Oscilloscope: The Ultimate Guide

Overview

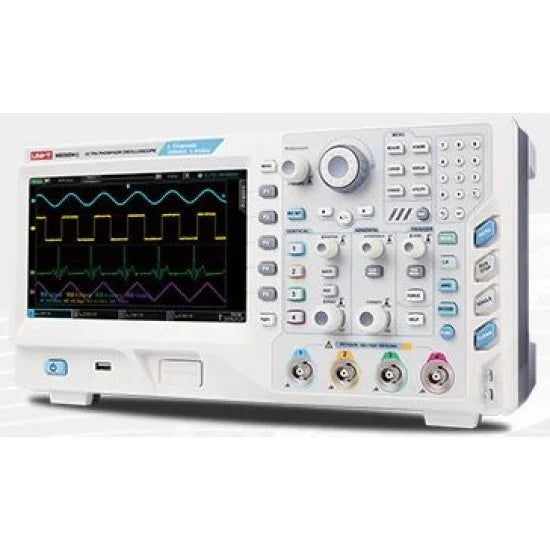

The UNI-T MSO3154E is a professional-grade, 150MHz mixed signal oscilloscope (MSO) engineered for engineers, researchers, and educators who demand comprehensive debugging capabilities and advanced analysis features. As a flagship model in UNI-T's MSO3000E series, this powerful instrument combines a 4-channel oscilloscope with a 16-channel logic analyzer and a built-in dual-channel 50MHz arbitrary waveform generator—all in one integrated package .

Built on UNI-T's original Ultra Phosphor technology, the MSO3154E delivers exceptional signal visualization with a high waveform capture rate exceeding 200,000 wfms/s, ensuring you never miss critical signal anomalies . Its intuitive 8-inch TFT LCD display with 800×480 resolution transforms how you interact with waveforms while retaining traditional button-and-knob controls for maximum efficiency .

Key Features at a Glance

• 4 Analog + 16 Digital Channels: Simultaneously measure and analyze up to 20 signals, making it invaluable for debugging complex embedded systems, serial protocols, and mixed-signal circuits .

• 150MHz Bandwidth: With 150MHz bandwidth and ≤2.4ns rise time, it's suitable for a wide range of applications from audio to embedded systems .

• 2.5GSa/s Real-Time Sample Rate: High-speed sampling ensures accurate capture of fast signals and transient events (2.5GSa/s for single channel) .

• 70Mpts Memory Depth: Generous 70Mpts memory depth per channel maintains high sampling rates across broader time bases, greatly improving the capture rate of abnormal waveforms and allowing detailed zoom analysis .

• Independent Time Base Per Channel: Each channel has independently adjustable time base, allowing you to simultaneously observe multiple signals with vastly different frequencies .

• Built-in 50MHz Dual-Channel Arbitrary Waveform Generator (AWG): Generate sine, square, ramp, pulse, arbitrary waves, noise, and DC signals—perfect for circuit characterization and stimulus-response testing .

• 8-Inch TFT LCD Display: High-resolution 800×480 display with Ultra Phosphor technology for superior signal visualization and history tracking .

• Advanced Trigger System: Rich trigger options including edge, pulse width, video, slope, runt, Nth Edge, pattern, timeout, and delay triggers for precise signal capture .

• Comprehensive Protocol Decoding: Supports RS232, IIC, SPI, USB, and CAN bus decoding for efficient serial communication analysis .

• Enhanced FFT Analysis: 4M-point FFT capability for comprehensive frequency domain analysis of harmonics, distortion, and noise .

• 34 Automatic Measurements: Automatically measure up to 34 signal parameters including frequency, amplitude, rise/fall time, duty cycle, and more .

• Comprehensive Connectivity: USB Host/Device, LAN, VGA, EXT Trigger, and AUX Out for flexible integration into test setups .

Detailed Specifications

System Specifications

Built-in Signal Generator

Logic Analyzer (UT-M15 Probe)

Trigger System

Connectivity

General & Physical Specifications

Note: According to some distributors, this model may be discontinued or replaced by newer models in the MSO3000 series . Availability may be limited to existing stock from distributors.

What's in the Box

Key Technologies & Functions

1. Mixed Signal Analysis (4+16 Channels)

The MSO3154E's defining feature is its ability to simultaneously capture and correlate 4 analog channels and 16 digital channels . This integrated logic analyzer capability, provided by the included UT-M15 probe, simplifies debugging of embedded systems by letting you view analog waveforms alongside digital bus signals, decode protocols, and perform precise timing measurements.

2. Ultra Phosphor Technology

UNI-T's original Ultra Phosphor technology provides a vivid grayscale display that shows signal intensity over time, with adjustable persistence from minimum to infinite . This three-dimensional waveform data of amplitude, time, and intensity gives you deeper insight into signal behavior and allows better tracking of active signal paths.

3. High Waveform Capture Rate (>200,000 wfms/s)

The MSO3154E achieves an ultra-high waveform capture rate exceeding 200,000 wfms/s, dramatically increasing the probability of capturing glitches, runt pulses, and other infrequent events .

4. Deep Memory (70Mpts)

With 70Mpts memory depth per channel, you can capture long time windows while maintaining high sampling rates, ensuring no waveform changes are lost and allowing detailed analysis of waveform details .

5. Independent Time Base Per Channel

Each channel has independently adjustable time base, allowing you to simultaneously observe signals with vastly different frequencies—each with optimal horizontal scaling .

6. Built-in 50MHz Arbitrary Waveform Generator

The integrated dual-channel AWG eliminates the need for a separate function generator. Features include :

• Standard waveforms: sine (up to 50MHz), square (up to 15MHz), ramp (up to 400kHz), pulse (up to 15MHz)

• Arbitrary waveforms (up to 5MHz)

• Noise and DC signals

• 10 built-in arbitrary waveforms (Sinc, Exponential, Cardiac, Gaussian, Lorentz, etc.)

• AM and FM modulation capabilities

7. Comprehensive Protocol Decoding

Supports decoding of major serial protocols including RS232, IIC, SPI, USB, and CAN .

8. Advanced Mathematical Operations

Perform complex signal analysis with :

• Arithmetic operations: addition, subtraction, multiplication, division

• FFT with 4M-point analysis

• Advanced functions: Log, Exp, Sin, Cos, Tan, Sqrt, Integral, Differential

• Digital filters: low-pass, high-pass, band-pass, band-stop

• Logic operations: AND, OR, NOT, XOR

9. 34 Automatic Measurements

Automatically measure up to 34 signal parameters including Max, Min, Peak-Peak, Amplitude, Mean, RMS, Frequency, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Overshoot, Preshoot, Phase, and various delay measurements .

10. Extensive Storage Capability

• Save up to 256 files in internal memory

• Save up to 256 files to USB flash drive

• Save screenshots in .BMP format

• Export waveform data in .CSV format for Excel analysis

Applications

The UNI-T MSO3154E is an ideal all-in-one tool for:

🔧 Embedded Systems Design & Debugging

• Debug microcontroller-based systems with mixed analog and digital signals

• Analyze and decode serial communication protocols (RS232, IIC, SPI, USB, CAN)

• Correlate software events with analog signal behavior

📱 Consumer Electronics Development

• Validate power supply sequencing and integrity

• Analyze audio and video signals

• Debug interface timing and signal quality

🚗 Automotive Electronics

• Test and validate CAN bus communication

• Analyze sensor signals and actuator control waveforms

• Debug automotive ECUs and modules

⚡ Power Electronics

• Characterize switch-mode power supplies

• Measure ripple, noise, and transient response

• Analyze control loop stability

📡 Communications & Semiconductor

• Test signal integrity in communication interfaces

• Validate timing in digital circuits

• Characterize semiconductor devices

🏫 Education & Training

• Ideal for university and vocational labs

• Teach oscilloscope fundamentals

• Demonstrate mixed-signal concepts with integrated logic analyzer

🏭 Industrial Electronics & On-Site Maintenance

• Troubleshoot industrial control systems

• Analyze sensor and actuator signals

• Field service and maintenance

Why Choose the UNI-T MSO3154E?

MSO3000E Series Comparison

The MSO3000E series offers several models with varying capabilities :

Choose the MSO3154E if: You need 4-channel capability with 150MHz bandwidth for complex mixed-signal debugging and analysis.

Optional Accessories & Upgrades

Safety & Maintenance

• Input Protection: Maximum input voltage CAT I 300Vrms, CAT II 100Vrms . Always observe input ratings.

• Calibration: Recommended calibration interval: 1 year .

• Ventilation: Ensure adequate airflow around the instrument during operation.

• Cleaning: Clean the exterior with a soft, dry cloth. Avoid solvents or abrasive materials.

• Storage: Store in a clean, dry environment within specified temperature/humidity ranges: -20°C to 60°C .

• Software Updates: Check the official UNI-T website for firmware updates: https://instruments.uni-trend.com/EU-EN/digitaloscilloscopes/mso3000e.html .

Customer Reviews & Verdict

The UNI-T MSO3154E is widely recognized as an exceptional value proposition in the mixed-signal oscilloscope market, offering features typically found in instruments costing significantly more. Users consistently praise its comprehensive channel count, integrated AWG and logic analyzer capabilities, and excellent price-to-performance ratio.

Positive Feedback

• Value: A powerful multifunctional instrument offering exceptional features at its price point .

• Channel Count: The 4+16 channel configuration is highly valued for embedded systems work .

• Integrated AWG: Eliminates the need for a separate function generator .

• Deep Memory: 70Mpts per channel is generous for this class, enabling long captures with high detail .

• Independent Time Base: Highly useful for comparing signals with vastly different frequencies .

• Fast Numeric Keyboard: Dedicated keypad speeds up data entry .

Considerations

• Availability: According to some distributors, this model may be discontinued . Please verify current availability with UNI-T or authorized distributors.

• Weight: At 4.2-6.0kg, it's substantial but appropriate for a bench instrument .

• Fan Noise: Like most benchtop oscilloscopes, it has a cooling fan that produces some noise.

• Learning Curve: The extensive feature set may require some familiarization for new users.
