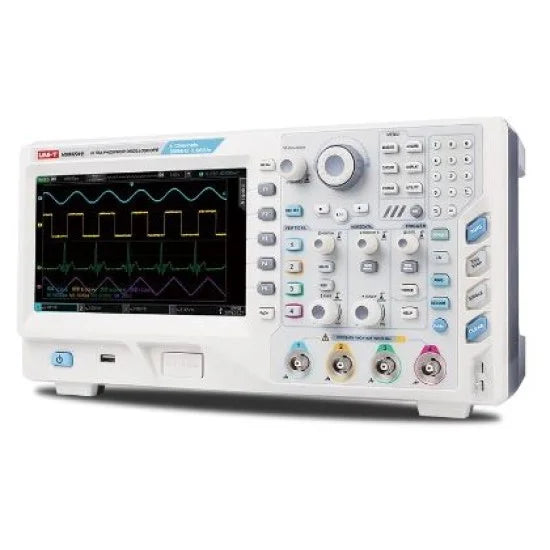

The UNI-T MSO3152E is a professional-grade, 150MHz mixed signal oscilloscope (MSO) engineered for engineers, researchers, and educators who demand comprehensive debugging capabilities and advanced analysis features. As a key model in UNI-T's MSO3000E series, this powerful instrument combines a 2-channel oscilloscope with a 16-channel logic analyzer and a built-in dual-channel 50MHz arbitrary waveform generator—all in one integrated package .
Built on UNI-T's original Ultra Phosphor technology, the MSO3152E delivers exceptional signal visualization with a high waveform capture rate exceeding 200,000 wfms/s, ensuring you never miss critical signal anomalies . Its intuitive 8-inch TFT LCD display with 800×480 resolution transforms how you interact with waveforms while retaining traditional button-and-knob controls for maximum efficiency .
2 Analog + 16 Digital Channels: Simultaneously measure and analyze up to 18 signals, making it invaluable for debugging complex embedded systems, serial protocols, and mixed-signal circuits .
150MHz Bandwidth: With 150MHz bandwidth and ≤2.4ns rise time, it's suitable for a wide range of applications from audio to embedded systems .
2.5GSa/s Real-Time Sample Rate: High-speed sampling ensures accurate capture of fast signals and transient events (2.5GSa/s for single channel, 1.25GSa/s for dual channels) .
70Mpts Memory Depth: Generous 70Mpts memory depth per channel maintains high sampling rates across broader time bases, greatly improving the capture rate of abnormal waveforms and allowing detailed zoom analysis .
Independent Time Base Per Channel: Each channel has independently adjustable time base, allowing you to simultaneously observe four signals with vastly different frequencies .
Built-in 50MHz Dual-Channel Arbitrary Waveform Generator (AWG): Generate sine, square, ramp, pulse, arbitrary waves, noise, and DC signals—perfect for circuit characterization and stimulus-response testing .
8-Inch TFT LCD Display: High-resolution 800×480 display with Ultra Phosphor technology for superior signal visualization and history tracking .
Advanced Trigger System: Rich trigger options including edge, pulse width, video, slope, runt, Nth Edge, pattern, timeout, and delay triggers for precise signal capture .
Comprehensive Protocol Decoding: Supports RS232, IIC, SPI, USB, and CAN bus decoding for efficient serial communication analysis .
Enhanced FFT Analysis: 4M-point FFT capability with full-screen, split-screen, and waterfall chart views for comprehensive frequency domain analysis .
Comprehensive Connectivity: USB Host/Device, LAN, VGA, EXT Trigger, and AUX Out for flexible integration into test setups .
34 Automatic Measurements: Automatically measure up to 34 signal parameters including frequency, amplitude, rise/fall time, duty cycle, and more .
| Specification | Detail |
|---|---|
| Digital Channels | 16 |
| Compatibility | Compatible with MSO2102, MSO2104, MSO2202, MSO2204, MSO3152E, and other UNI-T MSO models |
| Type | Details |
|---|---|
| Basic Triggers | Edge, Pulse Width, Video, Slope |
| Advanced Triggers | Runt, Nth Edge, Pattern, Timeout, Delay, Alternating trigger |
Note: According to one distributor, this model has been discontinued . Availability may be limited to existing stock from distributors.
| Item | Quantity |
|---|---|
| UNI-T MSO3152E Oscilloscope Main Unit | 1x |
| Passive Probes (200MHz UT-P05) | 2x |
| Logic Analyzer Probe (UT-M15) | 1x |
| USB Cable (UT-D14) | 1x |
| Power Cord | 1x |
| User Manual & Documentation | 1x |
The MSO3152E's defining feature is its ability to simultaneously capture and correlate 2 analog channels and 16 digital channels . This integrated logic analyzer capability, provided by the included UT-M15 probe, simplifies debugging of embedded systems by letting you view analog waveforms alongside digital bus signals, decode protocols, and perform precise timing measurements .
UNI-T's original Ultra Phosphor technology provides a vivid grayscale display that shows signal intensity over time, with adjustable persistence from minimum to infinite. This three-dimensional waveform data of amplitude, time, and intensity gives you deeper insight into signal behavior and allows better tracking of active signal paths .
The MSO3152E achieves an ultra-high waveform capture rate exceeding 200,000 wfms/s, dramatically increasing the probability of capturing glitches, runt pulses, and other infrequent events .
With 70Mpts memory depth per channel, you can capture long time windows while maintaining high sampling rates, ensuring no waveform changes are lost and allowing detailed analysis of waveform details .
Each channel has independently adjustable time base, allowing you to simultaneously observe signals with vastly different frequencies—each with optimal horizontal scaling .
The integrated dual-channel AWG eliminates the need for a separate function generator. Features include :
Standard waveforms: sine (up to 50MHz), square (up to 15MHz), ramp (up to 400kHz), pulse (up to 15MHz)
Arbitrary waveforms (up to 5MHz)
Noise and DC signals
10 built-in arbitrary waveforms (Sinc, Exponential, Cardiac, Gaussian, Lorentz, etc.)
AM and FM modulation capabilities
Supports decoding of major serial protocols including RS232, IIC, SPI, USB, and CAN .
Perform complex signal analysis with:
Arithmetic operations: addition, subtraction, multiplication, division
Advanced functions: Log, Exp, Sin, Cos, Tan, Sqrt, Integral, Differential
Automatically measure up to 34 signal parameters including Max, Min, Peak-Peak, Amplitude, Mean, RMS, Frequency, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Overshoot, Preshoot, Phase, and various delay measurements .
Save screenshots in .BMP format
The UNI-T MSO3152E is an ideal all-in-one tool for:
Debug microcontroller-based systems with mixed analog and digital signals
Analyze and decode serial communication protocols (RS232, IIC, SPI, USB, CAN)
Correlate software events with analog signal behavior
Validate power supply sequencing and integrity
Analyze audio and video signals
Debug interface timing and signal quality
Analyze sensor signals and actuator control waveforms
Debug automotive ECUs and modules
Characterize switch-mode power supplies
Measure ripple, noise, and transient response
Analyze control loop stability
Test signal integrity in communication interfaces
Validate timing in digital circuits
Characterize semiconductor devices
Ideal for university and vocational labs
Teach oscilloscope fundamentals
Demonstrate mixed-signal concepts with integrated logic analyzer
Troubleshoot industrial control systems
Analyze sensor and actuator signals
Field service and maintenance
The MSO3000E series offers several models with varying capabilities:
| Model | Bandwidth | Analog Channels | Digital Channels | Built-in AWG |
|---|---|---|---|---|
| MSO3152E | 150MHz | 2 | 16 | ✓ |
| MSO3154E | 150MHz | 4 | 16 | ✓ |
| MSO3252E | 250MHz | 2 | 16 | ✓ |
| MSO3254E | 250MHz | 4 | 16 | ✓ |
Note: This product may be discontinued according to some distributors . Availability may be limited to existing stock. Consider checking with UNI-T for current availability or newer replacement models.
Input Protection: Maximum input voltage CAT I 300Vrms, CAT II 100Vrms .
Ventilation: Ensure adequate airflow around the instrument during operation.
Cleaning: Clean the exterior with a soft, dry cloth. Avoid solvents or abrasive materials.
Storage: Store in a clean, dry environment within specified temperature/humidity ranges.
Software Updates: Check the official UNI-T website for firmware updates:
