UNI-T MSO2204-S 200MHz Mixed Signal Oscilloscope: The Ultimate Guide

Overview

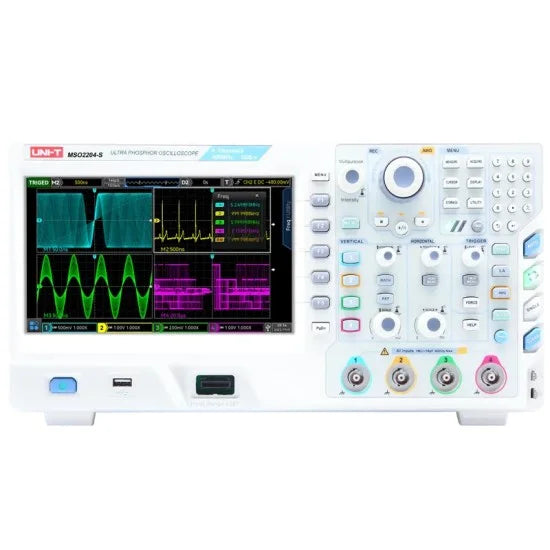

The UNI-T MSO2204-S is a professional-grade, 200MHz mixed signal oscilloscope (MSO) engineered for engineers, researchers, and educators who demand comprehensive debugging capabilities and advanced analysis features. As a flagship model in UNI-T's MSO2000 series, this powerful instrument combines a 4-channel oscilloscope with a 16-channel logic analyzer and a built-in dual-channel 50MHz arbitrary waveform generator—all in one integrated package .

Built on UNI-T's original Ultra Phosphor technology, the MSO2204-S delivers exceptional signal visualization with a high waveform capture rate of 1,000,000 wfms/s in Fast Acquire mode, ensuring you never miss critical signal anomalies . Its intuitive 8-inch capacitive touchscreen interface transforms how you interact with waveforms, supporting gestures like click, slide, zoom, edit, and drag while retaining traditional button-and-knob controls for maximum efficiency .

Key Features at a Glance

• 4 Analog + 16 Digital Channels: Simultaneously measure and analyze up to 20 signals, making it invaluable for debugging complex embedded systems, serial protocols, and mixed-signal circuits .

• 200MHz Bandwidth: With 200MHz bandwidth and ≤1.8ns rise time, it's suitable for applications up to 40MHz following the "Rule of Five" .

• 2GSa/s Real-Time Sample Rate: High-speed sampling ensures accurate capture of fast signals and transient events across all analog channels .

• 56Mpts Memory Depth: Generous memory depth maintains high sampling rates across broader time bases, greatly improving the capture rate of abnormal waveforms and allowing detailed zoom analysis .

• 1,000,000 wfms/s Waveform Capture Rate: Ultra-high capture rate in Fast Acquire mode efficiently captures occasional and elusive signal anomalies .

• Built-in 50MHz Dual-Channel Arbitrary Waveform Generator (AWG): Generate sine, square, ramp, pulse, arbitrary waves, noise, and DC signals—perfect for circuit characterization and stimulus-response testing .

• 8-Inch Multi-Point Capacitive Touchscreen: High-resolution 800×480 display with intuitive gesture control for a seamless, interactive experience .

• Advanced Trigger System: Rich trigger options including edge, pulse, video, slope, runt, delay, timeout, duration, setup/hold, Nth edge, pattern, and area triggers for precise signal capture .

• Full-Memory Hardware Decoding: Rapid decoding of serial protocols (RS232, I²C, SPI, CAN, CAN-FD, LIN, FlexRay) with 56Mpts deep memory, reducing decoding time from seconds to milliseconds .

• Enhanced FFT Analysis: 4M-point FFT with full-screen, split-screen, and waterfall chart views for comprehensive frequency domain analysis of harmonics, distortion, and noise .

• Bode Plot Function: Characterize frequency response (gain, phase, and frequency) of filters, amplifiers, and feedback networks directly from the oscilloscope .

• Comprehensive Connectivity: USB Host/Device, LAN, VGA, EXT Trigger, and AUX Out for flexible integration into test setups .

• Web Server Control: Built-in web server enables remote access and control via PC or mobile phone interfaces over the internet .

Detailed Specifications

System Specifications

Built-in Signal Generator

Logic Analyzer (UT-M15 Probe)

Trigger System

Connectivity

General & Physical Specifications

What's in the Box

Key Technologies & Functions

1. Mixed Signal Analysis (4+16 Channels)

The MSO2204-S's defining feature is its ability to simultaneously capture and correlate 4 analog channels and 16 digital channels. This integrated logic analyzer capability, provided by the included UT-M15 probe, simplifies debugging of embedded systems by letting you view analog waveforms alongside digital bus signals, decode protocols, and perform precise timing measurements .

2. Ultra Phosphor Technology

UNI-T's original Ultra Phosphor technology provides a vivid grayscale display that shows signal intensity over time, revealing rare anomalies and signal characteristics that standard digital oscilloscopes miss. This three-dimensional waveform data of amplitude, time, and intensity gives you deeper insight into signal behavior .

3. Fast Acquire Mode with 1,000,000 wfms/s

Powered by innovative digital signal parallel processing technology, the MSO2204-S achieves an ultra-high waveform capture rate of 1,000,000 wfms/s in Fast Acquire mode. This dramatically increases the probability of capturing glitches, runt pulses, and other infrequent events .

4. Full-Memory Hardware Decoding

Experience lightning-fast protocol decoding with deep 56Mpts memory. The full-memory hardware decoding capability reduces decoding time from seconds to milliseconds, ensuring real-time decoding and significantly improving problem diagnosis efficiency for protocols like I²C, SPI, UART, CAN, and LIN .

5. Built-in 50MHz Arbitrary Waveform Generator

The integrated dual-channel AWG eliminates the need for a separate function generator. Use it to:

• Generate standard waveforms (sine, square, ramp, pulse)

• Create arbitrary waveforms for custom stimulus

• Produce noise for margin testing

• Output DC signals for biasing

• Perform Bode plot analysis to characterize filter and amplifier frequency response

6. Enhanced FFT Analysis

With 4M-point FFT, you can seamlessly convert time-domain signals into frequency-domain information. Advanced viewing modes—full-screen, split-screen, and waterfall charts—allow comprehensive analysis of:

• Harmonic content and distortion

• Noise in DC power supplies

• Vibration characteristics

• Spectral components

7. Area Trigger

The advanced area trigger function captures signals that enter or exit a user-defined area on the screen—ideal for capturing occasional and complex signals that traditional triggers might miss .

8. Multi-Scopes Technology

Independent time base per channel with split-screen display allows you to view signals of vastly different frequencies simultaneously, each with optimal horizontal scaling. This is invaluable for analyzing relationships between slow control signals and fast data streams .

9. Intuitive Touchscreen Interface

The 8-inch capacitive touchscreen supports multi-touch gestures including click, slide, zoom, edit, and drag, providing a smartphone-like experience. Traditional button and knob controls are retained for users who prefer physical controls .

10. Remote Control via Web Server

The built-in web server allows you to access and control the oscilloscope remotely via a standard web browser on a PC or mobile device, making it ideal for collaborative work or remote monitoring .

Applications

The UNI-T MSO2204-S is an ideal all-in-one tool for:

🔧 Embedded Systems Design & Debugging

• Debug microcontroller-based systems with mixed analog and digital signals

• Analyze and decode serial communication protocols (I²C, SPI, UART, CAN, LIN)

• Correlate software events with analog signal behavior

📱 Consumer Electronics Development

• Validate power supply sequencing and integrity

• Analyze audio and video signals

• Debug interface timing and signal quality

🚗 Automotive Electronics

• Test and validate CAN and LIN bus communication

• Analyze sensor signals and actuator control waveforms

• Debug automotive ECUs and modules

⚡ Power Electronics

• Characterize switch-mode power supplies with Bode plot analysis

• Measure ripple, noise, and transient response

• Analyze control loop stability

📡 Communications & Semiconductor

• Test signal integrity in communication interfaces

• Validate timing in digital circuits

• Characterize semiconductor devices

🏫 Education & Training

• Ideal for university and vocational labs

• Teach oscilloscope fundamentals with intuitive touch interface

• Demonstrate mixed-signal concepts with integrated logic analyzer

🏭 Industrial Electronics & On-Site Maintenance

• Troubleshoot industrial control systems

• Analyze sensor and actuator signals

• Field service and maintenance with portable design

Why Choose the UNI-T MSO2204-S?

MSO2204-S vs. Other MSO2000 Series Models

The MSO2000 series offers several models with varying capabilities:

Choose the MSO2204-S if: You need maximum performance with 200MHz bandwidth across 4 analog channels for complex mixed-signal debugging and analysis.

Optional Accessories & Upgrades

Safety & Maintenance

• Input Protection: Maximum input voltage 400V (CAT I) . Always observe input ratings.

• Calibration: Regular calibration ensures measurement accuracy; follow manufacturer recommendations.

• Ventilation: Ensure adequate airflow around the instrument during operation.

• Cleaning: Clean the exterior with a soft, dry cloth. Avoid solvents or abrasive materials.

• Storage: Store in a clean, dry environment within specified temperature/humidity ranges.

• Warranty Extension: Register your instrument to extend the warranty from 3 to 5 years .

Customer Reviews & Verdict

The UNI-T MSO2204-S is widely recognized as an exceptional value proposition in the mixed-signal oscilloscope market, offering features typically found in instruments costing significantly more. Users consistently praise its comprehensive channel count, intuitive touch interface, and integrated AWG and logic analyzer capabilities .

Positive Feedback

• Value: "A multifunctional powerhouse" offering exceptional features at its price point .

• Channel Count: The 4+16 channel configuration is highly valued for embedded systems work.

• Integrated AWG: Eliminates the need for a separate function generator .

• Touchscreen Interface: The 8-inch capacitive screen with gesture control is praised for its intuitiveness .

• Fast Waveform Capture: The 1,000,000 wfms/s rate ensures no glitch goes unnoticed .

• Deep Memory: 56Mpts is generous for this class, enabling long captures with high detail .

Considerations

• Protocol Decoding: Basic protocols are not included as standard; optional decoding bundles are available .

• Weight: At 4.5-5.6kg, it's substantial but appropriate for a bench instrument .

• Fan Noise: Like most benchtop oscilloscopes, it has a cooling fan that produces some noise.

• Learning Curve: The extensive feature set may require some familiarization for new users.
