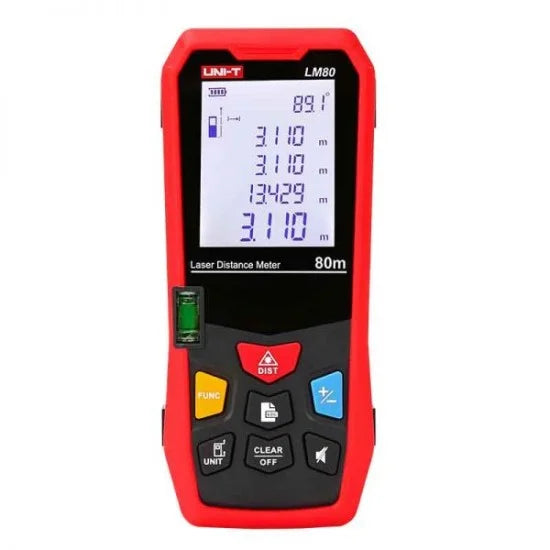

UNI-T LM80 80m Laser Distance Meter: The Ultimate Guide

Overview

The UNI-T LM80 is a professional-grade, 80-meter laser distance meter engineered for architects, construction workers, interior designers, and DIY enthusiasts who demand precision and reliability in their measurements . As part of UNI-T's popular LM series, this instrument delivers accurate distance measurements up to 80 meters with exceptional ±2mm accuracy, making it an indispensable tool for a wide range of indoor and outdoor applications .

Designed for both professional and personal use, the LM80 features an ergonomic exterior that ensures comfortable single-handed operation . Its intuitive interface, large 2-inch backlit LCD display, and comprehensive measurement functions allow users to perform everything from simple distance measurements to complex volume calculations with ease . Whether you're planning a renovation, supervising construction, or developing real estate, the LM80 provides the precision and versatility you need.

Key Features at a Glance

• 80m Measurement Range with High Accuracy: Measures distances up to 80 meters with professional-grade accuracy of ±(2mm + 5×10⁻⁵D) , ensuring reliable results for demanding applications .

• Large 2-Inch Backlit LCD Display: Features a clear, easy-to-read screen with auto-backlight for excellent visibility in all lighting conditions—from bright sunlight to dim interiors .

• 20-Group Data Memory: Stores up to 20 measurements for convenient recall and documentation, eliminating the need for manual note-taking on site .

• Comprehensive Measurement Modes: Includes single/continuous measurement, area/volume, Pythagoras (indirect measurement), Max/Min, addition/subtraction, and automatic horizontal/vertical leveling functions .

• Built-in Electronic Leveling & Angle Sensor: Features integrated tilt angle measurement with ±90.0° range for accurate alignment and indirect calculations .

• Built-in Physical Spirit Level: Includes a physical bubble level for quick visual reference when leveling the device .

• Selectable Reference Plane: Allows measurements from either the front or rear of the device for maximum flexibility in corners, recesses, and various measuring situations .

• Class 2 Laser Safety: Equipped with a safe red laser (630-670nm, <1mW) that provides a clear, visible aiming point .

• Auto Power-Off Functions: Conserves battery life with automatic laser shut-off after 30 seconds, backlight off after 10 seconds, and device shut-off after 3 minutes of inactivity .

• Audio Indication: Built-in buzzer provides audible confirmation of measurements and button presses .

• Multiple Measurement Units: Supports m/ft/in selectable to suit regional preferences .

• Compact & Portable Design: Lightweight design with compact dimensions of approximately 122×52×29.5mm easily fits in pocket or tool bag .

• Durable Construction: Solid build quality with a comfortable, non-slip grip that withstands job site conditions .

Detailed Specifications

Measurement Specifications

Measurement Functions

General Specifications

What's in the Box

LM Series Comparison: LM80 vs. Other Models

The LM series offers several models with varying ranges, all sharing similar core features :

Choose the LM80 if: You need an 80m range—perfect for most residential and commercial indoor applications, with the versatility to handle outdoor measurements where extended range is required .

LM80 vs. LM80-I / LM80C / LM80S: Important Distinctions

UNI-T offers several variants of the LM80, each with different features:

This description is specifically for the standard LM80 model. For variants with additional features like camera mode, voice broadcast, or USB charging, please refer to the respective product pages .

Key Functions & Operation

1. Single Distance Measurement

• Press the power button to activate the device and laser .

• Aim the laser dot at the target surface.

• Press the measure button to instantly display the distance on the large 2.0" backlit LCD screen.

2. Continuous Measurement (Tracking Mode)

• Press and hold the measure button to enter continuous measurement mode .

• Move the device while the display updates in real-time.

• Release the button to lock the final measurement.

• Ideal for finding minimum/maximum distances or measuring room diagonals .

3. Area & Volume Calculation

• Select the area or volume function from the mode menu .

• Measure length and width (and height for volume).

• The device automatically calculates and displays the total area or volume, saving time and reducing calculation errors .

4. Pythagoras (Indirect) Measurement

• Use this function to measure heights or distances that are inaccessible (e.g., measuring building height from the ground) .

• The device uses the Pythagorean theorem to calculate the desired dimension based on two or three measured sides .

5. Addition & Subtraction

• Measure a first value, then press the addition or subtraction button .

• Measure a second value; the device instantly displays the combined result.

• Perfect for calculating total wall lengths or remaining spaces .

6. Min/Max Measurement

• In continuous measurement mode, the device simultaneously displays the minimum and maximum values detected .

• Useful for ensuring level surfaces or finding the shortest/longest distance in a room .

7. Tilt Angle & Electronic Leveling

• The built-in electronic tilt sensor measures angles up to ±90.0° with high accuracy .

• Automatic horizontal and vertical leveling functions ensure accurate alignment .

• Perfect for checking slopes, inclines, and ensuring level installations.

8. Physical Spirit Level

• The built-in physical bubble level provides a quick visual reference for leveling the device without power .

9. Data Memory

• The LM80 stores measurement results in its 20-group memory .

• Recall saved measurements for review or documentation, facilitating efficient data management on site.

10. Reference Plane Selection

• Choose between measuring from the front or rear of the device using the reference button .

• This feature allows for flexible measurement options in corners, recesses, or when using the device against walls.

11. Unit Settings

• Press the unit button to cycle through measurement units: m, ft, in, ft+in .

12. Audio Indication

• The built-in buzzer provides audible confirmation of measurements and button presses .

• Can be turned on or off as needed.

13. Auto Power-Off & Battery Status

• The device automatically powers off after 3 minutes of inactivity to conserve battery life .

• Laser shuts off after 30 seconds, backlight after 10 seconds .

• Battery status display shows remaining power level .

Applications

The UNI-T LM80 is an ideal all-in-one tool for:

🏗️ Construction & Building

• Measuring room dimensions, wall lengths, and ceiling heights up to 80m

• Calculating material quantities for flooring, tiling, and drywall

• Verifying structural dimensions and layouts

• Construction site supervision and quality control

🏠 Interior Design & Renovation

• Planning furniture placement and room layouts

• Measuring for custom cabinetry and built-ins

• Calculating paint, wallpaper, and flooring requirements

• Space planning and interior decoration

📐 Architecture & Engineering

• Site surveys and preliminary measurements

• Creating accurate floor plans and elevations

• Engineering inspections and surveys

• Technical monitoring and supervision

🏭 Facility Management & Real Estate

• Property measurement and space assessment

• Real estate development and appraisal

• Facility planning and space optimization

• Production facility supervision

🔧 Construction & Heavy Industry

• Outdoor engineering – measuring distances on roads, bridges, and construction sites

• Infrastructure planning and development

• Using Pythagorean mode for inaccessible height measurements

🚓 Traffic Accident Evidence Gathering

• Quickly and accurately measuring accident scenes

• Documenting distances for insurance and legal purposes

• Working in various weather conditions

🔥 Fire Assessment & Emergency Response

• Measuring structural dimensions during fire assessments

• Documenting emergency scenes with precision

🌳 Outdoor & Landscape

• Property boundary verification

• Garden and landscape design measurements

• Outdoor construction projects

• Public facilities planning

🎓 Educational Use

• Demonstrating measurement principles

• Practical teaching tool for construction and engineering students

• Teaching and research applications

Why Choose the UNI-T LM80?

Safety & Maintenance

• Laser Safety: Class 2 laser (<1mW, 630-670nm) is safe for general use, but never aim the laser directly at eyes or reflective surfaces . Keep out of reach of children .

• Battery Care: Use 1.5V AAA alkaline batteries. Remove batteries if storing for extended periods to prevent leakage .

• Environmental Limits: Operate within 0-40°C; avoid extreme temperatures and humidity . Avoid direct exposure to high temperatures or humid conditions .

• Lens Cleaning: Keep the laser lens clean using a soft, dry cloth. Avoid touching optical surfaces with fingers.

• Avoid Strong Light: Ensure the target surface has good reflectivity; for dark or rough surfaces, use a reflective plate .

• Drop Protection: Avoid dropping or striking the device to prevent damage to internal components affecting accuracy .

• Storage: Store in a dry, ventilated place when not in use. Use the included carrying bag for protection .

• Calibration: For high-precision requirements, periodic professional calibration is recommended .

Customer Reviews & Verdict

The UNI-T LM80 is widely recognized as a reliable, accurate, and user-friendly laser distance meter that offers exceptional value for professionals and serious DIY enthusiasts. Its combination of 80m range, ±2mm accuracy, 20-group memory, and comprehensive measurement functions makes it a versatile tool for a wide range of applications .

The official UNI-T product description highlights the LM series as featuring "millimeter accuracy," "ergonomic exterior, comfortable handling," and "multiple functions: Max/Min/continuous measurement, displacement calculation, data storage, and more" .

One reviewer noted: "From the moment you pick up the LM80, you sense it's built for measurement—compact but solid. Its shape fits comfortably in your hand, with buttons that feel responsive under your thumb. You don't have to think hard about what button does what; it just feels intuitive to operate" .

Positive Feedback

• Accuracy: Users confirm the device delivers reliable, millimeter-precise measurements .

• Build Quality: The ergonomic design with comfortable handling and durable construction provides confidence on job sites .

• Ease of Use: Intuitive interface and comfortable grip make it accessible for users of all experience levels .

• Value for Money: The combination of 80m range, multiple functions, and 20-group memory offers exceptional value at its price point .

• Display Quality: The 2-inch backlit screen is praised for readability in various lighting conditions .

Considerations

• Battery Type: Uses 2× AAA batteries (included) which are readily available worldwide.

• Laser Type: Uses red laser (630-670nm), which may be less visible in bright sunlight compared to green laser models.

• Outdoor Use: For long-distance outdoor measurements in bright conditions, a target plate may be helpful.

• No USB Charging: Standard model uses disposable AAA batteries; for rechargeable options, consider LM80C or LM80S variants
