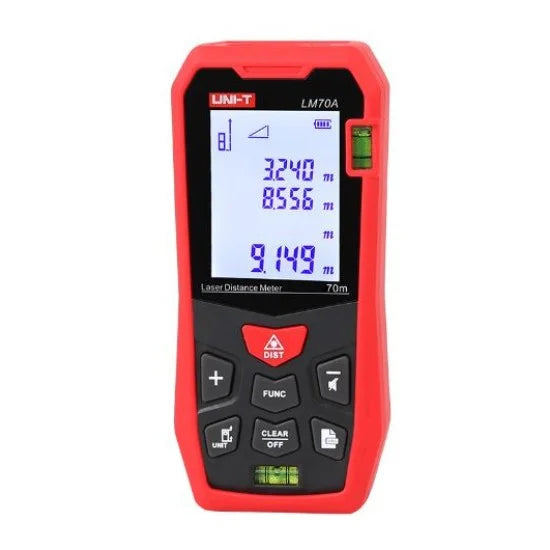

The UNI-T LM70A is a professional-grade, 70-meter laser distance meter designed for architects, construction workers, interior designers, and DIY enthusiasts who demand accuracy and efficiency in their measurements . As part of UNI-T's advanced LM A series, this instrument delivers reliable distance measurements up to 70 meters with an impressive accuracy of ±2mm, making it an indispensable tool for a wide range of applications .
Engineered for both professional and personal use, the LM70A features an ergonomic design that ensures comfortable single-handed operation . Its intuitive interface, large 2-inch backlit LCD display, and comprehensive measurement functions allow users to perform everything from simple distance measurements to complex volume calculations with ease . Whether you're planning a renovation, supervising construction, or developing real estate, the LM70A provides the precision and versatility you need .
70m Measurement Range: Measures distances up to 70 meters (230 feet) with millimeter precision, suitable for both indoor and outdoor applications .
High Accuracy (±2mm): Delivers exceptional accuracy of ±(2mm + 5×10⁻⁵D) , ensuring reliable results for professional-grade work .
Large 2" Backlit LCD Display: Features a clear, easy-to-read screen with backlight for excellent visibility in various lighting conditions, from bright sunlight to dim interiors .
99-Group Data Memory: Stores up to 99 measurements for convenient recall and documentation, eliminating the need for manual note-taking on site .
Multiple Measurement Functions: Includes single distance, continuous measurement, area, volume, Min/Max, addition/subtraction, and Pythagorean (indirect) measurement functions .
Built-in Dual-Axis Spirit Level: Features integrated horizontal and vertical bubble levels for accurate alignment and leveling during measurements .
Selectable Reference Plane: Allows measurements from either the front or rear of the device for maximum flexibility in various measuring situations .
Class 2 Laser Safety: Equipped with a safe red laser (630-670nm, <1mW) that provides a clear, visible aiming point .
Auto Power-Off Functions: Conserves battery life with automatic laser shut-off after 20 seconds and device shut-off after 150 seconds of inactivity .
Compact & Portable: Lightweight design with compact dimensions (112×50×25mm) easily fits in pocket or tool bag .
Mute Function: Available to turn the measurement beep on or off as needed .
Long Battery Life: Powered by 2× AAA batteries, providing approximately 8000 measurements on a full charge .
| Item | Quantity |
|---|---|
| UNI-T LM70A Laser Distance Meter | 1x |
| Soft Carrying Case | 1x |
| AAA Batteries (1.5V LR03) | 2x |
| User Manual | 1x |
Aim the laser dot at the target surface.
Press the measure button to instantly display the distance on the large backlit LCD screen.
Press and hold the measure button to enter continuous measurement mode .
Move the device while the display updates in real-time, showing Max/Min values simultaneously .
Release the button to lock the final measurement.
Ideal for finding minimum/maximum distances or measuring room diagonals .
The device automatically calculates and displays the total area or volume, saving time and reducing calculation errors .
Use this function to measure heights or distances that are inaccessible (e.g., measuring the height of a building from the ground) .
The device offers 4 different Pythagorean modes for various indirect measurement scenarios .
The device uses the Pythagorean theorem to calculate the desired dimension based on two or three measured sides.
Measure a first value, then press the addition or subtraction button .
Measure a second value; the device instantly displays the combined result.
Perfect for calculating total wall lengths or remaining spaces .
In continuous measurement mode, the device simultaneously displays the minimum and maximum values detected .
Useful for ensuring level surfaces or finding the shortest/longest distance in a room .
The LM70A stores measurement results in its 99-group memory .
Recall saved measurements for review or documentation, facilitating efficient data management on site .
Choose between measuring from the front or rear of the device using the reference button .
This feature allows for flexible measurement options in corners, recesses, or when using the device against walls.
Use the integrated horizontal and vertical bubble levels to ensure the device is perfectly level before measuring, increasing accuracy .
The LM70A includes a self-calibration feature to ensure long-term measurement accuracy .
Users can adjust the calibration value within a range of -9mm to +9mm based on actual measurement errors .
Long press the unit button to cycle through 6 optional measurement units: m, ft, in, and combination formats .
The UNI-T LM70A is an ideal all-in-one tool for :
Measuring room dimensions, wall lengths, and ceiling heights
Calculating material quantities for flooring, tiling, and drywall
Verifying structural dimensions and layouts
Construction site supervision and quality control
Planning furniture placement and room layouts
Measuring for custom cabinetry and built-ins
Calculating paint, wallpaper, and flooring requirements
Space planning and interior decoration
Site surveys and preliminary measurements
Creating accurate floor plans and elevations
Engineering inspections and surveys
Property measurement and space assessment
Real estate development and appraisal
Facility planning and space optimization
Production facility supervision
Short-distance outdoor measurements for garden paths and plant spacing
Property boundary verification
Landscape design measurements
Home renovation projects
Furniture assembly and placement
Workshop measurements and layout
Personal projects and hobby work
Demonstrating laser measurement principles
Practical teaching tool for construction and engineering students
Laser Safety: Class 2 laser (<1mW) is safe for general use, but never aim the laser directly at eyes or reflective surfaces .
Battery Care: Use 1.5V AAA alkaline batteries. Remove batteries if storing for extended periods to prevent leakage .
Environmental Limits: Operate within 0-40°C; avoid extreme temperatures and humidity .
Cleaning: Keep the laser lens clean; wipe with a soft, dry cloth.
The UNI-T LM70A is a powerful, versatile, and accurate laser distance meter that delivers professional-grade performance at an accessible price point. Its 70m range, ±2mm accuracy, 99-group memory, and comprehensive calculation functions make it exceptionally well-suited for architects, construction professionals, interior designers, and serious DIY enthusiasts .
The official UNI-T product page describes the LM70A as a "basic model handheld laser distance meter, compact appearance, full functions, accurate measurement, easy operation, quickly achieving length, area, volume, Pythagorean measurement" . With its built-in physical level and 2.0-inch high-definition auto-backlight display, it's a "must-have measuring tool for home and office" .
Whether you're measuring a small room, calculating material quantities for a renovation, or surveying a construction site, the LM70A delivers the precision, reliability, and versatility you need. With its large backlit display, intuitive operation, and robust memory, it's a smart investment for anyone who values accurate measurements.
