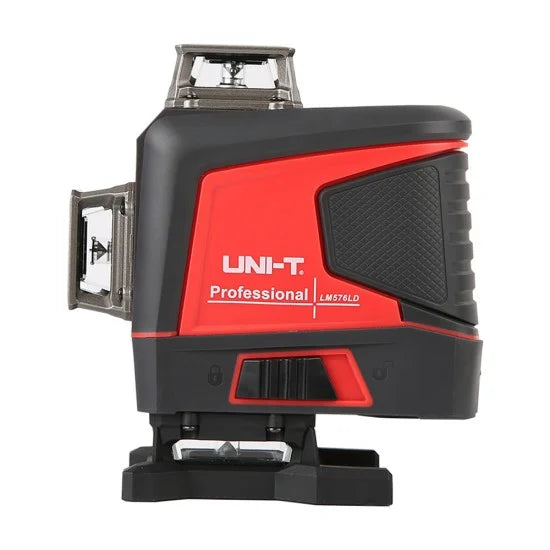

UNI-T LM576LD 16-Line 3D Green Beam Laser Level: The Ultimate Guide

Overview

The UNI-T LM576LD is a flagship, professional-grade 16-line 3D green beam laser level engineered for comprehensive layout and alignment tasks in large-scale construction, renovation, and interior design projects. As the most advanced model in UNI-T's LM576 series, this powerful instrument projects a full 16-line array for complete room coverage, eliminating the need for constant repositioning .

Designed to tackle the most demanding job site conditions, the LM576LD features a robust metal window frame for enhanced durability, a high-capacity rechargeable battery, and advanced self-leveling technology. With its ability to project 16 individual laser lines across 3 dimensions, this tool is indispensable for professionals requiring precise horizontal and vertical alignment across entire work areas .

Key Features at a Glance

• 16-Line 3D Green Beam Projection: Projects a comprehensive array of 16 laser lines with 360° horizontal and vertical coverage, providing complete 3-dimensional room coverage for simultaneous work on walls, ceiling, and floor .

• 360° Horizontal & Vertical Coverage: Both horizontal and vertical lines project a full 360° circle around the instrument, allowing for simultaneous leveling around an entire room without moving the device .

• High-Visibility Green Laser: Utilizes bright 520nm±5nm green LD laser technology (30mW power), providing exceptional visibility in well-lit indoor environments and over long distances .

• High-Precision Self-Leveling: Advanced magnetic damping gravity pendulum system ensures automatic leveling within ±3±1°. Self-leveling time is under 3 seconds .

• Superior Accuracy: Delivers professional-grade accuracy of ≤±3mm at 10m (±60") for both horizontal and vertical lines, ensuring reliable results for demanding applications .

• Extended Working Range: In pulse mode (5:5) with a compatible receiver, the working distance extends to 50 meters for outdoor applications .

• Close-to-Wall Operation: Minimum wall distance of only 10mm and minimum floor distance of 15mm, ideal for close-quarters fine work such as plastering and tile layout .

• Manual/Slope Mode: Features a lock function that disables the self-leveling mechanism, allowing you to project lines at any angle for inclined applications such as staircase installation, drainage layout, and sloped construction .

• Out-of-Level Alarm: Integrated audible beep and laser line flashing alerts the user when the instrument is beyond its leveling range, preventing inaccurate measurements .

• Wireless Remote Control: Includes a convenient wireless remote for easy operation from a distance, enhancing productivity on large job sites .

• Long-Lasting Rechargeable Battery: Powered by a high-capacity 5200mAh detachable Li-ion battery pack with Type-C interface. Provides approximately 6 hours of continuous operation .

• Durable Metal Window Frame: Features a robust metal window frame for enhanced durability, heat dissipation, and long-term reliability on demanding job sites .

• Versatile Mounting Options: 1/4-inch thread for tripod mounting, plus included wall-mount bracket and magnetic attachments for flexible installation .

Detailed Specifications

The UNI-T LM576LD delivers professional-grade performance across all key leveling parameters.

Laser & Optical Specifications

Leveling & Accuracy Specifications

Range & Environmental Specifications

Power & General Specifications

What's in the Box

Key Functions & Technology

1. 16-Line 3D Green Beam Projection

The LM576LD projects a comprehensive 16-line 3D configuration with full 360° coverage both horizontally and vertically. This complete coverage allows professionals to work on all walls, ceiling, and floor simultaneously without repositioning the instrument .

2. High-Visibility Green Laser Technology

With 520nm wavelength and 30mW power output, the LD green laser provides exceptional brightness—significantly more visible to the human eye than red lasers. The light is crisp and clear, with strong penetration, making it visible for both indoor and outdoor use .

3. Precision Self-Leveling System

The advanced magnetic damping gravity pendulum system ensures automatic leveling within ±3°±1°. When placed on a surface within this range, the instrument automatically levels itself in under 3 seconds. If the instrument is placed outside the leveling range, an audible buzzer and flashing laser lines alert the user, preventing inaccurate measurements .

4. Integrated Design for Close Work

The LM576LD is designed for 貼地貼牆貼頂一體化 (floor, wall, and ceiling integrated operation), solving the common problem of traditional laser levels struggling with close-range work. With minimum distances of 10mm to walls and 15mm to the floor, it excels at fine work such as plastering, tile layout, and baseboard installation .

5. Manual/Slope Mode with 180° Capability

The lock function disables the self-leveling mechanism, allowing you to project lines at any angle for inclined applications up to 180°. This is ideal for:

• Installing stair railings

• Laying drainage pipes with proper slope

• Setting up ramps and angled architectural features

• Sloped wall construction

6. Outdoor Pulse Mode

The built-in pulse mode (5:5) enhances laser visibility in bright outdoor environments when used with a compatible laser receiver (sold separately). This extends the effective working range to 50 meters, making the tool versatile for both indoor and limited outdoor applications .

7. Wireless Remote Control

The included wireless remote allows for convenient operation from a distance, enabling users to control the laser without returning to the instrument. This significantly improves efficiency on large job sites .

8. High-Capacity Detachable Battery

The 5200mAh detachable Li-ion battery pack provides approximately 6 hours of continuous operation. The Type-C interface allows for convenient charging using standard phone chargers or power banks, and the instrument can be used while charging—ensuring uninterrupted work .

9. Durable Metal Window Frame

Unlike plastic-framed competitors, the LM576LD features a robust metal window frame that provides enhanced durability, better heat dissipation, and long-term reliability on demanding job sites .

10. Versatile Mounting Options

The 1/4-inch thread allows for standard tripod mounting. The included wall-mount bracket and magnetic attachments provide flexible installation options for various job site scenarios .

Applications

The UNI-T LM576LD is an ideal all-in-one tool for:

🏗️ Large-Scale Construction & Building

• Full-room layout and wall alignment

• Foundation and formwork installation

• Structural framing and column placement

• Ceiling grid and suspended ceiling installation

• Quality control and inspection

🏠 Commercial & Residential Renovation

• Wall plastering and leveling

• Tile and stone alignment across multiple walls

• Cabinet and shelving installation

• Room partitioning and interior decoration

• Door and window frame installation

🔧 Electrical & Plumbing

• Conduit and pipe routing across entire floors

• Electrical box and switch alignment

• Cable tray positioning

• Sprinkler system layout

🪚 Flooring & Ceiling Work

• Large-area floor tile and wood floor leveling

• Suspended ceiling grid installation

• Base line setting for ground paving

• Ensuring flat and level surfaces

🏭 Industrial & Commercial

• Equipment alignment and installation

• Racking and shelving systems

• Partition wall construction

• Warehouse layout and planning

• Countertop and work surface leveling

🪜 Staircase & Slope Work

• Staircase installation and railing alignment

• Drainage slope verification (with manual mode)

• Ramp and inclined surface layout

Why Choose the UNI-T LM576LD?

LM576LD vs. Other LM Series Models

The UNI-T LM series offers several models with varying capabilities:

Choose the LM576LD if: You need the most comprehensive 16-line 3D coverage including 360° vertical lines, the premium Osram green LD laser for maximum brightness, and all advanced features including remote control and pulse mode .

Safety & Maintenance

• Laser Safety: Class II laser (<1mW output) is safe for general use, but never aim the laser directly at eyes or stare into the beam. Always use the provided safety precautions .

• Battery Care: Use the included 5200mAh Li-ion battery with the provided Type-C charger. Remove the battery if storing for extended periods to prevent deep discharge .

• Lens Cleaning: Keep the laser windows clean using a soft, dry cloth. Avoid touching optical surfaces with fingers .

• Environmental Limits: Operate within -10°C to 50°C; avoid extreme temperatures and humidity .

• Avoid Impacts: While rugged with a metal window frame, avoid dropping or striking the device to maintain calibration accuracy .

• Transport Lock: Lock the pendulum mechanism when transporting to protect the internal leveling system .

• Storage: Store in a dry, ventilated place when not in use. Use the included tool box for protection.

• Tripod Use: Ensure the tripod is stable and secure before mounting the instrument .

• Outdoor Use: For best results in bright sunlight, use a compatible laser receiver with pulse mode .

Customer Reviews & Verdict

The UNI-T LM576LD is widely recognized as a professional-grade laser level that delivers exceptional value, accuracy, and versatility. Its combination of 16-line 3D green beam projection, 360° coverage in both planes, high-visibility Osram laser technology, robust self-leveling system, and long-lasting 5200mAh battery makes it an indispensable tool for construction professionals, contractors, and serious DIY enthusiasts.

The official UNI-T product page highlights its ability to "provide accurate horizontal and vertical references and plumb benchmarks for indoor construction layout and calibration," with "easy operation and wide application" .

Positive Feedback

• Full Coverage: Users appreciate the 16-line 3D configuration with 360° vertical lines for complete room layout without repositioning.

• Visibility: The Osram green LD laser provides exceptional brightness even in well-lit indoor environments .

• Close-Range Work: The 10mm wall distance and 15mm floor distance are highly valued for fine work like tiling and plastering .

• Build Quality: The metal window frame and durable construction provide confidence in demanding job site conditions .

• Battery Life: The 5200mAh battery with Type-C charging is frequently highlighted as a major convenience feature .

• Remote Control: The wireless remote enhances productivity on large projects.

• Accuracy: The ±3mm@10m accuracy provides reliable results for professional applications.

Considerations

• Outdoor Range: For maximum range in bright sunlight, a compatible laser receiver is recommended .

• Weight: At 653g, it's appropriately weighted for a professional-grade 3D instrument .

• Battery: The detachable 5200mAh battery provides extended runtime; consider purchasing a spare for all-day continuous use.

• Price: As the flagship 16-line model, it represents a premium investment, but the comprehensive features justify the cost for professionals
