UNI-T LM573LD-II 12-Line 3D Green Beam Laser Level: The Ultimate Guide

Overview

The UNI-T LM573LD-II is a professional-grade, 12-line 3D green beam laser level engineered for comprehensive layout and alignment tasks in large-scale construction, renovation, and interior design projects. As a flagship model in UNI-T's advanced LM570/585 series, this powerful instrument projects a full 360° array of laser lines for complete room coverage, eliminating the need for constant repositioning .

Designed to tackle the most demanding job site conditions, the LM573LD-II features a robust metal window frame for enhanced durability, a high-capacity rechargeable battery, and advanced self-leveling technology. With its ability to project 12 individual laser lines across 3 dimensions, this tool is indispensable for professionals requiring precise horizontal and vertical alignment across entire work areas .

Key Features at a Glance

• 12-Line 3D Green Beam Projection: Projects a comprehensive array of 12 laser lines (4 vertical lines covering 360°, 1 horizontal line, and 4 plumb lines) for complete 3-dimensional room coverage .

• 360° Horizontal Coverage: The horizontal line projects a full 360° circle around the instrument, allowing for simultaneous leveling around an entire room without moving the device .

• High-Visibility Green Laser: Utilizes bright 520nm ±5nm green LD laser technology (30mW power), providing exceptional visibility in well-lit indoor environments and over long distances .

• High-Precision Self-Leveling: Advanced magnetic damping gravity pendulum system ensures automatic leveling within ±3°±1°. Self-leveling time is under 3 seconds .

• Superior Accuracy: Delivers professional-grade accuracy of ≤±3mm at 10m for both horizontal and vertical lines, ensuring reliable results for demanding applications .

• Extended Working Range: Provides an operating distance of 40 meters (standard). In pulse mode with a compatible receiver, the working distance extends to 50 meters for outdoor applications .

• Manual/Slope Mode: Features a lock function with 180° slope capability that disables the self-leveling mechanism, allowing you to project lines at any angle for inclined applications such as staircase installation, drainage layout, and sloped construction .

• Out-of-Level Alarm: Integrated audible beep and laser line flashing alerts the user when the instrument is beyond its leveling range, preventing inaccurate measurements .

• Wireless Remote Control: Includes a convenient wireless remote for easy operation from a distance, enhancing productivity on large job sites .

• Pulse Mode for Outdoor Use: Built-in pulse (5:5) mode enhances laser visibility in bright outdoor environments when used with a compatible laser receiver .

• Long-Lasting Rechargeable Battery: Powered by a high-capacity 5200mAh detachable Li-ion battery pack with Type-C interface. Provides approximately 6 hours of continuous operation and can be used while charging .

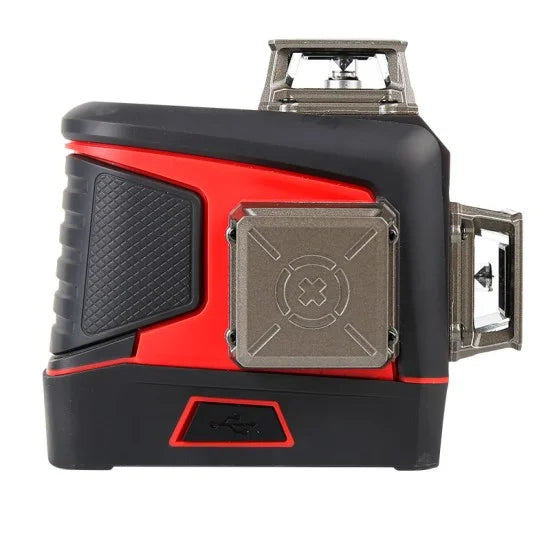

• Durable Construction: Features a metal window frame for enhanced durability and heat dissipation, ensuring long-term reliability on job sites .

• Close-to-Wall Operation: Minimum wall distance of only 10mm, ideal for close-quarters fine work such as plastering and tile layout .

• Standard Tripod Mount: Equipped with a 1/4-inch thread for easy mounting on professional tripods .

Detailed Specifications

What's in the Box

Key Functions & Technology

1. 12-Line 3D Green Beam Projection

The LM573LD-II projects a comprehensive 12-line 3D configuration: 4 vertical lines creating a full 360° vertical reference, 1 horizontal line forming a 360° circle around the instrument, and 4 plumb lines for floor-to-ceiling alignment . This complete coverage allows professionals to work on all walls, ceiling, and floor simultaneously.

2. High-Visibility Green Laser Technology

With 520nm wavelength and 30mW power output, the LD green laser provides exceptional brightness—significantly more visible to the human eye than red lasers. This makes it ideal for well-lit indoor environments and larger work areas .

3. Precision Self-Leveling System

The advanced magnetic damping gravity pendulum system ensures automatic leveling within ±3°±1°. When placed on a surface within this range, the instrument automatically levels itself in under 3 seconds. If the instrument is placed outside the leveling range, an audible buzzer and flashing laser lines alert the user, preventing inaccurate measurements .

4. Manual/Slope Mode with 180° Capability

The lock function disables the self-leveling mechanism, allowing you to project lines at any angle for inclined applications up to 180°. This is ideal for:

• Installing stair railings

• Laying drainage pipes with proper slope

• Setting up ramps and angled architectural features

• Sloped wall construction

5. Outdoor Pulse Mode

The built-in pulse mode (5:5) enhances laser visibility in bright outdoor environments when used with a compatible laser receiver (not included). This extends the effective working range to 50 meters, making the tool versatile for both indoor and limited outdoor applications .

6. Wireless Remote Control

The included wireless remote allows for convenient operation from a distance, enabling users to control the laser without returning to the instrument. This significantly improves efficiency on large job sites .

7. High-Capacity Detachable Battery

The 5200mAh detachable Li-ion battery pack provides approximately 6 hours of continuous operation. The Type-C interface allows for convenient charging using standard phone chargers or power banks, and the instrument can be used while charging—ensuring uninterrupted work .

8. Durable Metal Window Frame

Unlike plastic-framed competitors, the LM573LD-II features a robust metal window frame that provides enhanced durability, better heat dissipation, and long-term reliability on demanding job sites .

Applications

The UNI-T LM573LD-II is an ideal all-in-one tool for:

🏗️ Large-Scale Construction & Building

• Full-room layout and wall alignment

• Foundation and formwork installation

• Structural framing and column placement

• Ceiling grid and suspended ceiling installation

• Quality control and inspection

🏠 Commercial & Residential Renovation

• Kitchen and bathroom full-room layout

• Wallpaper and tile alignment across multiple walls

• Cabinet and shelving installation

• Room partitioning and interior decoration

🔧 Electrical & Plumbing

• Conduit and pipe routing across entire floors

• Electrical box and switch alignment

• Cable tray positioning

• Sprinkler system layout

🪚 Flooring & Ceiling Work

• Large-area floor tile and wood floor leveling

• Suspended ceiling grid installation

• Ensuring flat and level surfaces for paving

• Base line setting for ground paving

🏭 Industrial & Commercial

• Equipment alignment and installation

• Racking and shelving systems

• Partition wall construction

• Warehouse layout and planning

Why Choose the UNI-T LM573LD-II?

Safety & Maintenance

• Laser Safety: Class II laser (<1mW output) is safe for general use, but never aim the laser directly at eyes or stare into the beam. Always use caution around others.

• Battery Care: Use the included 5200mAh Li-ion battery with the provided Type-C charger. Remove the battery if storing for extended periods to prevent deep discharge.

• Lens Cleaning: Keep the laser windows clean using a soft, dry cloth. Avoid touching optical surfaces with fingers.

• Environmental Limits: Operate within -10°C to 50°C; avoid extreme temperatures and humidity .

• Avoid Impacts: While rugged, avoid dropping or striking the device to maintain calibration accuracy.

• Storage: Store in a dry, ventilated place when not in use. Use the included tool box for protection.

• Transport Lock: Lock the pendulum mechanism when transporting to protect the internal leveling system.

• Tripod Use: Ensure the tripod is stable and secure before mounting the instrument.

LM573LD-II vs. Other LM Series Models

The UNI-T LM series offers several models with varying capabilities:

Choose the LM573LD-II if: You need comprehensive 12-line 3D coverage for full-room layout, the durability of a metal window frame, and the convenience of remote control and long-lasting 5200mAh battery.

Customer Reviews & Verdict

The UNI-T LM573LD-II is widely recognized as a professional-grade laser level that delivers exceptional value, accuracy, and versatility. Its combination of 12-line 3D green beam projection, 360° coverage, high-visibility laser technology, robust self-leveling system, and long-lasting 5200mAh battery makes it an indispensable tool for construction professionals, contractors, and serious DIY enthusiasts .

The official UNI-T product page describes the LM573LD-II as featuring "12-line laser, 360° efficient and effortless, auto-leveling function to ensure laser lines are perfectly horizontal and vertical, 180° slope function, and 5200mAh capacity lithium battery pack" .

Positive Feedback

• Full Coverage: Users appreciate the 12-line 3D configuration for complete room layout without repositioning.

• Visibility: The bright green laser is highly visible even in well-lit indoor environments.

• Build Quality: The metal window frame and durable construction provide confidence in demanding job site conditions.

• Battery Life: The 5200mAh battery with Type-C charging is frequently highlighted as a major convenience feature.

• Remote Control: The wireless remote enhances productivity on large projects.

• Accuracy: The ±3mm@10m accuracy provides reliable results for professional applications.

Considerations

• Outdoor Range: For maximum range in bright sunlight, a compatible laser receiver is recommended.

• Weight: At 694g, it's substantial but appropriate for a professional-grade 3D instrument.

• Battery: The detachable 5200mAh battery provides extended runtime; consider purchasing a spare for all-day continuous use.
