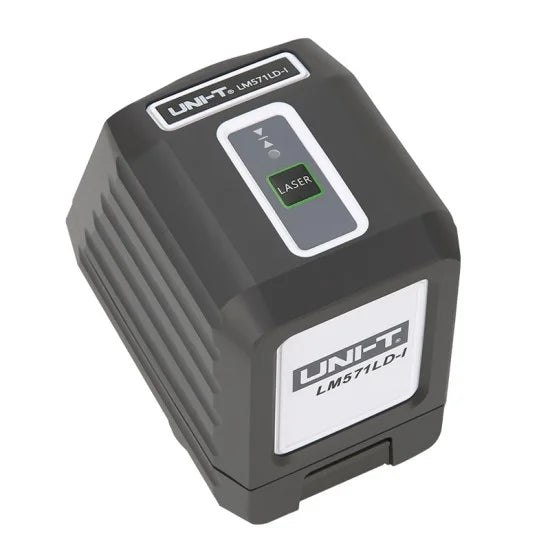

UNI-T LM571LD-I 2-Line Green Beam Laser Level: The Ultimate Guide

Overview

The UNI-T LM571LD-I is a professional-grade, compact line laser level designed for precision alignment and leveling tasks in construction, renovation, and interior design. As part of the advanced LM571 series, this instrument projects bright green laser lines for accurate two-dimensional leveling across a wide range of indoor and outdoor applications .

Engineered for efficiency and reliability, the LM571LD-I features a powerful green LD laser that delivers exceptional visibility, wide projection angles, and quick self-leveling. With an accuracy of ±2mm at 10m and an operating time exceeding 12 hours, it is an indispensable tool for professionals and DIY enthusiasts alike .

Key Features at a Glance

• Bright Green Beam Projection: Projects 2 laser lines (1 horizontal and 1 vertical) with 510nm wavelength green LD laser technology, providing sharp, clear lines for precise alignment .

• High-Precision Self-Leveling: Advanced magnetic damping gravity pendulum system ensures automatic leveling within 3°±1°. Self-leveling time is just 3 seconds .

• Superior Accuracy: Delivers professional-grade accuracy of ≤±2mm at 10m for both horizontal and vertical lines .

• Extended Working Range: Projects visible lines up to 20 meters (extends to >30 meters with a compatible detector) .

• Wide Projection Angles: Features an expanded angle of H130° and V150°, providing excellent coverage for large work areas .

• Exceptional Battery Life: Powered by 2 × 1.5V AA (LR6) alkaline batteries, providing >12 hours of continuous operation with all lasers active .

• User-Friendly Operation: Simple, intuitive controls with 3-second self-leveling time for efficient workflow .

• Tripod Mountable: Features a standard tripod mounting hole for stable positioning on professional tripods .

• Laser Safety: Class 2 laser (<1mW output) ensures safe operation for general use when proper precautions are observed .

Detailed Specifications

What's in the Box

Note: Package contents may vary by region and vendor. Check with your local distributor for complete accessory listings.

Key Functions & Technology

1. Bright Green Laser Technology

The LM571LD-I utilizes advanced green LD laser technology with 510nm wavelength and 10mW power output . Green lasers are significantly brighter and more visible to the human eye than red lasers, making them ideal for well-lit indoor environments and larger work areas .

2. Precision Self-Leveling System

The advanced magnetic damping gravity pendulum system ensures automatic leveling within 3°±1°. When placed on a surface within this range, the instrument automatically levels itself in just 3 seconds, ensuring accurate measurements without manual adjustment .

3. Extended Working Range

With a working distance of 20 meters (extendable to over 30 meters with a compatible detector), the LM571LD-I provides excellent coverage for a wide variety of indoor and limited outdoor construction projects .

4. Wide Projection Angles

The expanded angles of H130° and V150° provide superior coverage, allowing the laser lines to reach across large rooms and work areas without frequent repositioning .

5. Exceptional Battery Life

The LM571LD-I delivers over 12 hours of continuous operation on just two standard AA batteries—ensuring all-day productivity without frequent battery changes .

6. Tripod Mounting

The standard tripod mounting hole allows for stable positioning on professional tripods, ensuring accurate placement for precision work at optimal working heights .

Applications

The UNI-T LM571LD-I is an ideal tool for a wide range of applications :

🏗️ Construction & Building

• Wall alignment and formwork installation

• Structural framing and column placement

• Quality control and inspection

🏠 Interior Design & Renovation

• Home decoration and remodeling projects

• Wallpaper and tile alignment

• Kitchen and bathroom renovations

• Room partitioning and layout

🔧 Electrical & Plumbing

• Electrical installation and conduit routing

• Switch and socket alignment

• Pipe and cable tray positioning

🪚 Furniture Installation

• Cabinet and shelving installation

• Picture hanging and mirror placement

• Assembly of prefabricated furniture

📐 Grading & Leveling

• Floor leveling and surface preparation

• Base line setting for ground paving

• General grading applications

Why Choose the UNI-T LM571LD-I?

Safety & Maintenance

• Laser Safety: Class 2 laser (<1mW) is safe for general use, but never aim the laser directly at eyes or stare into the beam. Always use caution around others .

• Battery Care: Use high-quality AA alkaline batteries. Remove batteries if storing for extended periods to prevent leakage.

• Lens Cleaning: Keep the laser windows clean using a soft, dry cloth. Avoid touching optical surfaces with fingers.

• Environmental Limits: Operate within recommended temperature ranges; avoid extreme conditions.

• Transport: Protect the instrument during transport using the carrying bag.

• Storage: Store in a dry, ventilated place when not in use.

Final Verdict

The UNI-T LM571LD-I is a powerful, versatile, and accurate green beam laser level that delivers professional-grade performance at an accessible price point. Its combination of bright green laser technology, ±2mm at 10m accuracy, wide 130°/150° projection angles, and exceptional 12-hour battery life makes it exceptionally well-suited for tilers, electricians, carpenters, and home renovators.
